Diode Dynamics led tail lights

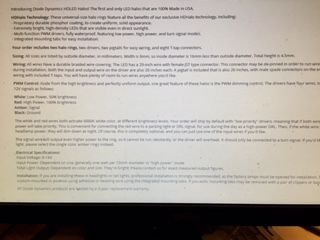

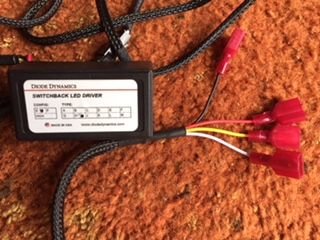

I bought a set of used C6 tail lights to have the Diode Dynamics switch back led tail light rings installed. I sent them off to Mike at Vettesthetics to have the lights opened up & the led rings installed. I now have the completed tail lights back from Mike & need some help with the wiring. The led tail lights have a 4 wire harness, black, red, yellow, & white wires. The factory tail light harness has a 3 wire plug to the factory bulb, brown, black, & yellow. I have included some pics that may help someone help me. The led's have a male spade connector on the end of each wire to attach to the factory wiring, Can someone walk me through this? thanks
Melting Slicks
Joined: Oct 2015
Posts: 3,299
Likes: 769
From: Mead Wash
2020 C6 of the Year Finalist - Modified
C6 of Year Finalist (appearance mods) 2019
Tailights
Why don't you contact Diode Dynamics and ask them or /Vettethetics or what ever their name is ?
Last edited by 2008 Corvette; Aug 19, 2018 at 09:54 PM.
Instructor
Joined: Oct 2017
Posts: 206
Likes: 31
From: Santa Barbara CA
this is what he e-mailed me after i received my set from him. amazing mod. very happy with them
These will connect to your existing harness. I have provided the quick splices to tap into the wires
As follows:
Black to black (Ground)
Red to Brown (12V running)
Yellow to Yellow/Grn/Blue (12v Turn Signal)
These will connect to your existing harness. I have provided the quick splices to tap into the wires
As follows:
Black to black (Ground)
Red to Brown (12V running)
Yellow to Yellow/Grn/Blue (12v Turn Signal)
Last edited by Tj25; Aug 21, 2018 at 02:02 AM.
Thread Starter
CF Community Team
Joined: Apr 2016
Posts: 14,146
Likes: 7,433
From: Pittsburgh
2025 C6 of the Year Finalist - Unmodified
2024 C6 of the Year Finalist - Unmodified
2023 C6 of the Year Finalist - Unmodified
2022 C6 of the Year Finalist - Unmodified
2021 C6 of the Year Finalist - Unmodified
TJ, Thanks for the response. I see that you did not use the white wire in your description, according to the DD website, the red wire is for 100% brightness & the white is for 50%, How bright are the light rings at night?
Thread Starter
CF Community Team
Joined: Apr 2016
Posts: 14,146
Likes: 7,433
From: Pittsburgh
2025 C6 of the Year Finalist - Unmodified
2024 C6 of the Year Finalist - Unmodified
2023 C6 of the Year Finalist - Unmodified
2022 C6 of the Year Finalist - Unmodified
2021 C6 of the Year Finalist - Unmodified
So, you guys used t taps to tap into the existing wiring harness before the factory plug? Thanks
