Single turbo help!!!
#1
Single turbo help!!!
Hi all im just after some guidance from the turbo experts out there.
Cut a long story short, I live in the U.K. and searched for a company to make me a single turbo kit where I could keep the ac and also a rear exit exhaust.
I found a company in the US who make kits for c6’s but it has not gone smoothly and has cost me £15k to purchase and install this kit.

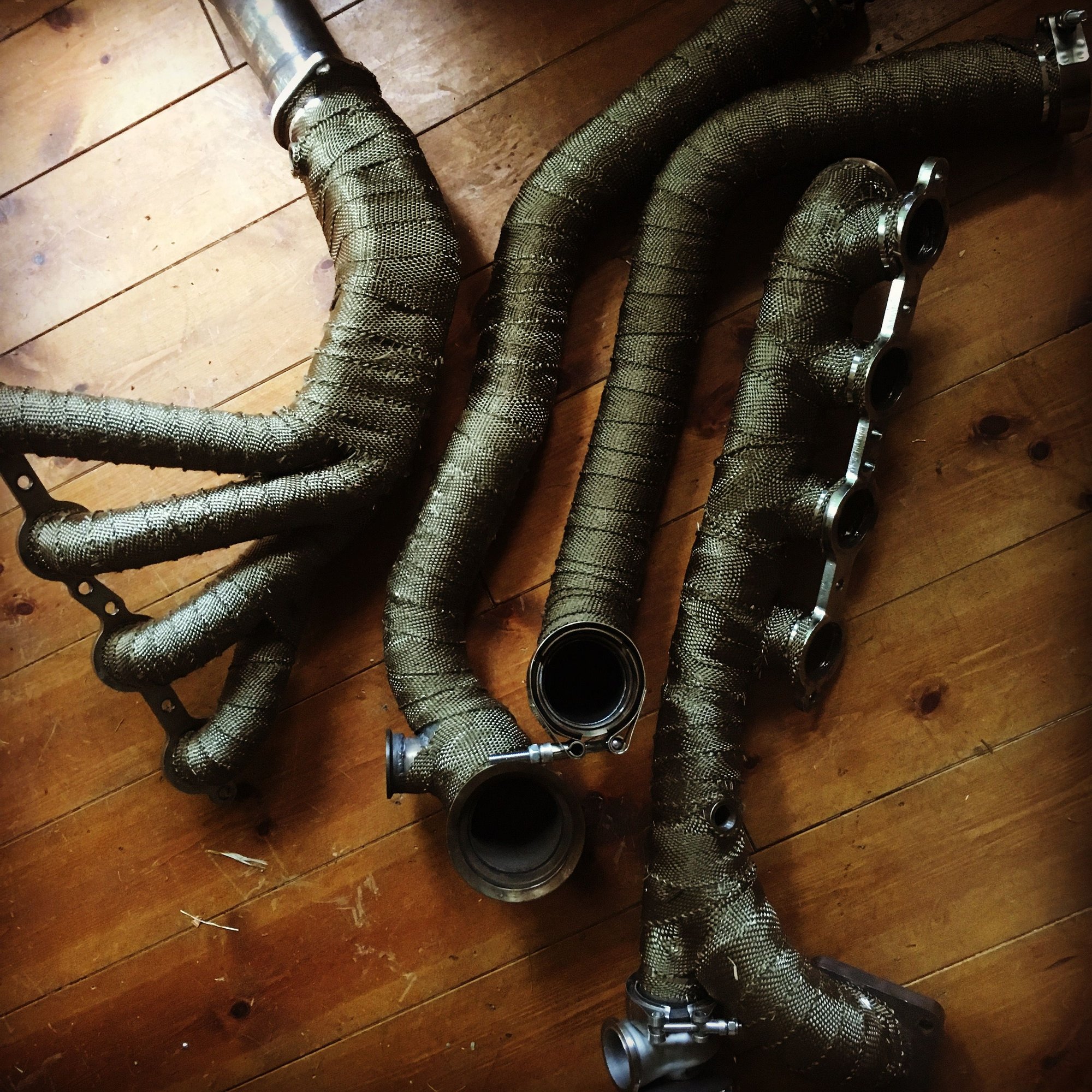

It consists of custom headers with 2.5” crossover pipe from driver to passenger header, 80lb injectors, bap, Xs power bov/wastegate (thought I was getting tial), bw 369sxe turbo.
Problem im having is that the turbo will not go beyond 9psi max, beyond this it causes all sorts of problems and the car seems to hit a wall.
I went to a garage today who said they could rebuild the passenger header so it’s higher up and allow a 3/3.5” downpipe to fit (currently 2.5” downpipe). Also to reroute the wastegate to atmosphere as at the minute it seems to point straight at the turbo outlet. All this will cost near enough £2k to do.
Now will this sort the issues im experiencing or should I also upgrade the turbo to a pt7675 at the same time. It just seems to be more and more money but this kit really doesn’t work well at all.
Cut a long story short, I live in the U.K. and searched for a company to make me a single turbo kit where I could keep the ac and also a rear exit exhaust.
I found a company in the US who make kits for c6’s but it has not gone smoothly and has cost me £15k to purchase and install this kit.
It consists of custom headers with 2.5” crossover pipe from driver to passenger header, 80lb injectors, bap, Xs power bov/wastegate (thought I was getting tial), bw 369sxe turbo.
Problem im having is that the turbo will not go beyond 9psi max, beyond this it causes all sorts of problems and the car seems to hit a wall.
I went to a garage today who said they could rebuild the passenger header so it’s higher up and allow a 3/3.5” downpipe to fit (currently 2.5” downpipe). Also to reroute the wastegate to atmosphere as at the minute it seems to point straight at the turbo outlet. All this will cost near enough £2k to do.
Now will this sort the issues im experiencing or should I also upgrade the turbo to a pt7675 at the same time. It just seems to be more and more money but this kit really doesn’t work well at all.
Last edited by SteveSierra; 02-11-2019 at 04:25 PM.
#2
Couple issues i will note here.
1. What looks like the turbo draining into the oil drain plug has to go. Oil must be drained ABOVE the oil level. I am shocked your not blowing oil out the exhaust.
You also need far more angle then it looks like your getting there with the current turbo/drain location.
2. That air filter is junk throw it away buy a quality filter. I have used much larger nicer filters and seen multiple PSI difference let alone that worthless thing that is on there.
3. I like the idea of a larger downpipe you could very honestly be maxing a 2.5 inch downpipe. I made around 580whp on a different platform on a 2.5 inch im not sure what is left after that.
4. Consider re routing your boost controller to what is shown on page 14 of this document rather then 13 like it looks like you have it setup.
https://sirhclabs.com/resources/cort...ions-4-0-3.pdf
5. Double check the springs inside of the wastegate. It very well may just require a tougher spring to make more then 9psi...put a different stronger spring combo in and check it out. Base it off of what you want to run at the max. I normally size my springs for around half my target so if i want 30psi i set the base spring at 15 or so depending on what springs i have laying around.
6. Your turbo is on the small side for a single and a 6.0L but if your goals are small ie maybe like 600whp then keep it. If want 700-800 then you need something larger imo. I would avoid a pte anything I have purchased a couple and found them lazy compared to other options on the market. Only thing pte does is offer something cheap in a small package not exactly the best product. I prefer Bullseye power turbos but thats just what i have experienced. They are borg based with varying levels of modified depending on budget and goals.
The whole kit looks pretty poorly made in components material and welding. Sorry to see you have all these issues. It will be worth it once you fix it all.
1. What looks like the turbo draining into the oil drain plug has to go. Oil must be drained ABOVE the oil level. I am shocked your not blowing oil out the exhaust.
You also need far more angle then it looks like your getting there with the current turbo/drain location.
2. That air filter is junk throw it away buy a quality filter. I have used much larger nicer filters and seen multiple PSI difference let alone that worthless thing that is on there.
3. I like the idea of a larger downpipe you could very honestly be maxing a 2.5 inch downpipe. I made around 580whp on a different platform on a 2.5 inch im not sure what is left after that.
4. Consider re routing your boost controller to what is shown on page 14 of this document rather then 13 like it looks like you have it setup.
https://sirhclabs.com/resources/cort...ions-4-0-3.pdf
5. Double check the springs inside of the wastegate. It very well may just require a tougher spring to make more then 9psi...put a different stronger spring combo in and check it out. Base it off of what you want to run at the max. I normally size my springs for around half my target so if i want 30psi i set the base spring at 15 or so depending on what springs i have laying around.
6. Your turbo is on the small side for a single and a 6.0L but if your goals are small ie maybe like 600whp then keep it. If want 700-800 then you need something larger imo. I would avoid a pte anything I have purchased a couple and found them lazy compared to other options on the market. Only thing pte does is offer something cheap in a small package not exactly the best product. I prefer Bullseye power turbos but thats just what i have experienced. They are borg based with varying levels of modified depending on budget and goals.
The whole kit looks pretty poorly made in components material and welding. Sorry to see you have all these issues. It will be worth it once you fix it all.
Last edited by Shortpersonbk; 02-11-2019 at 09:32 PM.
#3
Thank you for your time in replying, I really appreciate it.
I know what you mean about the air filter and I’m currently trying to move things about to squeeze a bigger filter in there.
We did try stronger springs in the wastegate but the car just didn’t like it when we increased the boost and the back pressure was too much.
Move heard a lot of good things regarding precision turbos so surprised to hear this, the main reason for me to use them would be the very limited space I have. I currently just fit the bg 369 so worried the larger framed turbos simply wouldn’t fit. I believe the pt 7675 is the same size unit as my current turbo but more potential.

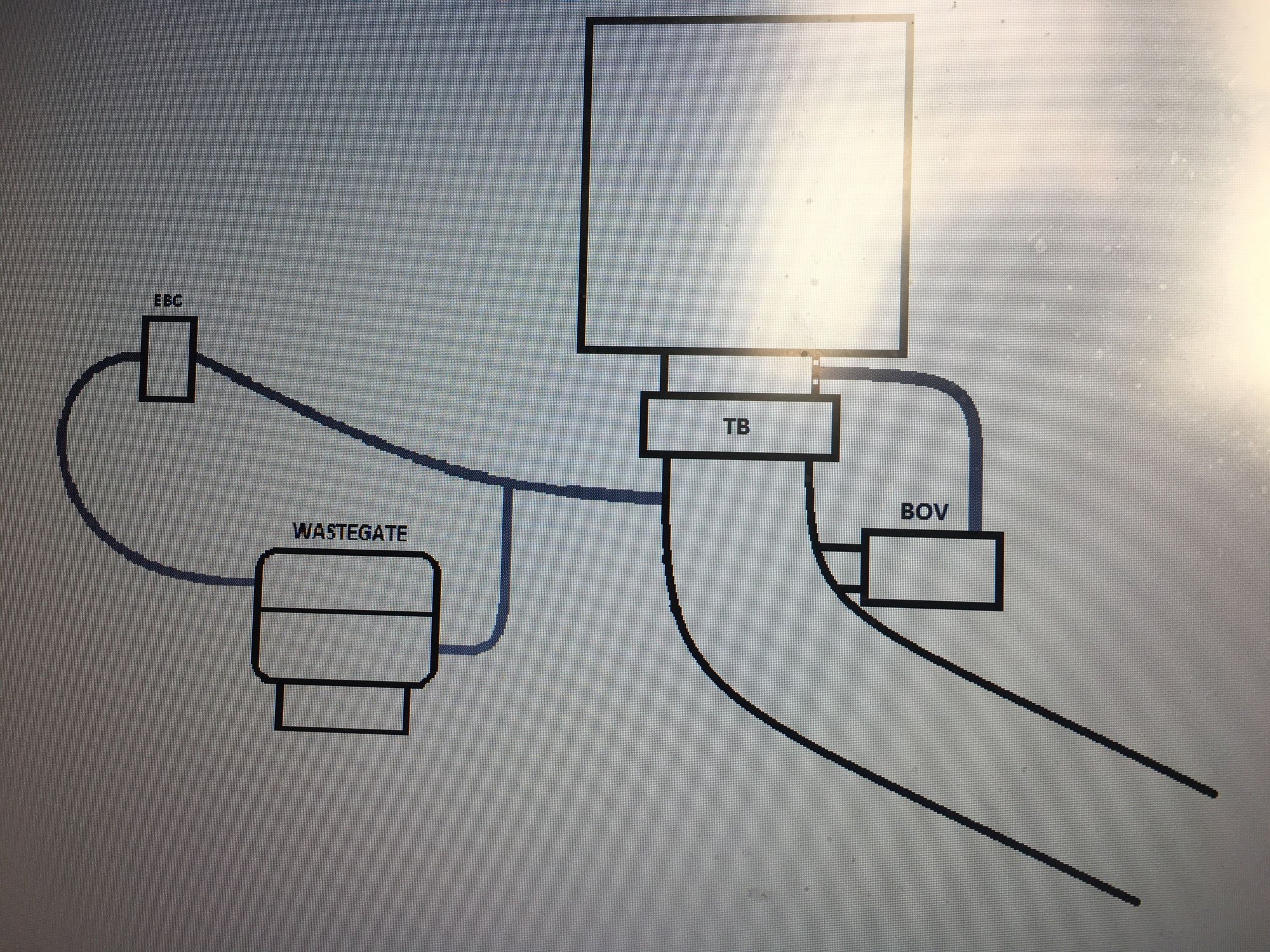

My current vacuum routing is as below, does this seem ok?
I know what you mean about the air filter and I’m currently trying to move things about to squeeze a bigger filter in there.
We did try stronger springs in the wastegate but the car just didn’t like it when we increased the boost and the back pressure was too much.
Move heard a lot of good things regarding precision turbos so surprised to hear this, the main reason for me to use them would be the very limited space I have. I currently just fit the bg 369 so worried the larger framed turbos simply wouldn’t fit. I believe the pt 7675 is the same size unit as my current turbo but more potential.
My current vacuum routing is as below, does this seem ok?
#5
Thank you for your time in replying, I really appreciate it.
I know what you mean about the air filter and I’m currently trying to move things about to squeeze a bigger filter in there.
We did try stronger springs in the wastegate but the car just didn’t like it when we increased the boost and the back pressure was too much.
Move heard a lot of good things regarding precision turbos so surprised to hear this, the main reason for me to use them would be the very limited space I have. I currently just fit the bg 369 so worried the larger framed turbos simply wouldn’t fit. I believe the pt 7675 is the same size unit as my current turbo but more potential.
My current vacuum routing is as below, does this seem ok?
I know what you mean about the air filter and I’m currently trying to move things about to squeeze a bigger filter in there.
We did try stronger springs in the wastegate but the car just didn’t like it when we increased the boost and the back pressure was too much.
Move heard a lot of good things regarding precision turbos so surprised to hear this, the main reason for me to use them would be the very limited space I have. I currently just fit the bg 369 so worried the larger framed turbos simply wouldn’t fit. I believe the pt 7675 is the same size unit as my current turbo but more potential.
My current vacuum routing is as below, does this seem ok?
It is not that PTE turbos are bad like i said i have purchased a few over the years. They are price friendly and compact. They just have terrible customer support and the product its self in back to back testing i have done just has not held up as well when it comes to response, lag, and power to competitor units that is all. If it is what fits in your situation in both space and budget your will more then likely be happy.
That being said i have a friend with a 5.7 hemi and a s366 turbo with a billet wheel and he makes enough power to trap in the 130s in a pretty heavy old jeep wagoner he even sees full boost by like 2,000 rpm or something. It is really all based on your end goals as to if you switch turbos or not. But please please fix that oil drain line im shocked that s369 is living through that but if you switch to the pte turbo it 100% will need to be rebuilt within a couple miles.
#6
Yes I will definately get a garage to move the oil return and also shorten the line as at the minute it’s too long and bends under the car below the pan itself.
With the vacuum lines I’ve double checked in the innovate instructions and it says I have it correct.
With the vacuum lines I’ve double checked in the innovate instructions and it says I have it correct.
#7
Yeah there are multiple ways to route the vac lines for a 3 port solenoid. Different routing promotes slightly different behavior. The one i posted i believe should allow you to get a little more boost out of a set spring within the gate since you route some of the pressure to the top of the gate.
#8
Le Mans Master
Looks like a Mirror Image turbo kit. Can't believe I actually considered using them at one point. Sorry to hear about your troubles.
What size is exhaust side housing? Definitely choking it up. The wastegate dumping into the exhaust so close to the exit is not helping either. Venting the wastegate to atmosphere may even allow you to run a few extra PSI before the back pressure jumps up again.
What size is exhaust side housing? Definitely choking it up. The wastegate dumping into the exhaust so close to the exit is not helping either. Venting the wastegate to atmosphere may even allow you to run a few extra PSI before the back pressure jumps up again.
#9
Lol. So much misinformation on here. Yes, small frame journal bearing precisions do blow ***. Your typical precision 7675 will do just fine, so long as you don't choke it, and starve it of oil, or drench it in oil. I've built kits that had to utilize extremely small air filters and they most certainly didn't pose any restriction. Also the DP should be 3.5" at a minimum, 4" if at all possible. Oh and the oil does not absolutely have to drain back above oil level, but that does depend on plenty of other factors... but that particular routing and drain back is ****.
#10
Lol. So much misinformation on here. Yes, small frame journal bearing precisions do blow ***. Your typical precision 7675 will do just fine, so long as you don't choke it, and starve it of oil, or drench it in oil. I've built kits that had to utilize extremely small air filters and they most certainly didn't pose any restriction. Also the DP should be 3.5" at a minimum, 4" if at all possible. Oh and the oil does not absolutely have to drain back above oil level, but that does depend on plenty of other factors... but that particular routing and drain back is ****.
Maybe it is just the small frame precisions that suck or maybe they are all subpar and just are much better at marketing i dont really know or care. Like i said above they work for what they are.
Last edited by Shortpersonbk; 02-12-2019 at 10:29 PM.
#11
I've used several precision turbo's on my Supra and never had a problem, and the billet versions make crazy horsepower. Just make sure you have good oil drainage, or use an oil restrictor for the feed if you have too much oil pressure. Not sure how well a 7675 will do, the turbine might have too much back pressure for a 6.0?
#12
So I finally got a larger filter so hopefully that will help. I just about got it to fit in the bay as it’s absolutely huge, probably over kill lol.
What are people’s thoughts on the crossover going straight into the passenger header? Will this have a huge effect and cause issues with the flow of the header or am I over thinking this bit?
What are people’s thoughts on the crossover going straight into the passenger header? Will this have a huge effect and cause issues with the flow of the header or am I over thinking this bit?
#13
So I finally got a larger filter so hopefully that will help. I just about got it to fit in the bay as it’s absolutely huge, probably over kill lol.
What are people’s thoughts on the crossover going straight into the passenger header? Will this have a huge effect and cause issues with the flow of the header or am I over thinking this bit?
What are people’s thoughts on the crossover going straight into the passenger header? Will this have a huge effect and cause issues with the flow of the header or am I over thinking this bit?
Hopefully with all these minor tweaks you get what you want from the car. Curious what are your goals?
#14
Thanks.
Have you got any pictures that you can share with me please.
I was looking at 700 as that’s what the kit was sold as achieving.
Might think about upgrading the turbo though to with a pt7675 or comp CTR4508R 8088
Have you got any pictures that you can share with me please.
I was looking at 700 as that’s what the kit was sold as achieving.
Might think about upgrading the turbo though to with a pt7675 or comp CTR4508R 8088
On my current turbo build we are dropping the crossover into the back of the manifold and I fully expect to make anywhere from 750-900 ish whp so take that for what it is.
Hopefully with all these minor tweaks you get what you want from the car. Curious what are your goals?
Hopefully with all these minor tweaks you get what you want from the car. Curious what are your goals?
