Pics needed

Anyone got a few pictures of where the UPP alternator relocation bracket mounts and how it mounts?

Sep 3, 2022 | 08:06 PM

Dayman

Advanced

Joined: Feb 2014

Posts: 91

Likes: 8

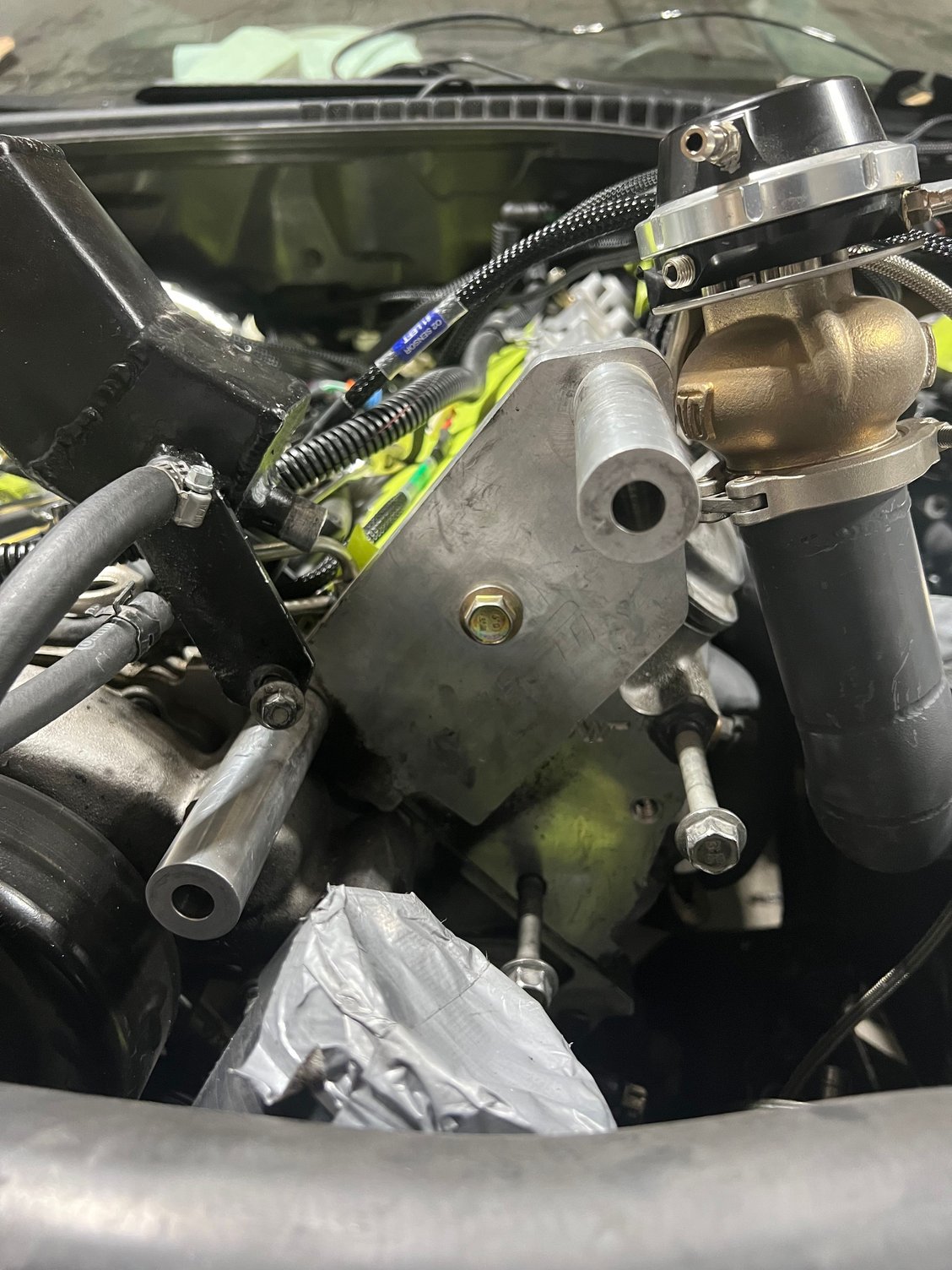

Sorry it’s the only picture I have of it

Sep 4, 2022 | 10:38 AM

Summerkruse13

Thread Starter

Racer

Joined: Jul 2018

Posts: 403

Likes: 44

From: Burnsville, mn

Quote:

Originally Posted by Dayman

Sorry it’s the only picture I have of it

So what happens to the power steering pump and the factory bracket that holds the OEM alternator?

Sep 4, 2022 | 10:40 AM

Dayman

Advanced

Joined: Feb 2014

Posts: 91

Likes: 8

Quote:

Originally Posted by Summerkruse13

So what happens to the power steering pump and the factory bracket that holds the OEM alternator?

The power steering stays in the bracket . But have to cut the bracket part where you’d have the arm that holds the alternator. Or at least mine is like that because of where my turbo is

Sep 4, 2022 | 12:36 PM

Summerkruse13

Thread Starter

Racer

Joined: Jul 2018

Posts: 403

Likes: 44

From: Burnsville, mn

Quote:

Originally Posted by Dayman

The power steering stays in the bracket . But have to cut the bracket part where you’d have the arm that holds the alternator. Or at least mine is like that because of where my turbo is

Do you have a picture of your cut bracket and where do you mounted your power steering reservoir?

Sep 4, 2022 | 04:18 PM

Dayman

Advanced

Joined: Feb 2014

Posts: 91

Likes: 8

Quote:

Originally Posted by Summerkruse13

Do you have a picture of your cut bracket and where do you mounted your power steering reservoir?

I don’t have one sorry. I’m no where near my car to take a pic either. Also the person you made my twin set up made a small custom reservoir. In the pic you can kind of see it on the left . It basically sits between the block/head and flipped inward pulley of the relocated alternator. Only was done for space reasons for my set up

Sep 4, 2022 | 04:21 PM

Dayman

Advanced

Joined: Feb 2014

Posts: 91

Likes: 8

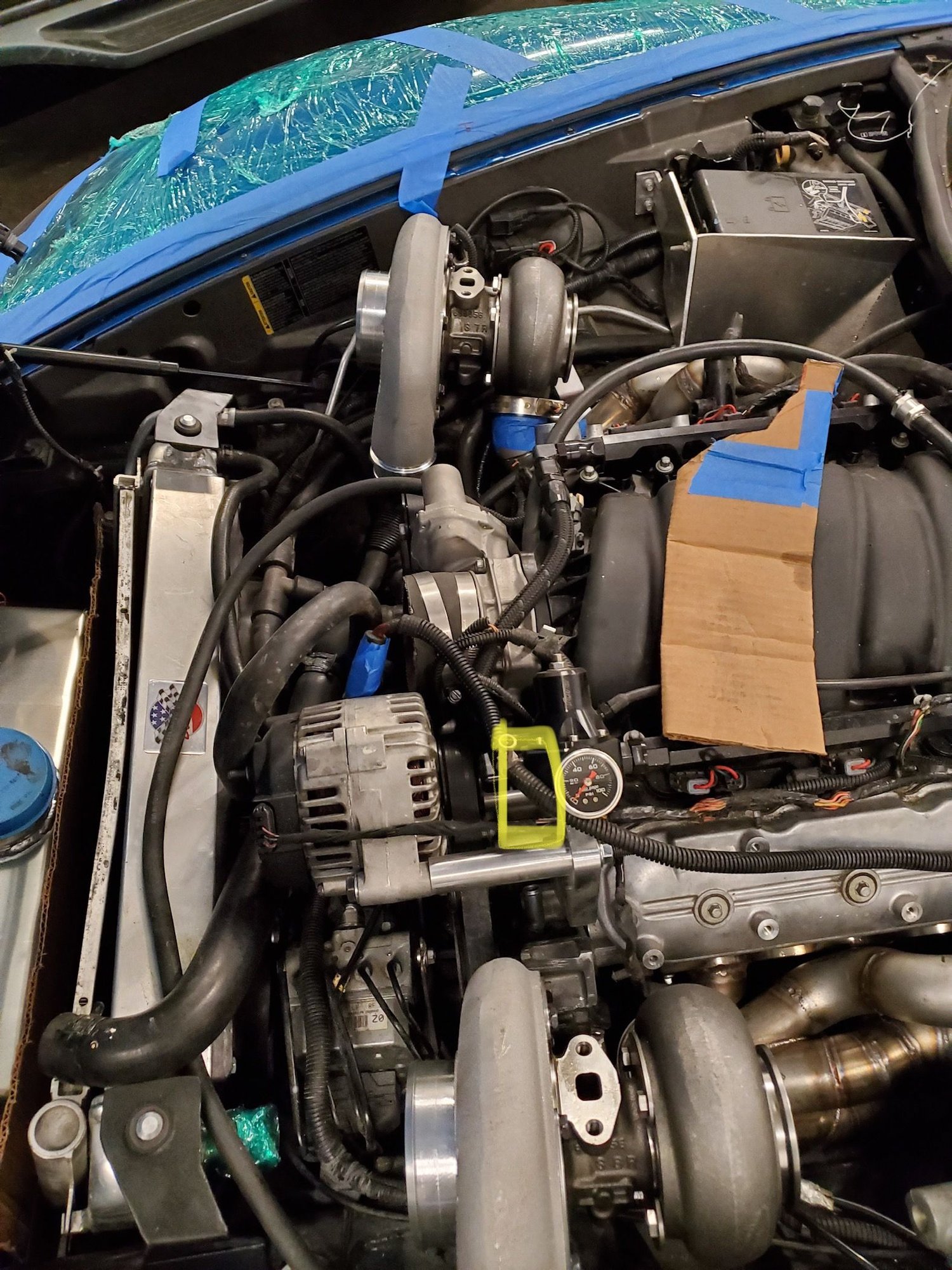

I dug this up from the build tho. Yellow square is where the power sheering red is

Sep 4, 2022 | 05:23 PM

Summerkruse13

Thread Starter

Racer

Joined: Jul 2018

Posts: 403

Likes: 44

From: Burnsville, mn

Quote:

Originally Posted by Dayman

I dug this up from the build tho. Yellow square is where the power sheering red is

Your Turbo setup is pretty close to mine.. You have any other completed pictures? I just want to get a different alternator bracket to make it easier to get on and off.. I think the UPP one will work.

Corvette Stories

The Best of Corvette for Corvette Enthusiasts

10 Ugly Corvettes That We Still Kinda Love

Joe Kucinski

Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer

Brett Foote

10 Things Every Corvette Owner Needs (2026 Edition)

Michael S. Palmer

8 Most "Only Corvette Owners Understand" Quirks and Problems

Pouria Savadkouei

10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years

Joe Kucinski

How Much Horsepower Every Corvette Engine "LOST" in 1972

Joe Kucinski

Top 10 DOs and DON'Ts for Protecting Your Convertible Top!

Michael S. Palmer

Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!

Joe Kucinski

150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter

Joe Kucinski

8 Coolest Corvette Pace Cars (and Replicas) of All Time

Verdad Gallardo

Sep 4, 2022 | 05:33 PM

Dayman

Advanced

Joined: Feb 2014

Posts: 91

Likes: 8

Quote:

Originally Posted by Summerkruse13

holy , I’ve seen your car on fb group I’m fairly certain . How do this inconel shields work, I think I’m gunna get some this winter.

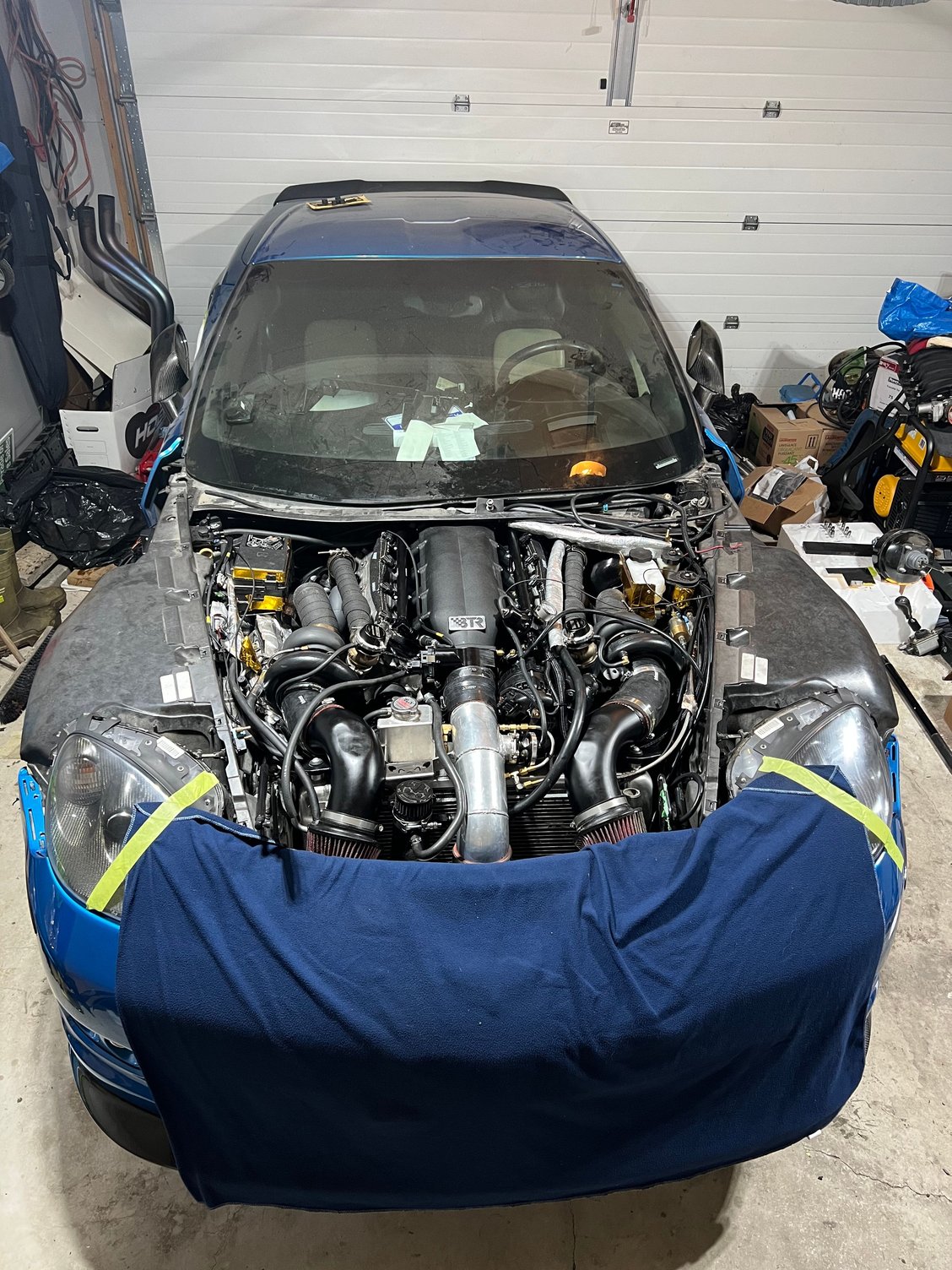

Mostly the same minus some bay clean up etc
