Eagle Eye's LED tail lights... what am I missing here???
Thread Starter
Le Mans Master
Joined: Sep 2006
Posts: 6,619
Likes: 98
From: Prattville Alabama
Eagle Eye's LED tail lights... what am I missing here???
So yesterday was finally nice enough to back the Z out of the garage and swap out my stock tails with a set of LED tail lights from Eagle Eyes.

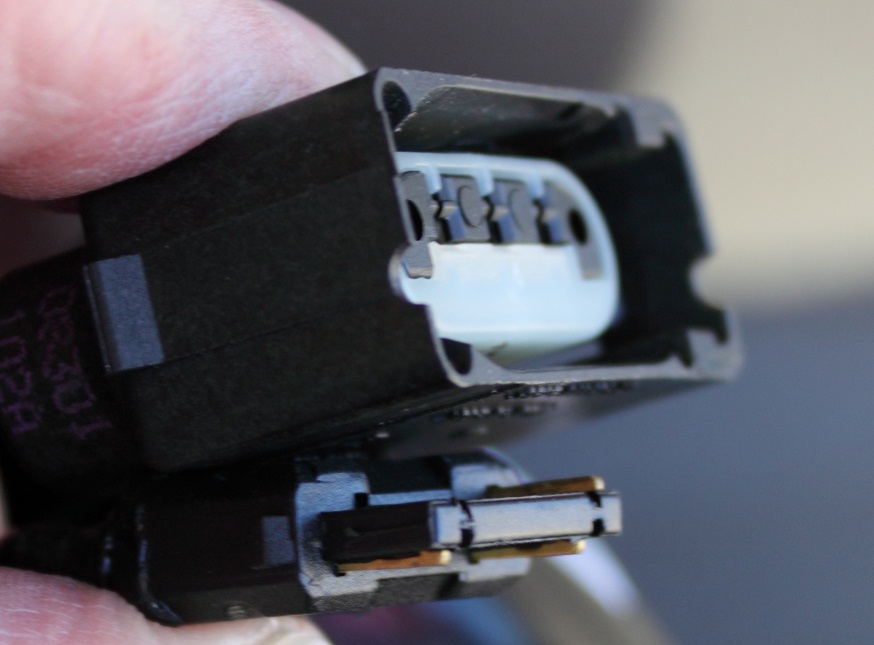

Take a look at the picture below. The top plug is the stock female from the wiring harness and the bottom is the male from the LED tail lights. As you can see they aren't going to mate up at all. Of course this kit came with zero instructions too.
Just a single sheet of paper stating that if any of the lights didn't work to disconnect them and reverse the plug.
Suggestions?
U.M.
Take a look at the picture below. The top plug is the stock female from the wiring harness and the bottom is the male from the LED tail lights. As you can see they aren't going to mate up at all. Of course this kit came with zero instructions too.
Just a single sheet of paper stating that if any of the lights didn't work to disconnect them and reverse the plug. Suggestions?
U.M.
Melting Slicks
Joined: Apr 2003
Posts: 2,987
Likes: 9
From: Columbus OH
I'm going to venture a guess here as I never did this before.
Judging from the picture, I believe you unplugged a connector that's way upstream. Look at the (OEM) bulb connector/carriers, I believe the Eagle Eye's plugs into them.
Judging from the picture, I believe you unplugged a connector that's way upstream. Look at the (OEM) bulb connector/carriers, I believe the Eagle Eye's plugs into them.
Safety Car
Joined: Nov 2006
Posts: 4,023
Likes: 266
From: San Jose California
You're missing the "between" piece.
Take one of your stock taillamps and remove the socket (that holds the bulb) from the lens. Remove the bulb from the socket. Now look at all the pieces carefully and the light (as it were) should dawn on you
The LED lamp socket plugs into the place where your stock BULB plugs in.
Look at this pic:
http://www.gmpartshouseusa.com/partl...layCatalogid=0
Z//
Take one of your stock taillamps and remove the socket (that holds the bulb) from the lens. Remove the bulb from the socket. Now look at all the pieces carefully and the light (as it were) should dawn on you
The LED lamp socket plugs into the place where your stock BULB plugs in.
Look at this pic:
http://www.gmpartshouseusa.com/partl...layCatalogid=0
Z//
Last edited by Zoxxo; Jan 19, 2010 at 12:08 PM.
Thread Starter
Le Mans Master
Joined: Sep 2006
Posts: 6,619
Likes: 98
From: Prattville Alabama
You're missing the "between" piece.
Take one of your stock taillamps and remove the socket (that holds the bulb) from the lens. Remove the bulb from the socket. Now look at all the pieces carefully and the light (as it were) should dawn on you
The LED lamp socket plugs into the place where your stock BULB plugs in.
Look at this pic:
http://www.gmpartshouseusa.com/partl...layCatalogid=0
Z//
Take one of your stock taillamps and remove the socket (that holds the bulb) from the lens. Remove the bulb from the socket. Now look at all the pieces carefully and the light (as it were) should dawn on you
The LED lamp socket plugs into the place where your stock BULB plugs in.
Look at this pic:
http://www.gmpartshouseusa.com/partl...layCatalogid=0
Z//
U.M.
Safety Car
Joined: Nov 2006
Posts: 4,023
Likes: 266
From: San Jose California
#4 is the wiring harness
#2 is the thing you plug the LED plug into (the only thing it *will* fit.)
Just think of your LED units as replacement BULBS.
Z//
Thread Starter
Le Mans Master
Joined: Sep 2006
Posts: 6,619
Likes: 98
From: Prattville Alabama
I'll yank the bulb bases out of the housings and plug in there... honestly never even thought about trying that! I figured the stock tail lamps used standard style bulbs with a round base. Never crossed my mind they used a spade style bulb hence I never pulled them apart.
Thanks.
U.M.
Safety Car
Joined: Nov 2006
Posts: 4,023
Likes: 266
From: San Jose California
Z//
Thread Starter
Le Mans Master
Joined: Sep 2006
Posts: 6,619
Likes: 98
From: Prattville Alabama
It makes sense, for sure. It would also cost mucho bucks since that connector doesn't have a male counterpart available on the open market. The LED tail lamp maker would have to custom order those and at such low quantities it would be prohibitively expensive. Their solution is inexpensive and easy enough to deal with.
Z//
Z//
U.M.
