LS3 MAF Wires
I made a big mistake trying to shorten my MAF wire harness. I have an LS3 Erod and I cut the MAF harness wires before I looked and saw there were two tan wires. Now I'm not sure how to reconnect them. Is there a way of finding out what tan wire goes to the "E" pin "intake air temp sensor signal" or what tan wire goes to the "D" pin "low reference"?
Thanks
Thanks
Supporting Vendor
Joined: Sep 2007
Posts: 11,216
Likes: 178
From: Pensacola Florida GO GATORS!!! www.rlsebring.com www.c6c7vette.com
St. Jude Donor '17
Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
Pin Wire Circuit Function
A 0.35 YE 492 Mass Air Flow (MAF) Sensor Signal
B 0.8 BK/WH 451 Ground
C 0.5 PK 539 Ignition 1 Voltage
D 0.35 TN 2760 Low Reference
A 0.35 YE 492 Mass Air Flow (MAF) Sensor Signal
B 0.8 BK/WH 451 Ground
C 0.5 PK 539 Ignition 1 Voltage
D 0.35 TN 2760 Low Reference
E 0.35 TN 472 Intake Air Temperature Sensor Signal
Advanced
Joined: Feb 2012
Posts: 66
Likes: 0
From: Louisville Kentucky
I don't know what it is for this car specifically, but it seems like the reference should read around 5v continuous (guessing it's a 5v reference), while the the IAT wire would read something different, but I'm not sure how much different it would be. And the IAT signal should vary while the reference signal shouldn't.
That's just something I would experiment with if it were me.
Pretty stupid to have two of the same color wires!
That's just something I would experiment with if it were me.
Pretty stupid to have two of the same color wires!
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!
Verdad Gallardo
Top 10 Corvettes Coming to Mecum Indy 2026!
Brett Foote
Top 10 C9 Corvette MUST-HAVES to Fix These C8 Generation Flaws!
Michael S. Palmer
10 Revolutionary 'Corvette Firsts' Most People Don't Know
Joe Kucinski
5 Reasons to Upgrade to an LS6-Powered Corvette; 5 Reasons to Stay LT2
Michael S. Palmer
2027 Corvette vs The World: Every C8 vs Its Closest Competitor
Joe Kucinski
10 Most Common Corvette Problems of the Last 20 Years!
Joe Kucinski
5 MOST and 5 LEAST Popular Corvette Model Years in History!
Joe Kucinski
2027 Corvette Buyer's Guide: Everything You Need to Know!
Joe Kucinski
1st Gear
Joined: Sep 2019
Posts: 1
Likes: 0
I did exactly the same thing! Did you get the information you need? If so will you share. Thank you, Ralph Congdon futurepastco@hotmail.com
Moderator, Tech Contributor
Joined: Sep 2013
Posts: 15,410
Likes: 3,964
From: Cape Coral, Florida
CorvetteForum Editor
Joined: Feb 2020
Posts: 404
Likes: 517
From: Los Angeles

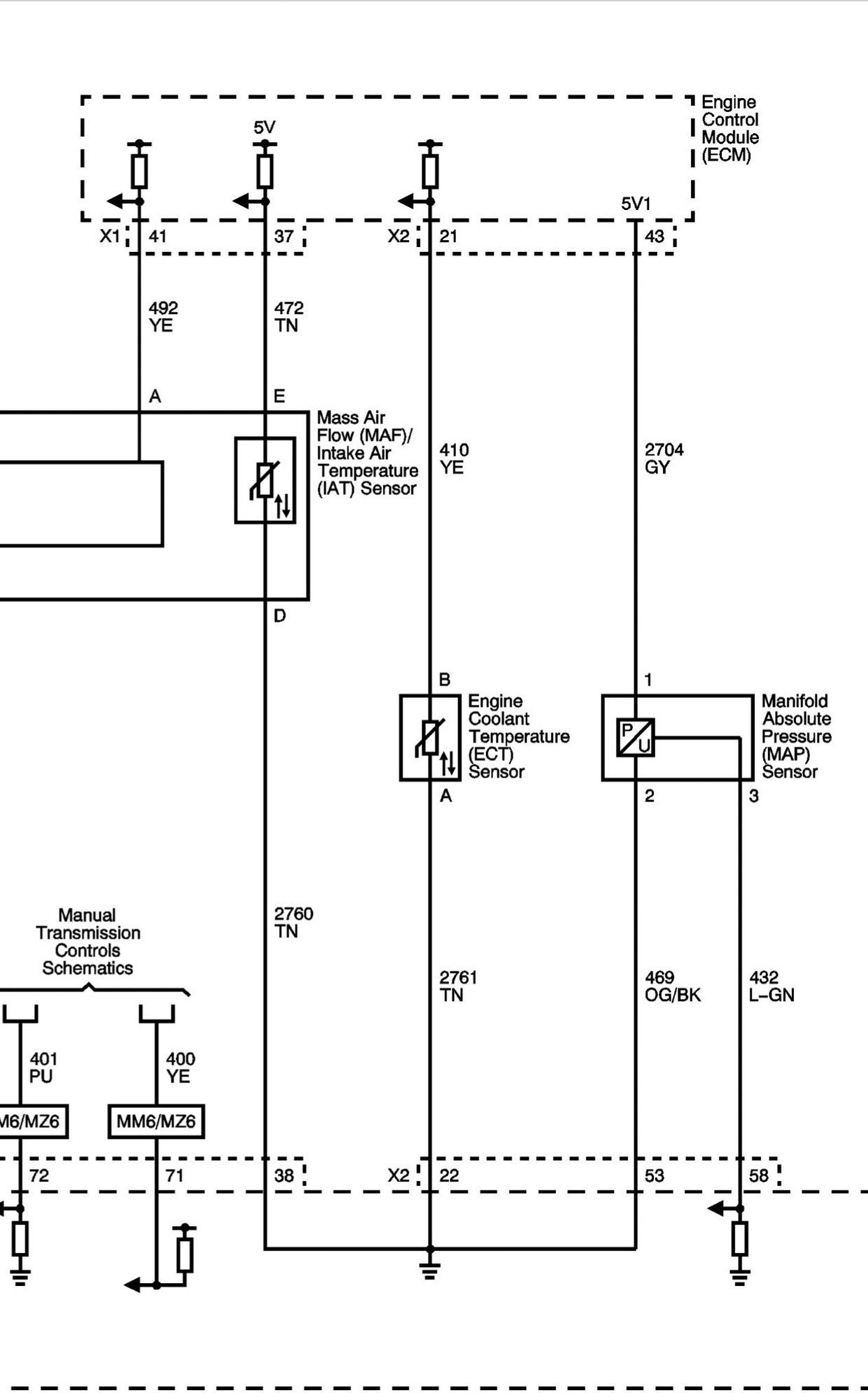

Tan wire with the 5V is the outside pin (I'm not certain if that's A or E in the post 3 diagram, i think it's E).
