Msd atomic airforce intake manifold
Moderator
Joined: Jun 2004
Posts: 22,753
Likes: 943
A friend just installed one, picked up 10 HP on a 555rwhp car with a stock ls7 intake.
Cunningham motorsports on ls1tech installed one and got the 10 HP gain over a fast 102 but neither got the 30 thats been claimed..
Cunningham motorsports on ls1tech installed one and got the 10 HP gain over a fast 102 but neither got the 30 thats been claimed..
Last edited by Millenium Z06; Apr 5, 2015 at 09:44 PM.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Moderator
Joined: Jun 2004
Posts: 22,753
Likes: 943
Ls1tech
Today we did a simple apples to apples comparision with a FAST 102 to a new MSD airforce intake manifold, on a c6 z06. We baseline dyno'ed and insured the Air fuel was correct with the fast 102, then installed the msd and did the same thing.
Car: 06 c6 z06
Mods:
CMS custom stage 3 cam (23x-25x on a 113)
WCCH stage 2 heads
FAST 102/ NW102 tb
ARH long tube headers with cats
stock rear section exhaust
DSX flex fuel sensor setup
FIC 725 cc injectors
Vararam intake
CMS custom flex fuel calibration
all runs done on e85, ethanol content of 76-78% throughout the day. we tried to keep coolant temp and IAT temps the same from run to run, in order to keep this test as legit as possible.
Fast 102/nw102 baseline:
553 RWHP and 510rwtq
MSD Airforce / NW102
562 rwhp 510 rwtq
conclusion:
After viewing the MSD airforce at sema last year, I could definitely see there were improvements over the fast 102 intake manifold. That being said, I knew in a factory style intake configuration, there wasn't going to be a huge gain without sacrificing power/tq down low and into the mid range. As you can see in the dyno sheet below, the msd does sacrifice a very slight bit down low and into the midrange, in exchange of a larger increase in power from 5000+ rpm on. In fact HP/TQ averages are slightly higher with the MSD unit. Now if the customer has an msd intake would I suggest upgrading to a msd? I would say its not worth the investment, however if he had a factory intake, I'd say move into the MSD versus the fast. In addition to the power gains, I like the fact that the msd utilizes the use of the production ls7 fuel and injectors. This means initial investment is less then the FAST unit, as the fast will require injector height adapters (or different length injectors) and a ls2/3 fuel rail (or aftermarket rails). I've also attached a text data sheet of both runs.
Dyno Video:
https://www.youtube.com/watch?v=vaVY...ature=youtu.be
dyno sheet with peak numbers, run 1 is the msd, 2 is the fast:
Dyno sheet with avg. numbers, run 1 is the msd, 2 is the fast

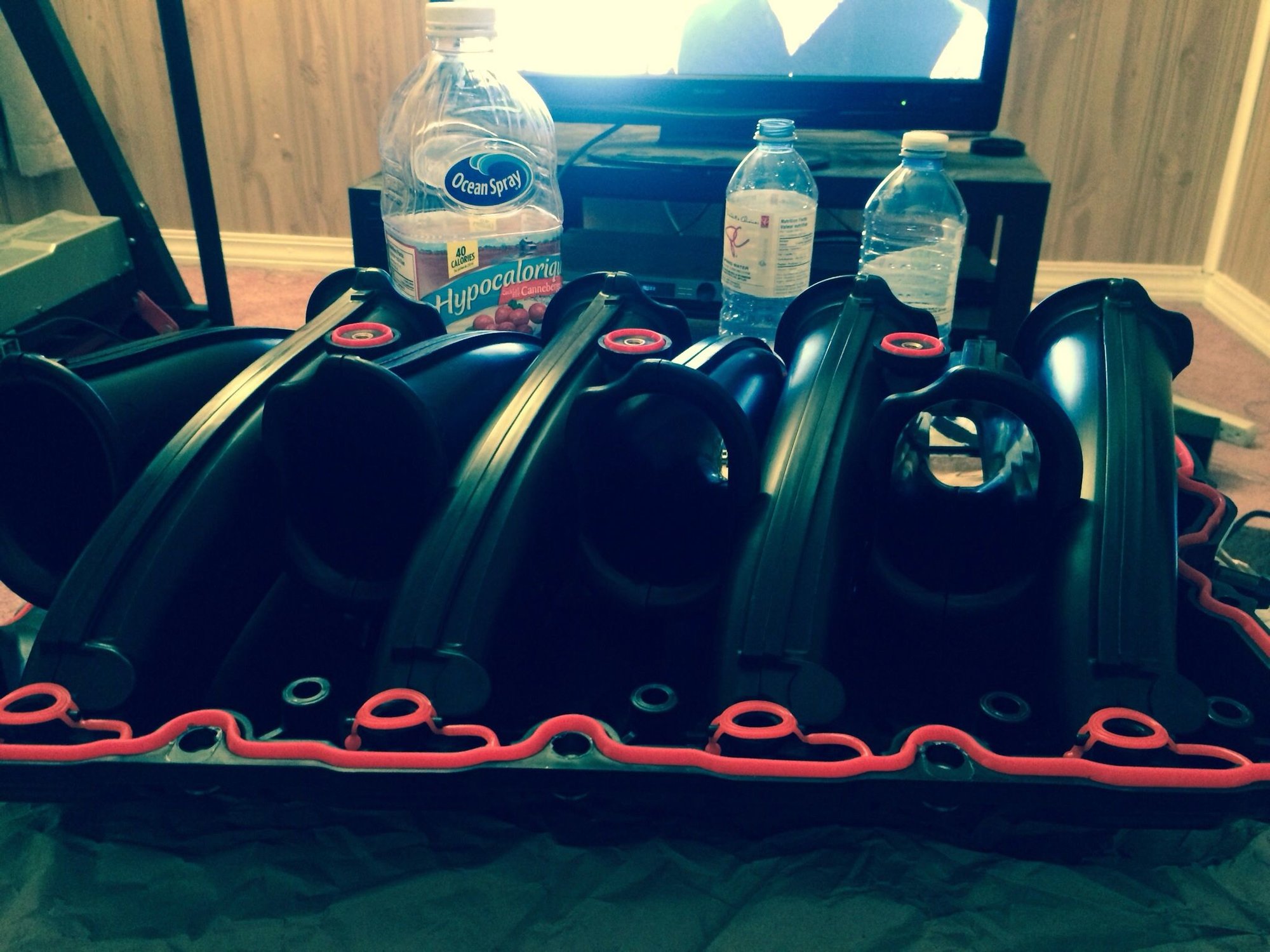

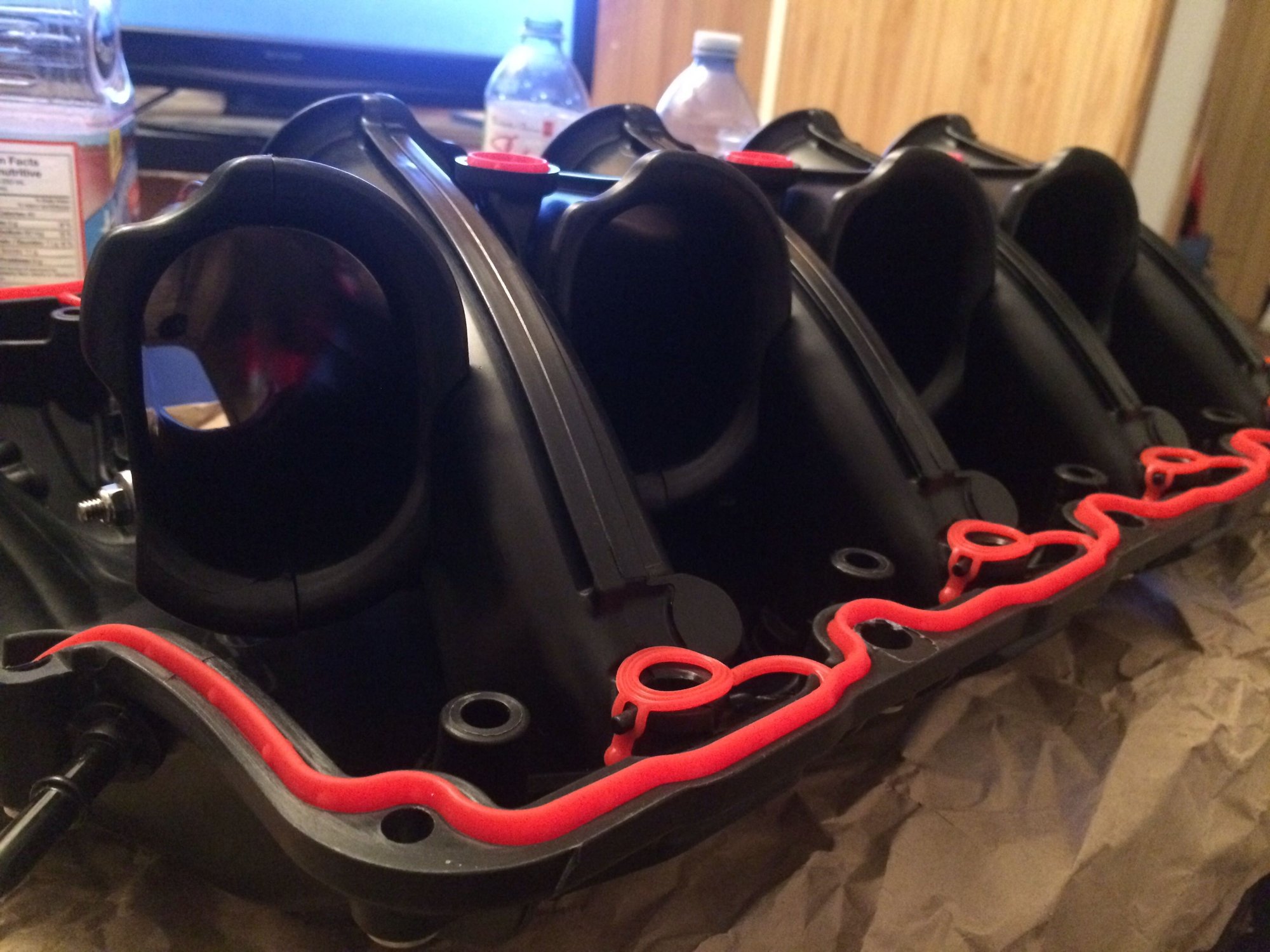

Intake pics
