Hey there folks. Just sharing this project I've been working on. I had an extra LS3 intake laying around and decided I would try my hand at porting it. I have ported aluminum intakes before with good results but never an OEM plastic one.So, I figured, what the heck. This intake will be going on my LS3 2011 C6 along with a 103mm throttle body when I install my cam. I'm hoping to test and compare it to the untouched stock intake that is on the car now. Anyway, I made a video (boring lol) of me showing what I did to the intake, where I cut, sanded and ported as well as what I learned along the way. Curious to see what gains I may see but either way its cool when you know you did it yourself.
Things I did, 1) opened up intake to accept 103mm tb and smoothed out opening transition. 2) Removed EGR tube, 3) removed center posts and filled holes with epoxy, 4) sanded and smoothed down any ridges including those along the runners and roof areas







Rough cuts. Just getting started opening up the intake for the bigger tb


Sanding away. Removal of center post, EGR tube and sanding of casting ridges.


Epoxy holes where support columns were


Basically finished. Need to clean up before install.


No more obstructions.



A look inside a stock intake. You can see all the things in the way of airflow.




Last edited by C5Natie; 08-07-2018 at 09:33 AM.
C5Natie is offline
Old 08-02-2018, 03:13 PM
  #2
C5Natie
CF Senior Member
Thread Starter

C5Natie's Avatar

Member Since: Apr 2007
Location: SoCal CA
Posts: 3,457
Thanked 35 Times in 32 Posts
Default

C5Natie is offline
Old 08-02-2018, 10:50 PM
  #3
MTPZ06
CF Senior Member
Support Corvetteforum!

MTPZ06's Avatar

Member Since: Dec 2008
Location: Honolulu HI
Posts: 12,482
Thanked 1,118 Times in 994 Posts
Default

Sub'd...when do you anticipate installing/testing it?
MTPZ06 is offline
Old 08-03-2018, 11:43 AM
  #4
Ragtop 99
CF Senior Member

Ragtop 99's Avatar

Member Since: Nov 2007
Location: Bethesda MD
Posts: 2,482
Thanked 21 Times in 20 Posts
Default

Have you considered installing rods?
Ragtop 99 is offline
Old 08-03-2018, 08:48 PM
  #5
C5Natie
CF Senior Member
Thread Starter

C5Natie's Avatar

Member Since: Apr 2007
Location: SoCal CA
Posts: 3,457
Thanked 35 Times in 32 Posts
Default

Originally Posted by MTPZ06 View Post
Sub'd...when do you anticipate installing/testing it?
Im hoping towards the end of this month or sooner if possible. Waiting for a lift to get freed up at my buddies shop.
C5Natie is offline
Old 08-03-2018, 08:50 PM
  #6
C5Natie
CF Senior Member
Thread Starter

C5Natie's Avatar

Member Since: Apr 2007
Location: SoCal CA
Posts: 3,457
Thanked 35 Times in 32 Posts
Default

Originally Posted by Ragtop 99 View Post
Have you considered installing rods?
I have. I need to look around and see what may work in terms of rod size and design. What I would like to do is test without and then with the rods to see if there's a difference in hp/tq.
C5Natie is offline
Old 08-07-2018, 09:03 AM
  #7
C5Natie
CF Senior Member
Thread Starter

C5Natie's Avatar

Member Since: Apr 2007
Location: SoCal CA
Posts: 3,457
Thanked 35 Times in 32 Posts
Default



Making stainless radius rods for the intake. Decided not to be lazy haha. So many claim that the rods are the big difference makers so we'll see. Will share more info when done pretty soon.

Last edited by C5Natie; 08-07-2018 at 09:31 AM.
C5Natie is offline
Old 08-10-2018, 03:49 PM
  #8
C5Natie
CF Senior Member
Thread Starter

C5Natie's Avatar

Member Since: Apr 2007
Location: SoCal CA
Posts: 3,457
Thanked 35 Times in 32 Posts
Default



Went with 6061 Ultra-Corrosive Resistant Architectural Grade Alloy, T6 Temper aluminum 1/4" half round rods vs a round rod. We'll see how well it works.


The rods are extremely light and are held on by high temp epoxy. Epoxy runs the full length of the rods.

Last edited by C5Natie; 08-10-2018 at 03:50 PM.
C5Natie is offline
Old 08-10-2018, 05:05 PM
  #9
Beef97
CF Senior Member

Member Since: Feb 2017
Location: DFW Texas
Posts: 334
Thanked 24 Times in 20 Posts
Default

Looks awesome! How many hours do you have into it? Let us know how the testing goes, solid work!
Beef97 is offline
Old 08-10-2018, 07:24 PM
  #10
C5Natie
CF Senior Member
Thread Starter

C5Natie's Avatar

Member Since: Apr 2007
Location: SoCal CA
Posts: 3,457
Thanked 35 Times in 32 Posts
Default

Originally Posted by Beef97 View Post
Looks awesome! How many hours do you have into it? Let us know how the testing goes, solid work!
Thanks man. I have probably 8-10hrs into it but now that I know and made the tools to do the job, it would take me a few hours less if I were to do it again. Hoping to see some gains as well hopefully. I already have a few guys wanting for me to port their intakes too lol.
C5Natie is offline
Old 09-01-2018, 06:05 PM
  #11
C5Natie
CF Senior Member
Thread Starter

C5Natie's Avatar

Member Since: Apr 2007
Location: SoCal CA
Posts: 3,457
Thanked 35 Times in 32 Posts
Default

Well, I got the results for the testing on the LS3 intake that I ported. A stock LS3 intake, a FAST 102 and a sheet metal (eBay style) Fitech intake were also tested.
This was on a cam only stock LS3. Cam specs were 244/256 duration .615 lift, 112* lsa

Stock intake: 556hp/510ftlbs
My ported intake: 570hp/512ftlbs
Fast 102: 572hp/507ftlbs
Fitech: 585hp/470ftlbs

To say the least I was very surprised and excited with the results. I was most surprised of how my intake carried the power to 7000rpm and how good the power and torque curves looked. It responded very well to this engine combo. I think the Fast will shine best on a big cube motor so that will be the next test. For now I'm a happy camper. It was nice to see the little tweaks and mods I did pay off as real world results.
Also the power band of my intake killed the Fitech everywhere below 6400rpm. After that the Fitech pulled to 7200 or so and made 585 peak hp. Not sure if the loss of power and torque everywhere else would be worth it. Its not the right intake for this application.
As always these results are just for this particular combo that we tested and every part on a motor should be chosen specific for it's use and application for the best results. Every combo is different.

Ported intake is the blue line

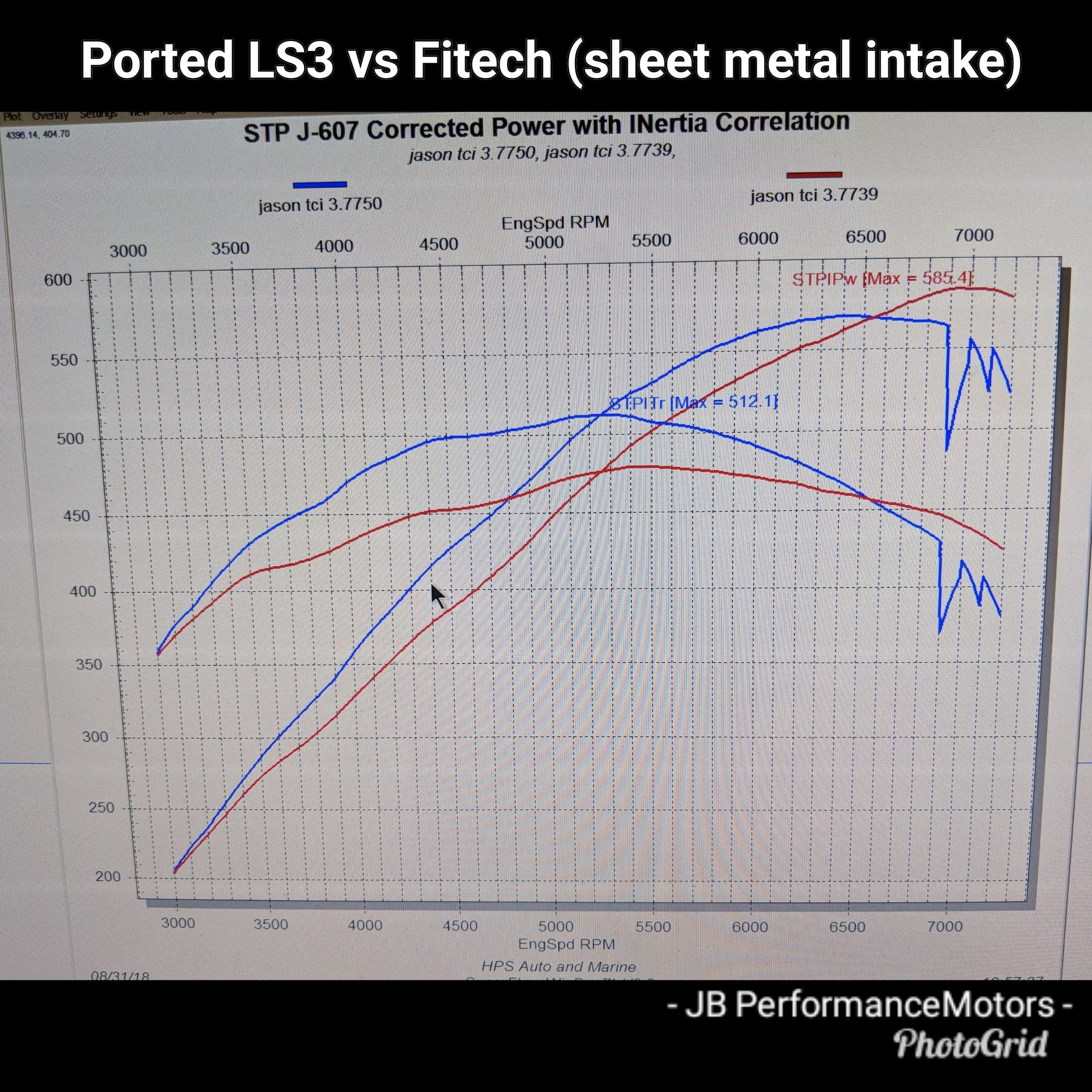

Ported intake is blue line, Fitech is red
