I plan to install my new LSXR 102 and 102TB this week and just want to get feedback on my mockup before I start cutting couplers and pipe.
I have an APS turbo so I do have to cut my silicone Y coupler a bit to make everything fit so I want to make it right before cutting since who knows where I will find a replacement.

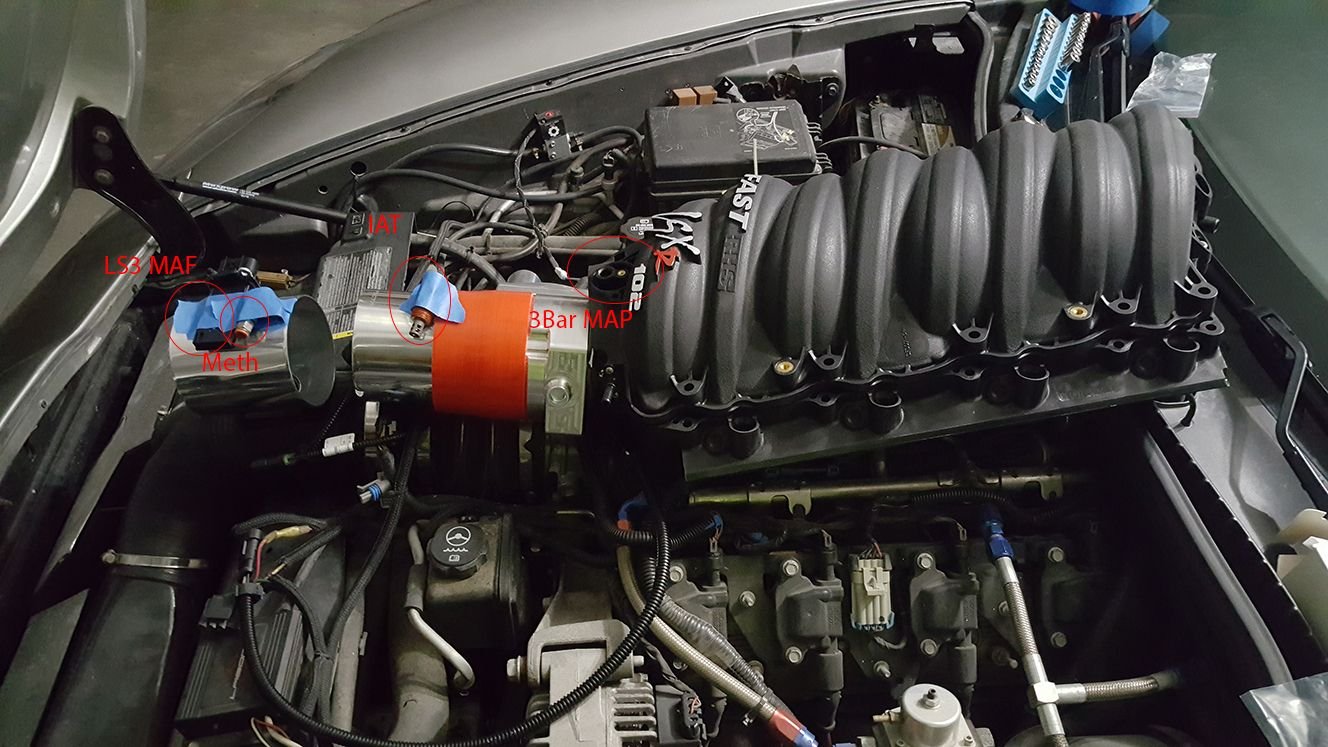

I have an LS3 MAF with a screen in the 100mm pipe, and plan to add my meth nozzle right after the MAF, then a silicone coupler (not pictured) followed by the IAT then the TB and Intake. Also have an 3Bar MAP sensor that fell off as I was snapping the picture
Intake Mockup - Feedback
