Need help with wiring C6 headlights

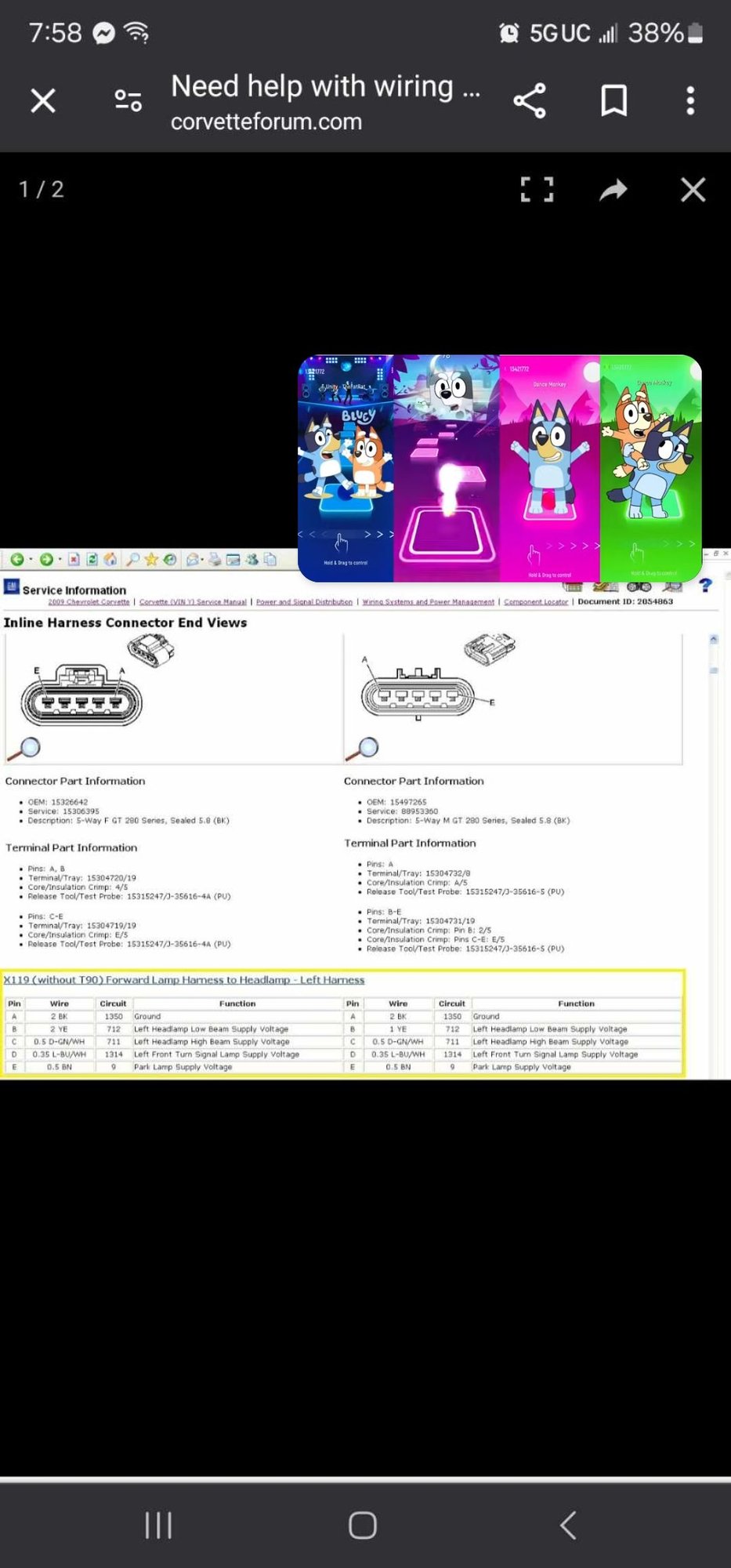

New to the forum....purchased a rebuild C6 (2007) and need help in identifying why the drivers side low beam will not work. Tried the bulb on the right side and it worked fine. When the previous owner replaced the bumper (no frame damage what-so-ever) they did a poor job in replacing parts. Not up to my standards at all. In the process of attempting to figure out what the 5 wire plug wire colors operate.......IE:high beam and low beam to see if it may just be one of the pins in the connector. Also, need to replace the small 3" hose from the power steering pumP (repLAcing the high pressure line....WHAT A PAIN) and found out the little 3" hose costs $35....what a rip off! Any help will be appreciated where to find for a decent price. thanks for putting up with the new geeks questions.....thanks....
Administrator
Joined: Mar 2001
Posts: 368,136
Likes: 24,733
From: In a parallel universe. Currently own 2014 Stingray Coupe.
C7 of the Year - Modified Finalist 2021
MO Events Coordinator
St. Jude Co-Organizer
St. Jude Donor '03 thru '25
NCM Sinkhole Donor
CI 5, 8 & 11 Veteran
Moved to C6 Tech.
Thread Starter
Drifting
Joined: Apr 2021
Posts: 1,934
Likes: 1,126
From: Peoria, AZ
2023 C6 of the Year Finalist - Modified
Race Director
Joined: Sep 2009
Posts: 11,338
Likes: 2,438
From: Eastern
Welcome to the forum.
If it isn't a pin issue, it could be a grounding issue. The electrical system in the C6 is ground initiated, so if the ground dies not have a good connection, the light will not work.
Goid Luck..report back if you find and fix the cause.
If it isn't a pin issue, it could be a grounding issue. The electrical system in the C6 is ground initiated, so if the ground dies not have a good connection, the light will not work.
Goid Luck..report back if you find and fix the cause.
Thread Starter
Drifting
Joined: Apr 2021
Posts: 1,934
Likes: 1,126
From: Peoria, AZ
2023 C6 of the Year Finalist - Modified
Grounding issue
I really appreciate the help.....will look into it. Also, another question if I may? I am attempting to change the lenses on the headlights, and they are IMPOSSIBLE to get off......any tricks I should try? Again, appreciate any help I can get......
Pro
Joined: Sep 2020
Posts: 537
Likes: 169
From: Ogden, Utah
Last edited by D-Dub2013; Apr 27, 2021 at 11:49 AM.
Drifting
Joined: Sep 2014
Posts: 1,924
Likes: 392
From: Atlanta - - - - - Save the manuals
When I did it I heated the headlights to 210 degrees in the oven ( IIRC: Double-check my temp recommendation. ) Then kept it warm with a hot air gun and separated one corner using a wide screwdriver. Once you get it started the rest of the separation is much easier as long as you keep it warm.
