Default Wiring diagram
I need the wiring diagram for the windshield washer system for a 2008 C6.It stopped working last week,I have checked the two fuses and exchanged the relay with no luck.It looks like you have to pull the fender off to get to the motor?..Sucks!..I use my washer a lot. Thanks for any help..............Ken
Reply
0
Old May 23, 2021 | 08:58 AM
Share
  #2
KENS80V's Avatar
KENS80V
Melting Slicks
20 Year Member
All Eyes On Me
Liked
Loved

Joined: Aug 2004
Posts: 2,907
Likes: 229
From: Oakbank Manitoba
Default
Here is the diagram for a 2006. Should be the same.



Reply
1
Old May 23, 2021 | 09:08 AM
Share
  #3
KENS80V's Avatar
KENS80V
Melting Slicks
20 Year Member
All Eyes On Me
Liked
Loved

Joined: Aug 2004
Posts: 2,907
Likes: 229
From: Oakbank Manitoba
Default

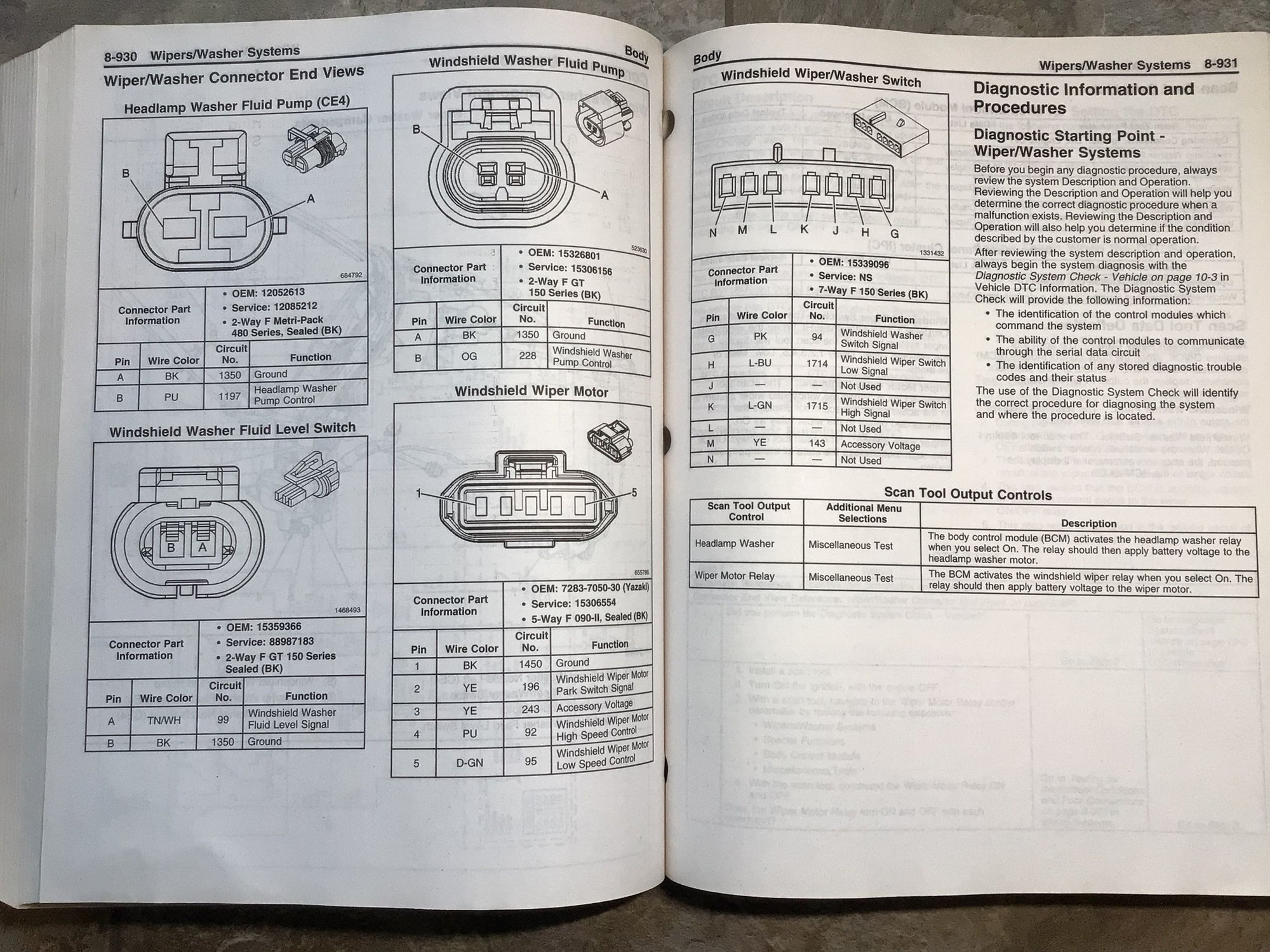

Connector end views.



Reply
1
Old May 23, 2021 | 09:17 AM
Share
  #4
KENS80V's Avatar
KENS80V
Melting Slicks
20 Year Member
All Eyes On Me
Liked
Loved

Joined: Aug 2004
Posts: 2,907
Likes: 229
From: Oakbank Manitoba
Default
Location.



Reply
1
Old May 23, 2021 | 09:24 AM
Share
  #5
KENS80V's Avatar
KENS80V
Melting Slicks
20 Year Member
All Eyes On Me
Liked
Loved

Joined: Aug 2004
Posts: 2,907
Likes: 229
From: Oakbank Manitoba
Default

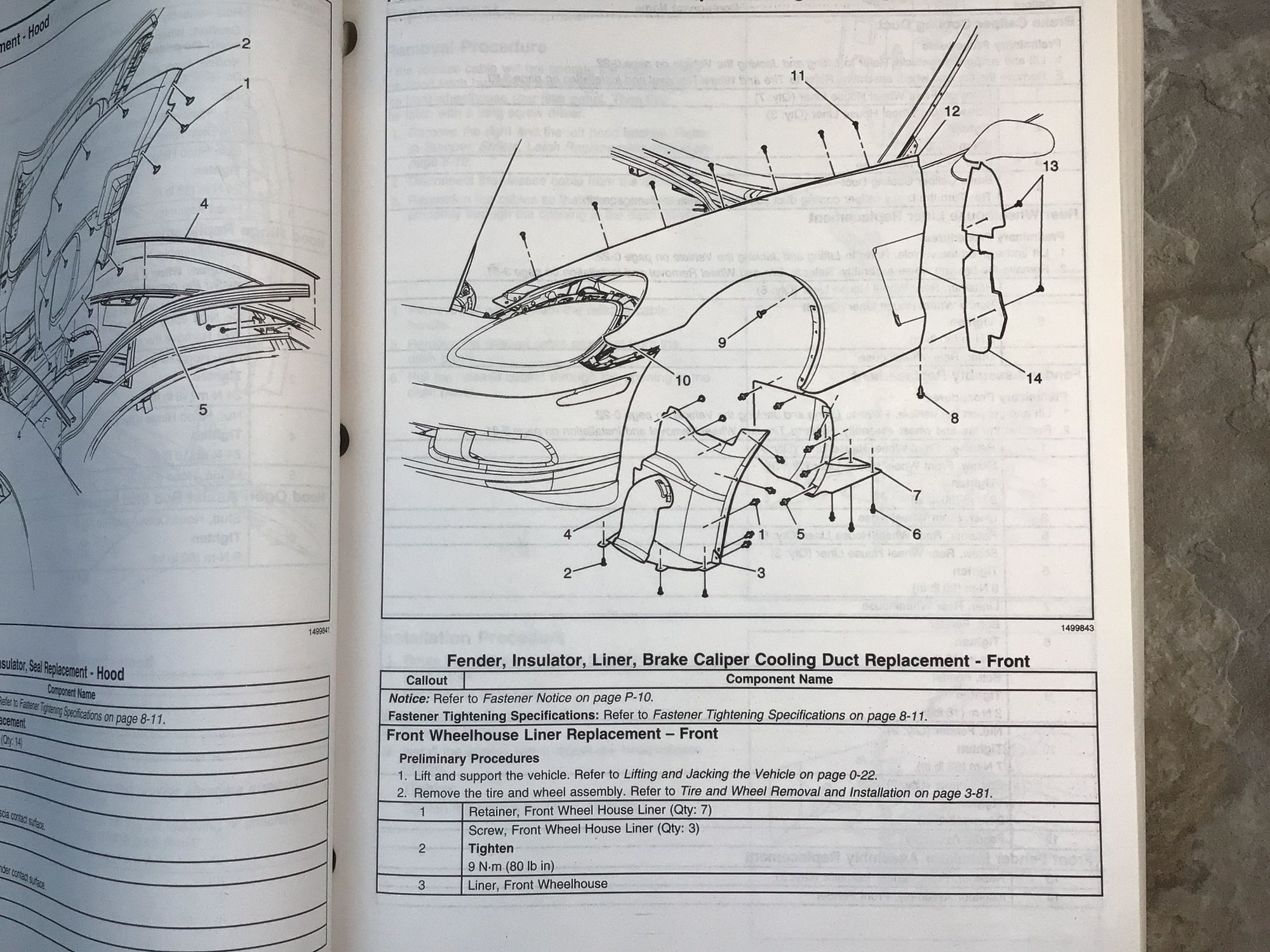

The pump can be accessed by removing the rear wheel house liner.



Reply
1
Old May 23, 2021 | 11:54 PM
Share
  #6
Cherokee Nation's Avatar
Cherokee Nation
Thread Starter
Le Mans Master
15 Year Member

Joined: Jan 2008
Posts: 6,457
Likes: 297
From: corpus christi Texas
Default
Thank you Sir Ken.....Just what I need.....Ken
Last edited by Cherokee Nation; May 24, 2021 at 12:02 AM. Reason: change
Reply
0
Old May 24, 2021 | 12:01 AM
Share
  #7
Cherokee Nation's Avatar
Cherokee Nation
Thread Starter
Le Mans Master
15 Year Member

Joined: Jan 2008
Posts: 6,457
Likes: 297
From: corpus christi Texas
Default
Originally Posted by KENS80V
The pump can be accessed by removing the rear wheel house liner.


Thank you sir.....Just what I need
