Oil leak after cam install
Thread Starter
Navigator
Joined: Oct 2022
Posts: 9
Likes: 0
Oil leak after cam install

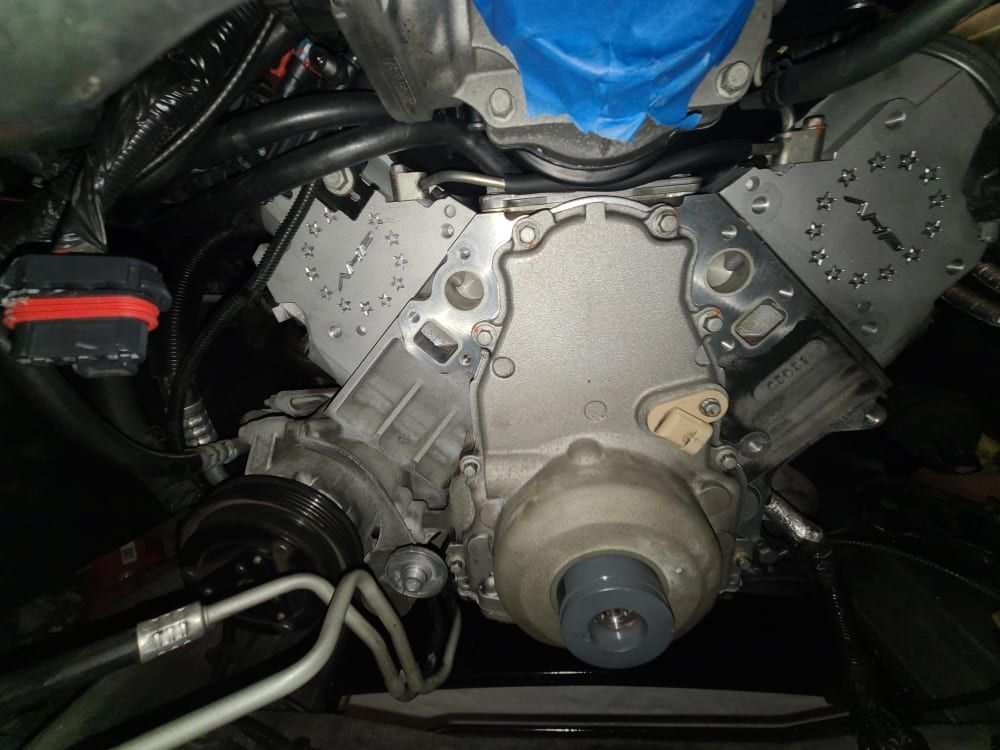

I recently put a cam in my ‘13 grand sport and I just noticed today that there is a tiny bit of oil coming from my crank seal. I didnt have the alignment tool for the cover but i fitted the HB to technically “align” it before torquing the cover bolts down. I tightened the bottom 2 pan bolts first and then the rest of the bolts in a side to side sequence. When i went to check the bolts again after driving the car, i noticed the 2 bottom bolts werent as tight as the others so i just gave them a good snug and they tightened up. Ran the car for 30 minutes and didnt see anymore oil coming from the seal but I am worried ive already damaged the new seal. Is it possible that tightening those bottom 2 bolts where the pan meets the timing cover corrected my issue? Or am I going to have to start looking for time to pull this timing cover back off?
Thread Starter
Navigator
Joined: Oct 2022
Posts: 9
Likes: 0
did you catch the leak right away? Ive put 10 miles on the car just for that very reason to make sure nothing was leaking and sure enough…
Burning Brakes
Joined: Mar 2014
Posts: 1,238
Likes: 203
From: Lexington South Carolina
Instructor
Joined: Jun 2014
Posts: 173
Likes: 49
From: Apex, NC
It sounds like you pressed the HB on the crankshaft with the front cover loose; is that right? Used sealant at the corners where the cover, pan and block meet? I think my only concern would be that if the cover was forward of the rubber part of the oil pan gasket, you could scrape it off as the cover goes back flush with the block, but I guess you can see it's leaking around the seal. I don't have an alignment tool but work on LS engines a lot. I set the side-side clearance between the seal and the crank using whatever is handy to measure the gap to make sure it's even on both sides and never have trouble. That way I tighten the front cover completely before pressing the balancer on.
Safety Car
Joined: Oct 2007
Posts: 4,195
Likes: 1,070
From: South Florida
I did my front seal the same way- without an alignment tool. I have 20,000 miles on the cam and notice some bit of oil residue slinging around the seal area.
Apparently the alignment tool is worth its weight. I went ahead and ordered the saccity corvette alignment tool - nice metal, not 3D printed or plastic. I got front and rear and the oil barbell too. I'll live with the tiny residue for now, wipe it up every 10 or 20k or whatever. But next time the engine has to come out for any reason- I'll be ready. $.02
Apparently the alignment tool is worth its weight. I went ahead and ordered the saccity corvette alignment tool - nice metal, not 3D printed or plastic. I got front and rear and the oil barbell too. I'll live with the tiny residue for now, wipe it up every 10 or 20k or whatever. But next time the engine has to come out for any reason- I'll be ready. $.02
Thread Starter
Navigator
Joined: Oct 2022
Posts: 9
Likes: 0
