AC not blowing with engine running
Thread Starter
Navigator
Joined: Jul 2024
Posts: 9
Likes: 3
AC not blowing with engine running
Hello all! Im having a problem with my AC blowing when the engine is running. Everything works perfectly fine with just the ignition on in accessory mode but as soon as I start the engine, air stops blowing from the vents.
Ive installed a (supposed to be) known good HVAC control panel. Its a new blower motor (TYC) not a GM part. Ive checked powers and grounds and ohmed wiring and everything seems to be good. Its odd though because I have .142 volts on the ground while its working with the engine off. With the engine on, and when it stops blowing air, ground goes to 0.0v
Has anyone ever run into this before, Im kinda at a loss for further diag right now.
car is a 2008 base model c6
Thanks!
Ive installed a (supposed to be) known good HVAC control panel. Its a new blower motor (TYC) not a GM part. Ive checked powers and grounds and ohmed wiring and everything seems to be good. Its odd though because I have .142 volts on the ground while its working with the engine off. With the engine on, and when it stops blowing air, ground goes to 0.0v
Has anyone ever run into this before, Im kinda at a loss for further diag right now.
car is a 2008 base model c6
Thanks!
Last edited by ExoVett; Jul 21, 2024 at 04:05 PM.
Moderator, Tech Contributor
Joined: Sep 2013
Posts: 15,490
Likes: 3,999
From: Cape Coral, Florida
It’s a good idea if you let us know what year the car is at minimum !!…any other info helps too !!…you should ALWAYS suspect new parts if not OEM !!…you can compound your problem with bad “new” parts !!…how did you check ground ??…now was this your original concern that it was blowing only in ACC and not with the engine running or was it not working at all ??
Last edited by C5 Diag; Jul 21, 2024 at 04:05 PM.
Thread Starter
Navigator
Joined: Jul 2024
Posts: 9
Likes: 3
ah, my apologies. Its a 2008 base model c6. Ground was checked with a multimeter
Moderator, Tech Contributor
Joined: Sep 2013
Posts: 15,490
Likes: 3,999
From: Cape Coral, Florida

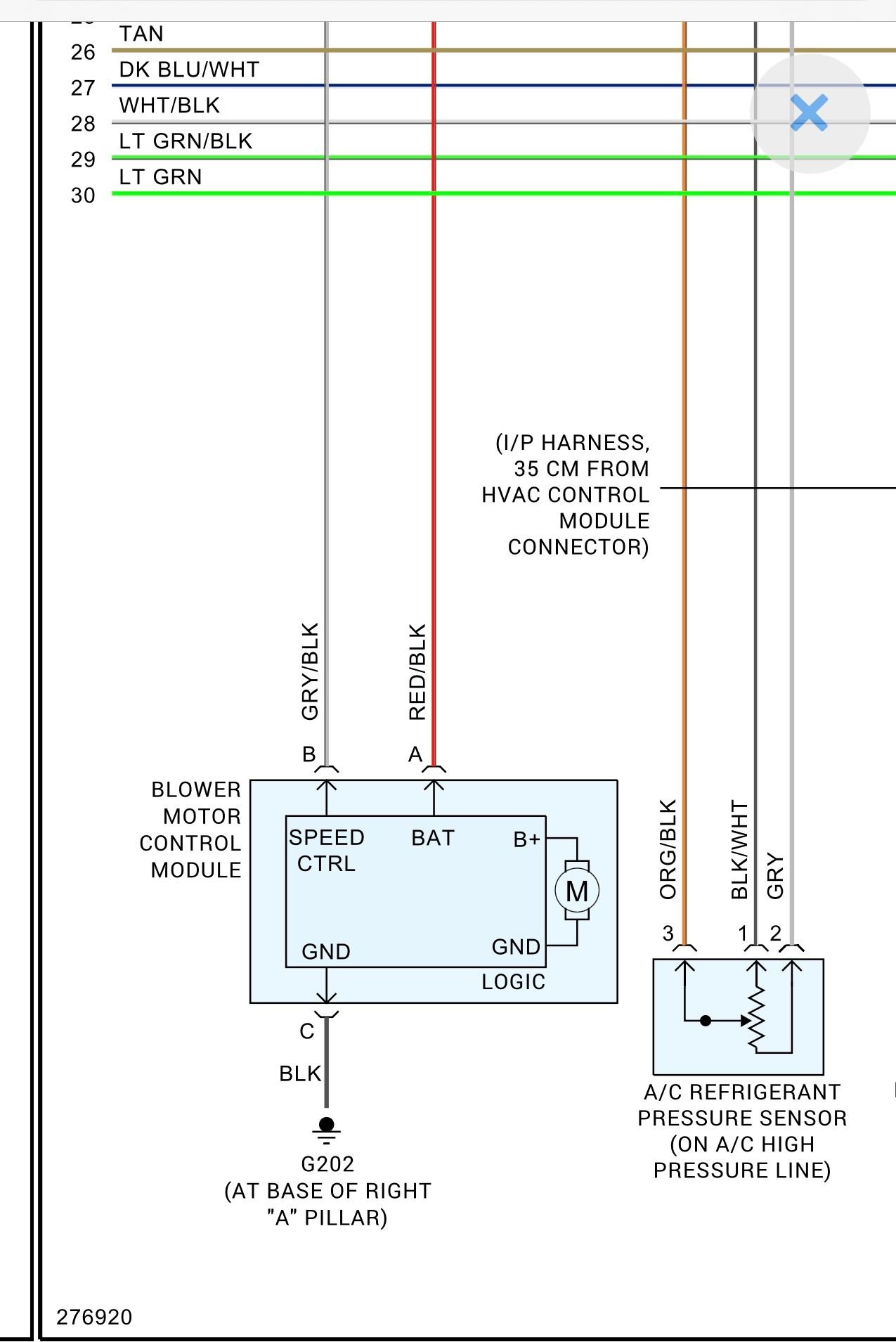

As I mentioned above was this your original concern that the blower was only working in ACC and not engine running ???…or was the blower not working at all and then you replaced HVAC Module and Blower Motor Control Module ??…Terminal B is PWM !!..I’ll get back a little bit later !!
Last edited by C5 Diag; Jul 21, 2024 at 04:15 PM.
Thread Starter
Navigator
Joined: Jul 2024
Posts: 9
Likes: 3
This is my original concern, the blower only works in acc mode and does not work with the engine running. Blower was replaced because it was missing when I bought the car. I dont know the back story for that but it was a wrecked car when I bought it. Its now bodyless and is a roll cage around the frame. The hvac module was only replaced due to suspicion of being a problem
Moderator, Tech Contributor
Joined: Sep 2013
Posts: 15,490
Likes: 3,999
From: Cape Coral, Florida
This is my original concern, the blower only works in acc mode and does not work with the engine running. Blower was replaced because it was missing when I bought the car. I dont know the back story for that but it was a wrecked car when I bought it. Its now bodyless and is a roll cage around the frame. The hvac module was only replaced due to suspicion of being a problem
Last edited by C5 Diag; Jul 21, 2024 at 07:15 PM.
Thread Starter
Navigator
Joined: Jul 2024
Posts: 9
Likes: 3
Did you check the PWM signal in ACC and engine running ??…with a DVOM it will read differently than using a lab scope…if 50% duty cycle you will maybe 6 volts with a DVOM instead of 12 volts depending on blower speed…I’ll try to get you these voltages with blower on low and high and in ACC and engine running…you always want to checks grounds dynamically or with engine running and not statically…are you back probing each of the wires with connector plugged in ??
