Curb alert
Thread Starter
Racer
Joined: Feb 2014
Posts: 469
Likes: 23
From: Schaumburg IL
Curb alert
I saw on some post a while back about the thing called Curb alert. I went to pull onto a drive and something hit. No damage, but I did not like what I heard. I am now thinking about putting on one of those curb alert systems. My question is this, when I pull into my garage I have a 2x4 to tell me when to stop. I am sure the curb alert will let me know this is there. How do I stop it from sounding in the garage, or when the car is parked?
Melting Slicks
Joined: Oct 2008
Posts: 2,044
Likes: 1,075
From: Pasadena Texas
I saw on some post a while back about the thing called Curb alert. I went to pull onto a drive and something hit. No damage, but I did not like what I heard. I am now thinking about putting on one of those curb alert systems. My question is this, when I pull into my garage I have a 2x4 to tell me when to stop. I am sure the curb alert will let me know this is there. How do I stop it from sounding in the garage, or when the car is parked?
I don't think you can have it disregard the 2 x 4 in your garage. I think it either sees it or it doesn't. I'm probably going to set mine up for 20" away and 4" high, per a video I saw.
Race Director
Joined: Sep 2013
Posts: 11,825
Likes: 2,471
From: Ft Lauderdale
Tech Contributor
Correct, the unit does not have "selective target acquisition", if its in front of you in the target area, its gonna beep.
Team Owner
Joined: Mar 2012
Posts: 49,124
Likes: 3,862
From: Best Island in the U.S.
St. Jude Donor '12 thru '17
I saw on some post a while back about the thing called Curb alert. I went to pull onto a drive and something hit. No damage, but I did not like what I heard. I am now thinking about putting on one of those curb alert systems. My question is this, when I pull into my garage I have a 2x4 to tell me when to stop. I am sure the curb alert will let me know this is there. How do I stop it from sounding in the garage, or when the car is parked?
Pro
Joined: Jul 2014
Posts: 558
Likes: 88
From: D/FW Texas
It beeps 3 quick consecutive chirps when it detects an obstacle. It does not beep continuously. It shuts off 20 minutes after you turn the car off. It is a very low-draw on the car's battery and will not drain it.
See the video in the vendor's thread below for more details.
https://www.corvetteforum.com/forums...ideo-here.html
See the video in the vendor's thread below for more details.
https://www.corvetteforum.com/forums...ideo-here.html
Advanced
Joined: Sep 2010
Posts: 59
Likes: 0
From: North Canton Ohio
I installed the curb alert this past spring and after four months of multiple calibrations I disconnected the unit . It worked well for a short while when approaching curbs and was a life saver but then it started going off constantly when traveling on a flat road which became very annoying .Repeated calibrations did not correct the issue ,so I pulled the plug on it . It's a great concept but I could just not get it adjusted to minimize or eliminate false alerts .
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Top 10 Corvette Engines RANKED by Peak Torque (70+ Years of Muscle!)
Joe Kucinski
Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!
Verdad Gallardo
Top 10 Corvettes Coming to Mecum Indy 2026!
Brett Foote
Top 10 C9 Corvette MUST-HAVES to Fix These C8 Generation Flaws!
Michael S. Palmer
10 Revolutionary 'Corvette Firsts' Most People Don't Know
Joe Kucinski
5 Reasons to Upgrade to an LS6-Powered Corvette; 5 Reasons to Stay LT2
Michael S. Palmer
2027 Corvette vs The World: Every C8 vs Its Closest Competitor
Joe Kucinski
10 Most Common Corvette Problems of the Last 20 Years!
Joe Kucinski
Advanced
Joined: Jan 2009
Posts: 87
Likes: 2
From: The Woodlands TX
I installed the curb alert this past spring and after four months of multiple calibrations I disconnected the unit . It worked well for a short while when approaching curbs and was a life saver but then it started going off constantly when traveling on a flat road which became very annoying .Repeated calibrations did not correct the issue ,so I pulled the plug on it . It's a great concept but I could just not get it adjusted to minimize or eliminate false alerts .
Le Mans Master
Joined: Feb 1999
Posts: 5,353
Likes: 100
From: And then it was said... "let there be blue Corvettes and yellow Camaros" Ft Worth Texas
Cruise-In IV Veteran
St. Jude Donor '09
Le Mans Master
Joined: Feb 1999
Posts: 5,353
Likes: 100
From: And then it was said... "let there be blue Corvettes and yellow Camaros" Ft Worth Texas
Cruise-In IV Veteran
St. Jude Donor '09
I was having this same problem with my C6, it was a loose ground wire on the curb alert. Once I tightened it the problem went away.
Advanced
Joined: Jan 2009
Posts: 87
Likes: 2
From: The Woodlands TX
Heel & Toe
Joined: Mar 2008
Posts: 19
Likes: 2
Curb Alert Clarification
I saw on some post a while back about the thing called Curb alert. I went to pull onto a drive and something hit. No damage, but I did not like what I heard. I am now thinking about putting on one of those curb alert systems. My question is this, when I pull into my garage I have a 2x4 to tell me when to stop. I am sure the curb alert will let me know this is there. How do I stop it from sounding in the garage, or when the car is parked?
Please watch our C7 Installation video for more information @
Vehicle Positioning, LLC
Advanced
Joined: Nov 2014
Posts: 68
Likes: 5
From: Continental OH
Agree. I installed my curb alert in my C7 about 10 months ago, and it has worked. It requires some tinkering to get the adjustment to your liking, but works well to prevent curb damage.
I had initial issues with false alarms while driving, but a slight adjustment in the angle of the unit took care of that. Wouldn't want to be without it.
I had initial issues with false alarms while driving, but a slight adjustment in the angle of the unit took care of that. Wouldn't want to be without it.
Intermediate
Joined: Mar 2014
Posts: 28
Likes: 0
From: Livermore CA
I've seen these units mounted in the grill vs under the car. Any pros/cons on the locations. I'm concerned that mounting it under the car will result in it being torn off in a short period of time. But, I'm also concerned that mounting in the grill will cause false alarms due to the steep angle of the detect to the road/obstacles.
Advanced
Joined: Nov 2014
Posts: 68
Likes: 5
From: Continental OH
I've seen these units mounted in the grill vs under the car. Any pros/cons on the locations. I'm concerned that mounting it under the car will result in it being torn off in a short period of time. But, I'm also concerned that mounting in the grill will cause false alarms due to the steep angle of the detect to the road/obstacles.

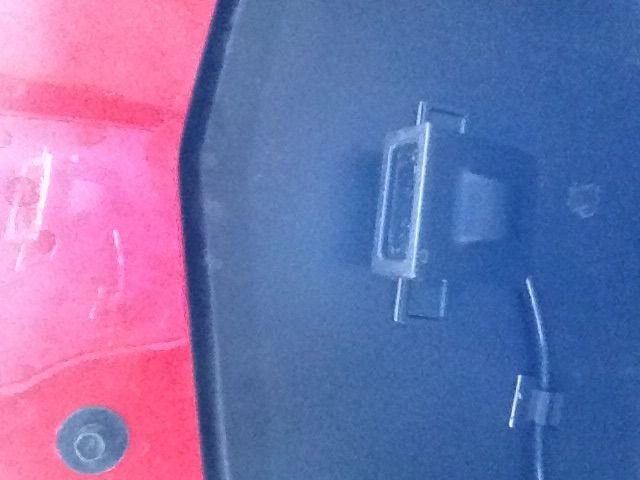

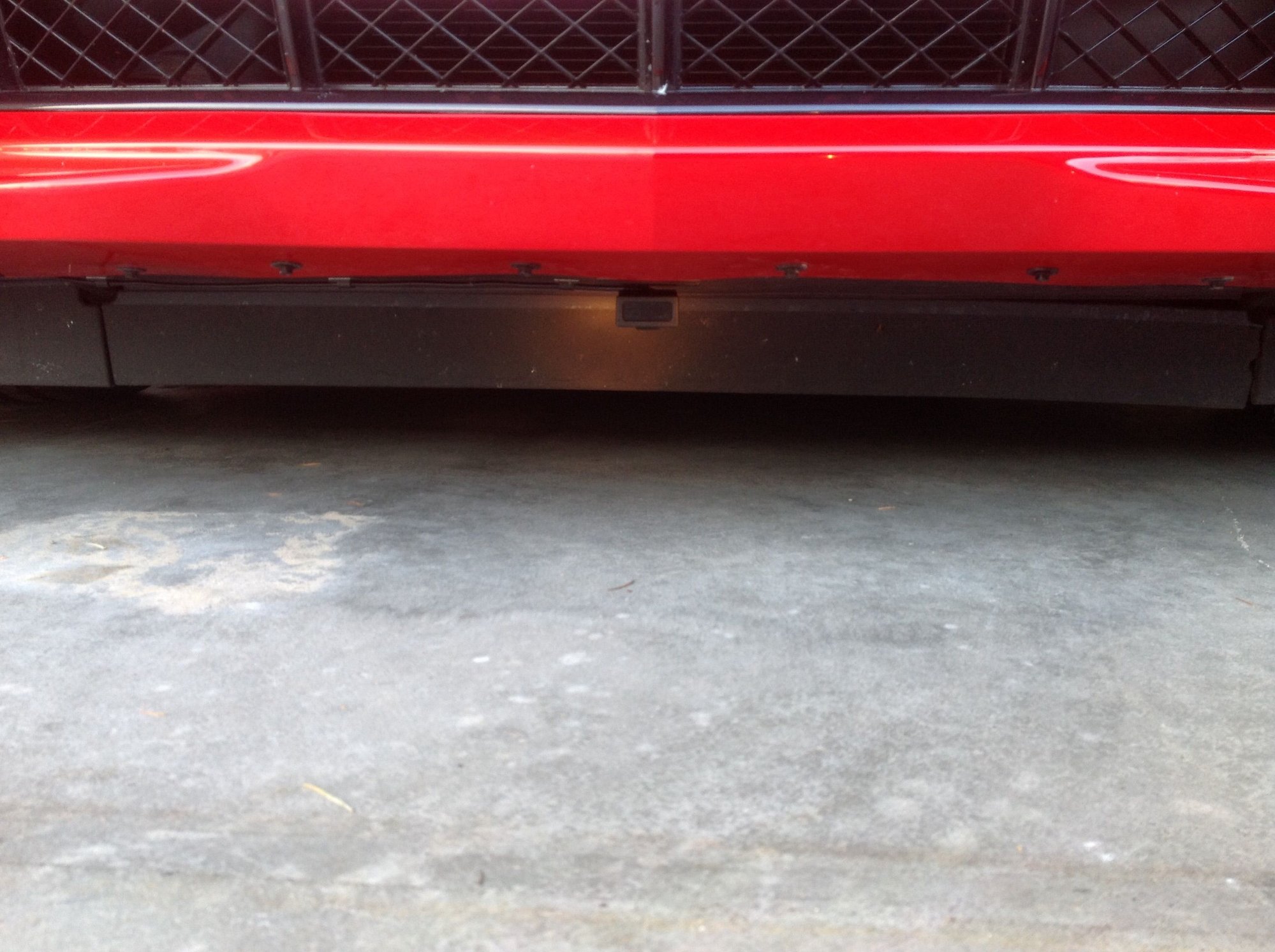

Mounting below bumper
Mounting below bumper
