Where do these engine decals go?

Reply Subscribe

Thread Tools

Search this Thread

Jan 24, 2016 | 10:44 AM

LIE2ME

Thread Starter

Le Mans Master

Joined: Apr 2012

Posts: 6,956

Likes: 4,811

From: Camden SC

Where do these engine decals go?

I have acquired a set of C7 engine decals and am not sure exactly where some of the decals would go. The set on the left obviously goes on the plenum cover, but the larger decals on the right have me stumped. These are really good quality decals and I am sure that properly applied they would look nice. I just can't figure where they are to be applied. Any assistance is appreciated...

Jan 24, 2016 | 11:04 AM

LIE2ME

Thread Starter

Le Mans Master

Joined: Apr 2012

Posts: 6,956

Likes: 4,811

From: Camden SC

Now that I think of it, I am wondering if they sent me decals for the Z51 "dry sump" engine. I do not have the Z51 version...

Jan 24, 2016 | 11:08 AM

Glen e

Race Director

Joined: Sep 2013

Posts: 11,825

Likes: 2,477

From: Ft Lauderdale

Tech Contributor

all those stickers go on the plenum and valve covers, and part below the valve cover.. no z51 connection. Good luck, long term, stickers may fail and get dirty, you cant clean..

Last edited by Glen e; Jan 24, 2016 at 11:09 AM.

Jan 24, 2016 | 11:14 AM

LIE2ME

Thread Starter

Le Mans Master

Joined: Apr 2012

Posts: 6,956

Likes: 4,811

From: Camden SC

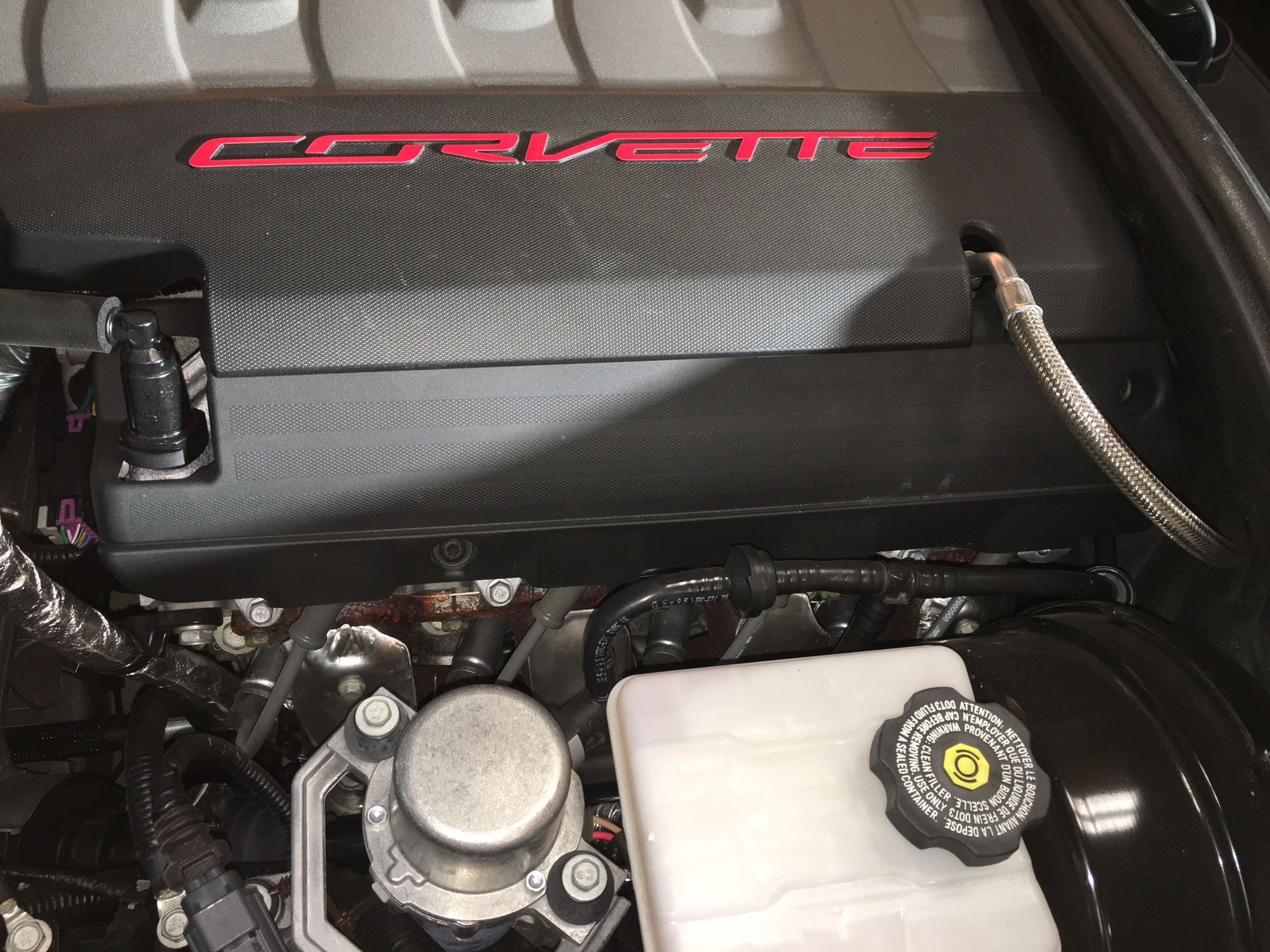

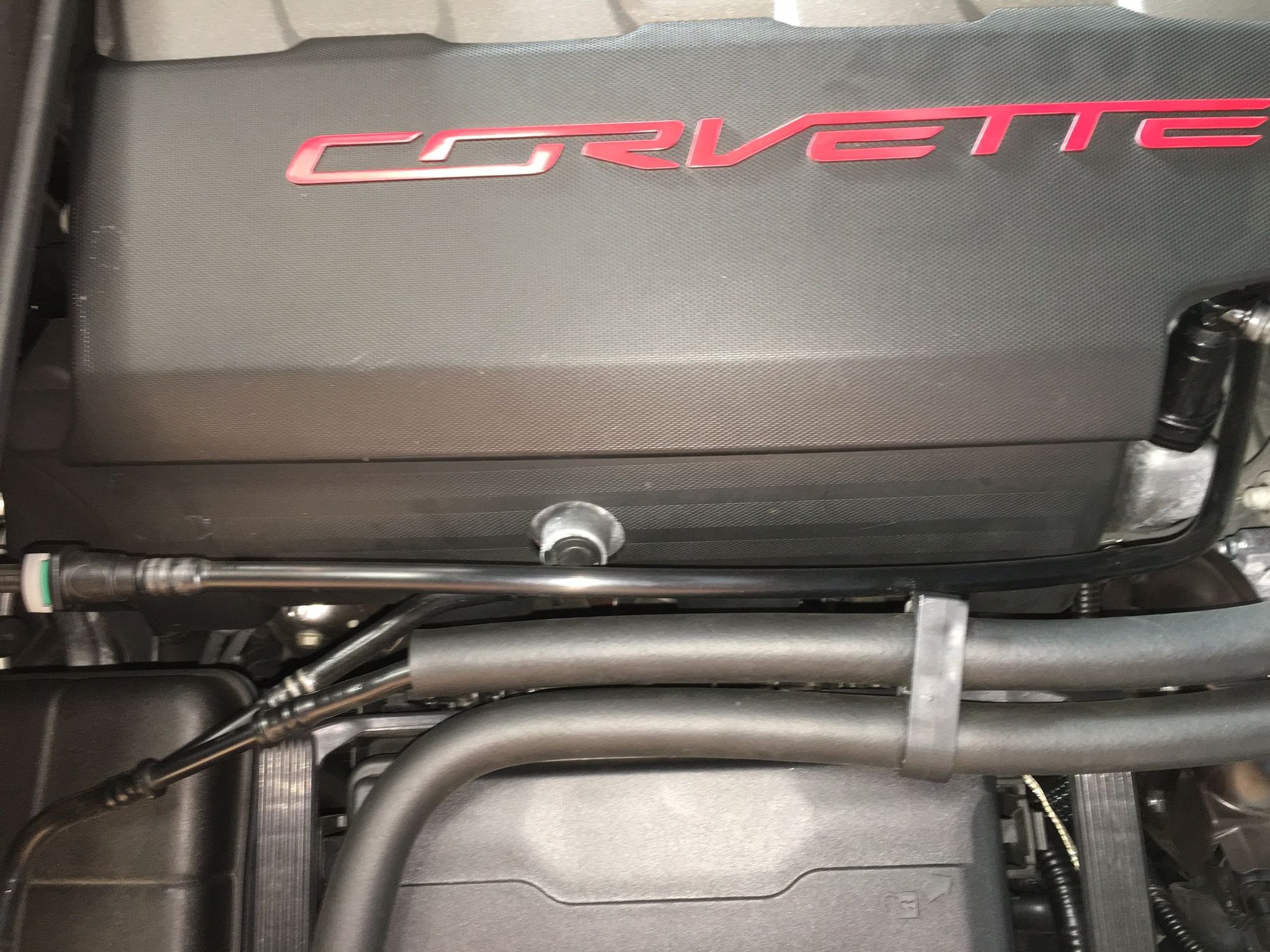

The reason I am thinking the decals are for the Z51 car is this picture I took of left and right sides of my C7 engine. None of the cutouts of the larger stickers seem to match...

Jan 24, 2016 | 11:18 AM

Glen e

Race Director

Joined: Sep 2013

Posts: 11,825

Likes: 2,477

From: Ft Lauderdale

Tech Contributor

my bad, I think you are right due to the oil fill hole. these parts are rough surface and not total smooth, hence my reluctance to use long term...

Jan 24, 2016 | 11:29 AM

Skidplate

Burning Brakes

Joined: Aug 2014

Posts: 990

Likes: 207

From: Bay Area CA

Quote:

Originally Posted by LIE2ME

Now that I think of it, I am wondering if they sent me decals for the Z51 "dry sump" engine. I do not have the Z51 version...

You may be correct. Here is a Z51 engine:

Last edited by Skidplate; Jan 24, 2016 at 11:30 AM.

Jan 24, 2016 | 11:53 AM

joeybsyc

Drifting

Joined: Sep 2009

Posts: 1,440

Likes: 314

From: PA

They go in the bottom drawer of your toolbox.

Jan 24, 2016 | 07:03 PM

Steve Garrett

CORVETTE TODAY Show Host

Joined: Oct 2013

Posts: 26,024

Likes: 7,882

From: Kansas City, Missouri

CORVETTE TODAY Host

St. Jude Donor'15

^^^^ This, but if you decide to put them on, the decals on the left hand side of your picture go on the plenum cover and the others go on the lower fuel rails.
