Transparent roof
Thread Starter
Burning Brakes
Joined: Sep 2001
Posts: 937
Likes: 70
From: Ponte Vedra Florida
Transparent roof
Just purchased a new C7 Z51 coupe and my dealer tells me the transparent roof costs $4600.00, his cost! I'm in shock!!! Anybody know where to get a 2016 Corvette transparent roof at a reasonable cost?
Safety Car
Joined: May 2003
Posts: 3,529
Likes: 826
From: Brighton Mi
Your dealer must be trying to make a ton of money. Here is one I found
http://www.westcoastcorvette.com/p-1...y-z51-z06.aspx
I believe they have discounts now, being labor day. (Im not affiliated nor know anyone there)
1,800 buckaroos
http://www.westcoastcorvette.com/p-1...y-z51-z06.aspx
I believe they have discounts now, being labor day. (Im not affiliated nor know anyone there)
1,800 buckaroos
Last edited by spinkick; Sep 4, 2016 at 12:59 PM.
Race Director
Joined: Jul 2008
Posts: 17,755
Likes: 3,688
From: The Sunshine State
2022 C5 of the Year Finalist - Modified
2021 C5 of the Year Finalist - Modified
C7 of the Year - Modified Finalist 2021
Finalist 2020 C7 of the Year -- Modified
2020 C5 of the Year Finalist - Modified
C5 of Year Finalist (appearance mods) 2019
2018 C5 of Year Finalist
Your dealer's smoking weed. The dual roof cost is $1995 if ordered with body-color roof.
I believe the part # is 23145623. I've seen them online between $1750 and $2100. I would also suggest calling your dealer parts department directly and giving them the part # and ask them for the cost.
I believe the part # is 23145623. I've seen them online between $1750 and $2100. I would also suggest calling your dealer parts department directly and giving them the part # and ask them for the cost.
Last edited by MSG C5; Sep 4, 2016 at 01:48 PM.
Burning Brakes
Joined: Dec 2010
Posts: 1,151
Likes: 190
From: SoCal
He probably got that by pricing each individual part required to construct a top. I recall some looking for exposed CF tops and that was around the cost they came up with when no vendors were really carrying them. Your best bet it to look in the parts for sale section here, I see a couple new ones each week, all approx 1200-1500.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Top 10 Corvette Engines RANKED by Peak Torque (70+ Years of Muscle!)
Joe Kucinski
Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!
Verdad Gallardo
Top 10 Corvettes Coming to Mecum Indy 2026!
Brett Foote
Top 10 C9 Corvette MUST-HAVES to Fix These C8 Generation Flaws!
Michael S. Palmer
10 Revolutionary 'Corvette Firsts' Most People Don't Know
Joe Kucinski
5 Reasons to Upgrade to an LS6-Powered Corvette; 5 Reasons to Stay LT2
Michael S. Palmer
Race Director
Joined: Sep 2013
Posts: 10,118
Likes: 5,437
From: ►SICAMOUS◄
where else? > https://www.corvetteforum.com/forums...le-wanted-162/
Last edited by C8Jake; Sep 4, 2016 at 03:40 PM.
Race Director
Joined: Jan 2005
Posts: 10,924
Likes: 853
From: Daytona Beach FL
I saw mine in the "For Sale" section of the forum for $1000. It would have cost $100 or more to have it shipped, but the seller was only 30 miles away, so I went down and picked it up.
In late 2015 Chevy came out with a bulletin that had a fix for owners that complained of squeaky/creaky roof panes. The dealerships would swap out the "strikers" and "pins" if a customer complained of a noisy roof.

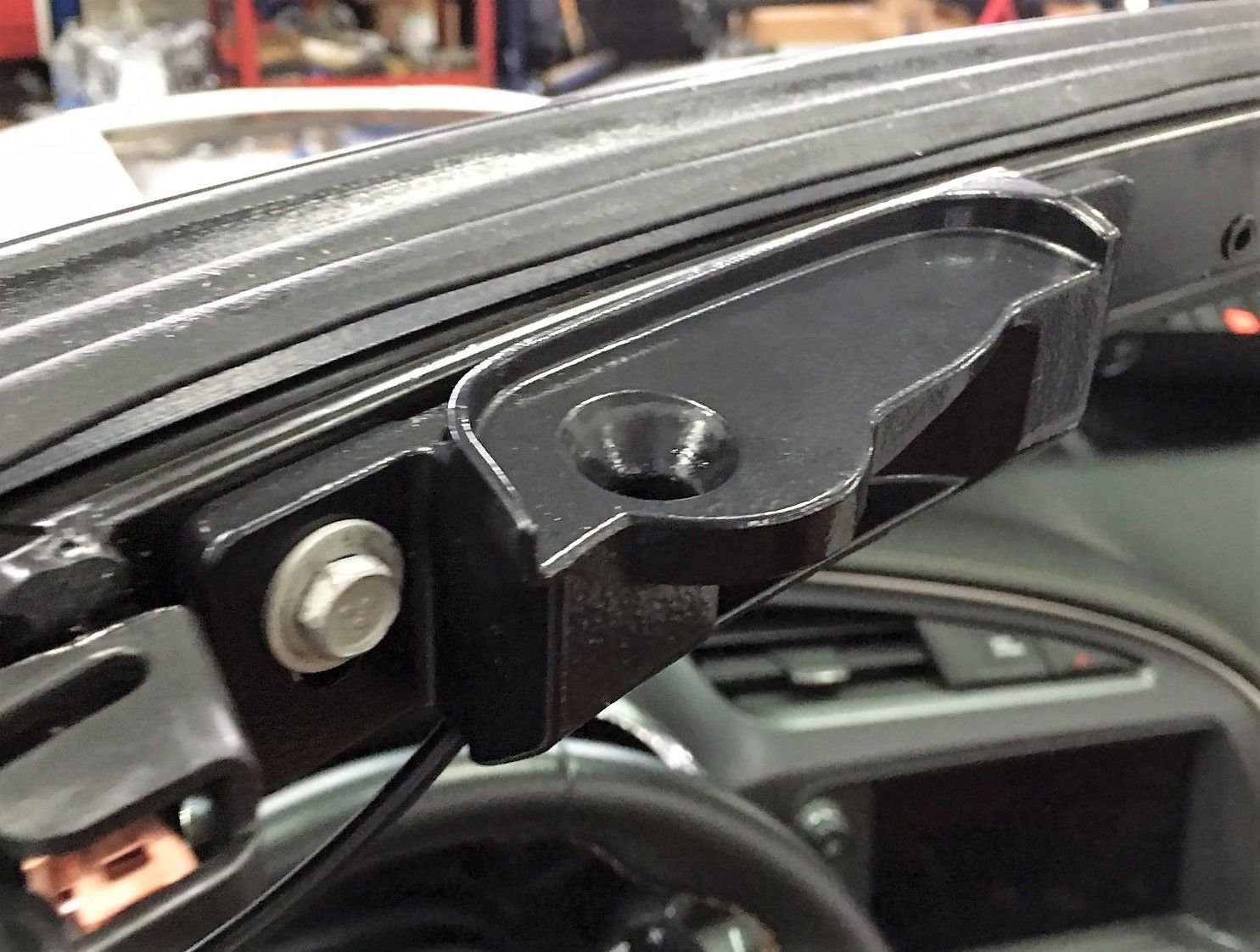

Like C7Jake said, what they call the "strikers" on the windshield frame are different - they are holes where the "pins" on the top go into.
The "pins" are also different.

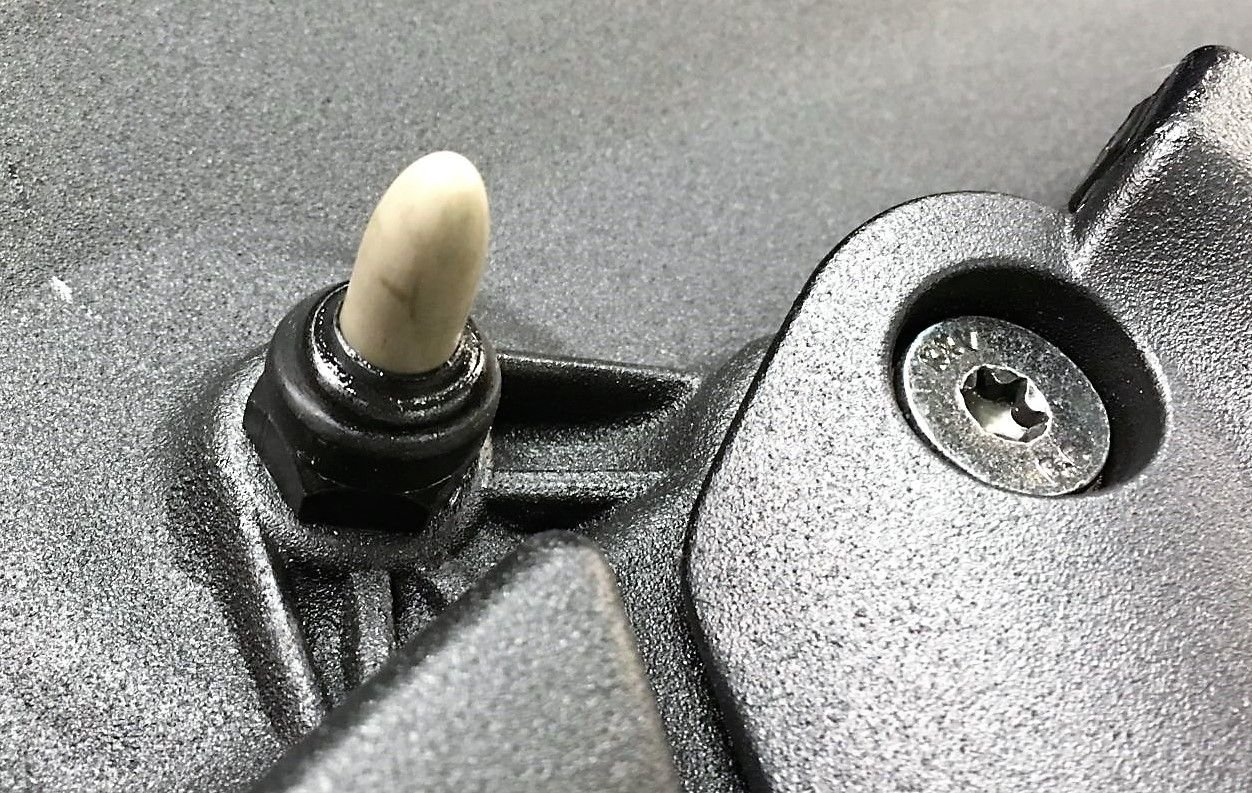

You can see in C7Jake's picture that the "new" pins are a white color. The "old" pins were black.
I have a 2016 C7 made in Feb this year - it has the new strikers, and my body color roof that came with the car has the white pins.
However, the transparent roof I bought for $1000 came off an early 2015 car and has the black pins.
I've been running the transparent roof with the old black pins on my car for more than 2000 miles and it makes absolutely no noise at all. If it ever does start to creak I'll buy the white pins for a few $$ (I don't know what they cost - but probably waaayyy more than they should!) and install them on the transparent top.
Bottom line - if you have a new car, it will have the new strikers in the windshield frame. You can buy a C7 roof that came with any year and if it's older it will have black pins, newer it will have white pins - that's the ONLY difference in the roof itself. If you get one with black pins, drive with it and see if you get any unwanted noise - if so, just get the white pins and install them.
.
Like C7Jake said, what they call the "strikers" on the windshield frame are different - they are holes where the "pins" on the top go into.
The "pins" are also different.
You can see in C7Jake's picture that the "new" pins are a white color. The "old" pins were black.
I have a 2016 C7 made in Feb this year - it has the new strikers, and my body color roof that came with the car has the white pins.
However, the transparent roof I bought for $1000 came off an early 2015 car and has the black pins.
I've been running the transparent roof with the old black pins on my car for more than 2000 miles and it makes absolutely no noise at all. If it ever does start to creak I'll buy the white pins for a few $$ (I don't know what they cost - but probably waaayyy more than they should!) and install them on the transparent top.
Bottom line - if you have a new car, it will have the new strikers in the windshield frame. You can buy a C7 roof that came with any year and if it's older it will have black pins, newer it will have white pins - that's the ONLY difference in the roof itself. If you get one with black pins, drive with it and see if you get any unwanted noise - if so, just get the white pins and install them.
.
Last edited by BEZ06; Sep 4, 2016 at 03:46 PM.
Burning Brakes
Joined: Sep 2009
Posts: 918
Likes: 266
From: Ft. Worth Tx.
You could find them for the C6 for $500-$750. The C7's are running from $1000-$1500 in perfect condition. Just watch on here and Craig's list. If you don't get in a hurry you will find one in your price range. I found mine two miles from my house $1000. Make sure it is in good condition no scratches. Good luck.
Racer
Joined: Aug 2016
Posts: 397
Likes: 39
And there are a lot of sponsors that sell GM parts at cost, or near to it, if you must have a brand new one.
PS - ask your dealer/parts counter to show you the price since he obviously got it confused with something else.
PS - ask your dealer/parts counter to show you the price since he obviously got it confused with something else.
Racer
Joined: Aug 2016
Posts: 397
Likes: 39
Safety Car
Joined: Feb 2006
Posts: 4,732
Likes: 34
From: Monument CO
23242414 (ROOF) - 2016 CHEVROLET CORVETTE
SHOP FOR RELATED PARTS IN TOP & COMPONENTS
DISCONTINUED PART
No Longer Available For Purchase
Buick, GMC, Cadillac, Hummer, Saturn, Oldsmobile, Pontiac, Chevrolet Parts
Manufacturer: GM
Part Number: 23242414
Part: ROOF
Part Notes: COUPE, TRANSPARENT
23242414 (ROOF) - 2016 CHEVROLET CORVETTE
SHOP FOR RELATED PARTS IN TOP & COMPONENTS
DISCONTINUED PART
No Longer Available For Purchase
Buick, GMC, Cadillac, Hummer, Saturn, Oldsmobile, Pontiac, Chevrolet Parts
Manufacturer: GM
Part Number: 23242414
Part: ROOF
Part Notes: COUPE, TRANSPAREN
Last edited by maxp; Sep 15, 2016 at 08:55 PM.
Race Director
Joined: May 2007
Posts: 11,334
Likes: 136
From: Out of Site...Out of Mind. Corvette: anything else is just transportation.
St. Jude Donor '09 thru '20
Try the area junk yards. You might luck up and find a wrecked C7 that hasn't had roof damage.
Racer
Joined: Aug 2016
Posts: 397
Likes: 39
That site shows the 2016 transparent roof as discontinued
23242414 (ROOF) - 2016 CHEVROLET CORVETTE
SHOP FOR RELATED PARTS IN TOP & COMPONENTS
DISCONTINUED PART
No Longer Available For Purchase
Buick, GMC, Cadillac, Hummer, Saturn, Oldsmobile, Pontiac, Chevrolet Parts
Manufacturer: GM
Part Number: 23242414
Part: ROOF
Part Notes: COUPE, TRANSPARENT
23242414 (ROOF) - 2016 CHEVROLET CORVETTE
SHOP FOR RELATED PARTS IN TOP & COMPONENTS
DISCONTINUED PART
No Longer Available For Purchase
Buick, GMC, Cadillac, Hummer, Saturn, Oldsmobile, Pontiac, Chevrolet Parts
Manufacturer: GM
Part Number: 23242414
Part: ROOF
Part Notes: COUPE, TRANSPARENT
I cannot believe you cannot buy a new one. I recently ordered my 2017 (same as the 2016) with the transparent roof and it is being built next week, with that top.
Drifting
Joined: Dec 2002
Posts: 1,420
Likes: 83
From: boerne texas
Your dealer's smoking weed. The dual roof cost is $1995 if ordered with body-color roof.
I believe the part # is 23145623. I've seen them online between $1750 and $2100. I would also suggest calling your dealer parts department directly and giving them the part # and ask them for the cost.
I believe the part # is 23145623. I've seen them online between $1750 and $2100. I would also suggest calling your dealer parts department directly and giving them the part # and ask them for the cost.
dealer is
.
