Shop Manual Help

Trying to locate a rattle in my 16 Coupe.

Looking to remove the knee bolster, the panel below the steering wheel assembly.

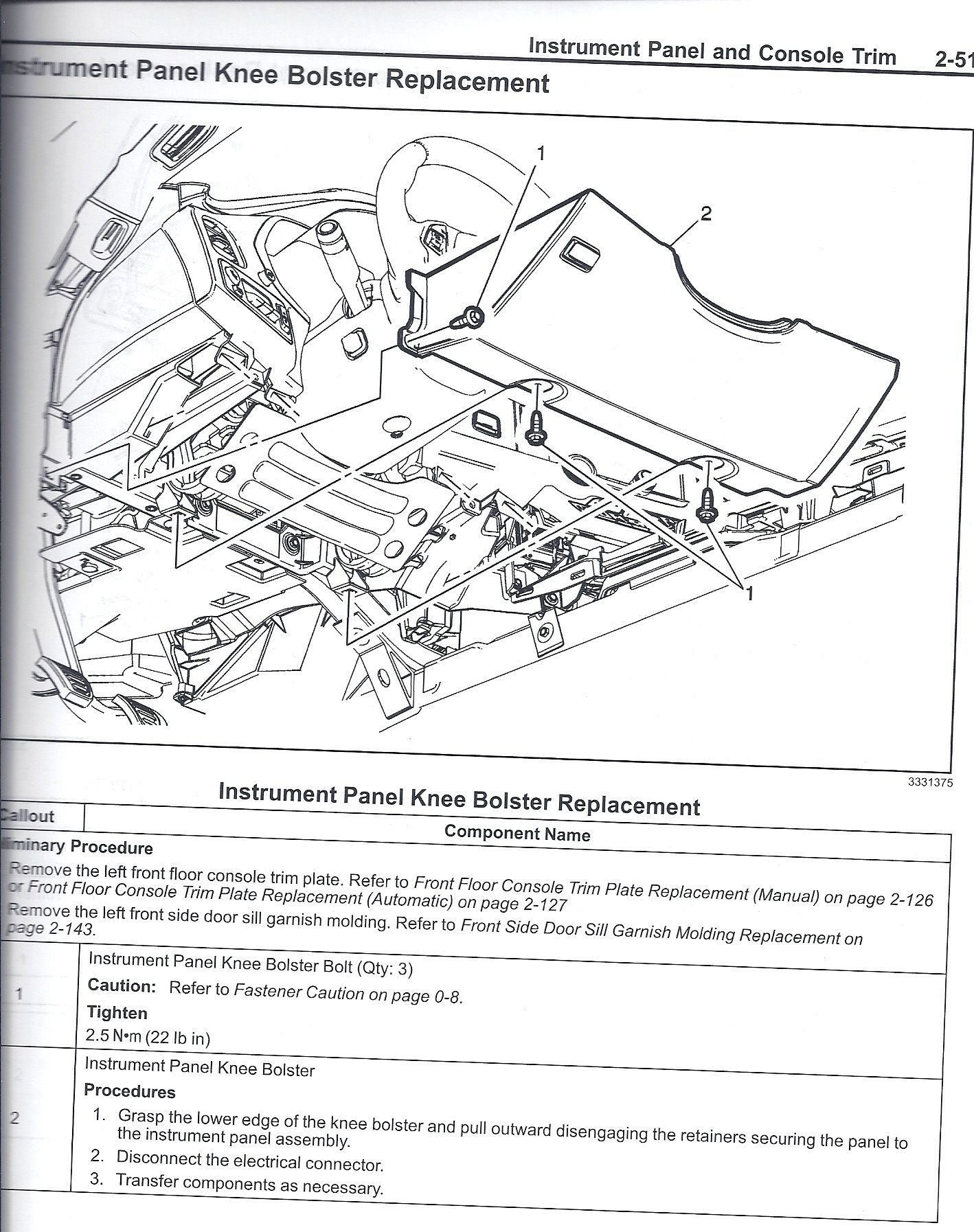

Would appreciate someone with a shop manual letting me know how to remove the knee bolster.

Thanks.

Aug 31, 2017 | 08:00 PM

c54u

Melting Slicks

Joined: Aug 2006

Posts: 2,615

Likes: 694

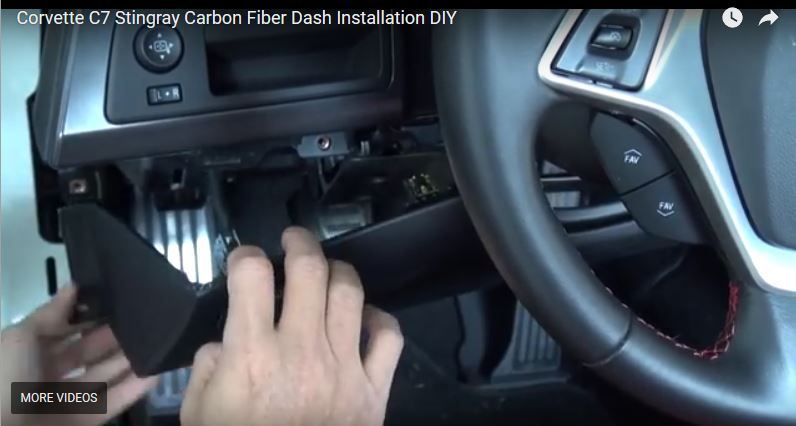

Not my video but take a look starting at 2:00

Hopefully someone can give you more detailed instructions.

Last edited by c54u; Aug 31, 2017 at 08:00 PM.

Aug 31, 2017 | 11:41 PM

Classic-Chevy-Guy

Thread Starter

Melting Slicks

Joined: May 2004

Posts: 2,426

Likes: 285

From: West Barnstable MA

Quote:

Originally Posted by c54u

Not my video but take a look starting at 2:00

Hopefully someone can give you more detailed instructions.

https://www.youtube.com/watch?v=SlG75ze2Udc

Thanks. Hoping I can get the bolster out without taking apart the entire upper dash.

Sep 10, 2017 | 02:40 PM

TEXHAWK0

Le Mans Master

Joined: Sep 2003

Posts: 8,847

Likes: 795

From: Longview Texas

Looks like you need to remove the trim pieces on each side, (the console and door opening trim), then it is straight forward. There should be only 3 screws, plus some clips that snap into the dash.

You may have to lift the console plate around the shifter to get the bolster to clear it in the upper left corner, next to the AC.
NOTE: The door trim and side trim on the console are held on just with push in clips, so you just need a trim tool and some pull with your fingers to remove them.

In the video, it says there are 3 clips on each side.

Last edited by TEXHAWK0; Sep 10, 2017 at 03:17 PM.
