Can someone post a pic of the lower radiator support mounted to the frame rail please. I've Googled and searched the Forum and everything is off angle or too dark (since it wasn't the focus of the shot). I'm looking for something "straight on" like....
============| <---Frame Rail
\______ \ _\______ \ <---Lower Support
I don't have access to my car (and won't for several weeks) so I have no way to do this myself. Hoping someone has had their car apart and has a pic laying around or perhaps they can turn the front wheels full-lock and take a pic of the rear mount which is just in front of the sway bar bracket.

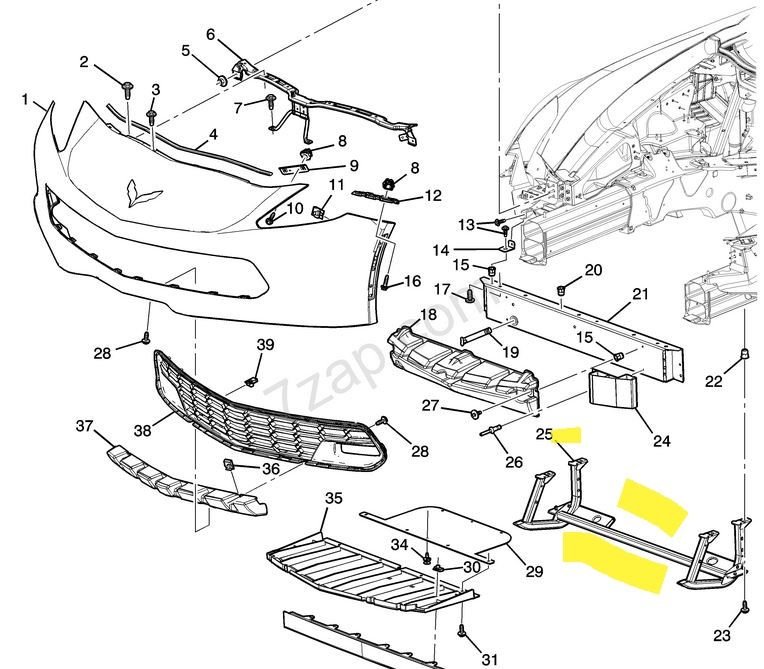

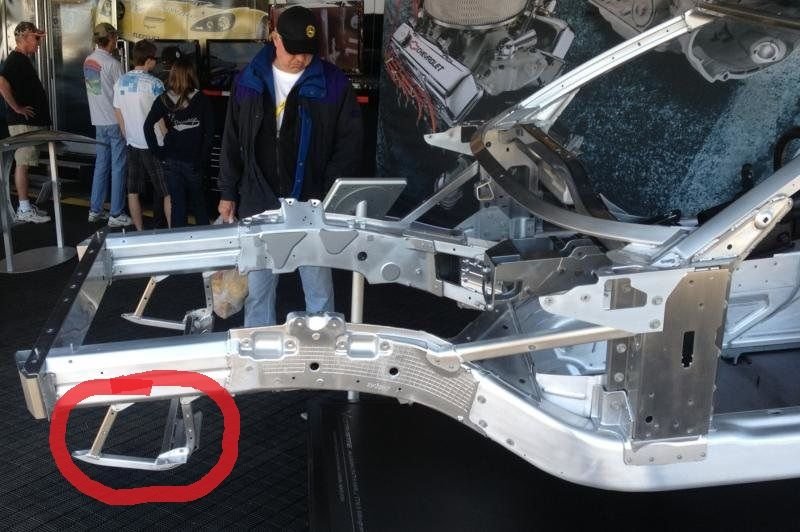

I circled the part in red, looking for a shot more straight on to better see the interface with the frame / it's part 25 in the drawing....
Lower Radiator Support...pic request
