Build sheet location?
Thread Starter
Safety Car
Joined: Mar 2006
Posts: 4,537
Likes: 5,124
From: Chester VA
Build sheet location?
On our 2015 I've pulled the rear compartment cover up far enough to find the SPID label. If I keep pulling, am I likely to find the build sheet (assuming a previous owner hasn't already done so)? The car appears very unmolested with only 13,000 miles. Or, if that wasn't where GM placed the sheet, where should I look? I'll be ordering the window sticker from the Corvette Museum and will add the build sheet to the order if needed.
Thx!
Larry
Thx!
Larry
Le Mans Master
Joined: Feb 2006
Posts: 5,979
Likes: 4,142
From: Kansas City, MO
That's not true. The factory puts them in the car with the accessory bags. Problem is, a lot of dealers or first owners then toss them out.
There's no secret stash in a frame rail or under a trim panel.
You can order some kind of after-the-fact build sheet from the museum, but it's nothing like the sheets that go down the line with the car.
There's no secret stash in a frame rail or under a trim panel.
You can order some kind of after-the-fact build sheet from the museum, but it's nothing like the sheets that go down the line with the car.
Moderator emeritus
Joined: Jun 2001
Posts: 18,599
Likes: 3,951
From: Jacksonville Florida BWO Dayton, Cincinnati, Bloomsbury NJ, Cincinnati
2015 C7 of the Year Finalist
1984, 1985 White sticker located on the underside of the rear, left storage compartment cover (on the driver side) of the car.
1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994 White sticker located on the underside of the center console lid.
1995, 1996 White sticker located on the underside of the rear, right storage compartment cover (on the passenger side) of the car.
1997, Early 1998 White sticker located on the underside of the rear, left storage compartment cover (on the driver side) of the car.
Late 1998 - 2013 White or silver sticker which is located inside the glove box compartment on the glove box door.
2014, 2015, 2016, 2017 Silver sticker which is located under the rear compartment carpet, near the battery.
2018, 2019, 2020 GM completely revamped the RPO Code sticker. They moved the silver sticker to the driver-side door and added a QR Code. The RPO Codes can only be read using a QR Code scanner.
https://corvettesalvage.com/how-to-s...our-rpo-codes/
Elmer
1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994 White sticker located on the underside of the center console lid.
1995, 1996 White sticker located on the underside of the rear, right storage compartment cover (on the passenger side) of the car.
1997, Early 1998 White sticker located on the underside of the rear, left storage compartment cover (on the driver side) of the car.
Late 1998 - 2013 White or silver sticker which is located inside the glove box compartment on the glove box door.
2014, 2015, 2016, 2017 Silver sticker which is located under the rear compartment carpet, near the battery.
2018, 2019, 2020 GM completely revamped the RPO Code sticker. They moved the silver sticker to the driver-side door and added a QR Code. The RPO Codes can only be read using a QR Code scanner.
https://corvettesalvage.com/how-to-s...our-rpo-codes/
Elmer
Safety Car
Joined: Apr 2020
Posts: 3,814
Likes: 1,250
From: Northeast
Thread Starter
Safety Car
Joined: Mar 2006
Posts: 4,537
Likes: 5,124
From: Chester VA
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Top 10 Corvette Engines RANKED by Peak Torque (70+ Years of Muscle!)
Joe Kucinski
Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!
Verdad Gallardo
Top 10 Corvettes Coming to Mecum Indy 2026!
Brett Foote
Top 10 C9 Corvette MUST-HAVES to Fix These C8 Generation Flaws!
Michael S. Palmer
10 Revolutionary 'Corvette Firsts' Most People Don't Know
Joe Kucinski
5 Reasons to Upgrade to an LS6-Powered Corvette; 5 Reasons to Stay LT2
Michael S. Palmer
Thread Starter
Safety Car
Joined: Mar 2006
Posts: 4,537
Likes: 5,124
From: Chester VA
Administrator
Joined: Mar 2001
Posts: 368,060
Likes: 24,730
From: In a parallel universe. Currently own 2014 Stingray Coupe.
C7 of the Year - Modified Finalist 2021
MO Events Coordinator
St. Jude Co-Organizer
St. Jude Donor '03 thru '25
NCM Sinkhole Donor
CI 5, 8 & 11 Veteran
Those would be very nice to have, but unfortunately I bought my car used and they were not with the car. Who knows if the original owner even got them. But the Museum sheet is the next best thing.
Intermediate
Joined: May 2015
Posts: 26
Likes: 7
From: Mesa Arizona
Help,
Looking on buying 2017 Z06 LZ1 would like to know if I could get the build sheet or window sticker buy the Vin number?
Any help would be greatly appreciated. "1G1YP2D69H5601875"
Thanks,
Looking on buying 2017 Z06 LZ1 would like to know if I could get the build sheet or window sticker buy the Vin number?
Any help would be greatly appreciated. "1G1YP2D69H5601875"
Thanks,
Thread Starter
Safety Car
Joined: Mar 2006
Posts: 4,537
Likes: 5,124
From: Chester VA

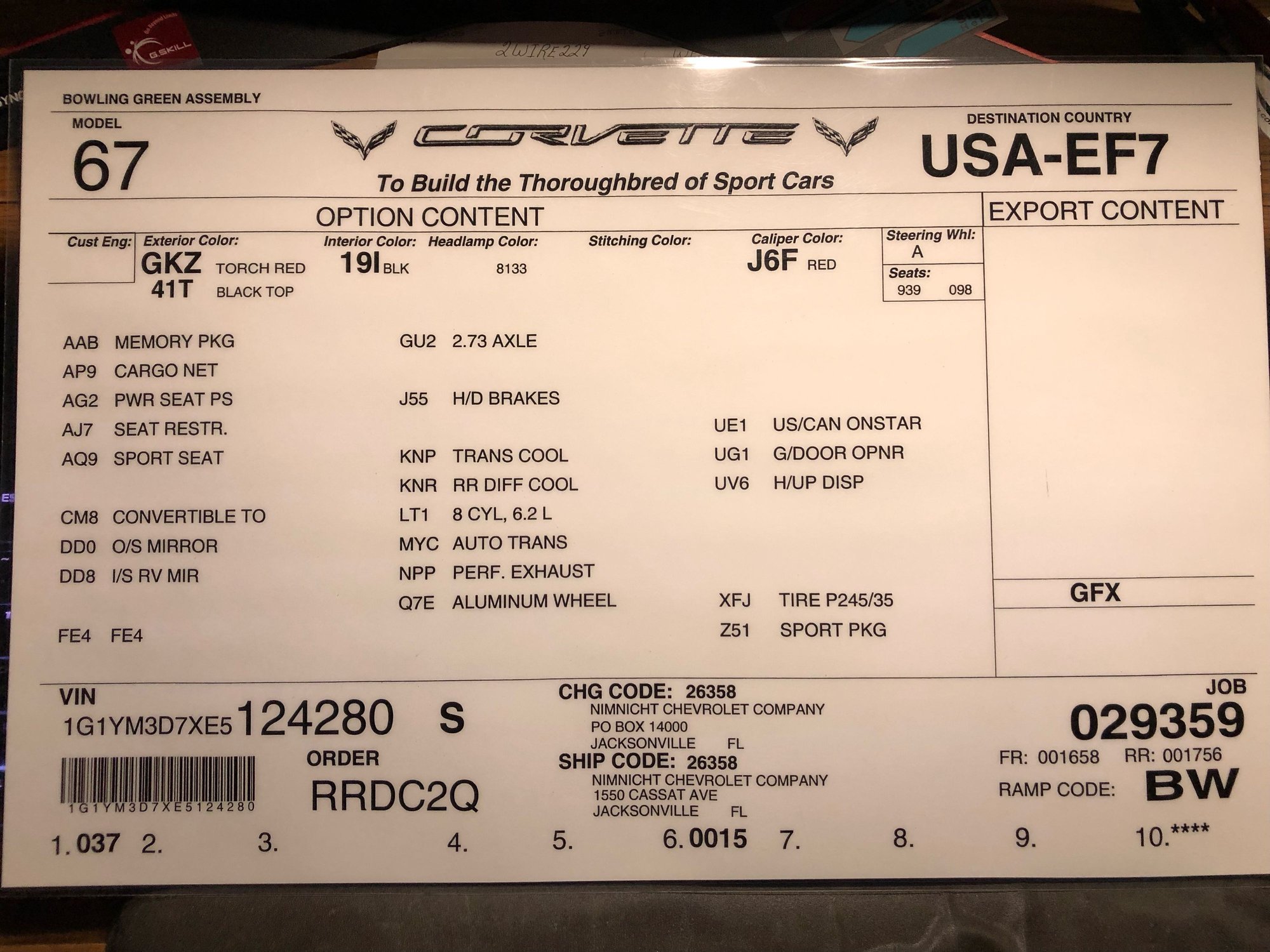

The Monroney label will look like this -
