V8=v4 ?
Hi
i I have a 2016 Stingray and l was told that l have a system that when l come to a stoplight l will go from V8 to V4..
While l was in my driveway in neutral the icon said l was in V8.
The port under my dashboard is empty and l have the plug-in a friend gave me out of a 2014 vette to stop the
switching from v8 to v4.
Is it possible this economy feature was not available for 2016
Thanks
i I have a 2016 Stingray and l was told that l have a system that when l come to a stoplight l will go from V8 to V4..
While l was in my driveway in neutral the icon said l was in V8.
The port under my dashboard is empty and l have the plug-in a friend gave me out of a 2014 vette to stop the
switching from v8 to v4.
Is it possible this economy feature was not available for 2016
Thanks
Racer
Joined: Jun 1999
Posts: 407
Likes: 91
From: Chandler Arizona

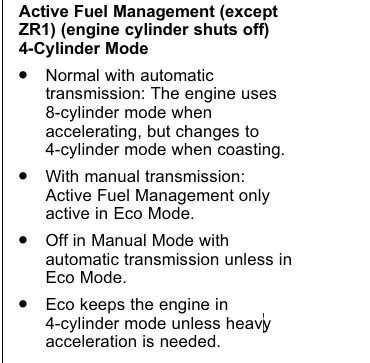

The AFM system is present on all C7s regardless of model year. The switch to V4 occurs while the vehicle is moving, it doesn’t specifically go into that mode at idle, I don’t think it does that at idle at all. There are many threads about it on the forum. Manual cars only switch if in eco mode. Auto cars do it unless it is in manual mode. If you bought it used the AFM could have been tuned out or been mechanically removed by the previous owner. I have used the Range AFM disabler for years, but it does interfere with the OBD II readiness, there are many threads about this also.
Racer
Joined: May 2023
Posts: 337
Likes: 198
From: Niagara, Ontario, Canada
Safety Car
Joined: Mar 2006
Posts: 4,547
Likes: 5,146
From: Chester VA
The AFM system is present on all C7s regardless of model year. The switch to V4 occurs while the vehicle is moving, it doesn’t specifically go into that mode at idle, I don’t think it does that at idle at all. There are many threads about it on the forum. Manual cars only switch if in eco mode. Auto cars do it unless it is in manual mode. If you bought it used the AFM could have been tuned out or been mechanically removed by the previous owner. I have used the Range AFM disabler for years, but it does interfere with the OBD II readiness, there are many threads about this also.
Administrator
Joined: Mar 2001
Posts: 368,370
Likes: 24,790
From: In a parallel universe. Currently own 2014 Stingray Coupe.
C7 of the Year - Modified Finalist 2021
MO Events Coordinator
St. Jude Co-Organizer
St. Jude Donor '03 thru '26
NCM Sinkhole Donor
CI 5, 8 & 11 Veteran
The AFM system is present on all C7s regardless of model year. The switch to V4 occurs while the vehicle is moving, it doesn’t specifically go into that mode at idle, I don’t think it does that at idle at all. There are many threads about it on the forum. Manual cars only switch if in eco mode. Auto cars do it unless it is in manual mode. If you bought it used the AFM could have been tuned out or been mechanically removed by the previous owner. I have used the Range AFM disabler for years, but it does interfere with the OBD II readiness, there are many threads about this also.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Roadster Madness. 😠
Joined: Sep 2009
Posts: 6,292
Likes: 2,362
From: Ventura Co Ca
SoCal Regional Events Coordinator
St. Jude Donor '13, '20-'21
If your AFM is working properly, you will not feel it switch over. The only way I can tell is by looking at the gauge. I have a 2016.
Burning Brakes
Joined: Jun 2018
Posts: 756
Likes: 172
From: SC
Melting Slicks
Joined: Jan 2017
Posts: 2,706
Likes: 897
From: CONCORD CA.
You need to be moving and have the cruise control on (think freeway speeds). You will also have to have the drive mode set to Economy. Once these parameters are set, it will automatically go into its V4 mode. If you accelerate while in this mode, it will automatically revert back V8. When you then get back to your cruise setting, it will go back to V4. This only works if you are in the Eco setting. I find that in V4 mode, does get me anywhere from 2 - 4 mpg improvement.
Race Director
Joined: Feb 2001
Posts: 11,302
Likes: 2,096
From: Grapevine Tx
2018 C3 of Year Finalist
2016 C3 of the Year Finalist
You need to be moving and have the cruise control on (think freeway speeds). You will also have to have the drive mode set to Economy. Once these parameters are set, it will automatically go into its V4 mode. If you accelerate while in this mode, it will automatically revert back V8. When you then get back to your cruise setting, it will go back to V4. This only works if you are in the Eco setting. I find that in V4 mode, does get me anywhere from 2 - 4 mpg improvement.
Melting Slicks
Joined: Dec 2004
Posts: 2,519
Likes: 762
I have owned three C7s but only one was an A8. I was amazed at how it stayed in V4 on long gradual hills and short steep hills on backroads. I used to own a Silverado and it would go into V4 while I was pulling a 2,000 pound trailer on level roads. Personally, I think V4 should have switched off when the truck was pulling a trailer.
Safety Car
Joined: Sep 2005
Posts: 4,226
Likes: 643
From: Orange County Ca
The whole v8/v4 thing is a gimmick to please the epa.
It adds a whole new level of complexity to your engine that may decrease durability. It adds little to no fuel economy.
Keep your disabler, it's a good solution to a useless product.
It adds a whole new level of complexity to your engine that may decrease durability. It adds little to no fuel economy.
Keep your disabler, it's a good solution to a useless product.
Burning Brakes
Joined: Jun 2018
Posts: 756
Likes: 172
From: SC
What is the downside of the disabler?
