C7 Throttle Body response, getting to know it


Old 01-08-2019, 03:35 PM
  #1
[email protected]
Supporting Vendor
Thread Starter

Mike@SolerEngr's Avatar

Member Since: Dec 2018
Location: South Alabama
Posts: 183
Thanked 57 Times in 32 Posts
Default C7 Throttle Body response, getting to know it

There is a much debated problem w/ the throttle response of the C7ís, in all models Stingray, Z51 and Z06, manual or auto, the issue has been described in this and other forums, just to mention a few descriptions:

- Throttle Lag

- Delayed response

- Car feeling heavy or not nimble

- Difficulty climbing hills at low/moderate throttle

- Uncertainty when passing other cars or unpredictable response at low/moderate throttle

- Stumble when shifting on manual transmissions

You name it, this has been my issue w/ this car since test driving at the dealership. I've tried a Throttle controller, AFM disabler, ECM Tuning, and arguably the three most talked about ported throttle bodies (PTB) out there. I have also combined some of the above w/ some success but still not enough. One just needs to hop into almost any other comparable car to feel they respond better.

After spending so much time/money, I decided to take it upon myself to find out, I also have all the equipment needed at work (measuring, testing, simulating, machining etc.)

Long story short; it is the throttle body. Between idle (~5 degree throttle) to ~30 deg throttle angle the amount of mass air flow (which is proportional to power) puts our C7 at a weigh to power ratio similar to that of trucks and SUVís, both in terms of absolute value and rate of change. Not to be confused w/ the weight to power ratio that is usually published, which is calculated at WOT, above 35 deg throttle angle our C7ís shine. It is on the part throttle range (idle to 30 deg) that the issue exists.

Iím not going to speculate on the reasons, but I can tell you that our throttle body p/n is used in many GM vehicles and that such throttle response helps w/ fuel economy. That helps to keep parts cost low and meet EPA requirements for the fleet. However, I do not think one size fits all and that a sports car needs to sacrifice performance for economy.

The throttle controller and the tune improve response by making the throttle plate move faster between the 5-30 deg range. Faster, but it still needs to go through a tortuous path for the air flow, and the manifold pressure doesnít recover as fast. It is a transient process, and it is from the intake manifold where the pistons suck the air from. Notice that this is not true throttle response, it is just tricking the ECM into thinking you have pushed the accelerator pedal harder. The actual throttle response is the same, only physical changes to the throttle can make for a true throttle response.

The existing aftermarket ported throttle bodies also helped, they do change the throttle physically, but their effect only starts to take place at about 25 deg in what I thought was the best one of them. Definitely a step in the right direction, but I noticed they were not optimized and that more could be extracted from them, that is a throttle body that can increase the absolute value and rate of change of mass air flow right from idle and up to 35 degrees to achieve the same weight to power ratio (in that range) of similar sports cars that feel nimble and fun to drive at part throttle.

Another long story short, I reversed engineered 10ea C7 OEM throttle bodies, 3ea C7 aftermarket ported throttle bodies, and a benchmark (competing car maker model) OEM throttle body. Optimized/modified the C7 OEM throttle body to meet the benchmark throttle response as well as the goal stated above.

The modified throttle body is made (CNC machined) from a brand new OEM throttle body, flow tested and engine tested. It has been in my C7 since September 2018, works beautifully, no codes, no issues. Driven in different conditions/modes for a few thousand miles now, just waiting for a hard freeze to see how it does on cold weather, it also needs to be tested at high altitude and in different C7 models to make sure it works in all cases, so, still a ďBetaĒ version.

See pics below for more insight into what Iím talking aboutÖand most importantly what do you think? All comments welcome, Iím learning as I go and appreciate your input.







__________________
Mike,
Soler Performance LLC.
[email protected]
www.solerengineering.com

Last edited by [email protected]; 02-26-2019 at 03:00 PM. Reason: Added signature
Mike@SolerEngr is offline
The Following 15 Users Say Thank You to [email protected] For This Useful Post:
1ccrider (02-06-2019), djmlax89 (01-12-2019), fnbrowning (01-10-2019), GoatHead (01-09-2019), Harbgrogan (02-08-2019), jimtreber (01-10-2019), legman (01-13-2019), Maxpowers (01-09-2019), Mike Campbell (02-05-2019), Mr. Jones (01-17-2019), Paul_Cantwell (01-31-2019), Perf n Restore (01-18-2019), raylo (02-07-2019), RocksZC7 (01-15-2019), Speedfreaq (02-22-2019)
Old 01-09-2019, 07:50 AM
  #2
jim2092
CF Senior Member
Support Corvetteforum!

jim2092's Avatar

Member Since: Jan 2005
Location: Tucson Arizona
Posts: 1,478
Thanked 79 Times in 60 Posts
St. Jude Donor '08
Default

Very impressive. Looks like you are on to something. (countersunk)
jim2092 is offline
The Following User Says Thank You to jim2092 For This Useful Post:
[email protected] (01-09-2019)
Old 01-09-2019, 10:25 AM
  #3
GoatHead
CF Senior Member

Member Since: Dec 2017
Posts: 259
Thanked 33 Times in 23 Posts
Default

Very impressive work. Thanks for sharing, and best of luck testing. Please keep us updated.
GoatHead is offline
The Following User Says Thank You to GoatHead For This Useful Post:
[email protected] (01-09-2019)
Old 01-09-2019, 10:28 AM
  #4
McNultyZ06
Junior Member

McNultyZ06's Avatar

Member Since: Jan 2019
Location: Miami
Posts: 8
Thanks: 0
Thanked 7 Times in 6 Posts
Default Wow

Long time lurker. Would love to get my hands on something like this. Great job! Hit the nail on the head. This one ups anything Iíve seen on the market and/or forums... impressive indeed...
McNultyZ06 is offline
The Following User Says Thank You to McNultyZ06 For This Useful Post:
[email protected] (01-09-2019)
Old 01-09-2019, 12:47 PM
  #5
Maxpowers
CF Senior Member

Maxpowers's Avatar

Member Since: Aug 2015
Location: Toronto
Posts: 2,582
Thanked 607 Times in 479 Posts
Default

I'll echo the others. Really impressive work! Welcome to the forum. "subscribed"
Maxpowers is offline
The Following User Says Thank You to Maxpowers For This Useful Post:
[email protected] (01-09-2019)
Old 01-09-2019, 07:22 PM
  #6
timmyZ06
CF Senior Member

timmyZ06's Avatar

Member Since: Jul 2010
Location: montreal quebec
Posts: 5,381
Thanked 224 Times in 191 Posts
Default

nice work, im deff suscribed!!
timmyZ06 is offline
The Following User Says Thank You to timmyZ06 For This Useful Post:
[email protected] (01-10-2019)
Old 01-09-2019, 10:02 PM
  #7
marsheng
CF Senior Member

Member Since: Dec 2017
Location: Strathroy,Ontario Can
Posts: 102
Thanked 22 Times in 20 Posts
Default

Very well done article , thank you for posting.
marsheng is offline
The Following User Says Thank You to marsheng For This Useful Post:
[email protected] (01-10-2019)
Old 01-10-2019, 10:12 AM
  #8
db2xpert
CF Senior Member

db2xpert's Avatar

Member Since: May 2002
Location: Prescott AZ Eloy AZ
Posts: 1,154
Thanked 39 Times in 35 Posts
Default

Are you changing the motor, as you show "high resolution" motor?

How can we minimize backlash?

Are you planning to make a better unit, or just working to make yours better?

Great information so far.

Sub'd
db2xpert is offline
The Following User Says Thank You to db2xpert For This Useful Post:
[email protected] (01-10-2019)
Old 01-10-2019, 05:17 PM
  #9
[email protected]
Supporting Vendor
Thread Starter

Mike@SolerEngr's Avatar

Member Since: Dec 2018
Location: South Alabama
Posts: 183
Thanked 57 Times in 32 Posts
Default

Thanks everyone. To answer a few questions:

I started trying to improve my own, and also as a hobby. When I saw it worked and the time/money it took to do it, I started to think it might have potential as a business.

About the motor, there are two different p/n of TB for the C7ís, depending on model year. The older p/n motor was not able to control idle RPM for the modification within (about +/- 30 RPM). In any case, and regardless of model year (TB p/n) the motors need to be the latest T/B p/n, fully compatible GM/Delco motors, and a part modified this way needs to have it.

Backlash; the reason I said minimized is b/c one cannot really get rid of it, at least I have not figured out how, but after having played around w/ several OEM TBís from different Mfg lots, one can sort the center cluster gears according to tooth thickness and pitch diameter, at the same time, sort the whole gear train of each TB according to shaft center distances, then simply match and swap them.

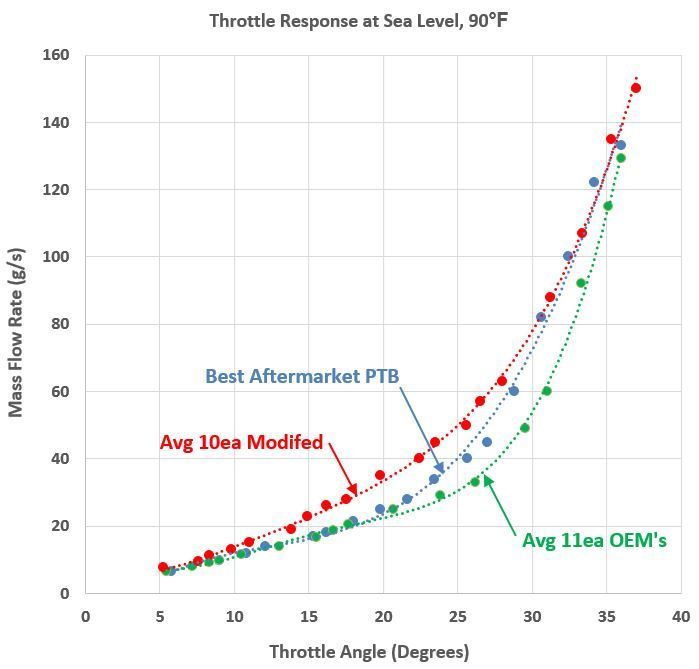

Iíve also added below a plot of the minimum measured performance of the modified throttle bodies. The fun factor seems to be on the rate of change (slope/gain of curve) from idle (5 deg) to 25 deg. The plots look very similar (a matter of scaling) but the mass air flow gains tell a different story:

OEM: 1.2 grams/sec-Deg (Baseline)

Best Aftermarket: 1.5 grams/sec-Deg (25% Increase)

Modified/Optimized: 2.3 grams/sec-Deg (92% increase)

BTW, after about 35 deg they all perform the same, I find the WOT HP gain claims from some aftermarket PTBís hard to believe.

__________________
Mike,
Soler Performance LLC.
[email protected]
www.solerengineering.com

Last edited by [email protected]; 02-26-2019 at 03:01 PM. Reason: Added signature
Mike@SolerEngr is offline
The Following User Says Thank You to [email protected] For This Useful Post:
jimtreber (01-11-2019)
Old 01-12-2019, 12:55 AM
  #10
db2xpert
CF Senior Member

db2xpert's Avatar

Member Since: May 2002
Location: Prescott AZ Eloy AZ
Posts: 1,154
Thanked 39 Times in 35 Posts
Default

I'm not an engineer, so please help me understand how your different motor and backlash optimization would flow more air at 20-25% throttle angle than the best PTB on the marketplace.
Have you done other porting or modifications to the flow path that other porters have not?

I hope you really have something here.

Thanks...
db2xpert is offline
The Following User Says Thank You to db2xpert For This Useful Post:
[email protected] (01-14-2019)
Old 01-12-2019, 07:58 AM
  #11
rrsperry
CF Senior Member

rrsperry's Avatar

Member Since: Sep 2015
Posts: 2,588
Thanked 394 Times in 255 Posts
Default

You know what's even easier? Do not try to drive in 5th or 6th gear at 1300 rpm?

THe only time i have an issue with throttle responsw was trying to ease away from a stop in traffic. If you keep RPM'S above 1700 or so, you never have an issue. (M7)

But it looks like you had fun, so well done... BZ...
rrsperry is offline
The Following User Says Thank You to rrsperry For This Useful Post:
[email protected] (01-14-2019)
Old 01-12-2019, 07:34 PM
  #12
Avanti
CF Senior Member

Avanti's Avatar

Member Since: Mar 2001
Location: Bonneville Salt Flats, 223mph Aug. '04
Posts: 5,802
Thanked 594 Times in 423 Posts
Default

I've an '18 LT1 M7 I always run in "Touring" mode. I've 4K miles on it; to date I've seen no untoward issues with throttle response. For some perspective, I'm not a beginner at hipo; I've driven everything from assorted twin-turbos, Vortech, Paxton Novi, Kenne-Bell, even an original Boss 429, among others, on the street and the Salt Flats. Our trottles are computer moderated and I have found others who expect a DBW system to "feel" identical to direct, hard-linkage. That isn't going to happen, to varying degrees for varying reasons under different conditions. But, that said, I see absolutely nothing amiss with my stock Stingray. Now, once one start modding the ballpark changes, of course.
Avanti is offline
The Following User Says Thank You to Avanti For This Useful Post:
[email protected] (01-14-2019)
Old 01-13-2019, 10:37 AM
  #13
Oh4GTO
CF Senior Member

Member Since: Jun 2006
Location: Palmer Township PA
Posts: 455
Thanked 50 Times in 23 Posts
Default

Finally a real tech thread. Thank you.

I went with the Katech PTB and noticed a difference in throttle response mainly in cruise. Car would react faster with throttle inputs and actually needed less throttle to make changes to speed or maintain it while climbing a hill. I have an A8 and that's the only change that was noticeable. Very interested to see what you come up with.
Oh4GTO is offline
The Following User Says Thank You to Oh4GTO For This Useful Post:
[email protected] (01-14-2019)
Old 01-14-2019, 10:15 AM
  #14
[email protected]
Supporting Vendor
Thread Starter

Mike@SolerEngr's Avatar

Member Since: Dec 2018
Location: South Alabama
Posts: 183
Thanked 57 Times in 32 Posts
Default

Originally Posted by db2xpert View Post
I'm not an engineer, so please help me understand how your different motor and backlash optimization would flow more air at 20-25% throttle angle than the best PTB on the marketplace.
Have you done other porting or modifications to the flow path that other porters have not?

I hope you really have something here.

Thanks...
db2xpert, you are right, using the latest TB p/n motor or minimizing backlash does not increase flow at all, it just eliminates a tiny bit of dead band in the system, I hardly believe it is noticeable. The same goes for the half-shaft and the countersunk screws, there are claims that it increases airflow/HP at WOT, but I think it's hardly noticeable/measurable. Nevertheless, they are little steps in the right direction, and they should be included IMO.

The airflow gains (from 5 to 35 deg) are due to the new shape that was given to the active contour of the modified throttle body, that is all the red surfaces in the last picture of post #1. I'm not sure I'd call it porting, as porting usually refers to smoothing corners and improving the surface finish of the flow path. This is a new flow path w/ a matching reworked plate.

The aftermarket PTB's were only ported at the top/upstream active profile, where a corner radius was added. In figure 12 of post #1 you can see the extent of the aftermarket porting, it only works from 25 deg and up, nothing happens between idle and 25 deg (plots overlap w/ OEM contour). The same goes for the bottom/downstream active profile, where nothing was modified (plots overlap w/ OEM).

In this design/mod, the gains start from idle (~5 deg) and both top and lower contour were reshaped. I'm hesitant to disclose more detailed (drawings/graphics) info but I'll post some pictures later to give you a better idea.
__________________
Mike,
Soler Performance LLC.
[email protected]
www.solerengineering.com

Last edited by [email protected]; 02-26-2019 at 03:02 PM. Reason: Added signature
Mike@SolerEngr is offline
Old 01-14-2019, 10:25 AM
  #15
[email protected]
Supporting Vendor
Thread Starter

Mike@SolerEngr's Avatar

Member Since: Dec 2018
Location: South Alabama
Posts: 183
Thanked 57 Times in 32 Posts
Default

Originally Posted by rrsperry View Post
You know what's even easier? Do not try to drive in 5th or 6th gear at 1300 rpm?

THe only time i have an issue with throttle responsw was trying to ease away from a stop in traffic. If you keep RPM'S above 1700 or so, you never have an issue. (M7)

But it looks like you had fun, so well done... BZ...
Exactly, that is what I used to do on my A8, drive in M mode and keep RPM's at about 2000 or higher. But wanted the same effect in D mode and w/o having to get into performance shift mode.
__________________
Mike,
Soler Performance LLC.
[email protected]
www.solerengineering.com

Last edited by [email protected]; 02-26-2019 at 03:02 PM. Reason: Added signature
Mike@SolerEngr is offline
Old 01-14-2019, 10:44 AM
  #16
[email protected]
Supporting Vendor
Thread Starter

Mike@SolerEngr's Avatar

Member Since: Dec 2018
Location: South Alabama
Posts: 183
Thanked 57 Times in 32 Posts
Default

Originally Posted by Avanti View Post
I've an '18 LT1 M7 I always run in "Touring" mode. I've 4K miles on it; to date I've seen no untoward issues with throttle response. For some perspective, I'm not a beginner at hipo; I've driven everything from assorted twin-turbos, Vortech, Paxton Novi, Kenne-Bell, even an original Boss 429, among others, on the street and the Salt Flats. Our trottles are computer moderated and I have found others who expect a DBW system to "feel" identical to direct, hard-linkage. That isn't going to happen, to varying degrees for varying reasons under different conditions. But, that said, I see absolutely nothing amiss with my stock Stingray. Now, once one start modding the ballpark changes, of course.
True, many feel this way and there is nothing wrong w/ that, it is a matter of feel/taste. I don't have that experience w/ high performance cars. I came from a Subaru BRZ, then a VW GTI and now the Stingray and I felt the difference in throttle response since day one. Both the BRZ and the GTI felt smaller, nimbler. But; how come? The C7 has more than double the HP and it is lighter. I thought it was in my head, until I measured/calculated the weight to power ratio at part throttle of the C7, then went into a 375 HP/ 5700 lb SUV and did the same. The weight to power ratios were the comparable and felt comparable (200-300 lb/HP) at part throttle. Then, I knew it was real.
__________________
Mike,
Soler Performance LLC.
[email protected]
www.solerengineering.com

Last edited by [email protected]; 02-26-2019 at 03:03 PM. Reason: Added signature
Mike@SolerEngr is offline
Old 01-14-2019, 10:52 AM
  #17
[email protected]
Supporting Vendor
Thread Starter

Mike@SolerEngr's Avatar

Member Since: Dec 2018
Location: South Alabama
Posts: 183
Thanked 57 Times in 32 Posts
Default

Originally Posted by Oh4GTO View Post
Finally a real tech thread. Thank you.

I went with the Katech PTB and noticed a difference in throttle response mainly in cruise. Car would react faster with throttle inputs and actually needed less throttle to make changes to speed or maintain it while climbing a hill. I have an A8 and that's the only change that was noticeable. Very interested to see what you come up with.
Had exactly the same experience w/ aftermarket PTB's and decided to find out how much more modification it can support. So far so good. Still needs more testing though.
__________________
Mike,
Soler Performance LLC.
[email protected]
www.solerengineering.com

Last edited by [email protected]; 02-26-2019 at 03:04 PM. Reason: Added signature
Mike@SolerEngr is offline
Old 01-14-2019, 11:24 AM
  #18
The HACK
CF Senior Member

The HACK's Avatar

Member Since: Apr 2018
Posts: 506
Thanked 249 Times in 136 Posts
Default

Wow, this thread is awesome.

I came from a long line of fine, high-revving German automobile (still have it, by the way). The one thing that upon first test drive always bothered me was how sluggish the throttle response was on the C7. Almost like nothing happens at the first 1/2" of pedal travel. Unlike the German with the 6 individual throttle bodies that always seems to jump and pounce straight off the throttle tip-in, the C7 doesn't seem to want to do anything fun until you depress the throttle past 30%. I always just assumed it's the nature of the beast...

Now I know why.

Looks like a ported throttle body is definitely in the books, and here I am thinking that the C7 is good to go to the track bone stock.
The HACK is offline
The Following User Says Thank You to The HACK For This Useful Post:
[email protected] (01-14-2019)
Old 01-15-2019, 11:04 AM
  #19
Oh4GTO
CF Senior Member

Member Since: Jun 2006
Location: Palmer Township PA
Posts: 455
Thanked 50 Times in 23 Posts
Default

The car is fantastic on the track. Its daily driving where it is sluggish.
Oh4GTO is offline
Old 01-15-2019, 11:21 AM
  #20
db2xpert
CF Senior Member

db2xpert's Avatar

Member Since: May 2002
Location: Prescott AZ Eloy AZ
Posts: 1,154
Thanked 39 Times in 35 Posts
Default

Originally Posted by Manta-C7 View Post
db2xpert, you are right, using the latest TB p/n motor or minimizing backlash does not increase flow at all, it just eliminates a tiny bit of dead band in the system, I hardly believe it is noticeable. The same goes for the half-shaft and the countersunk screws, there are claims that it increases airflow/HP at WOT, but I think it's hardly noticeable/measurable. Nevertheless, they are little steps in the right direction, and they should be included IMO.

The airflow gains (from 5 to 35 deg) are due to the new shape that was given to the active contour of the modified throttle body, that is all the red surfaces in the last picture of post #1. I'm not sure I'd call it porting, as porting usually refers to smoothing corners and improving the surface finish of the flow path. This is a new flow path w/ a matching reworked plate.

The aftermarket PTB's were only ported at the top/upstream active profile, where a corner radius was added. In figure 12 of post #1 you can see the extent of the aftermarket porting, it only works from 25 deg and up, nothing happens between idle and 25 deg (plots overlap w/ OEM contour). The same goes for the bottom/downstream active profile, where nothing was modified (plots overlap w/ OEM).

In this design/mod, the gains start from idle (~5 deg) and both top and lower contour were reshaped. I'm hesitant to disclose more detailed (drawings/graphics) info but I'll post some pictures later to give you a better idea.
Thanks, look forward to the additional pics.
db2xpert is offline

Thread Tools
Search this Thread
Quick Reply: C7 Throttle Body response, getting to know it


Sponsored Ads
Vendor Directory

Contact Us - About Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

  • Ask a Question
    Get answers from community experts
Question Title:
Description:
Your question will be posted in:
