Forced Induction engine reliability list
#1
Burning Brakes
Thread Starter
Forced Induction engine reliability list
I saw this on anther forum and felt it would be good information to start gathering here. How many times do we see threads every week of people asking what power level is safe, how much boost to run on X setup etc.
This will be a two part post, one section for stock bottom end forced induction engines, and built forced induction engines.
(Please specify any internal engine modifications done that may help reinforce the engine. IE: Heads were ported, were valved done? Cam was installed, were springs, or retainers? Etc...)
Format for post:
- Type of forced induction (Turbo, supercharger, nitrous, and what type of turbo(s) and blower where applicable)
- PSI of boost you're running, or shot size with nitrous
- RWHP/ RWTQ
- What engine? (LS2/LS3/LS7) If built and different, what engine?
- Miles on the car at install (Or since engine was built?)
- Miles on the car now (If engine was hurt, and re-built - mileage of when the incident occurred)
- If the engine was hurt, what failed?
- Type of fuel (93 pump, meth, race gas etc.)
- Transmission (A4, A6, M6 etc..)
- Degrees of timing
- Mod list (Won't be listed, but users can see individual posts)
- How do you use your car? Street use only, show car, track car, autocross car etc. To find out how well these builds are working it's best to see how hard people are on their cars. Another words how are you "using" your new found power? (This won't be listed, but it will be good information for users to read to see how "hard" cars are being ran)
As time progresses please update your information on current mileage if it's enough worth noting, if anything fails etc. etc. Feedback is welcomed, this is for everyone not just me so please be involved in this thread. If you feel more information needs to be included in this initial post just let me know, or if you have any suggestions on how to format the post etc.
Stock bottom end list:
Member | Turbo/Supercharged | Boost | RWHP | RWTQ | Engine | Mileage at install | Current Mileage | What failed (Where applicable) | Fuel | Trans type | Degrees of timing
z06-tt | DKT TTz | 8.5 lbs | 816 | 843 | LS7 | 18k | 21k | N/A | E85 | M6 |
Slowsome Supercharged (ECS Novi 2200) | 12psi | 765 | 678 | LS3 | 6k | 12K | N/A | 93 + Meth | M6
Slowsome Supercharged (ECS Novi 2200) | 12psi | 765 | 678 | LS3 | 17K | 20K | N/A | 93 + Meth | M6
Detoxx03 Supercharged (D1SC) | 9.5 lbs | 764 | 635 | LS3 | 44k | 64k | N/A | 93 + Meth | M6
gregs94 Supercharged (D1SC) | 11 lbs | 755 | 657 | LS7 | 2.3k | 3.9k | N/A | 93 + Meth | M6
cols95ta Supercharged (Novi 1500) | 8 lbs | 747 | 680 | LS7 | 10k | 14k | N/A | 91 + Meth | M6
lt1z Supercharged (A&A V3) | 11 lbs | 743 | 642 | LS3 | 18k | 22k | N/A | 100 | M6
Fordracer9 Supercharged (ECS Novi 1500) | 15 lbs | 726 | 692 | LS3 | 1.5k | 4.5k | N/A | 93 + Meth | A6
Slow-Poc Supercharged (A&A D1) | 9 lbs | 652 | 555 | LS3 | 15.8k | 29k | N/A | 93 + Meth | M6
Slow-Poc Supercharged (A&A D1) + Nitrous | 9 lbs | 733 | 650 | LS3 | 24k | 29k | N/A | 93 + Meth | M6 |
jon6.0 Supercharged (A&A T-trim) | 12 lbs | 719 | 618 | LS3 | 24k | 28k | N/A | E85 + Meth | M6 | 15*
Streek14 Supercharged (A&A T-trim) | 10.7 lbs | 706 | 622 | LS3 | 15k | 23k | N/A | 91 + Meth | M6
Le Mans C6 Supercharged (ECS Novi 1500) | 14 lbs | 676 | 609 | LS2 | 27k | 38k | N/A | 93 + Meth | A6
blacklsx Supercharged (ECS Novi 1500) | 8.5 lbs | 669 | 629 | LS3 | 4.8k | 6.2k | N/A | E85 | M6
old motorhead Supercharged (TVS2300) | 9lbs | 650 | 590 | LS3 | 12k | 44k | N/A | 93 | M6
Devlish34 Supercharged (A&A V3) | 12 lbs | 644 | 580 | LS2 | 48k | 53k | N/A | 93 + Meth | M6
ZoLOW Supercharged (A&A T-Trim) |8 lbs | 647 | 565 | LS3 | 25k | 31.5k | N/A | 91 | M6
D&C vette Supercharged (ECS Novi 1500) |8 lbs | 610 | 589 | LS2 | 75k | 82k | N/A | 93 | M6 | Cam
Z06ish Supercharged (ECS Novi 1500) | 9 lbs | 605 | 571 | LS2 | 12k | 39k | N/A | 93 | A4
mlt Supercharged (E-Force) | 9 lbs | 603 | 575 | LS7 | Unlisted | 12k | N/A | M6
realcanuk Supercharged (E-Force) | 12 lbs | 600 | Unlisted | LS2 | 15k | 30k | N/A | Unlisted | Unlisted |
Kadorja Supercharged (P-1SC-1) | 7.2 lbs | 552 | 494 | LS3 | Unknown | 15k (At failure) | 93 + Alcohol | M6 | (See what failed for mods)
eboggs_jkvl Supercharged (E-Force) | 10.9 lbs | 538 | 502 | LS2 | 32k | 56k | N/A | 93 | M6
383 Supercharged (E-Force) | 9 lbs | 525 | 500 | LS2 | 46k (at 6 lbs) 49k (at 9 lbs) | 52k | N/A | 93 | M6 | 10 Degrees
VetteAwe Supercharged (Vortech V2) | 8 lbs | 515 | 467 | LS2 | 25k | 83k | N/A | 91 | M6
85mcss Supercharged (Callaway MP112) | 6 lbs | 490 | 490 | LS2 | 24k | 30k | N/A | 91 + Meth | M6
Callaway Chris Supercharged (Callaway SC606) | 7lbs | (SAE not rear wheel) 606hp 553 tq | LS3 | Brand new | 181k | N/A | 91-93 | M6
Modified bottom end engine list:
Member | Turbo/Supercharged | Boost | RWHP | RWTQ | Engine | Mileage at install | Current Mileage | What failed (Where applicable) | Fuel | Trans Type | Internal Bottom End Engine modifications | Degrees of timing
inspector12 Twin Turbo | 22 lbs | | 1089 | 1063 | LS2 | ~7K on engine | ~5k since engine swap | N/A | 93 + Meth | 16* | Sleeved LS2 block 427CI Brodix heads
Slowsome Supercharged (ECS YSI) | 20psi | 973 | 852 | LS3 416 | 12K | 17K | Head gasket failure took out block| 93 W/ Meth | M6
winters97gt Supercharged (ECS Novi 1500) | 13 lbs | 850 | 800 | LS2 (402ci) | Not listed | 3k | N/A | Pump + Meth | M6
realcanuk Supercharged (E-Force) | 12 lbs | 724 | Unlisted | LME LS402 | Unlisted | 3k | N/A | Unlisted | Unlisted | LME LS402 short block, WCCH 245 heads, cam, etc.
Kadorja (New build) Supercharged (P-1SC-1) | 10 lbs | 664 | 590 | LS3 | 15k | 20k (At failure) | N/A | 93 + Alcohol | M6 | Steel lunati con rods, weisco forged -2.2 cc pistons, texas speed blower cam, texas speed pushrod and valve spring set
This will be a two part post, one section for stock bottom end forced induction engines, and built forced induction engines.
(Please specify any internal engine modifications done that may help reinforce the engine. IE: Heads were ported, were valved done? Cam was installed, were springs, or retainers? Etc...)
Format for post:
- Type of forced induction (Turbo, supercharger, nitrous, and what type of turbo(s) and blower where applicable)
- PSI of boost you're running, or shot size with nitrous
- RWHP/ RWTQ
- What engine? (LS2/LS3/LS7) If built and different, what engine?
- Miles on the car at install (Or since engine was built?)
- Miles on the car now (If engine was hurt, and re-built - mileage of when the incident occurred)
- If the engine was hurt, what failed?
- Type of fuel (93 pump, meth, race gas etc.)
- Transmission (A4, A6, M6 etc..)
- Degrees of timing
- Mod list (Won't be listed, but users can see individual posts)
- How do you use your car? Street use only, show car, track car, autocross car etc. To find out how well these builds are working it's best to see how hard people are on their cars. Another words how are you "using" your new found power? (This won't be listed, but it will be good information for users to read to see how "hard" cars are being ran)
As time progresses please update your information on current mileage if it's enough worth noting, if anything fails etc. etc. Feedback is welcomed, this is for everyone not just me so please be involved in this thread. If you feel more information needs to be included in this initial post just let me know, or if you have any suggestions on how to format the post etc.
Stock bottom end list:
Member | Turbo/Supercharged | Boost | RWHP | RWTQ | Engine | Mileage at install | Current Mileage | What failed (Where applicable) | Fuel | Trans type | Degrees of timing
z06-tt | DKT TTz | 8.5 lbs | 816 | 843 | LS7 | 18k | 21k | N/A | E85 | M6 |
Slowsome Supercharged (ECS Novi 2200) | 12psi | 765 | 678 | LS3 | 6k | 12K | N/A | 93 + Meth | M6
Slowsome Supercharged (ECS Novi 2200) | 12psi | 765 | 678 | LS3 | 17K | 20K | N/A | 93 + Meth | M6
Detoxx03 Supercharged (D1SC) | 9.5 lbs | 764 | 635 | LS3 | 44k | 64k | N/A | 93 + Meth | M6
gregs94 Supercharged (D1SC) | 11 lbs | 755 | 657 | LS7 | 2.3k | 3.9k | N/A | 93 + Meth | M6
cols95ta Supercharged (Novi 1500) | 8 lbs | 747 | 680 | LS7 | 10k | 14k | N/A | 91 + Meth | M6
lt1z Supercharged (A&A V3) | 11 lbs | 743 | 642 | LS3 | 18k | 22k | N/A | 100 | M6
Fordracer9 Supercharged (ECS Novi 1500) | 15 lbs | 726 | 692 | LS3 | 1.5k | 4.5k | N/A | 93 + Meth | A6
Slow-Poc Supercharged (A&A D1) | 9 lbs | 652 | 555 | LS3 | 15.8k | 29k | N/A | 93 + Meth | M6
Slow-Poc Supercharged (A&A D1) + Nitrous | 9 lbs | 733 | 650 | LS3 | 24k | 29k | N/A | 93 + Meth | M6 |
jon6.0 Supercharged (A&A T-trim) | 12 lbs | 719 | 618 | LS3 | 24k | 28k | N/A | E85 + Meth | M6 | 15*
Streek14 Supercharged (A&A T-trim) | 10.7 lbs | 706 | 622 | LS3 | 15k | 23k | N/A | 91 + Meth | M6
Le Mans C6 Supercharged (ECS Novi 1500) | 14 lbs | 676 | 609 | LS2 | 27k | 38k | N/A | 93 + Meth | A6
blacklsx Supercharged (ECS Novi 1500) | 8.5 lbs | 669 | 629 | LS3 | 4.8k | 6.2k | N/A | E85 | M6
old motorhead Supercharged (TVS2300) | 9lbs | 650 | 590 | LS3 | 12k | 44k | N/A | 93 | M6
Devlish34 Supercharged (A&A V3) | 12 lbs | 644 | 580 | LS2 | 48k | 53k | N/A | 93 + Meth | M6
ZoLOW Supercharged (A&A T-Trim) |8 lbs | 647 | 565 | LS3 | 25k | 31.5k | N/A | 91 | M6
D&C vette Supercharged (ECS Novi 1500) |8 lbs | 610 | 589 | LS2 | 75k | 82k | N/A | 93 | M6 | Cam
Z06ish Supercharged (ECS Novi 1500) | 9 lbs | 605 | 571 | LS2 | 12k | 39k | N/A | 93 | A4
mlt Supercharged (E-Force) | 9 lbs | 603 | 575 | LS7 | Unlisted | 12k | N/A | M6
realcanuk Supercharged (E-Force) | 12 lbs | 600 | Unlisted | LS2 | 15k | 30k | N/A | Unlisted | Unlisted |
Kadorja Supercharged (P-1SC-1) | 7.2 lbs | 552 | 494 | LS3 | Unknown | 15k (At failure) | 93 + Alcohol | M6 | (See what failed for mods)
eboggs_jkvl Supercharged (E-Force) | 10.9 lbs | 538 | 502 | LS2 | 32k | 56k | N/A | 93 | M6
383 Supercharged (E-Force) | 9 lbs | 525 | 500 | LS2 | 46k (at 6 lbs) 49k (at 9 lbs) | 52k | N/A | 93 | M6 | 10 Degrees
VetteAwe Supercharged (Vortech V2) | 8 lbs | 515 | 467 | LS2 | 25k | 83k | N/A | 91 | M6
85mcss Supercharged (Callaway MP112) | 6 lbs | 490 | 490 | LS2 | 24k | 30k | N/A | 91 + Meth | M6
Callaway Chris Supercharged (Callaway SC606) | 7lbs | (SAE not rear wheel) 606hp 553 tq | LS3 | Brand new | 181k | N/A | 91-93 | M6
Modified bottom end engine list:
Member | Turbo/Supercharged | Boost | RWHP | RWTQ | Engine | Mileage at install | Current Mileage | What failed (Where applicable) | Fuel | Trans Type | Internal Bottom End Engine modifications | Degrees of timing
inspector12 Twin Turbo | 22 lbs | | 1089 | 1063 | LS2 | ~7K on engine | ~5k since engine swap | N/A | 93 + Meth | 16* | Sleeved LS2 block 427CI Brodix heads
Slowsome Supercharged (ECS YSI) | 20psi | 973 | 852 | LS3 416 | 12K | 17K | Head gasket failure took out block| 93 W/ Meth | M6
winters97gt Supercharged (ECS Novi 1500) | 13 lbs | 850 | 800 | LS2 (402ci) | Not listed | 3k | N/A | Pump + Meth | M6
realcanuk Supercharged (E-Force) | 12 lbs | 724 | Unlisted | LME LS402 | Unlisted | 3k | N/A | Unlisted | Unlisted | LME LS402 short block, WCCH 245 heads, cam, etc.
Kadorja (New build) Supercharged (P-1SC-1) | 10 lbs | 664 | 590 | LS3 | 15k | 20k (At failure) | N/A | 93 + Alcohol | M6 | Steel lunati con rods, weisco forged -2.2 cc pistons, texas speed blower cam, texas speed pushrod and valve spring set
Last edited by Le Mans Z06; 03-05-2014 at 05:25 PM.
The following users liked this post:
ZMC2001 (09-21-2023)
#3
Burning Brakes
07 LS2(stock motor) M6 A&A V3 headers meth RXT twin disc C6Z rear 53k miles 17* of timing
Dynoed SEA
618/528 on one dyno in 90* air with street tires 11.7#s....
644/580 on another dyno with light weight wheels and shorted tires on a 45* air 12#s
bought with 38k miles put over 130 passes and 10k on it at 405/408
Boosted at 48k and over 100 passes

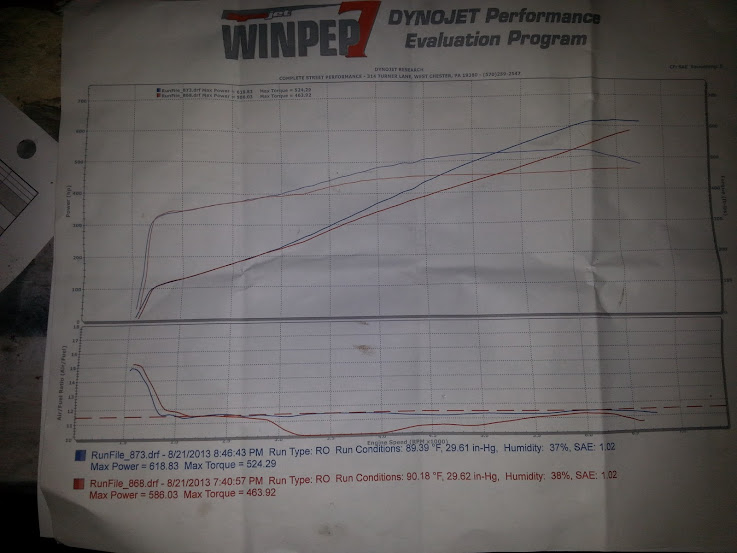

90* street tire Dyno Sheet 11.7#boost
45* light weight wheels Dyno Sheet 12#boost
Dynoed SEA
618/528 on one dyno in 90* air with street tires 11.7#s....
644/580 on another dyno with light weight wheels and shorted tires on a 45* air 12#s
bought with 38k miles put over 130 passes and 10k on it at 405/408
Boosted at 48k and over 100 passes
90* street tire Dyno Sheet 11.7#boost
45* light weight wheels Dyno Sheet 12#boost
Last edited by Devilish34; 10-29-2013 at 12:14 PM.
#6
08 Z51/ A&A V3/ 11 psi/ LS3 with LSA heads and mild blower cam/743/642/18K install/22K now/N/A/M6
#9
Safety Car
08 LS3 stock bottom and heads, supercharged D1SC 9.5 psi 93+meth cam, headers, 764/635 installed at 44,000miles now 64,000miles no issues no failures and feels great.
Edit 8/17/17:
Still on stock bottom end. Car now makes 932/758 on 18psi with a D1X on E73. 17* of timing.
Edit 8/17/17:
Still on stock bottom end. Car now makes 932/758 on 18psi with a D1X on E73. 17* of timing.
Last edited by Detoxx03; 08-17-2017 at 03:27 PM.
#10
Burning Brakes
Thread Starter
Admin: Is is possible to edit the thread name to "Forced induction engine reliability list"? and maybe a sticky?
Thanks, I changed it from boost only to forced induction in general.
Thanks, I changed it from boost only to forced induction in general.
#11
Burning Brakes
Thread Starter
#12
Safety Car
#14
Drifting
Build 1
- Procharger P-1SC-1
- 7.2psi @6500rpm
- 552whp 494wtq
- LS3 stock bottom end, comp cams 918 springs and retainers
- unkown miles at install
- 15k miles at failure
- Comp cams 918 valve springs are garbage. Broke at about 1500rpm
- 93 octane and denatured alcohol
- M6
- Procharger, LG super pro long tubes, alcohol injection
Build 2
- Procharger P-1SC-1
- 10psi @6800rpm
- 664whp 590wtq
- Texas speed LS3 block, stock crank, steel lunati con rods, weisco forged -2.2 cc pistons, texas speed b blower cam, texas speed pushrod and valve spring set
- 15k miles at install
- 20k miles currently
- runs like a top at WOT. still has part throttle misses
- 93 octane and even more denatured alcohol
- M6
- Procharger, LG super pro long tubes, alcohol injection, blower cam
- Procharger P-1SC-1
- 7.2psi @6500rpm
- 552whp 494wtq
- LS3 stock bottom end, comp cams 918 springs and retainers
- unkown miles at install
- 15k miles at failure
- Comp cams 918 valve springs are garbage. Broke at about 1500rpm
- 93 octane and denatured alcohol
- M6
- Procharger, LG super pro long tubes, alcohol injection
Build 2
- Procharger P-1SC-1
- 10psi @6800rpm
- 664whp 590wtq
- Texas speed LS3 block, stock crank, steel lunati con rods, weisco forged -2.2 cc pistons, texas speed b blower cam, texas speed pushrod and valve spring set
- 15k miles at install
- 20k miles currently
- runs like a top at WOT. still has part throttle misses
- 93 octane and even more denatured alcohol
- M6
- Procharger, LG super pro long tubes, alcohol injection, blower cam
#15
Melting Slicks
Member Since: Mar 2007
Location: Santa Barbara CA
Posts: 2,391
Likes: 0
Received 23 Likes
on
23 Posts
-2008 LS3
-stock bottom end and heads
-A&A T-trim
-10.7 psi on dyno @ 1200 feet elevation
-706 rwhp
-622 rwtq
-91 octane + single meth nozzle
-installed at 15k miles
-23k miles currently
-No engine problems
-M6
-stock bottom end and heads
-A&A T-trim
-10.7 psi on dyno @ 1200 feet elevation
-706 rwhp
-622 rwtq
-91 octane + single meth nozzle
-installed at 15k miles
-23k miles currently
-No engine problems
-M6
#16
Burning Brakes
Thread Starter
#19
Burning Brakes
Thread Starter
#20
Burning Brakes
Thread Starter
But you brought up a good point so I will edit the first post to see if we can't get some more information posted with their setup on how they use their cars.
Personally I use mine mainly on the street, some track time a couple times a year but not big into the track. I don't have 10k hard miles but they aren't exactly babied either
