Double Din Install Pics C5 - Gary Grunz
Gary got in contact with me after he ordered up a bezel that retained his ashtray and some brackets from Dennis (c5bearsfan). He went with a kenwood dnx5120 dbl din, with the bluetooth, ipod adapter, and a kenwood backup cam.
As always the dnx5120 comes through and performs flawlessly.
OEM bracket cut out to accompodate dbl din, sawzall makes quick work
A shot of the wiring harness, and the infamous accessory wires located in the passenger kickpanel needed for adding an aftermarket radio
Pics of the navi antenna and bluetooth mic
Radio mounted up
Some action shots
Backup cam
Questions comments
As always the dnx5120 comes through and performs flawlessly.
OEM bracket cut out to accompodate dbl din, sawzall makes quick work
A shot of the wiring harness, and the infamous accessory wires located in the passenger kickpanel needed for adding an aftermarket radio
Pics of the navi antenna and bluetooth mic
Radio mounted up
Some action shots
Backup cam
Questions comments
Thread Starter
Le Mans Master
Joined: Nov 2004
Posts: 8,718
Likes: 20
From: Dyer IN
Cruise-In IX Veteran

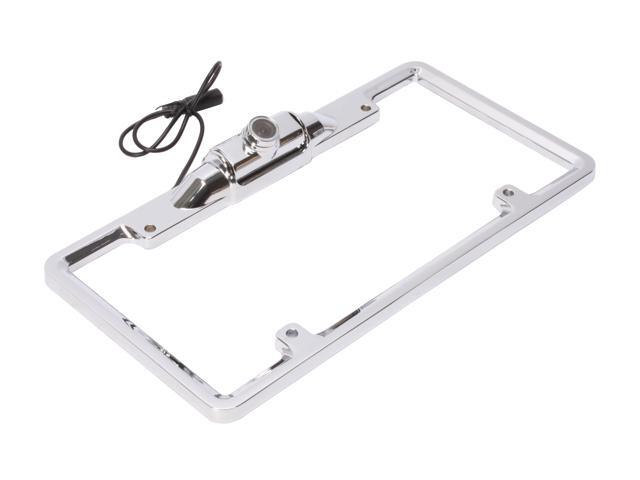

its just a kenwood there is a bracket and u screw it in to the top, i wish i had a better pic. the only framed cameras i have done like that u posted are BOYOs
Instructor
Joined: Oct 2007
Posts: 248
Likes: 0
From: Rocklin CA
Do you have an opinion on the Boyo, I am considering one, VTL200. I hear it takes a long time for the picture to boot up when switching to BU camera, do you know what the time is?
Thanks for the link to the install, very nice. Wish I was closer to you!
Thanks for the link to the install, very nice. Wish I was closer to you!
Melting Slicks
Joined: Jan 2006
Posts: 2,136
Likes: 7
From: queens Newyork
awesome write up 2 q's, the accesory wires, did you use them all or just the one for the 12v?? also i see u didnt flip the radio support over to use as support, Is it not needed with denis's brackets??
