Pac gm 61
Thread Starter
Drifting
Joined: Oct 2009
Posts: 1,385
Likes: 86
From: San Diego CA.
Pac gm 61
I’m stuck. I’ve got my interior torn apart looking for the radio control module. Not under pass side carpet. Not under the drivers side and not in the back. Anyone know where that sucker is?
Melting Slicks
Joined: Sep 2004
Posts: 2,847
Likes: 439
From: Spring Texas
C7 Corvette

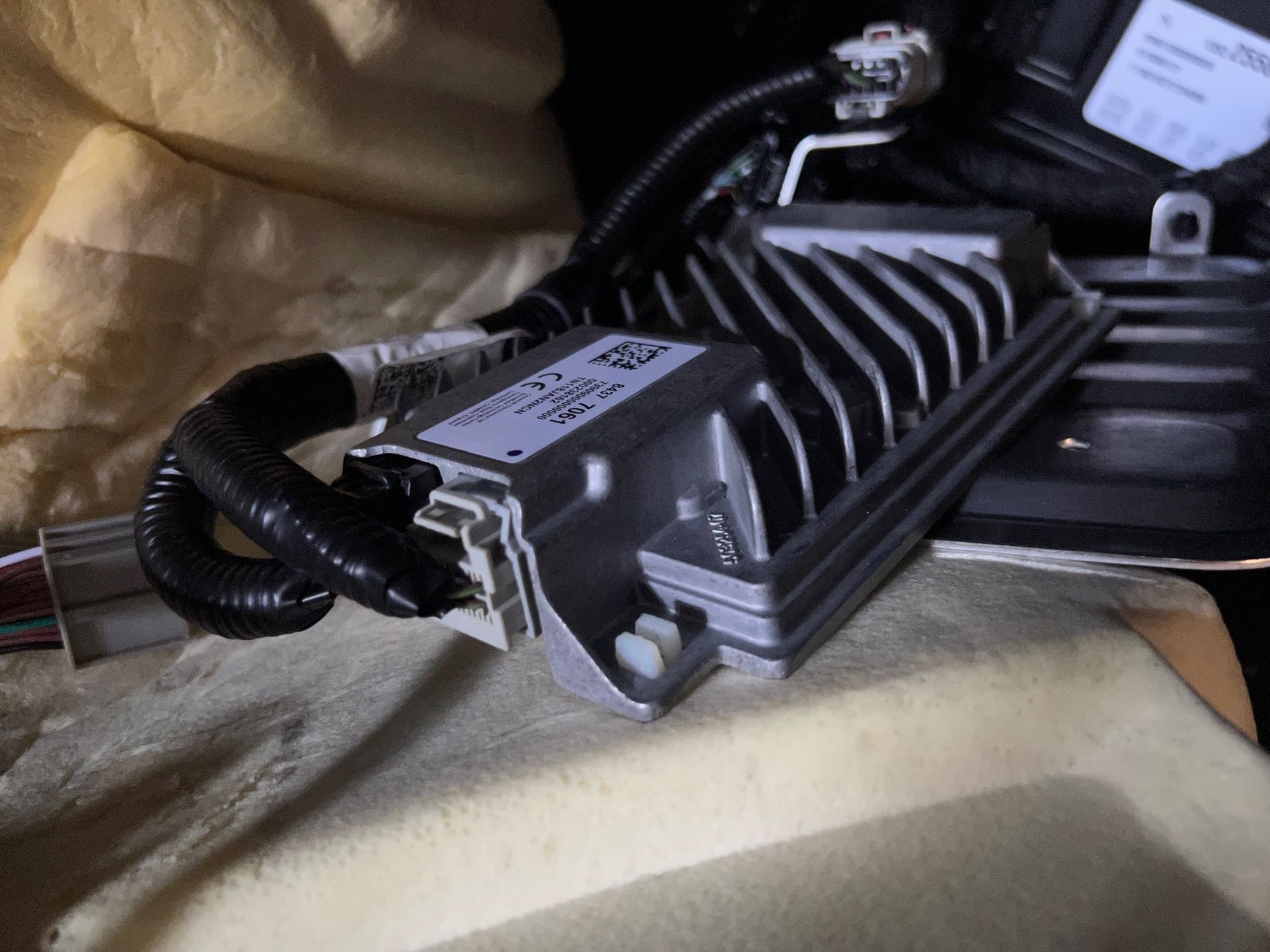

The radio module is located in the floor of the

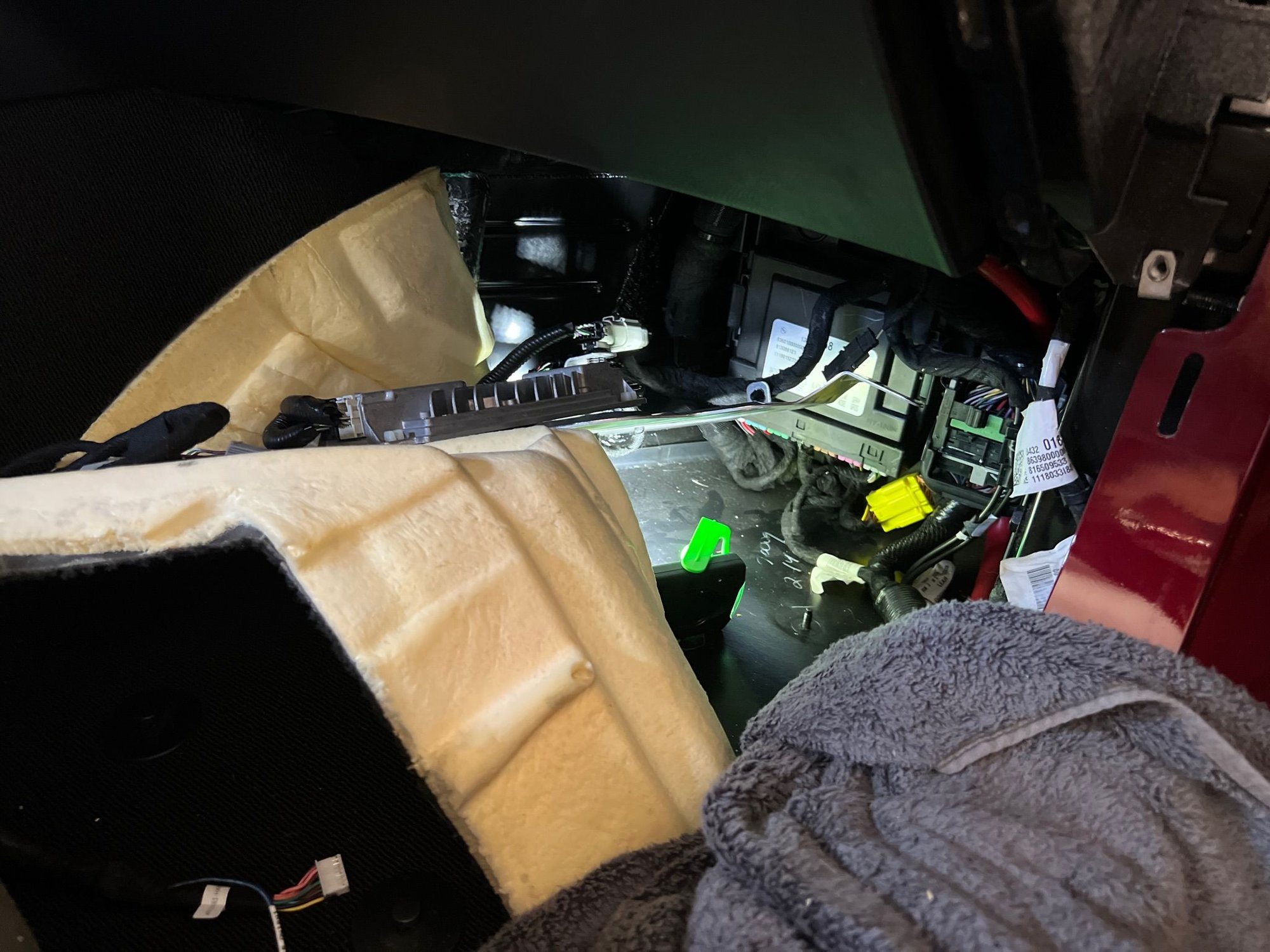

passenger footwell (Fig. 1). Pull back the carpet

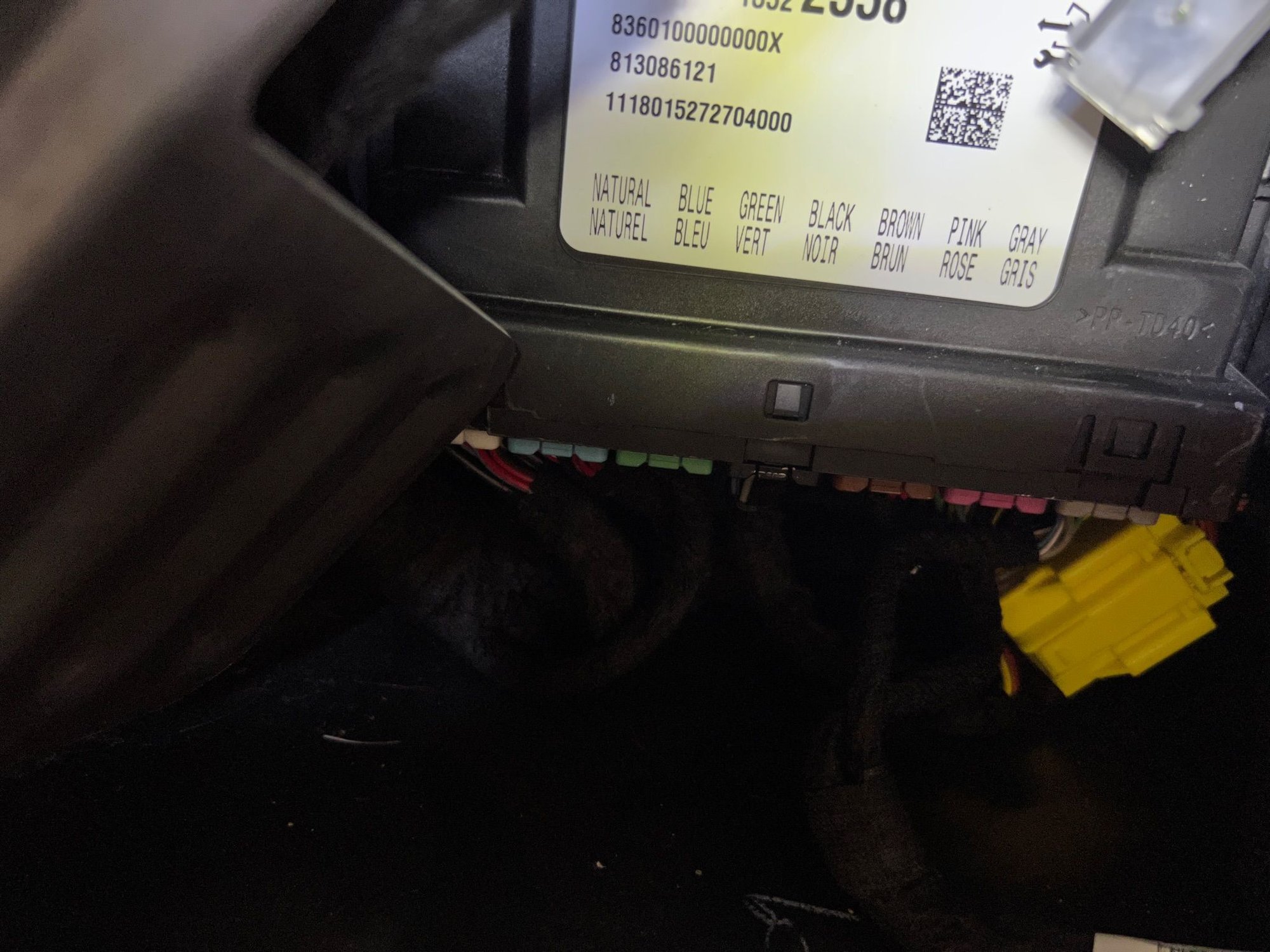

in passenger footwell to access the BCM shroud
(Fig. 2). Remove the bracket to access the BCM
(Fig. 3). The radio module is located underneath
the bracket that the BCM is attached to.
The radio module is located in the floor of the
passenger footwell (Fig. 1). Pull back the carpet
in passenger footwell to access the BCM shroud
(Fig. 2). Remove the bracket to access the BCM
(Fig. 3). The radio module is located underneath
the bracket that the BCM is attached to.
Thread Starter
Drifting
Joined: Oct 2009
Posts: 1,385
Likes: 86
From: San Diego CA.
C7 Corvette
The radio module is located in the floor of the
passenger footwell (Fig. 1). Pull back the carpet
in passenger footwell to access the BCM shroud
(Fig. 2). Remove the bracket to access the BCM
(Fig. 3). The radio module is located underneath
the bracket that the BCM is attached to.
The radio module is located in the floor of the
passenger footwell (Fig. 1). Pull back the carpet
in passenger footwell to access the BCM shroud
(Fig. 2). Remove the bracket to access the BCM
(Fig. 3). The radio module is located underneath
the bracket that the BCM is attached to.
thanks Vince,
Dave
Thread Starter
Drifting
Joined: Oct 2009
Posts: 1,385
Likes: 86
From: San Diego CA.
Thanks Vince. I did find it and like you said, it’s behind the BCM behind plastic. I did cheat. The plastic it’s mounted on is soft. I bent it and pulled the box out. What a pain, but I got it. Thanks again for your help brother……
Thread Starter
Drifting
Joined: Oct 2009
Posts: 1,385
Likes: 86
From: San Diego CA.
Well, I still have nothing on my project working. I get hiss out of the front speakers. That’s the only sound in 5 days. I have signal coming out of the blue box. All channels. More than 1 wire has the the same name as in the other harnesses. Like RR three times. I’ve pulled everything apart and run one wire and one connector to the amp at a time. Nothing. I’m to the point that I’ll go back to stock to see if anything still works. Do I have a blown fuse somewhere. Nightmare. I’m so damn stuck.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Melting Slicks
Joined: Sep 2004
Posts: 2,847
Likes: 439
From: Spring Texas

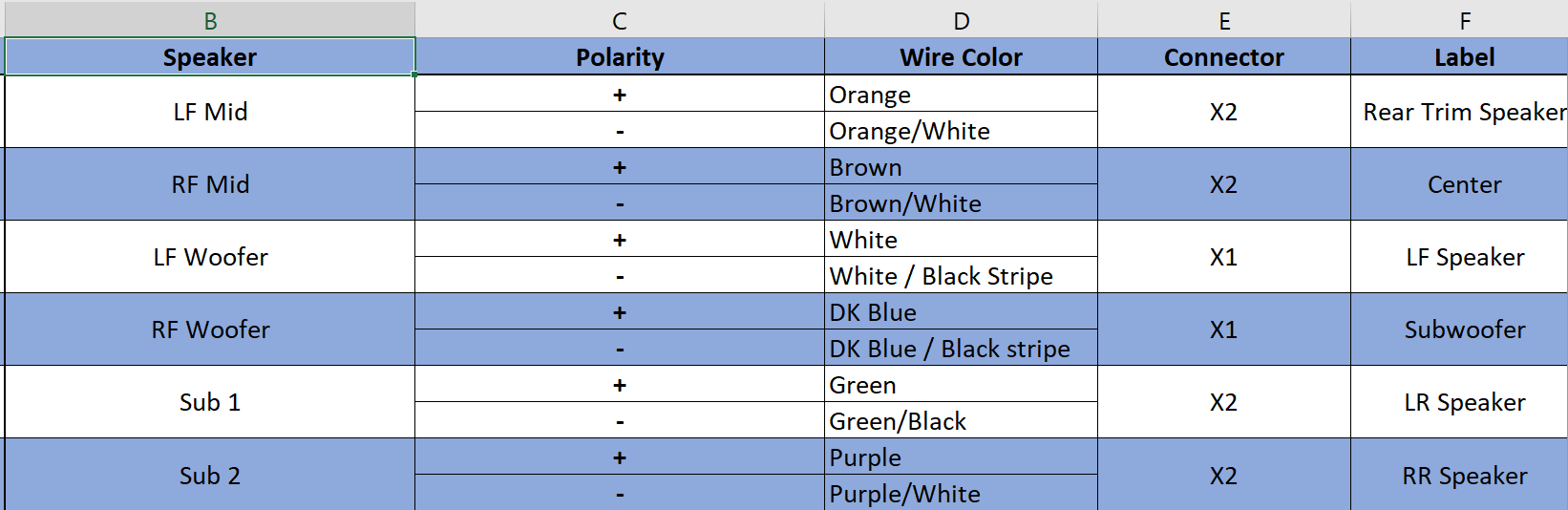

Are you also using the
