C1 and C2 FAQ thread
Le Mans Master
Joined: Oct 2004
Posts: 5,841
Likes: 19
From: CLT, North Carolina

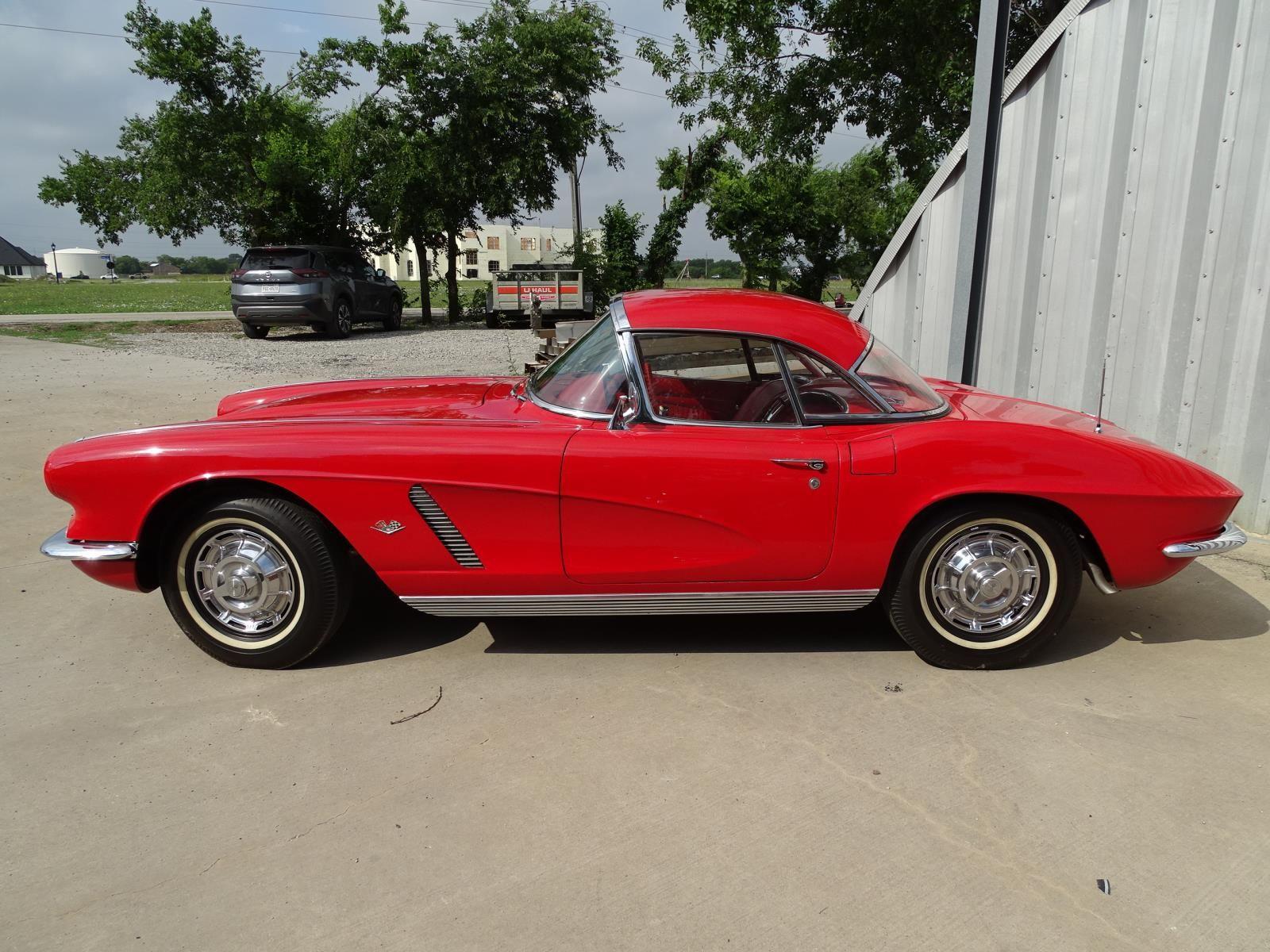

As the proud new owner of a magnificent all original 1962 Red on Red, Two Tops, 340hp w/ 4-spd I wish to thank you for the time spent putting this most excellent resource together!!
5th Gear
Joined: Oct 2014
Posts: 5
Likes: 0
From: Vancouver British Columbia
C2 Muncie Shifter gap tolerance bracket assembly.
I’m in the process of refurbishing my shift lever and bracket assembly.
After putting all the levers and reverse interlock back into the bracket (cage), I’m curious if there is an optimal tolerance for the gap left over after it’s assembled. I ask, because I haven’t any success on the web. Plenty for Hurst, but almost nothing for the stock unit. Maybe there isn’t a defined tolerance, but any advice is greatly appreciated.
After putting all the levers and reverse interlock back into the bracket (cage), I’m curious if there is an optimal tolerance for the gap left over after it’s assembled. I ask, because I haven’t any success on the web. Plenty for Hurst, but almost nothing for the stock unit. Maybe there isn’t a defined tolerance, but any advice is greatly appreciated.
Cruising
Joined: Oct 2024
Posts: 11
Likes: 1
From: Cumming GA
C1 motors
I’m new to all this but I’m 70 so bear with me. I just bought my first C1. A 58. Been checking number to see what I have. To start I believe this is an original car 283 single four barrel but it gets weird from here. Casting numbers fit, its a single four barrel set up but the engine number ends in CU. That being the case this is a 270hp car. If that’s the case it should have dual four barrels. Everything about this screams original, Spyder cracks in the lacquer paint, rock hard rubber in the motoer mounts etc. is it possible that this car came out of the womb with just one carb? I have driven the car an at first impression this is not a 230 hp car.
thoughts
thoughts
Le Mans Master
Joined: Mar 2017
Posts: 5,095
Likes: 1,596
From: Nor- Cal
Welcome to the forum .
My first Corvette was a 270 HP 60 with both tops and a 4 speed.
It is quite possible that the 2/4's were removed by a previous owner .
You can check the dist. , as it should be a dual point centrical .Also look at the redline on the Tachometer and it will be in around 6000 plus range
Also you can go to the C-1/ C-2 forum and find all the help you need ,
All the best Tom
My first Corvette was a 270 HP 60 with both tops and a 4 speed.
It is quite possible that the 2/4's were removed by a previous owner .
You can check the dist. , as it should be a dual point centrical .Also look at the redline on the Tachometer and it will be in around 6000 plus range
Also you can go to the C-1/ C-2 forum and find all the help you need ,
All the best Tom
Cruising
Joined: Oct 2024
Posts: 11
Likes: 1
From: Cumming GA
1958 help
So I bought my first C1 at age 70, a 58 both tops that I thought was a base 230 hp w/4 speed single 4 barrel.
having just got the car I started looking at some numbers. The engine cast number is period correct and year correct I believe
3737789. then I got to looking at engine number and find it ends in CU FII7CU. from my research this is a 270 hp with dual 4s?
it was suggested that I look at tach and dist. Tach is 5000 redline witch would imply 230 HP distri. Is dual point that would imply 270hp.
so my thought is I have a replacement period correct 270 HP that at the time of replacement had a single 4barrel intake.
let me know your thoughts
having just got the car I started looking at some numbers. The engine cast number is period correct and year correct I believe
3737789. then I got to looking at engine number and find it ends in CU FII7CU. from my research this is a 270 hp with dual 4s?
it was suggested that I look at tach and dist. Tach is 5000 redline witch would imply 230 HP distri. Is dual point that would imply 270hp.
so my thought is I have a replacement period correct 270 HP that at the time of replacement had a single 4barrel intake.
let me know your thoughts
Le Mans Master
Joined: Mar 2017
Posts: 5,095
Likes: 1,596
From: Nor- Cal
Does the engine idle smoothly ?
The 270 HP engines have the Duntov solid lifter cam . you should ask the moderators to move this thread to the C- 1/2 forum.
You will get a lot more input and interest . Also fill out your profile so people know where you are . You might have some forum members close to you that can give you hands on help .
The 270 HP engines have the Duntov solid lifter cam . you should ask the moderators to move this thread to the C- 1/2 forum.
You will get a lot more input and interest .
Also fill out your profile so people know where you are . You might have some forum members close to you that can give you hands on help .
Last edited by silver837; Oct 10, 2024 at 03:57 PM. Reason: additional info.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!
Verdad Gallardo
Top 10 Corvettes Coming to Mecum Indy 2026!
Brett Foote
Top 10 C9 Corvette MUST-HAVES to Fix These C8 Generation Flaws!
Michael S. Palmer
10 Revolutionary 'Corvette Firsts' Most People Don't Know
Joe Kucinski
5 Reasons to Upgrade to an LS6-Powered Corvette; 5 Reasons to Stay LT2
Michael S. Palmer
2027 Corvette vs The World: Every C8 vs Its Closest Competitor
Joe Kucinski
10 Most Common Corvette Problems of the Last 20 Years!
Joe Kucinski
5 MOST and 5 LEAST Popular Corvette Model Years in History!
Joe Kucinski
2027 Corvette Buyer's Guide: Everything You Need to Know!
Joe Kucinski
Le Mans Master
Joined: Mar 2017
Posts: 5,095
Likes: 1,596
From: Nor- Cal
Most of us are old guys just pecking away.
When I look at your posting on the main page it is in the first sticky at the top .
If you look above that and to the left margin you will see a gold colored box that says :NEW Thread ".
Click that and it will take you to our forum .
When I look at your posting on the main page it is in the first sticky at the top .
If you look above that and to the left margin you will see a gold colored box that says :NEW Thread ".
Click that and it will take you to our forum .
Last edited by silver837; Aug 1, 2025 at 01:01 AM.
