1966 dash harness
Thread Starter
Pro
Joined: Jan 2008
Posts: 631
Likes: 1
From: WEST MILFORD NEW JERSEY
1966 dash harness. ADDITIONAL QUESTION !
I need a real good picture or pictures of the dash harness laid out on the ground as it would be installed in the car. I am missing a couple of plug ends and wires on the right side and center In need of pictures for a 1966 late dash harness. Thanks, Wes
ADDITIONAL QUESTION.
Thank you John and Jack both of you are spec on. I have one other request. Can or do you have pictures or other of the tranistorized harness where the wires connect to the distributor coil and the harness itself. I noticed on the new harness that there where pink wires with plug connections that where taped into the engine harness. Not sure what to use. Thanks again, Wes
ADDITIONAL QUESTION.
Thank you John and Jack both of you are spec on. I have one other request. Can or do you have pictures or other of the tranistorized harness where the wires connect to the distributor coil and the harness itself. I noticed on the new harness that there where pink wires with plug connections that where taped into the engine harness. Not sure what to use. Thanks again, Wes
Last edited by chrislyn; Aug 12, 2014 at 11:52 AM.
Team Owner
Joined: May 2006
Posts: 37,671
Likes: 1,114
From: CA
http://forums.corvetteforum.com/c1-a...ng-photos.html
OR
This one from BlackMagic is probably better for searching...
http://www.stl-vettes.com/65Vette/co...Group=Electric
OR
This one from BlackMagic is probably better for searching...
http://www.stl-vettes.com/65Vette/co...Group=Electric
Thread Starter
Pro
Joined: Jan 2008
Posts: 631
Likes: 1
From: WEST MILFORD NEW JERSEY
Thank you John and Jack both of you are spec on. I have one other requests. Can or do you have pictures or other of the tranistorized harness where the wires connect to the distributor coil and the harness itself. I noticed on the new harness that there where pink wires with plug connections that where taped into the engine harness. Not sure what to use. Thanks again, Wes
Thread Starter
Pro
Joined: Jan 2008
Posts: 631
Likes: 1
From: WEST MILFORD NEW JERSEY
Thank you John and Jack both of you are spec on. I have one other requests. Can or do you have pictures or other of the tranistorized harness where the wires connect to the distributor coil and the harness itself. I noticed on the new harness that there where pink wires with plug connections that where taped into the engine harness. Not sure what to use. Thanks again, Wes
Melting Slicks
Joined: Sep 2001
Posts: 3,021
Likes: 1,098
From: Aggieland TX
Thread Starter
Pro
Joined: Jan 2008
Posts: 631
Likes: 1
From: WEST MILFORD NEW JERSEY
Dave thanks for responding. On my harness the plug that is on the harness is purple on both sides of the plugs. That is the Plug that I am questioning. My backup switch connection come off my dash harness ,come through the firewall and use a green and pink into a plug connection. I believe maybe your harness is a bit different.
Melting Slicks
Joined: Sep 2001
Posts: 3,021
Likes: 1,098
From: Aggieland TX
Dave thanks for responding. On my harness the plug that is on the harness is purple on both sides of the plugs. That is the Plug that I am questioning. My backup switch connection come off my dash harness ,come through the firewall and use a green and pink into a plug connection. I believe maybe your harness is a bit different.

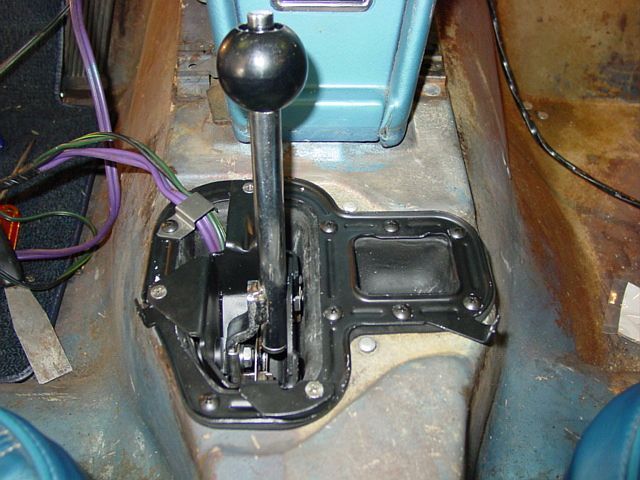

Those wires are purple on my '65 too. Didn't mean to confuse you with that "lavender" bit above. These are the wires that connected to the plugs in the engine bay. You can see them and the back-up light wires in the photo of the shifter area below.
