67 leaf spring bushing
Le Mans Master
Joined: Feb 2014
Posts: 8,897
Likes: 5,435
From: Richardson Texas
Melting Slicks
Joined: Aug 2010
Posts: 2,823
Likes: 484
From: El Dorado Hills CA
Thread Starter
Advanced
Joined: Apr 2018
Posts: 71
Likes: 0
From: Kailua Kona Hi

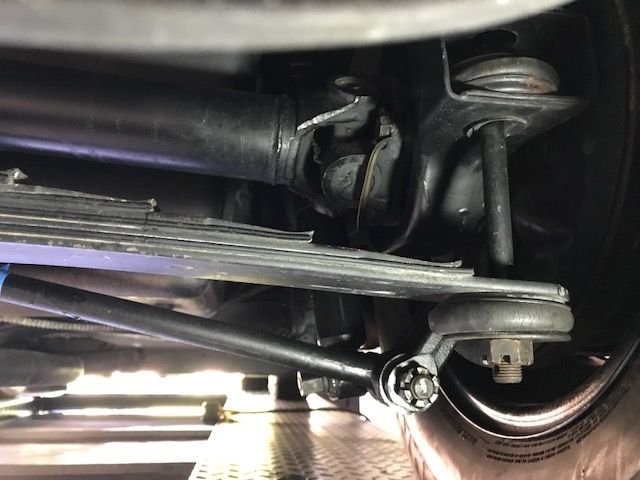

Thanks for the great picture, I got it figured out now!!!! I live in Hawaii, & the bushings just disappeared. The washer & cup where touching each other.. I was thinking the same thing when I saw that nut..
Thanks again,
Dave
Thanks again,
Dave
Melting Slicks
Joined: Jul 2005
Posts: 2,553
Likes: 381
From: Strongsville, OH
2016 C2 of the Year Finalist
Leif, I wish it was a picture of my rear assembly but it’s not. It’s one from my files...probably stolen from here at one time for reference when I was doing my rear suspension. For sure you’re right about the nut and cotter pin. Good eye for sure!
