Rear body mounts
Burning Brakes
Joined: Jul 2004
Posts: 763
Likes: 42
From: Detroit MI
St. Jude Donor '05-'06-'07-'08-'09-'10
You need to pull the carpeting up in the very rear of the storage compartment (assuming this is a coupe). I pulled my passenger seat to get easy access to them as I am 6 feet tall. You should be able to feel the tips of the body bolts and spray them.
There is a cage surrounding a square nut riveted into the body which the body mount bolt fastens to. When I tried to remove mine with an impact, I ended up breaking the cage off on one side and had to use a right angle air die grinder to cut it off.
Have fun and be patient.
There is a cage surrounding a square nut riveted into the body which the body mount bolt fastens to. When I tried to remove mine with an impact, I ended up breaking the cage off on one side and had to use a right angle air die grinder to cut it off.
Have fun and be patient.
Le Mans Master
Joined: Jan 2006
Posts: 8,246
Likes: 114
From: Watkins Glen NY
You need to pull the carpeting up in the very rear of the storage compartment (assuming this is a coupe). I pulled my passenger seat to get easy access to them as I am 6 feet tall. You should be able to feel the tips of the body bolts and spray them.
There is a cage surrounding a square nut riveted into the body which the body mount bolt fastens to. When I tried to remove mine with an impact, I ended up breaking the cage off on one side and had to use a right angle air die grinder to cut it off.
Have fun and be patient.
There is a cage surrounding a square nut riveted into the body which the body mount bolt fastens to. When I tried to remove mine with an impact, I ended up breaking the cage off on one side and had to use a right angle air die grinder to cut it off.
Have fun and be patient.
Thread Starter
Racer
Joined: Feb 2007
Posts: 494
Likes: 0
From: Denver nc
Be patient with me, I got out two in the radiator support , two that I reached through the side vent hole. Two I got at behind the kick panels. Now the two in the front of the rear wheel house I don't see how to spray the threads. Are they accessed from inside the car? And behind the rear wheel are two that I guess are in a cage that is riveted to the fiberglass.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Le Mans Master
Joined: Jan 2006
Posts: 8,246
Likes: 114
From: Watkins Glen NY
Be patient with me, I got out two in the radiator support , two that I reached through the side vent hole. Two I got at behind the kick panels. Now the two in the front of the rear wheel house I don't see how to spray the threads. Are they accessed from inside the car? And behind the rear wheel are two that I guess are in a cage that is riveted to the fiberglass.
Kick panels, #2.
Rear wheel house, [B]behind the little access panel[/Bin front of the rear wheels inside the Q-panel], #3.
Behind and above the rear wheels, #4.
there are several other places the body does attach or go through to the frame--front/rear bumpers, grounds, column, etc.
Last edited by champs65; Aug 9, 2008 at 11:40 PM.
Burning Brakes
Joined: May 2005
Posts: 1,145
Likes: 5
From: South of London, Engerland
Left (driver) side body mounts on a '76.
No.1 in the engine bay near the front fender vent with the bolt head and nut both visible:

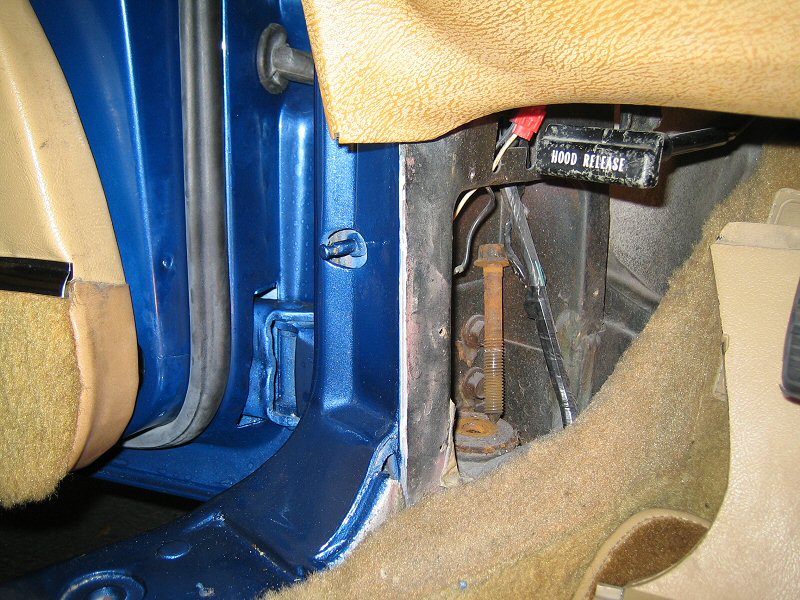

No.2 bolt head behind the kick panel trim at the front of the door and a captive nut on the chassis:

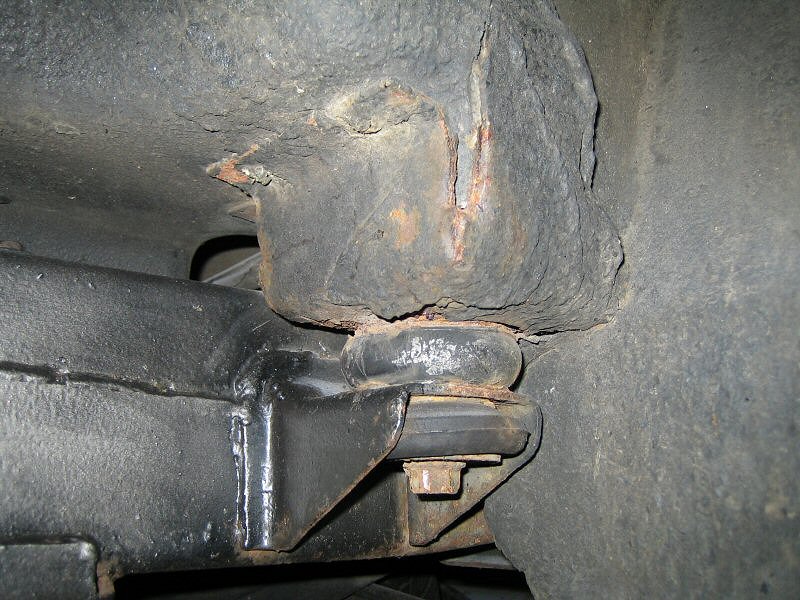

No.3 bolt head accessed through a hole in front of the rear wheel behind a cover plate (and probably covered in body seal), with a captive nut on the chassis:

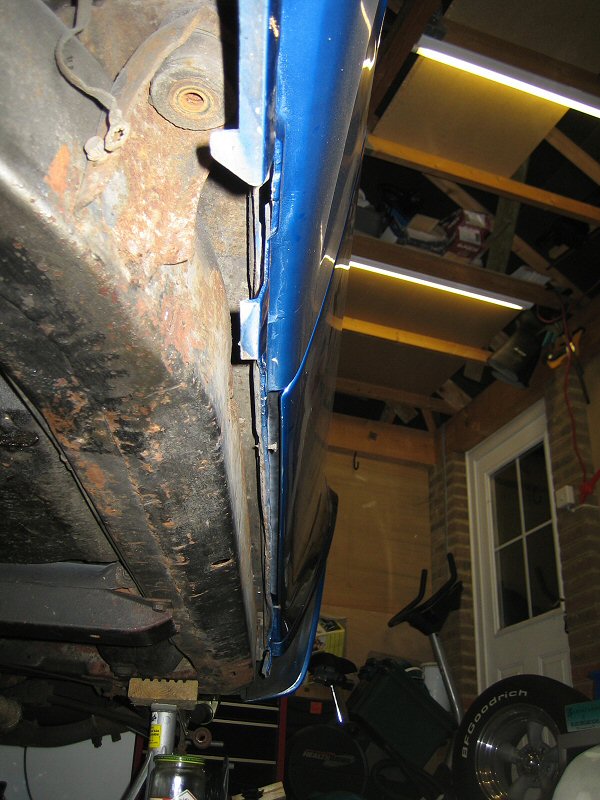

No.4 behind the rear wheel with a captive nut under the carpet in the back corner of the interior and the bolt head exposed in the wheel well:
