Z-Bar frame bracket
I need a little help locating just exactly where to weld the Z-Bar bracket to the frame on my auto to manual conversion.
Any help ?
Any Pics ?
Also will need a little guidance on cutting the hole in the floor for shifter.
Great forum !
Thanks
Any help ?
Any Pics ?
Also will need a little guidance on cutting the hole in the floor for shifter.
Great forum !
Thanks
Terrorizing Orange Cones
Joined: Oct 2007
Posts: 2,572
Likes: 17
From: Northern CO

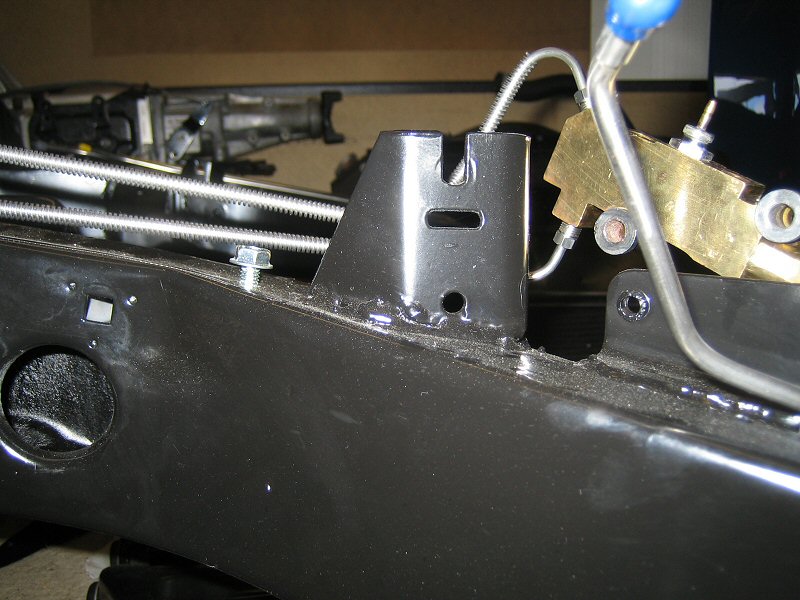

I hope this image gives a better guess-timate to cross-shaft (z) bracket location, as I do not have the exact dimension readily available. Perhaps another member can offer if they have it handy.

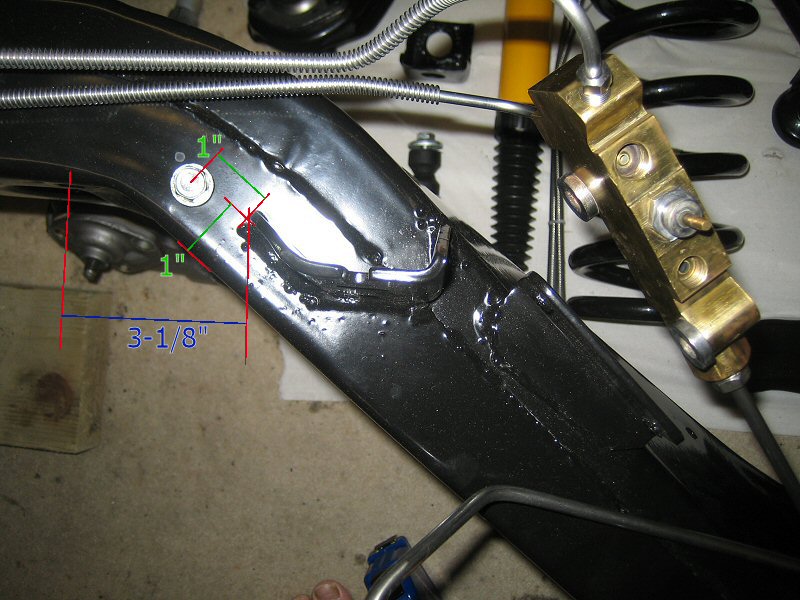

Note the brake line clamp bolt's distance to edge of bracket (mine was clutch car new):
Here's another general image of the shifter's hole on tunnel:
I'll look to see if I have one without the boot/handle installed.
Note the brake line clamp bolt's distance to edge of bracket (mine was clutch car new):
Here's another general image of the shifter's hole on tunnel:
I'll look to see if I have one without the boot/handle installed.
Burning Brakes
Joined: May 2005
Posts: 1,145
Likes: 5
From: South of London, Engerland

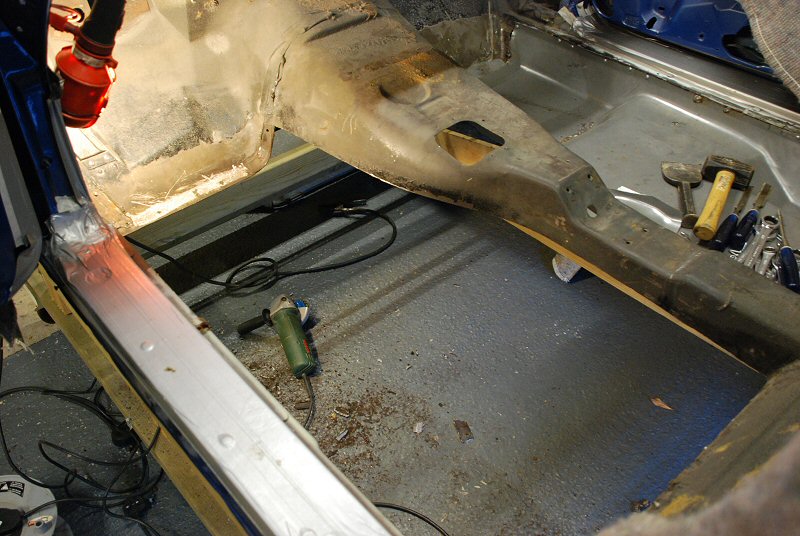

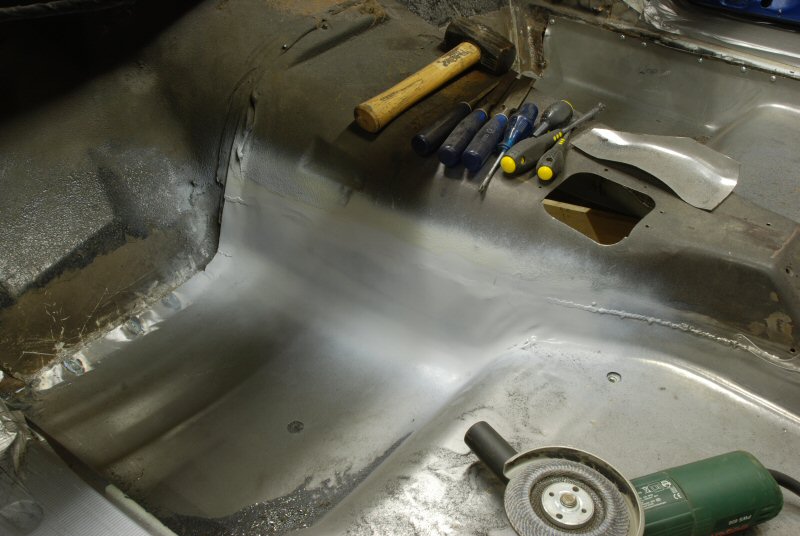

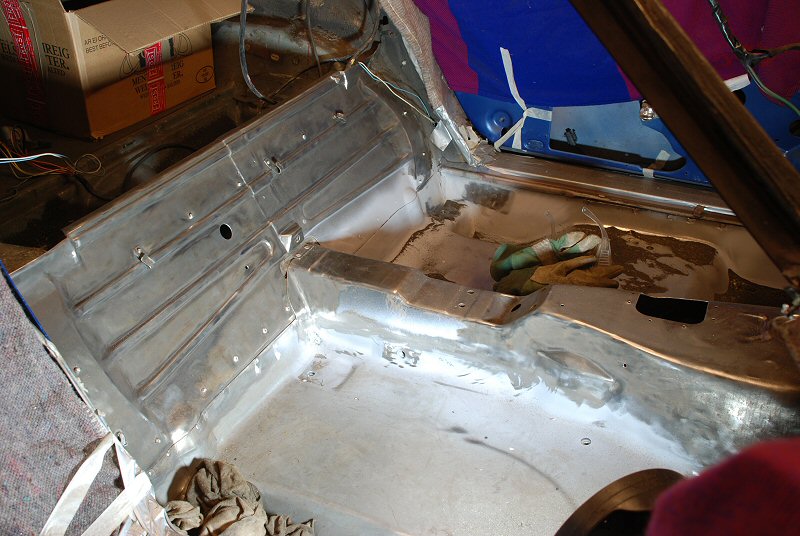

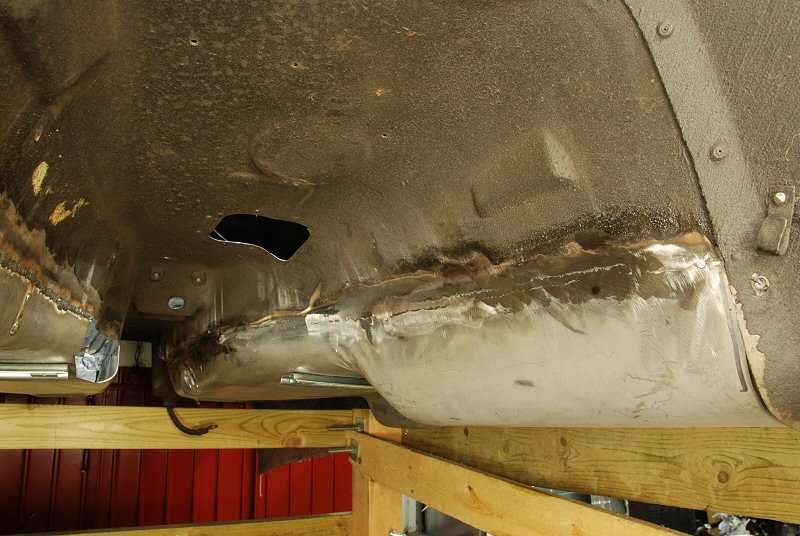

Maybe these photos might help?
(Ignore the missing floor
)
I can take dimensions if you need them. My interior is still stripped.
Buying the rubber boot will give you an idea of the lateral position of the hole because the boot's foot is profiled to fit the curve of the transmission tunnel.
(Ignore the missing floor
)I can take dimensions if you need them. My interior is still stripped.
Buying the rubber boot will give you an idea of the lateral position of the hole because the boot's foot is profiled to fit the curve of the transmission tunnel.
