door panel fit
Race Director
Joined: Nov 2002
Posts: 12,142
Likes: 54
From: Taylor Michigan
Try this to locate the hole!
If the panel is popping off the top lip it sounds like it's not seating.
Does the hole for the lock shaft line up?
Yes, there should be a screw on each end at the top of the panel.
If you need to drill a hole in the panel I'm not sure how you're going to match it to an
existing hole. If the holes are there in the panel, I'd use an awl to locate the hole and pull the panel into alignment.
Does the hole for the lock shaft line up?
Yes, there should be a screw on each end at the top of the panel.
If you need to drill a hole in the panel I'm not sure how you're going to match it to an
existing hole. If the holes are there in the panel, I'd use an awl to locate the hole and pull the panel into alignment.
Former Vendor
Joined: Aug 2006
Posts: 76,656
Likes: 1,847
From: Jeffersonville Indiana 812-288-7103
St. Jude Donor '08-'09-'10-'11-'12-'13-'14-'15
Buddy-
I'll put my two cents in on this.... The panels if clipped over the top of the door and then attached at the bottom should still stay in place. Without the screws.
You need to take a good look at the upper metal portion of the metal door frame where the door panels hook over at the top. Make sure they are not bent downward! This is a very common problem and is a real quick simple fix with a pair of pliers.
As far as the screws go.. we usually let the customer decide if he wants the screws or not. If given a choice, we always install them.
Willcox Inc.
I'll put my two cents in on this.... The panels if clipped over the top of the door and then attached at the bottom should still stay in place. Without the screws.
You need to take a good look at the upper metal portion of the metal door frame where the door panels hook over at the top. Make sure they are not bent downward! This is a very common problem and is a real quick simple fix with a pair of pliers.
As far as the screws go.. we usually let the customer decide if he wants the screws or not. If given a choice, we always install them.
Willcox Inc.
Former Vendor
Joined: Aug 2006
Posts: 76,656
Likes: 1,847
From: Jeffersonville Indiana 812-288-7103
St. Jude Donor '08-'09-'10-'11-'12-'13-'14-'15
I'm also in the process of putting my Al Knoch door panels on my 70 convertible. Had anyone had any luck attaching the bottom clips to the door panels. The panels I have are about 15 years old and there's no lip for the clips to catch to on the door panel. Any suggestions? Thanks in advance.
Attach the panel at the top, have the clips installed and then use a long awe through the hole of the clip to the hole in the door panel. You can guide the clip right to the hole, hold in place and screw it down. Should work just fine.
Willcox
Melting Slicks
Joined: Apr 2007
Posts: 3,189
Likes: 111
From: Tolland CT
I'm also in the process of putting my Al Knoch door panels on my 70 convertible. Had anyone had any luck attaching the bottom clips to the door panels. The panels I have are about 15 years old and there's no lip for the clips to catch to on the door panel. Any suggestions? Thanks in advance.
I just looked at my Al Knoch panels, similar vintage as yours, now just garage wall decorations... The slot is there, front and rear but not easy to see at first glance. What I noticed was the foam material between the skin and the backing filled the slot making it hard to see. You may just need to take a closer look, push some of this material in a bit to expose the slot.
If you have the original clips I'd reuse them. I bought new ones to use on my original panels but went back to the originals when I noticed the reproductions were flimsy, thinner metal.
Melting Slicks
Joined: Apr 2007
Posts: 3,189
Likes: 111
From: Tolland CT
Exactly how I had to attached my clips to the door. Only way to get them lined up.
Heel & Toe
Joined: Nov 2007
Posts: 20
Likes: 0
So the slots are there? The semi-soft foam is there on the back of the panel but I can't see where there's a slot to insert the clip. It's almost as if the clips need to be inserted under the vinyl skin cover that's wrapped around the panel and stapled to the door in order for the holes on the door to line up, but that obviously won't hold for long.
I also installed the panel and drilled/fastened the top two screws which was easier said than done. Sounds like I need to fasten them AFTER I install the bottom two clips, correct?
I also installed the panel and drilled/fastened the top two screws which was easier said than done. Sounds like I need to fasten them AFTER I install the bottom two clips, correct?
Melting Slicks
Joined: Apr 2007
Posts: 3,189
Likes: 111
From: Tolland CT
So the slots are there? The semi-soft foam is there on the back of the panel but I can't see where there's a slot to insert the clip. It's almost as if the clips need to be inserted under the vinyl skin cover that's wrapped around the panel and stapled to the door in order for the holes on the door to line up, but that obviously won't hold for long.
I also installed the panel and drilled/fastened the top two screws which was easier said than done. Sounds like I need to fasten them AFTER I install the bottom two clips, correct?
I also installed the panel and drilled/fastened the top two screws which was easier said than done. Sounds like I need to fasten them AFTER I install the bottom two clips, correct?
I'll see if I can find time this evening to take some photos of my panels. Point out where the slots are. The clip may end up going under vinyl but there should be some backing material there as well. Do your panels have hard vinyl backing? Originals were some form of paper. The ones I have are plastic (vinyl I think).
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Grand Sport & Grand Sport X Launch Alongside All-New 535hp LS6 V8!
Michael S. Palmer
5 Reasons Bad Drivers Crash & 5 Ways to Avoid a Costly Mistake!
Joe Kucinski
7 Bolt-On Upgrades From Extreme Online Store to Level Up Your C6 Corvette
Pouria Savadkouei
How Likely Are These Five 2027 Corvette Rumors to Be True?
Brett Foote
9 Best Corvettes You Can Buy for Half Price (& 1 You Should NEVER Buy!)
Joe Kucinski
8 Very Best Corvettes of Amelia Island 2026
Joe Kucinski
Top 10 WORST Corvette Engineering Failures of All Time!
Joe Kucinski
10 Records the C8 Corvette Generation Has SMASHED (& 1 Glaring Failure)
Joe Kucinski
7 Wildest Corvette Concepts Ever Made
Brett Foote
Melting Slicks
Joined: Apr 2007
Posts: 3,189
Likes: 111
From: Tolland CT
Probably..
There used to be door panel skins which you could glue on over the originals. They may still be avaliable?
Biggest problem I've seen with the originals is they tend to warp. I've never heard of a way to get the warp out.
There used to be door panel skins which you could glue on over the originals. They may still be avaliable?
Biggest problem I've seen with the originals is they tend to warp. I've never heard of a way to get the warp out.
Heel & Toe
Joined: Nov 2007
Posts: 20
Likes: 0
If the clips haven't been installed before the panel was mounted to the door, yes, you would need to remove the panel.
I'll see if I can find time this evening to take some photos of my panels. Point out where the slots are. The clip may end up going under vinyl but there should be some backing material there as well. Do your panels have hard vinyl backing? Originals were some form of paper. The ones I have are plastic (vinyl I think).
I'll see if I can find time this evening to take some photos of my panels. Point out where the slots are. The clip may end up going under vinyl but there should be some backing material there as well. Do your panels have hard vinyl backing? Originals were some form of paper. The ones I have are plastic (vinyl I think).
Melting Slicks
Joined: Apr 2007
Posts: 3,189
Likes: 111
From: Tolland CT

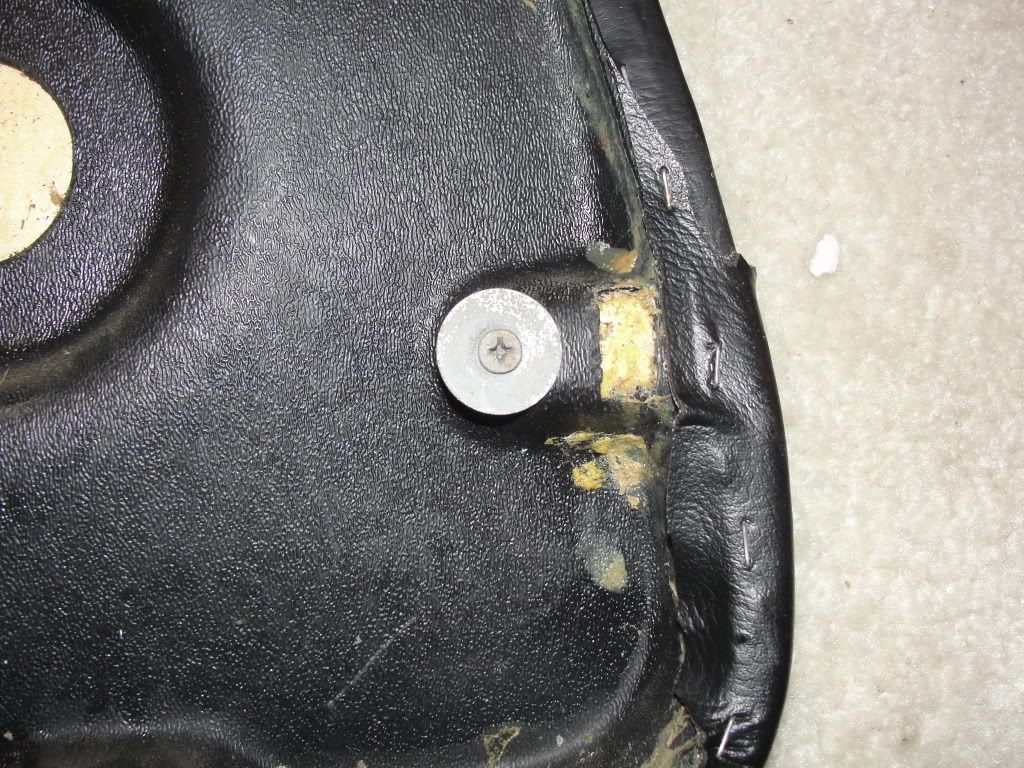

Here's a shot of the area where the clip goes. Note the foam tends to fill the area between it and the backing panel.

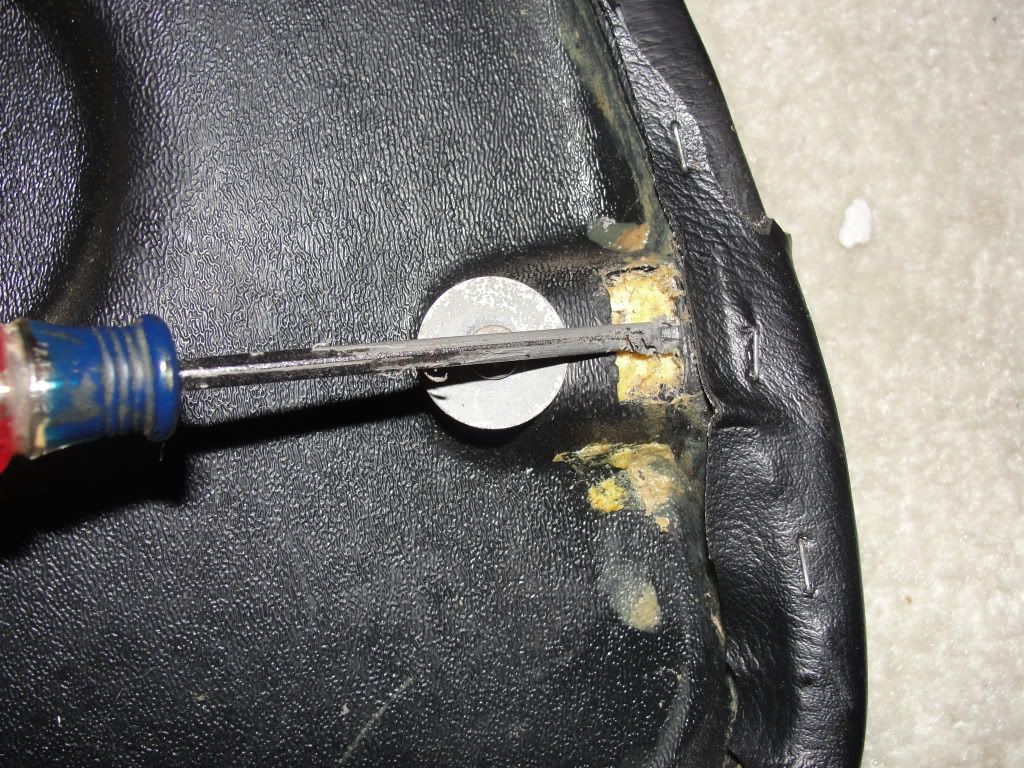

I stuck a screwdriver in the slot to release foam which may have attached to the backing, allowing the clip to be inserted.
I inserted the clip, had to use a screw driver to force the clip down and under the backing. This is clipped under the backing, NOT just the vinyl skin.

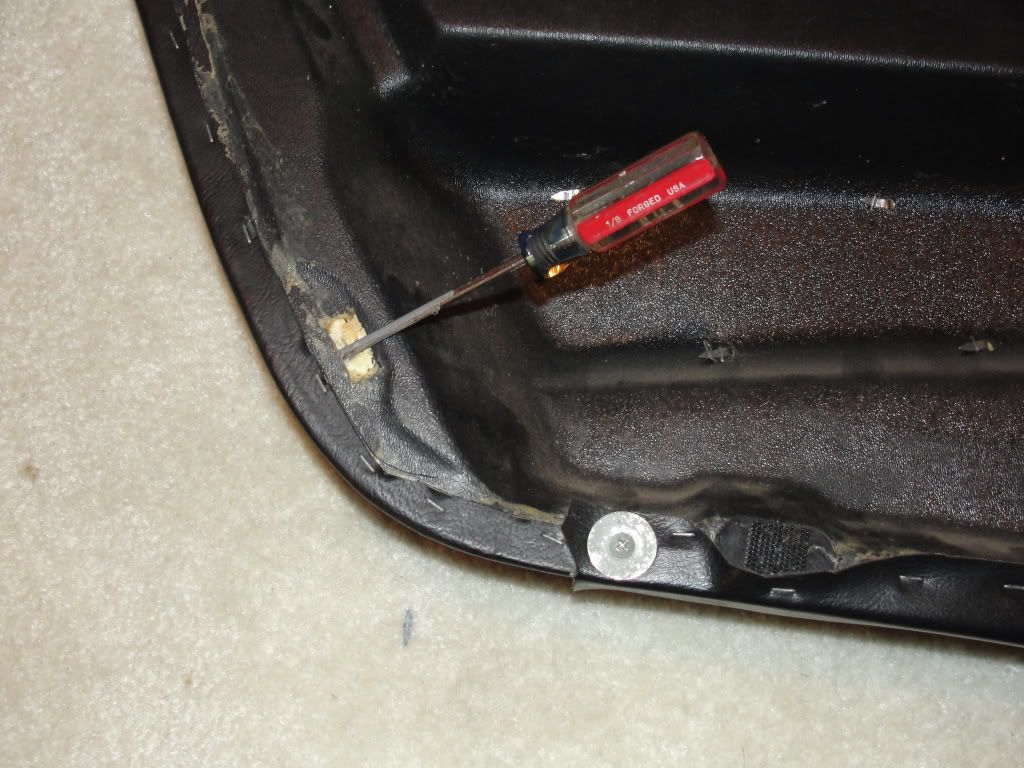

A shot of the rear clip area.
