Door Adjar Light
#22
Team Owner
Alarm off/on switch:

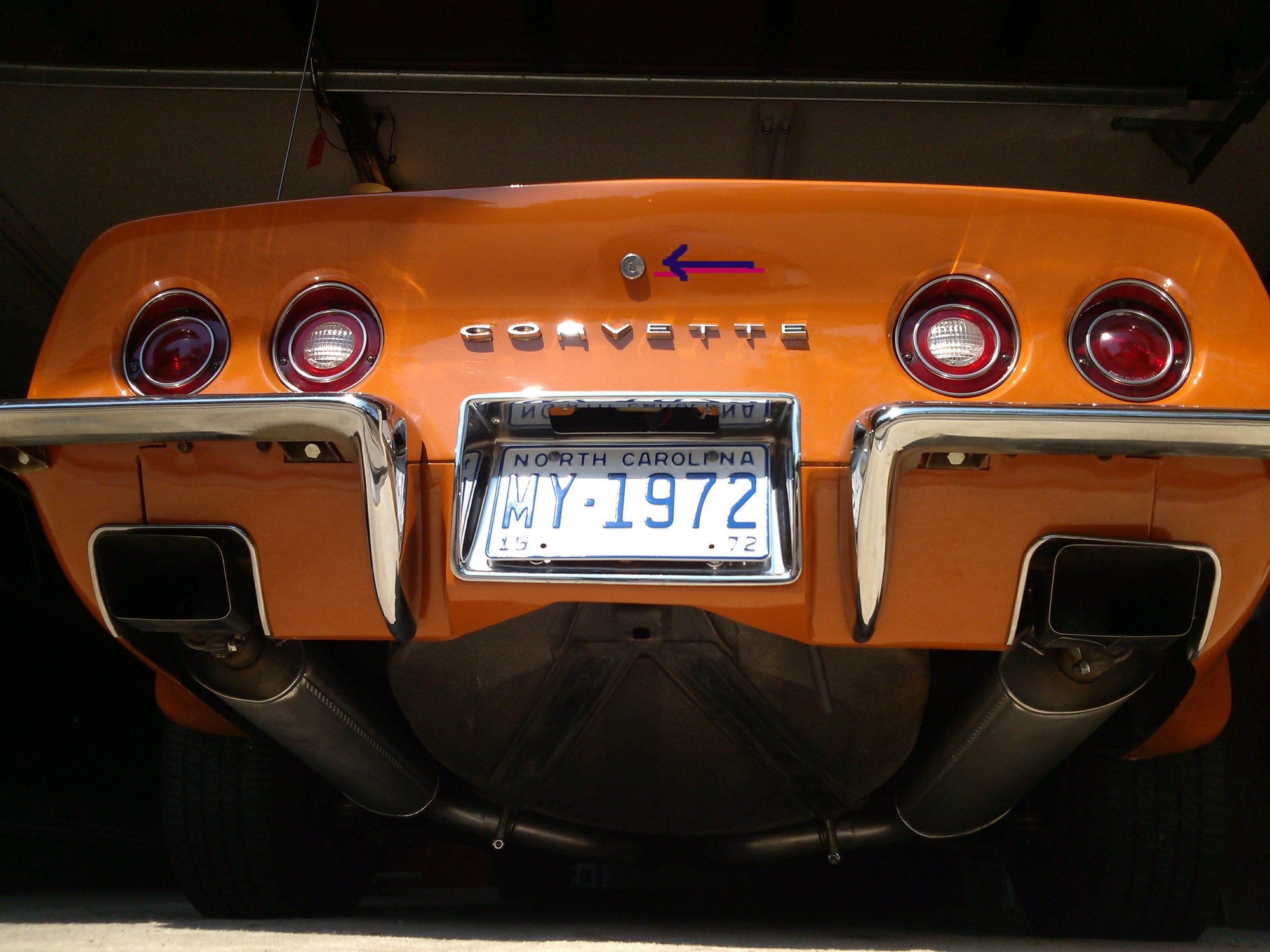

#23
Instructor
#24
Race Director
Member Since: Apr 2011
Location: North of Toronto - Ontario
Posts: 10,856
Received 3,139 Likes
on
2,070 Posts
I'll have to look at mine to see if it's connected to the door-ajar or not.
No...wait. The hood isn't on the car and I've been testing the dash lights and I know it doesn't actually light up.
Hmmm, OK, time to check the wiring diagram
M
No...wait. The hood isn't on the car and I've been testing the dash lights and I know it doesn't actually light up.
Hmmm, OK, time to check the wiring diagram
M
#25
Instructor
My '72 hood switch makes the alarm go nuts but I've never looked to see if the door ajar lights are on .... what? .... that's just crazy. Someone breaks into your engine bay and the interior lights come on so you can see what you're doing trying to steal the radio. That I am going to check out in the morning for sure.
#26
Race Director
Member Since: Apr 2011
Location: North of Toronto - Ontario
Posts: 10,856
Received 3,139 Likes
on
2,070 Posts
Well it would certainly make sense that the light would come on since it (the alarm) is connected to the door ajar switches.
Mine doesn't (I know that it doesn't) but the alarm works, including the hood and the door ajar works on both doors
So now I've got to start tracing something somewhere.
Mine doesn't (I know that it doesn't) but the alarm works, including the hood and the door ajar works on both doors
So now I've got to start tracing something somewhere.
#27
Instructor
Well it would certainly make sense that the light would come on since it (the alarm) is connected to the door ajar switches.
Mine doesn't (I know that it doesn't) but the alarm works, including the hood and the door ajar works on both doors
So now I've got to start tracing something somewhere.
Mine doesn't (I know that it doesn't) but the alarm works, including the hood and the door ajar works on both doors
So now I've got to start tracing something somewhere.
The door ajar switches + hood switch are triggers for the alarm and that's all.(note! ... all three are also the same part number)
For my own piece of mind I did a test and it is as follows (notice separate wire going to the hood off the main loom):-
Last edited by OZvette72; 02-27-2016 at 12:06 AM.
#28
Safety Car
My under hood switch controls both the alarm and the 2 foot well and 1 rear compartment lights. Not the door ajar light on the dash which is controlled by the rear switches. In 69 the alarm was an option so that might have something to do with it. I could never figure out why anyone would want the interior lights to come on when the hood was opened so maybe it was changed in later years. It's also a real pain when working under the hood as there is a constant battery drain unless you zip tie the switch down. My alarm works perfectly but I leave a zip tie on the under hood switch because of the lights.
#29
Instructor
My under hood switch controls both the alarm and the 2 foot well and 1 rear compartment lights. Not the door ajar light on the dash which is controlled by the rear switches. In 69 the alarm was an option so that might have something to do with it. I could never figure out why anyone would want the interior lights to come on when the hood was opened so maybe it was changed in later years. It's also a real pain when working under the hood as there is a constant battery drain unless you zip tie the switch down. My alarm works perfectly but I leave a zip tie on the under hood switch because of the lights.
Regards Allan
#30
Instructor
#31
Team Owner
Just verified on my 72, all stock. When the key is off and the door opened, courtesy lights come on. Hood open, nothing. When key is in run position, door opened OR hood opened, door ajar lights up on dash, courtesy lights do not come on. When driving, if I pop the hood, the door ajar light comes on and stays until I close the hood or turn off the switch. Hood switch does not affect the courtesy lights at all.
EDIT: See later posts, door ajar light should NOT come on when hood opened and ignition on. It was designed to be theft alarm only. Mine was miswired by an op.
EDIT: See later posts, door ajar light should NOT come on when hood opened and ignition on. It was designed to be theft alarm only. Mine was miswired by an op.
Last edited by 65GGvert; 03-24-2016 at 08:19 AM.
#32
Instructor
#33
Team Owner
Nov 15, 71. I think they were pretty much standard in 72. I didn't look at the aim, because I like that it works this way. It lets me know if I forgot to latch the hood.
#34
Instructor
Sorry! .. let me rephrase that, what seems to happen when you think you got it right somebody comes up with a different AIM for the car you thought was right. You will be happy to know that our cars are as per the AIM.
#35
Safety Car
I checked mine again today and it seems like they changed things quite a bit. The alarm in my 69 was optional so the wiring was an ad on. The rear door ajar switches were for door ajar only and controlled the dash light only. The front courtesy light switches and under hood switch are on the same circuit and control the courtesy lights, key warning buzzer and alarm. I can see now why they changed it. If you were going down the road at night, hit a pothole and one of your hood catches popped up, you would have all the courtesy lights inside come on instead of the door ajar light on the dash. The door ajar light is only controlled by the two rear door switches and that is all the two rear switches control. Nobody was thinking right in 69....
Last edited by CanadaGrant; 02-28-2016 at 03:13 PM.
#36
Instructor
#37
Team Owner
My 72 does have the door ajar light lit when the hood is popped up. You don't need another wire. When the hood is down, it opens the switch. When you pop the hood even a little, the switch internally closes (completes the path to ground) and lights the same light as the door switches do. Make sure that switch has a good ground and the 12v wire is a solid connection. You can measure the switch with an ohmeter to make sure it's opening and closing. If it never makes contact, the door ajar light will not come on from the hood being ajar.
I don't see why, if you wanted the hood to light the door ajar switch and the alarm, you couldn't replace the hood switch with one of the door switches with the three contact set up to operate both the door ajar and the alarm, like the door switches do. You would have to run a wire from the blue wire circuit in the door ajar circuit to the extra contact on the new switch. Here is Willcox's diagram, I colored the door ajar wire blue and added a note "door ajar". You can see that there is no door ajar wire to the hood switch when stock. That blue wire connects to one side of the door ajar light in the dash.
Last edited by 65GGvert; 03-22-2016 at 11:23 AM.
#38
Instructor
Hi 65,
WOW ... too much Ajar, my little brain got lost.
Why are you referencing the '68-'70 wiring diagram when you have '72?? That diagram is showing the Jamb Switches wiring which have the alarm incorporated in it and was an option back then. Our '72 have standard alarm and the additional Ajar Switches located on the rear wheel arc as you get in (the ones you get your clothes caught on).
I have Lt Blue, Black and White wires on both Ajar Switches. ... ??? ... the Hood Switch activates the Alarm Only (no key in ignition) as per earlier diagram. (REMOVED THIS BIT as I was in PIXIE LAND)
WOW ... too much Ajar, my little brain got lost.
Why are you referencing the '68-'70 wiring diagram when you have '72?? That diagram is showing the Jamb Switches wiring which have the alarm incorporated in it and was an option back then. Our '72 have standard alarm and the additional Ajar Switches located on the rear wheel arc as you get in (the ones you get your clothes caught on).
I have Lt Blue, Black and White wires on both Ajar Switches. ... ??? ... the Hood Switch activates the Alarm Only (no key in ignition) as per earlier diagram. (REMOVED THIS BIT as I was in PIXIE LAND)
Last edited by OZvette72; 03-24-2016 at 07:52 AM.
#39
Team Owner
Hi 65,
WOW ... too much Ajar, my little brain got lost.
Why are you referencing the '68-'70 wiring diagram when you have '72?? That diagram is showing the Jamb Switches wiring which have the alarm incorporated in it and was an option back then. Our '72 have standard alarm and the additional Ajar Switches located on the rear wheel arc as you get in (the ones you get your clothes caught on).
I also have the Lt Blue and White wires.
... ??? ... the Hood Switch activates the Alarm (no key in ignition) and Ajar Warning Light on the dash (with key in the ignition)
WOW ... too much Ajar, my little brain got lost.
Why are you referencing the '68-'70 wiring diagram when you have '72?? That diagram is showing the Jamb Switches wiring which have the alarm incorporated in it and was an option back then. Our '72 have standard alarm and the additional Ajar Switches located on the rear wheel arc as you get in (the ones you get your clothes caught on).
I also have the Lt Blue and White wires.
... ??? ... the Hood Switch activates the Alarm (no key in ignition) and Ajar Warning Light on the dash (with key in the ignition)
#40
Team Owner
Hi 65,
WOW ... too much Ajar, my little brain got lost.
Why are you referencing the '68-'70 wiring diagram when you have '72?? That diagram is showing the Jamb Switches wiring which have the alarm incorporated in it and was an option back then. Our '72 have standard alarm and the additional Ajar Switches located on the rear wheel arc as you get in (the ones you get your clothes caught on).
I also have the Lt Blue and White wires.
... ??? ... the Hood Switch activates the Alarm (no key in ignition) and Ajar Warning Light on the dash (with key in the ignition)
WOW ... too much Ajar, my little brain got lost.
Why are you referencing the '68-'70 wiring diagram when you have '72?? That diagram is showing the Jamb Switches wiring which have the alarm incorporated in it and was an option back then. Our '72 have standard alarm and the additional Ajar Switches located on the rear wheel arc as you get in (the ones you get your clothes caught on).
I also have the Lt Blue and White wires.
... ??? ... the Hood Switch activates the Alarm (no key in ignition) and Ajar Warning Light on the dash (with key in the ignition)
PS, my door jamb switches have a black wire also for ground, and the hood switch has a black and white only,I don't see that in yours, so maybe yours is wired differently than mine.
Here is the 72 alarm diagram, you can see it's identical. I used the other because it was color coded, but this is the one I used to troubleshoot mine.
Last edited by 65GGvert; 03-23-2016 at 08:50 AM.
