Vacuum Help
Lost my shop manual and trying to solve what I think may be a vacuum problem on my '69 BB (no A/C) car. Getting a hissing sound coming from the dash (maybe near the defog vents) when the thumbwheel is in the "off" position. If I spin the thumbwheel down to just beyond the "Air" setting it stops. Wondering if anyone can point me in the right direction.
Team Owner
Joined: Sep 2006
Posts: 31,173
Likes: 4,250
From: Westminster Maryland
Hi c,
First, you need to promise to order a new GM 69 Chassis Service Manual TODAY.
The wheels on the heater/defroster control operate the air doors in the heater/defroster box by vacuum.
Here's a picture.
Good Luck!
Regards,
Alan

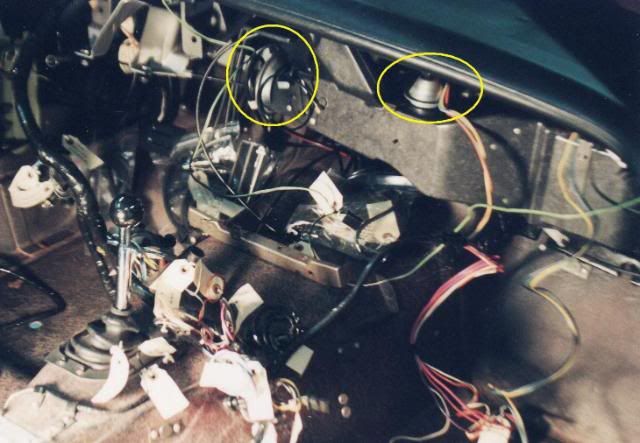

Notice the vacuum 'pot', the hose isn't hooked to the nipple.

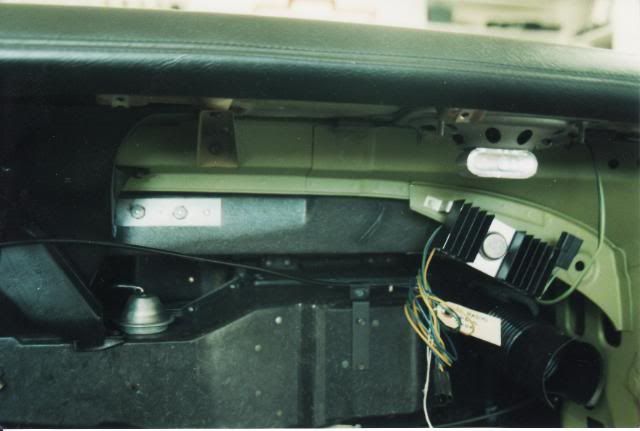

Both pots in this picture.
First, you need to promise to order a new GM 69 Chassis Service Manual TODAY.
The wheels on the heater/defroster control operate the air doors in the heater/defroster box by vacuum.
Here's a picture.
Good Luck!
Regards,
Alan
Notice the vacuum 'pot', the hose isn't hooked to the nipple.
Both pots in this picture.
Safety Car
Joined: Sep 2011
Posts: 4,104
Likes: 1,224
From: Madeira Beach, FL
2024 C8 of the Year Finalist - Unmodified
2024 C2 of the Year Finalist - Unmodified
2023 C2 of the Year Finalist - Unmodified
2020 C3 of the Year Finalist - Unmodified
Maybe you have a cat or squirrel stuck in your vents and when you rotate the wheel the door pinches his tail???
Sorry moment of temporary insanity.
BTW, Alan has the greatest library of c-3 pics.
Now from a '68 BB owner, I think your on the right track.
See if with a powerful lite you can see the culprit.
I think with the wheel roatated to where the hiss sound is start pinching lines till it stops. Then you know which line is leaking.
It's probably cracked or split close to its mounting point.
Maybe you'll catch a break and be able to cut off the end not to far back and reattach.
Running a new line under there will be a PIA.
