wire routing question
Thread Starter
Pro
Joined: Nov 2004
Posts: 689
Likes: 169
From: Palm Bay Florida
wire routing question
1969 corvette L46
I am installing the harness to my headlamps. I'm not sure how to rout the wires leading to the headlamps..
Do they snake through over the headlamp actuator? Or do the rout to the side of the actuator assembly?
Does anyone have a photo?
Thanks.
I am installing the harness to my headlamps. I'm not sure how to rout the wires leading to the headlamps..
Do they snake through over the headlamp actuator? Or do the rout to the side of the actuator assembly?
Does anyone have a photo?
Thanks.
Former Vendor
Joined: Aug 2006
Posts: 76,656
Likes: 1,847
From: Jeffersonville Indiana 812-288-7103
St. Jude Donor '08-'09-'10-'11-'12-'13-'14-'15
The harness is attached to the header bar and the wires drop down as shown below.l
Aims (on cd) are free this week with any order over 100.00.
Aims (on cd) are free this week with any order over 100.00.
Thread Starter
Pro
Joined: Nov 2004
Posts: 689
Likes: 169
From: Palm Bay Florida
Thank you very much...very helpful
My specific question is .. Does the portion of the harness that connects to the headlights run through the headlamp actuator housing (ie over the actuator itself) or is it routed to the side of the housing?
Thanks
My specific question is .. Does the portion of the harness that connects to the headlights run through the headlamp actuator housing (ie over the actuator itself) or is it routed to the side of the housing?
Thanks
Team Owner
Joined: Sep 2006
Posts: 31,109
Likes: 4,170
From: Westminster Maryland
Hi b,
Here are a few pics from my 71.
Perhaps they'll help along with what Willcox posted.
Regards,
Alan
Here's the harness running along the headlight support. It's clipped to it in several places as the AIM shows.
You can see part of the harness turning down for the right side headlights and part continuing on for the parking and side marker connections.
Here you can see the typical connection for each headlight and the headlight warning switch.
Here are a few pics from my 71.
Perhaps they'll help along with what Willcox posted.
Regards,
Alan
Here's the harness running along the headlight support. It's clipped to it in several places as the AIM shows.
You can see part of the harness turning down for the right side headlights and part continuing on for the parking and side marker connections.
Here you can see the typical connection for each headlight and the headlight warning switch.
Thread Starter
Pro
Joined: Nov 2004
Posts: 689
Likes: 169
From: Palm Bay Florida
Hi b,
Here are a few pics from my 71.
Perhaps they'll help along with what Willcox posted.
Regards,
Alan
Here's the harness running along the headlight support. It's clipped to it in several places as the AIM shows.
You can see part of the harness turning down for the right side headlights and part continuing on for the parking and side marker connections.
Here you can see the typical connection for each headlight and the headlight warning switch.
Here are a few pics from my 71.
Perhaps they'll help along with what Willcox posted.
Regards,
Alan
Here's the harness running along the headlight support. It's clipped to it in several places as the AIM shows.
You can see part of the harness turning down for the right side headlights and part continuing on for the parking and side marker connections.
Here you can see the typical connection for each headlight and the headlight warning switch.
Team Owner
Joined: Sep 2006
Posts: 31,109
Likes: 4,170
From: Westminster Maryland
Hi,
I'm sorry but I'm not quite sure what you're asking.
The wires for the left side lights leave the harness before the harness passes over the canister and on the right side after it passes over the canister.
You can see the arrow pointing the right side harness.
Regards,
Alan
I'm sorry but I'm not quite sure what you're asking.
The wires for the left side lights leave the harness before the harness passes over the canister and on the right side after it passes over the canister.
You can see the arrow pointing the right side harness.
Regards,
Alan
Thread Starter
Pro
Joined: Nov 2004
Posts: 689
Likes: 169
From: Palm Bay Florida
Hi,
I'm sorry but I'm not quite sure what you're asking.
The wires for the left side lights leave the harness before the harness passes over the canister and on the right side after it passes over the canister.
You can see the arrow pointing the right side harness.
Regards,
Alan
I'm sorry but I'm not quite sure what you're asking.
The wires for the left side lights leave the harness before the harness passes over the canister and on the right side after it passes over the canister.
You can see the arrow pointing the right side harness.
Regards,
Alan
I'm probably not making myself clear with my question.
Here's what I am after... I want to know the precise path the wiring takes after it leaves the harness and goes to the headlights.. Does it go internally through the actuator housing or does go around the housing? Probably doesn't make sense to go through the housing.
.
Thanks again
Bibb
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
10 Most Common Corvette Problems of the Last 20 Years!
Joe Kucinski
5 MOST and 5 LEAST Popular Corvette Model Years in History!
Joe Kucinski
2027 Corvette Buyer's Guide: Everything You Need to Know!
Joe Kucinski
10 Things C8 Corvette Owners Hate (But Won't Tell You)
Joe Kucinski
10 Best Corvettes Coming to Barrett-Jackson Palm Beach 2026!
Brett Foote
Every Corvette Grand Sport Explained! (C2, C4, C6, C7, & C8)
Joe Kucinski
Grand Sport & Grand Sport X Launch Alongside All-New 535hp LS6 V8!
Michael S. Palmer
5 Reasons Bad Drivers Crash & 5 Ways to Avoid a Costly Mistake!
Joe Kucinski
7 Bolt-On Upgrades From Extreme Online Store to Level Up Your C6 Corvette
Pouria Savadkouei
Safety Car
Joined: Feb 2012
Posts: 4,705
Likes: 983
From: Orlando FL
I'm probably not making myself clear with my question.
Here's what I am after... I want to know the precise path the wiring takes after it leaves the harness and goes to the headlights.. Does it go internally through the actuator housing or does go around the housing? Probably doesn't make sense to go through the housing.
Here's what I am after... I want to know the precise path the wiring takes after it leaves the harness and goes to the headlights.. Does it go internally through the actuator housing or does go around the housing? Probably doesn't make sense to go through the housing.

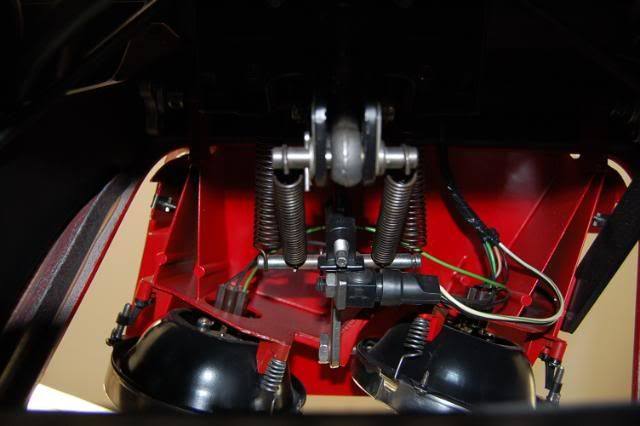

This picture would seem to indicat it going around the canister...
Last edited by oldgto; Sep 29, 2015 at 09:31 PM.
Team Owner
Joined: Sep 2006
Posts: 31,109
Likes: 4,170
From: Westminster Maryland
Hi b,
It travels down right next to the outer side of the canister on both the left and right lights…. through the housing not to the side of it.
I believe you can tell that from the way the end of the harness enters the picture from the top.
Whew!
Regards,
Alan
It travels down right next to the outer side of the canister on both the left and right lights…. through the housing not to the side of it.
I believe you can tell that from the way the end of the harness enters the picture from the top.
Whew!
Regards,
Alan
Thread Starter
Pro
Joined: Nov 2004
Posts: 689
Likes: 169
From: Palm Bay Florida
Wow! .. Yes! the photo shows it. Thanks for your patience.
Best Regards..
Bibb
