windshield wipers
Dr. Detroit
Joined: Mar 2012
Posts: 10,097
Likes: 4,027
From: New Braunfels Texas
According to this video.....if the blue wire is disconnected and it does not park.....then the motor is bad.
So guess I answered my question......another $100!!!!
Thanks all for bearing with me....
Jebby
So guess I answered my question......another $100!!!!
Thanks all for bearing with me....
Jebby
Dr. Detroit
Joined: Mar 2012
Posts: 10,097
Likes: 4,027
From: New Braunfels Texas
And it is not shorted....I checked that too.....
Jebby
Last edited by Jebbysan; May 16, 2016 at 08:13 PM.
Dr. Detroit
Joined: Mar 2012
Posts: 10,097
Likes: 4,027
From: New Braunfels Texas

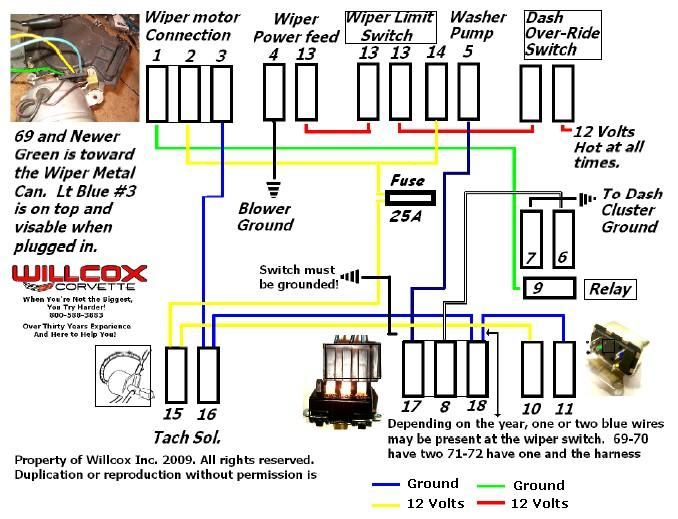

BTW.....I tested the relay off car to this schematic....and all is good there.....
Crazy thing is that when you put the switch to low with all hooked up...it goes slow.....high goes high.....but off on the switch ALSO goes to high.
Jebby
Crazy thing is that when you put the switch to low with all hooked up...it goes slow.....high goes high.....but off on the switch ALSO goes to high.
Jebby
Instructor
Joined: Jun 2015
Posts: 212
Likes: 29
From: State College Pennsylvania
What do you mean when "it goes slow"? The motor itself or the signal(s) coming from the switch/relay?
Dr. Detroit
Joined: Mar 2012
Posts: 10,097
Likes: 4,027
From: New Braunfels Texas
Instructor
Joined: Jun 2015
Posts: 212
Likes: 29
From: State College Pennsylvania
'High speed' and 'off' from the switch should ground connections 1 and 3 (from the wiring diagram) on the motor separately. Does the motor still do this when you apply 12V to connection 2 and ground 1 and 3 manually?
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Dr. Detroit
Joined: Mar 2012
Posts: 10,097
Likes: 4,027
From: New Braunfels Texas
It starts smoking too.....
Jebby
Last edited by Jebbysan; May 16, 2016 at 09:19 PM.
Instructor
Joined: Jun 2015
Posts: 212
Likes: 29
From: State College Pennsylvania
What's weird is that you're still getting low speed with both 1 and 3 grounded and that it will park with power taken off connection 2
Last edited by D_Williams; May 16, 2016 at 09:24 PM.
Dr. Detroit
Joined: Mar 2012
Posts: 10,097
Likes: 4,027
From: New Braunfels Texas
It does park when wipers are running and turn ignition off.....
I would say it is the motor as well.....
I ordered one once from O'Reilley on a whim.....$50.....but it was not as nice to look at as I liked so did not buy it.....
I am going to remove the motor and do one more bench test to confirm...barring that...I will get a new one.
Thank you so much D for sticking with me today.....you were the other half of my brain on this one.....
In case you have not seen my thread.......here are some pics....
Jebby
Former Vendor
Joined: Aug 2006
Posts: 76,656
Likes: 1,852
From: Jeffersonville Indiana 812-288-7103
St. Jude Donor '08-'09-'10-'11-'12-'13-'14-'15
According to this video.....if the blue wire is disconnected and it does not park.....then the motor is bad.
https://www.youtube.com/watch?v=ERTtTH8DoCE
So guess I answered my question......another $100!!!!
Thanks all for bearing with me....
Jebby
https://www.youtube.com/watch?v=ERTtTH8DoCE
So guess I answered my question......another $100!!!!
Thanks all for bearing with me....
Jebby
I didn't read all of this because the original post was for a 1969-1972 motor and then somehow we got switched to a 1968 which is a entirely different system. You can't use the 69-72 video for a 1968. I have two videos on the 1968 motor that may help you though... And because its an old thread it didn't even show up for me when you revived it (It's always good to start a new thread vs. popping up on an old one).
So.. to save me all the reading.. what is your motor doing or what problem is there.
Did you use the 68 bench test video to test your motor? If so, did it pass or fail..
Wiper Motor Bench Test 68 Ver 1
Wiper Motor Bench Test 68 Ver 2 "Follow up"
Great threads on 68 Wiper motors can be found here:
Mister Willcox, 68 wiper motor
68 wiper problems
And lastly.. Have you looked at this from our site?
1968 Corvette Wiper Motor Testing and Schematic 68 Only Revised 03-2012
Willcox
Last edited by Willcox Corvette; May 16, 2016 at 10:27 PM.
Dr. Detroit
Joined: Mar 2012
Posts: 10,097
Likes: 4,027
From: New Braunfels Texas
Ugh...long day and I should pay attention more.....
The one schematic I realized I posted is for a 68.....
I watched your vid....(not sure which one now) where you bench test the motor.....I attempted to do this on the car.
My problem is that:
The wipers do not shut off via switch. (No shut off, nor park)
Relay tests ok.
If you turn the override off...of course it kills it.
If the wipers are left running with the key on....and then you shut the key off....they park.
The wipers will not park with the wiper switch in off position...grounded...as I have everything apart.
Sorry for the cornfusion....I was doing the blower motor too....which ended up being a ground (which is tied in with the wiper)
Thank you Tommy.
Jebby
The one schematic I realized I posted is for a 68.....
I watched your vid....(not sure which one now) where you bench test the motor.....I attempted to do this on the car.
My problem is that:
The wipers do not shut off via switch. (No shut off, nor park)
Relay tests ok.
If you turn the override off...of course it kills it.
If the wipers are left running with the key on....and then you shut the key off....they park.
The wipers will not park with the wiper switch in off position...grounded...as I have everything apart.
Sorry for the cornfusion....I was doing the blower motor too....which ended up being a ground (which is tied in with the wiper)
Thank you Tommy.
Jebby
Last edited by Jebbysan; May 16, 2016 at 11:14 PM.
Instructor
Joined: Jun 2015
Posts: 212
Likes: 29
From: State College Pennsylvania
Willcox, I think he posted the 68 diagram by accident, he has a 72 motor.
Jebby, I'm still confused why the motor parks when you turn the key off but not when you remove power from the yellow wire. That wire should be the only difference between key on and key off if I'm not mistaken
Jebby, I'm still confused why the motor parks when you turn the key off but not when you remove power from the yellow wire. That wire should be the only difference between key on and key off if I'm not mistaken
Dr. Detroit
Joined: Mar 2012
Posts: 10,097
Likes: 4,027
From: New Braunfels Texas
Willcox, I think he posted the 68 diagram by accident, he has a 72 motor.
Jebby, I'm still confused why the motor parks when you turn the key off but not when you remove power from the yellow wire. That wire should be the only difference between key on and key off if I'm not mistaken
Jebby, I'm still confused why the motor parks when you turn the key off but not when you remove power from the yellow wire. That wire should be the only difference between key on and key off if I'm not mistaken
Jebby
Former Vendor
Joined: Aug 2006
Posts: 76,656
Likes: 1,852
From: Jeffersonville Indiana 812-288-7103
St. Jude Donor '08-'09-'10-'11-'12-'13-'14-'15
Jebb-
Lets start with the basic's on this.
Verify the motor is good or bad before you test or tear into anything else.
Un-plug everything from the wiper motor (including the ground lug)...
Then run power to the 2 terminal, a ground to the case and two jumpers to the 1 and 3... Disconnect the bell crank nut and linkage from the motor... then do the bench test just like in the video. This will tell you instantly if the motor is the issue. Once you do this then we'll move forward.
Ernie
Lets start with the basic's on this.
Verify the motor is good or bad before you test or tear into anything else.
Un-plug everything from the wiper motor (including the ground lug)...
Then run power to the 2 terminal, a ground to the case and two jumpers to the 1 and 3... Disconnect the bell crank nut and linkage from the motor... then do the bench test just like in the video. This will tell you instantly if the motor is the issue. Once you do this then we'll move forward.
Ernie
Last edited by Willcox Corvette; May 17, 2016 at 10:28 AM.
Instructor
Joined: Jun 2015
Posts: 212
Likes: 29
From: State College Pennsylvania
Just something I noticed...
IF your motor checks out good according to Willcox's bench test, you might try testing the wiper switch again.
It looks like, from the wiring diagram and the test video, that if the switch is providing ground to the blue wire and not to the black/white wire in the off position, then turning the key off would give you the behavior you described (the relay would switch the green wire to ground AND the yellow wire would lose power).
IF your motor checks out good according to Willcox's bench test, you might try testing the wiper switch again.
It looks like, from the wiring diagram and the test video, that if the switch is providing ground to the blue wire and not to the black/white wire in the off position, then turning the key off would give you the behavior you described (the relay would switch the green wire to ground AND the yellow wire would lose power).
Dr. Detroit
Joined: Mar 2012
Posts: 10,097
Likes: 4,027
From: New Braunfels Texas
I wanted to update this as I am twice as frustrated as I was.......
The motor I determined was bad.....so I purchased a brand new Lectra-motive motor. It worked exactly twice before it started doing what the original motor did.
What it does now:
Only way for it to work is with override under steering wheel.
It will operate the wipers.....but cut it and they will not park.....until.....you turn the key to off position.
Will not work via switch.
I believe the crap wipers that are on it did not allow either unit to park the wipers correctly and smoked out the parking circuit.
Any thoughts from anyone here are appreciated......
Jebby
The motor I determined was bad.....so I purchased a brand new Lectra-motive motor. It worked exactly twice before it started doing what the original motor did.
What it does now:
Only way for it to work is with override under steering wheel.
It will operate the wipers.....but cut it and they will not park.....until.....you turn the key to off position.
Will not work via switch.
I believe the crap wipers that are on it did not allow either unit to park the wipers correctly and smoked out the parking circuit.
Any thoughts from anyone here are appreciated......
Jebby
