Heat Shields

How many heat shields came with a radio equipped 69 small block?

Feb 5, 2017 | 02:46 PM

Alan 71

Team Owner

Joined: Sep 2006

Posts: 31,278

Likes: 4,372

From: Westminster Maryland

Hi EM,
The number of 'heat shields' didn't have anything to do with the radio interference shielding.
All sb cars got a small J shaped shield at each pair of spark plugs and each side of the block had a 'boomerang' shaped shield that the 2 forward spark plug wires ran through.
Cars that had a radio as an option got the set of chrome plated shields in addition to the heat shields.
Regards,
Alan

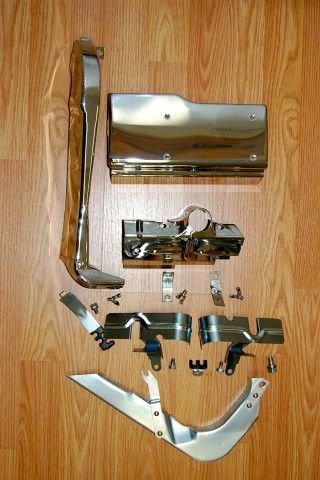

In this photo the right side HEAT shields are the 3 lower pieces, plus the small wire loom bracket.

The left side boomerang HEAT shield in place.

Last edited by Alan 71; Feb 5, 2017 at 03:09 PM.

Feb 5, 2017 | 03:10 PM

EddyManure

Thread Starter

Intermediate

Joined: Jan 2002

Posts: 29

Likes: 0

From: North Haven CT

Alan
Thanks for the prompt reply. Why won't my left side chrome static suppression shields fit over the heat shield covering the number 2 and 4 plugs

Feb 5, 2017 | 03:12 PM

EddyManure

Thread Starter

Intermediate

Joined: Jan 2002

Posts: 29

Likes: 0

From: North Haven CT

Sorry, I meant number 2 and 4 plugs

Feb 5, 2017 | 03:38 PM

Alan 71

Team Owner

Joined: Sep 2006

Posts: 31,278

Likes: 4,372

From: Westminster Maryland

Hi EM,
Sorry, but without seeing your parts and their instillation it's difficult to say.
It has to be the right shaped chrome shield to fit over the right heat shield.
And the right brackets need to be used to mount the radio shields.
Picture?
Regards,
Alan

Last edited by Alan 71; Feb 5, 2017 at 03:39 PM.

Feb 6, 2017 | 08:10 PM

Rescue Rogers

Is my vette stock?? HAHA

Joined: Oct 2015

Posts: 20,216

Likes: 9,354

From: Im not allowed to tell you

2020 C3 of the Year Finalist - Modified

2020 Corvette of the Year Finalist (performance mods)

2019 C3 of Year Winner (performance mods)

2016 C3 of Year Finalist

Alan, in your pic, where does the shield with the hole in it mount. Its the one in the center

How does it mount as well

Feb 7, 2017 | 09:14 AM

Alan 71

Team Owner

Joined: Sep 2006

Posts: 31,278

Likes: 4,372

From: Westminster Maryland

Hi RR,
It's the right rear radio noise suppression shield.
The hump and hole is for clearance for the CEC/TCS temperature switch in the right side head.
Regards,
Alan
