Console Reinforcement Install Question
Thread Starter
Pro
Joined: Oct 2016
Posts: 684
Likes: 62
From: Ogden, Utah
Console Reinforcement Install Question
I have a brand new replacement console and new reinforcement that needs to be attached. According to AIM it requires what looks like 4 each rivets. Two on top and one on each side. I understand the top part but the sides have large elongated oval holes that would make riveting difficult or not possible. Can someone offer help here please.
Thread Starter
Pro
Joined: Oct 2016
Posts: 684
Likes: 62
From: Ogden, Utah
Drifting
Joined: Nov 2013
Posts: 1,547
Likes: 282
From: Scottsdale Arizona
On my 68, which I don't think is much different than your 74, the reinforcement is attached to the shifter console by the two rivets on top and the elongated holes are where screws go to attach the shifter console to the bracket attached to the shifter tunnel with "u" nuts. My AIM clearly shows them as screws and not rivets.
Drifting
Joined: Jun 2008
Posts: 1,565
Likes: 111
I just went through this with my '69. I used nuts/bolts on the 2 top bolts and they are completely hidden after install. The side holes will likely not line up any way so leave those loose until you can mock it up on the car and determine course of action. Definitely do not rivet anything until after mockup.
Thread Starter
Pro
Joined: Oct 2016
Posts: 684
Likes: 62
From: Ogden, Utah
On my 68, which I don't think is much different than your 74, the reinforcement is attached to the shifter console by the two rivets on top and the elongated holes are where screws go to attach the shifter console to the bracket attached to the shifter tunnel with "u" nuts. My AIM clearly shows them as screws and not rivets.
Well then my AIM is definitely different than yours because mine shows rivets and no washers to take up the huge elongated hole. Very odd.
Drifting
Joined: Nov 2013
Posts: 1,547
Likes: 282
From: Scottsdale Arizona

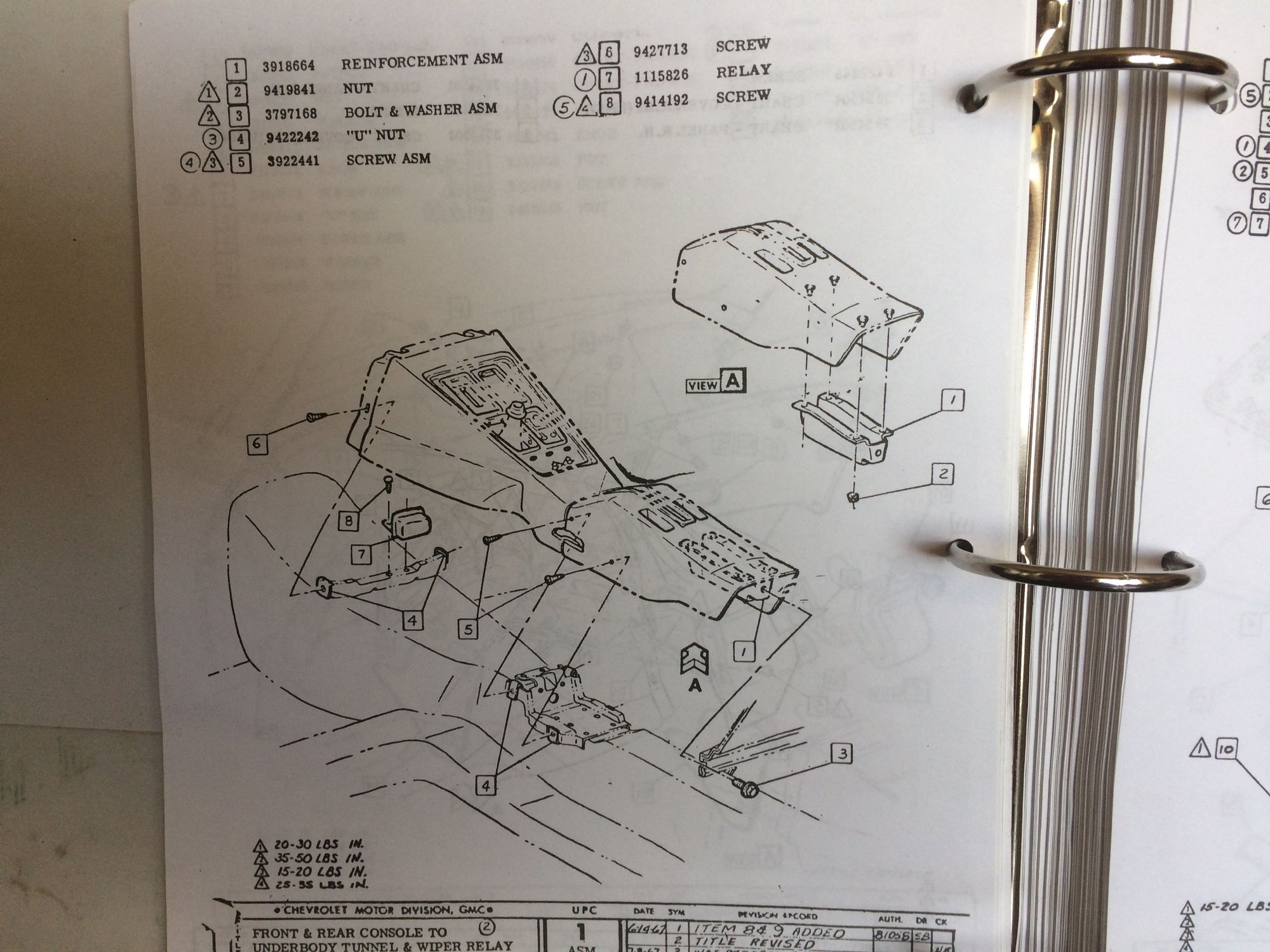

This is from my AIM. If you were to put a rivet through the elongated hole, how would you attach the shifter console to the bracket on the shifter tunnel? Seems odd that your AIM shows a rivet and not a screw.
