Default Headlight Bushing kit Install help.
Is there an online tutorial of how the pieces are assembled?

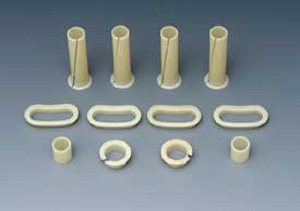

what are the top 4 piece in this pic:




thanks
Reply
0
Old Jan 28, 2018 | 08:07 AM
Share
  #2
NONN37's Avatar
NONN37
Thread Starter
Melting Slicks
15 Year Member

Joined: Mar 2006
Posts: 3,161
Likes: 239
From: Southern CALIFORNIA
Default
Or a pic of a detailed diagram
Reply
0
Old Jan 28, 2018 | 08:27 AM
Share
  #3
Mooser's Avatar
Mooser
Race Director
10 Year Member

Joined: Apr 2011
Posts: 11,183
Likes: 3,335
From: North of Toronto - Ontario
Default

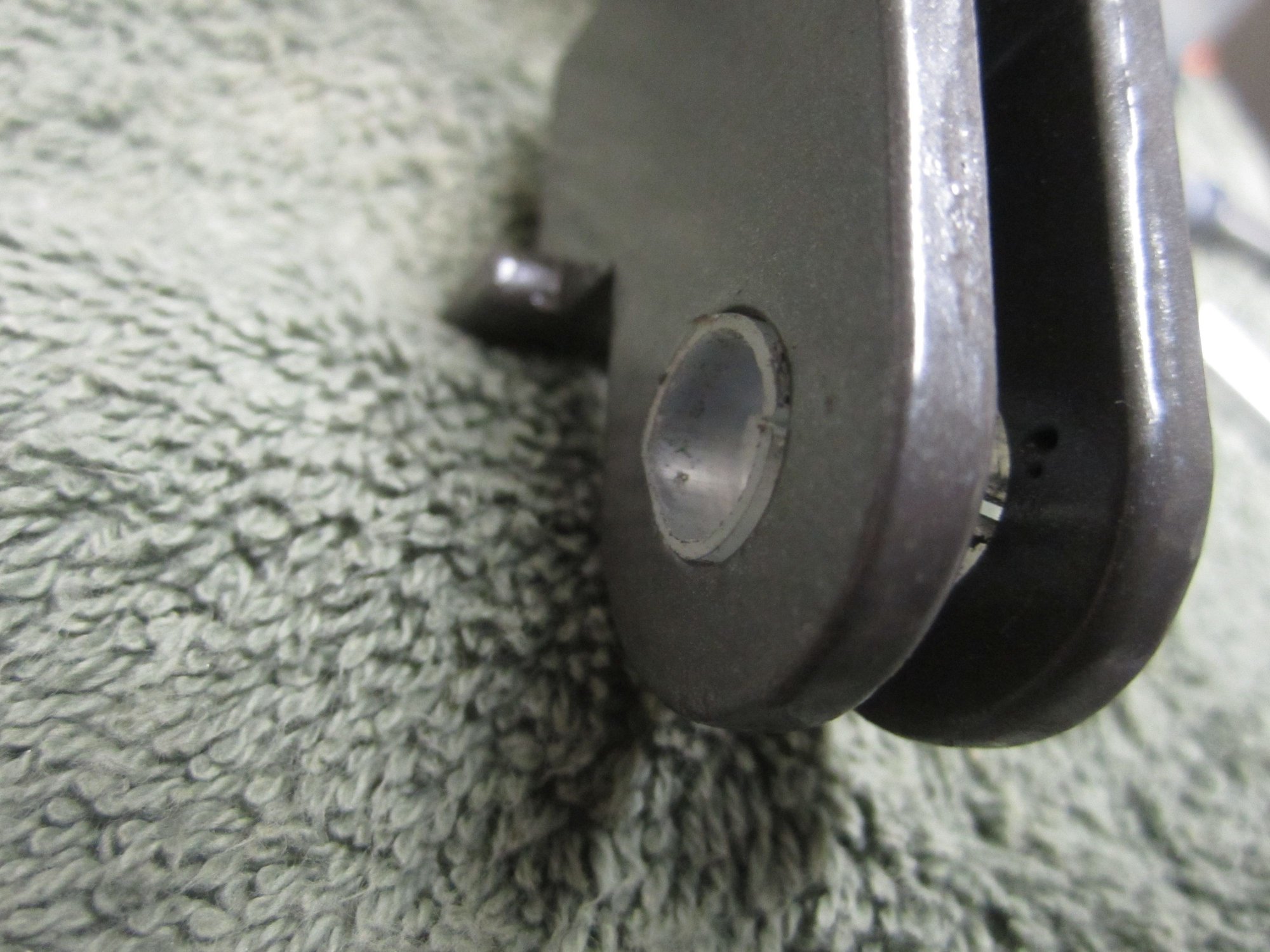

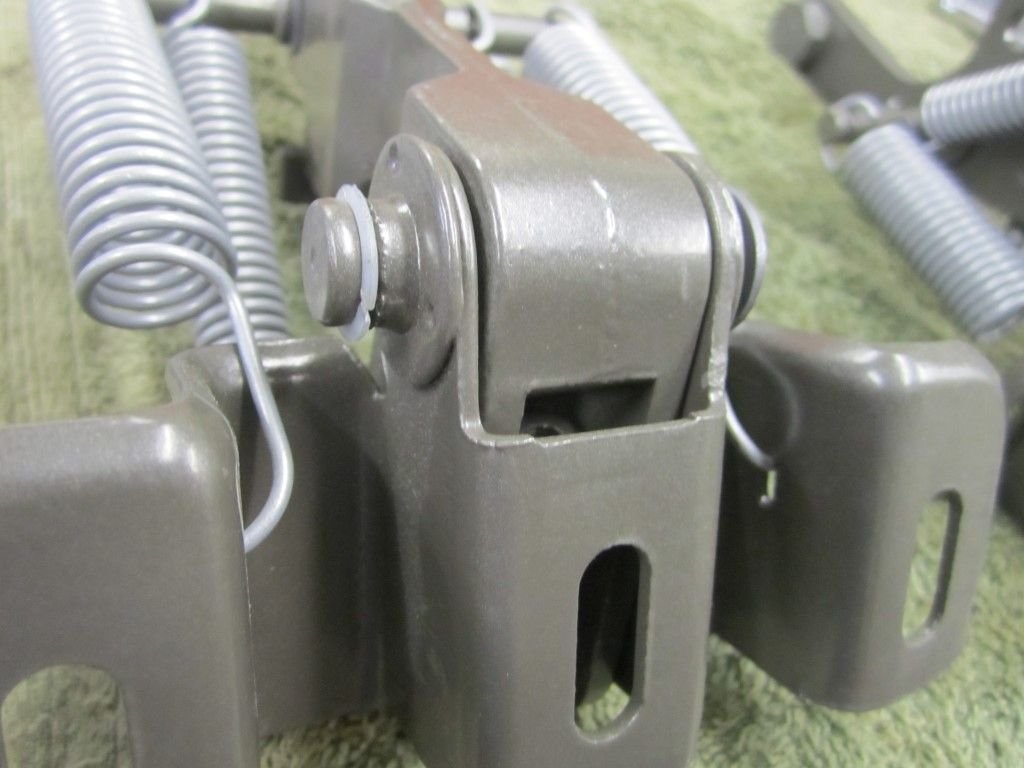

See if these help

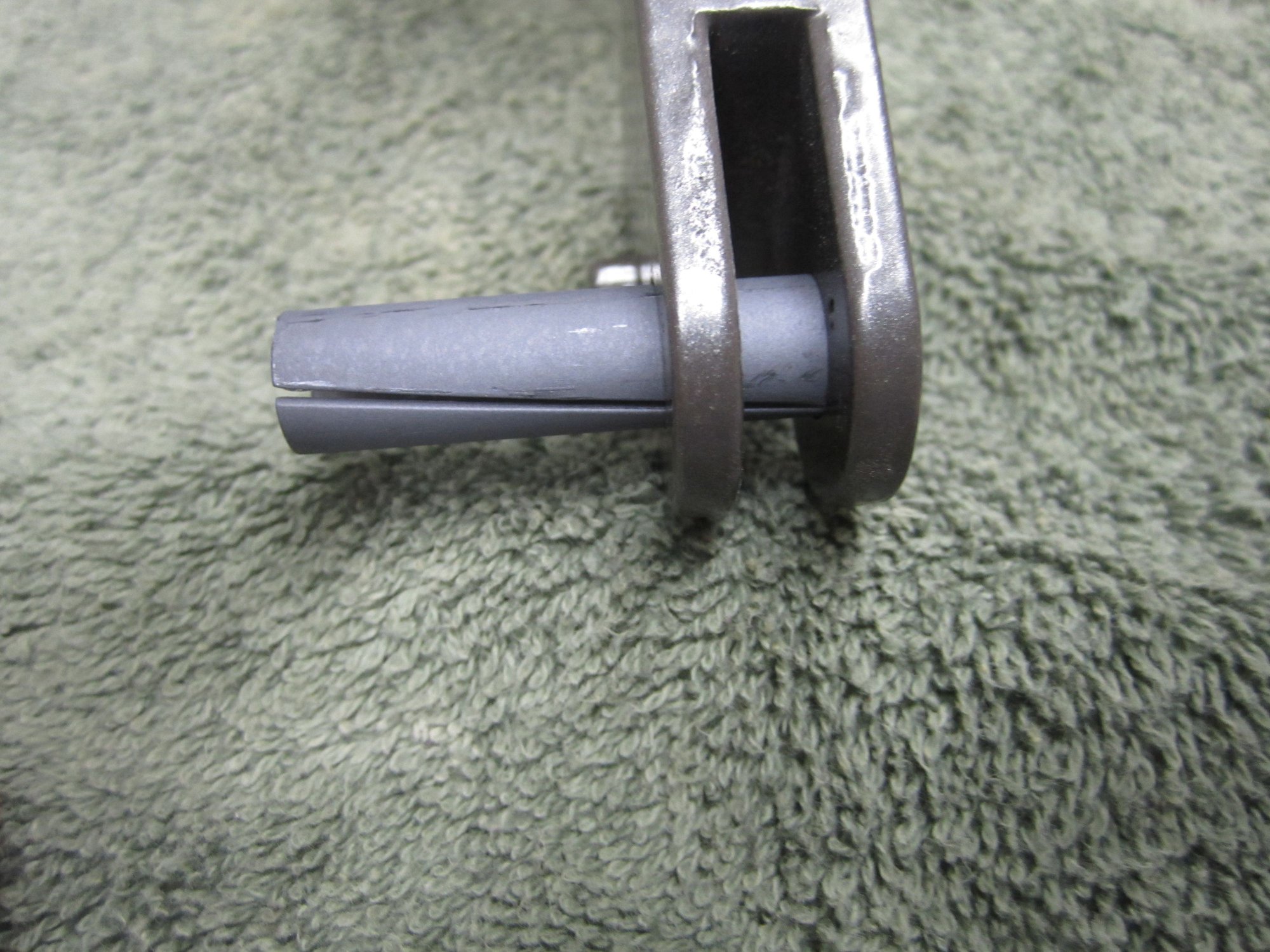

One of the long slit bushings gets shortened, just over the width of the front fork



M
Last edited by Mooser; Jan 28, 2018 at 08:31 AM.
Reply
2
Old Jan 28, 2018 | 08:41 AM
Share
  #4
NONN37's Avatar
NONN37
Thread Starter
Melting Slicks
15 Year Member

Joined: Mar 2006
Posts: 3,161
Likes: 239
From: Southern CALIFORNIA
Default
Okay that makes more sense. I have to cut them to get the correct part.

Nice job on those
Reply
0
Old Jan 28, 2018 | 08:48 AM
Share
  #5
Mooser's Avatar
Mooser
Race Director
10 Year Member

Joined: Apr 2011
Posts: 11,183
Likes: 3,335
From: North of Toronto - Ontario
Default
-deleted-
Last edited by Mooser; Jan 28, 2018 at 08:53 AM. Reason: double post
Reply
1
Old Jan 28, 2018 | 08:52 AM
Share
  #6
Mooser's Avatar
Mooser
Race Director
10 Year Member

Joined: Apr 2011
Posts: 11,183
Likes: 3,335
From: North of Toronto - Ontario
Default
Yeah, they didn't mention that one of the two gets cut. I used the original to judge length

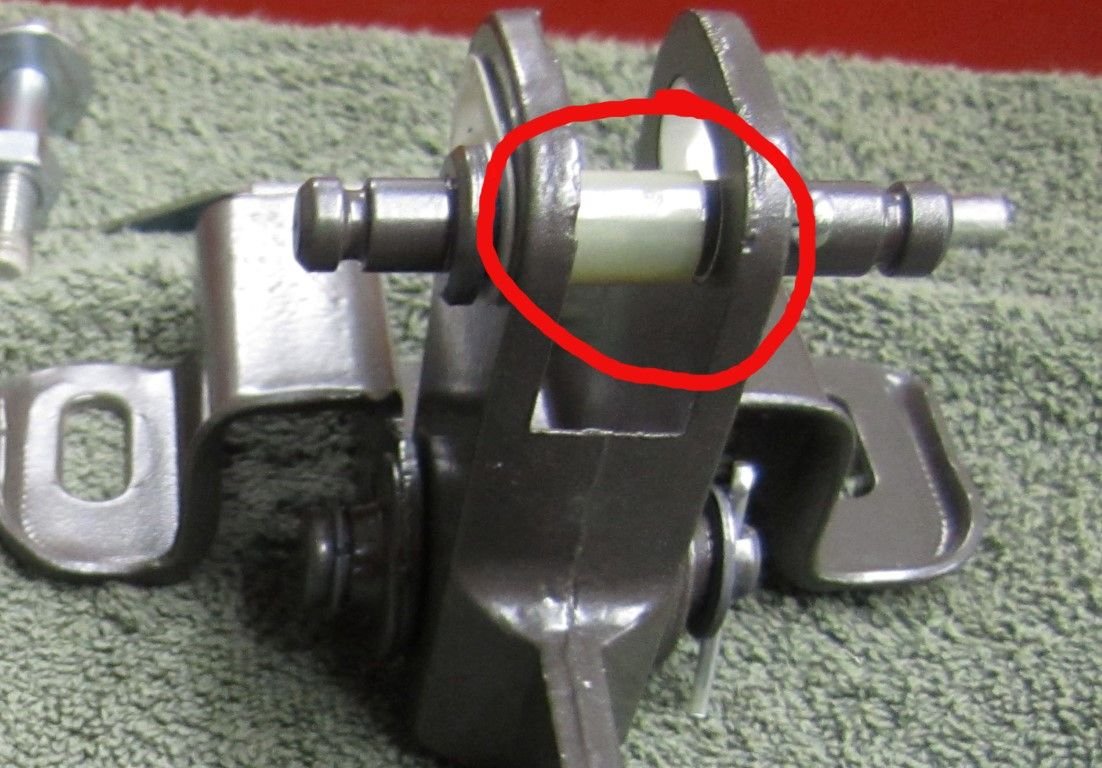

The other one stays long (I believe I didn't need to trim it) and goes here

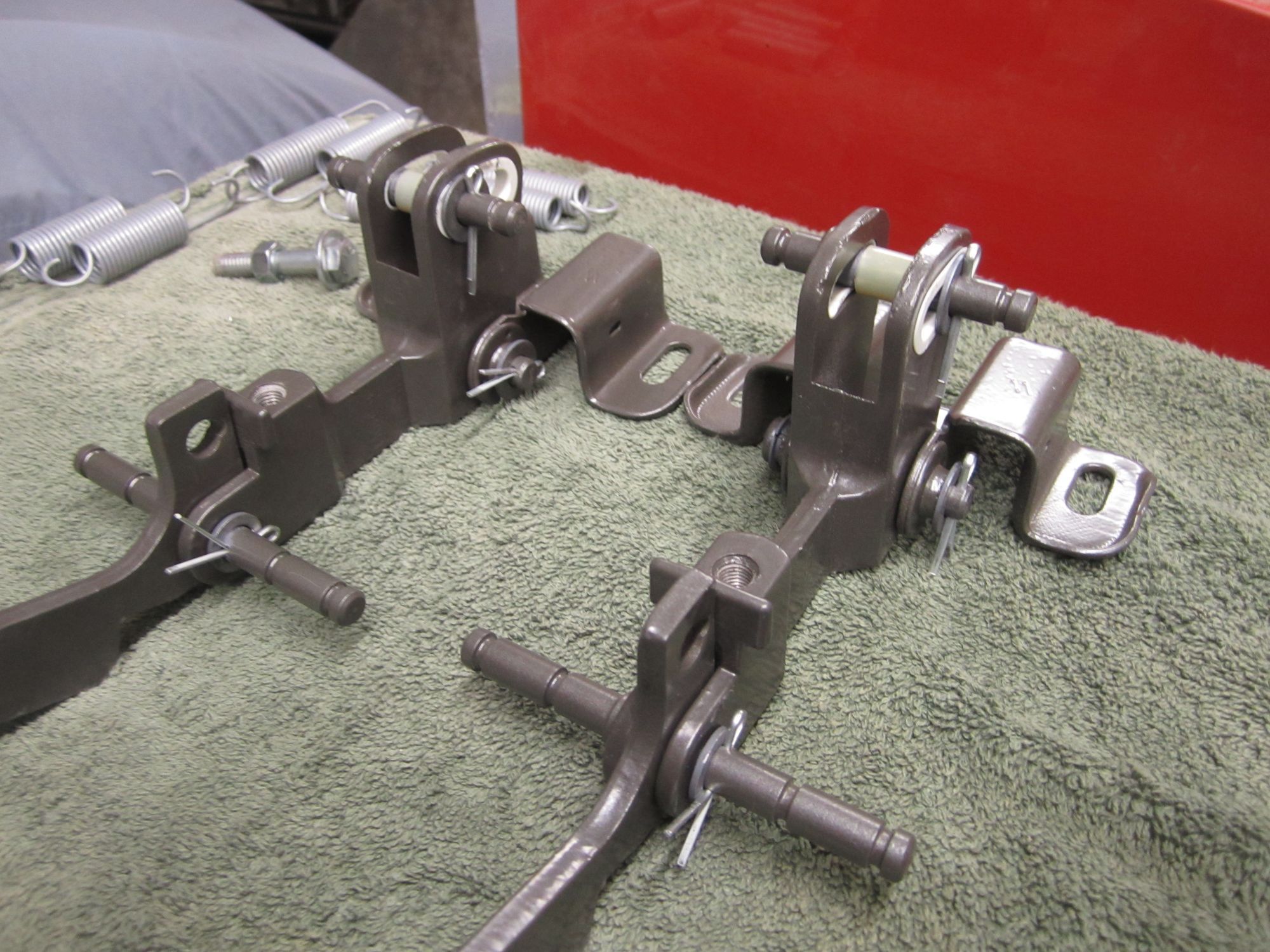

Here's the assembly of the headlights in case it helps
https://www.corvetteforum.com/forums...s-forward.html

M
Reply
1
Old Jan 28, 2018 | 09:52 AM
Share
  #7
Alan 71's Avatar
Alan 71
Team Owner
15 Year Member
Active Streak: 120 Days
Community Influencer
Top Answer: 5

Joined: Sep 2006
Posts: 31,301
Likes: 4,389
From: Westminster Maryland
Default
Hi M,
NICE photos!!!
Regards,
Alan
Reply
0
Old Jan 28, 2018 | 07:02 PM
Share
  #8
NONN37's Avatar
NONN37
Thread Starter
Melting Slicks
15 Year Member

Joined: Mar 2006
Posts: 3,161
Likes: 239
From: Southern CALIFORNIA
Default
Thanks for the pics. I havent taken the linkage apart, now I know what to expect
Reply
0
Corvette Stories

The Best of Corvette for Corvette Enthusiasts

story-0

5 Best & 5 Most Overrated Corvette Track Packages of All Time!

 Joe Kucinski
story-1

Every 2027 Corvette Engine Explained

 Joe Kucinski
story-2

Designer Imagines A Corvette That Looks More Like a Corvette Than the Corvette

 Verdad Gallardo
story-3

10 Ugly Corvettes That We Still Kinda Love

 Joe Kucinski
story-4

Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer

 Brett Foote
story-5

10 Things Every Corvette Owner Needs (2026 Edition)

 Michael S. Palmer
story-6

8 Most "Only Corvette Owners Understand" Quirks and Problems

 Pouria Savadkouei
story-7

10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years

 Joe Kucinski
story-8

How Much Horsepower Every Corvette Engine "LOST" in 1972

 Joe Kucinski
story-9

Top 10 DOs and DON'Ts for Protecting Your Convertible Top!

 Michael S. Palmer
Old Jan 29, 2018 | 09:34 PM
Share
  #9
69ttop502's Avatar
69ttop502
Le Mans Master
25 Year Member
Liked
Loved
Community Favorite

Joined: Mar 2001
Posts: 6,240
Likes: 1,013
From: Watkinsville, GA and Glen Cove, NY
Default
Originally Posted by NONN37
Is there an online tutorial of how the pieces are assembled?

what are the top 4 piece in this pic:




thanks
Where do those two small barrels shaped bushings on the front ends of the picture go?
Reply
0
Old Jan 29, 2018 | 09:39 PM
Share
  #10
Mooser's Avatar
Mooser
Race Director
10 Year Member

Joined: Apr 2011
Posts: 11,183
Likes: 3,335
From: North of Toronto - Ontario
Default

Pin that hooks to the actuator link



M
Last edited by Mooser; Jan 29, 2018 at 09:41 PM.
Reply
0
Old Jan 30, 2018 | 09:17 AM
Share
  #11
steffan's Avatar
steffan
Racer

Joined: Jun 2012
Posts: 279
Likes: 14
From: New Britain Connecticut
Default
might help
https://www.corvetteforum.com/forums...or-ever-i.html
