Dash Harness routing

Looking for a picture of the correct routing for a harness on the drive side. I need the routing of the harness on the left side of the steering column in regards to the 2 bars that support the column and where the wires for the dash lights should be run

Thanks
Marty

Feb 6, 2018 | 10:46 AM

Easy Mike

Team Owner

Joined: Jun 2000

Posts: 38,923

Likes: 1,481

From: Southbound

Cruise-In II Veteran

Model year? The AIM is possibly the best source for an answer. Actual routing could vary by model year.

Feb 6, 2018 | 10:49 AM

Tecdiverfl

Thread Starter

Racer

Joined: Jun 2007

Posts: 291

Likes: 6

From: Delray Beach FL

Sorry 1970

Feb 6, 2018 | 11:28 AM

0Willcox Corvette

Former Vendor

Joined: Aug 2006

Posts: 76,656

Likes: 1,850

From: Jeffersonville Indiana 812-288-7103

St. Jude Donor '08-'09-'10-'11-'12-'13-'14-'15

Feb 6, 2018 | 11:35 AM

BBCorv70

Melting Slicks

Joined: Apr 2007

Posts: 3,189

Likes: 111

From: Tolland CT

Quote:

Originally Posted by Tecdiverfl

Sorry 1970

Beware, the early 70 had the harness routed as it is in 69, under the tach and speedo. Later that year it was moved to over the tach and speedo.

Feb 6, 2018 | 12:41 PM

Tecdiverfl

Thread Starter

Racer

Joined: Jun 2007

Posts: 291

Likes: 6

From: Delray Beach FL

If memory serves my car has a late March or April build date as I know the motor was dated March 70

Quote:

Originally Posted by BBCorv70

Beware, the early 70 had the harness routed as it is in 69, under the tach and speedo. Later that year it was moved to over the tach and speedo.

Feb 6, 2018 | 01:07 PM

0Willcox Corvette

Former Vendor

Joined: Aug 2006

Posts: 76,656

Likes: 1,850

From: Jeffersonville Indiana 812-288-7103

St. Jude Donor '08-'09-'10-'11-'12-'13-'14-'15

Quote:

Originally Posted by BBCorv70

Beware, the early 70 had the harness routed as it is in 69, under the tach and speedo. Later that year it was moved to over the tach and speedo.

Easy to tell too... just look at the clips on the speedo tach cluster.

Willcox

Feb 6, 2018 | 01:23 PM

Tecdiverfl

Thread Starter

Racer

Joined: Jun 2007

Posts: 291

Likes: 6

From: Delray Beach FL

Willcox you guys are the best as usual

Corvette Stories

The Best of Corvette for Corvette Enthusiasts

8 Coolest Corvette Pace Cars (and Replicas) of All Time

Verdad Gallardo

Top 10 Corvette Engines RANKED by Peak Torque (70+ Years of Muscle!)

Joe Kucinski

Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!

Verdad Gallardo

Top 10 Corvettes Coming to Mecum Indy 2026!

Brett Foote

Top 10 C9 Corvette MUST-HAVES to Fix These C8 Generation Flaws!

Michael S. Palmer

10 Revolutionary 'Corvette Firsts' Most People Don't Know

Joe Kucinski

5 Reasons to Upgrade to an LS6-Powered Corvette; 5 Reasons to Stay LT2

Michael S. Palmer

2027 Corvette vs The World: Every C8 vs Its Closest Competitor

Joe Kucinski

10 Most Common Corvette Problems of the Last 20 Years!

Joe Kucinski

5 MOST and 5 LEAST Popular Corvette Model Years in History!

Joe Kucinski

Feb 6, 2018 | 01:27 PM

Alan 71

Team Owner

Joined: Sep 2006

Posts: 31,167

Likes: 4,244

From: Westminster Maryland

Hi T,

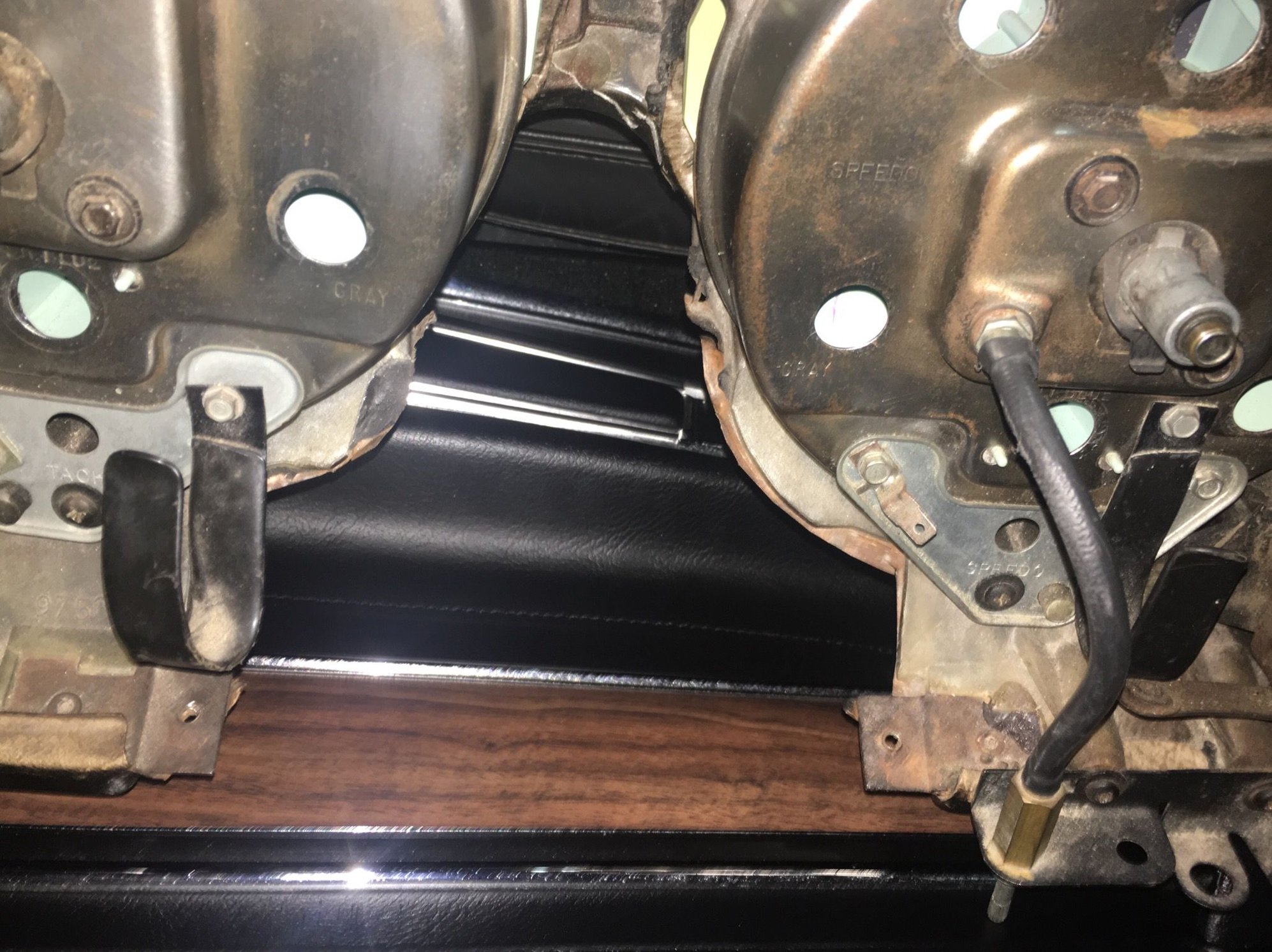

Here's the routing with the harness OVER the speedometer and tachometer.
Note the clips Willcox indicates.
Note the harness dips down slightly between the 2 gauge bezels because of the wiring headed to the steering column.
Regards,
Alan

Coming up from the fuse panel.

Dipping down for the center gauge cluster, radio, and shifter console connections.

Last edited by Alan 71; Feb 6, 2018 at 02:04 PM.

Feb 6, 2018 | 01:37 PM

#10

Tecdiverfl

Thread Starter

Racer

Joined: Jun 2007

Posts: 291

Likes: 6

From: Delray Beach FL

I need to look when I get home

Feb 6, 2018 | 03:14 PM

#11

BBCorv70

Melting Slicks

Joined: Apr 2007

Posts: 3,189

Likes: 111

From: Tolland CT

Quote:

Originally Posted by Tecdiverfl

If memory serves my car has a late March or April build date as I know the motor was dated March 70

My 70 was built March 3, harness went under the tach and speedo. I don't think there was enough slack to route it over the tach and speedo as I would have preferred.
