Screw size list?


Old 09-06-2018, 08:12 PM
  #1
Cavu2u
CF Senior Member
Thread Starter

Cavu2u's Avatar

Member Since: Oct 2013
Location: San Diego California
Posts: 2,181
Liked 62 Times in 57 Posts
Default Screw size list?

Is there a list out there where screw numbers AND sizes are listed next to various C3 items they secure?

The reason I ask is that I just painted my '73, and now it's time to re-assemble everything back. I've tried using the ***. manual, and it's a tremendous help in assembly, but when I do the search with the screw's part #, more than half the time I cannot come up with a size description. No doubt I should have bagged each screw with a location description, but too late of course for that.

Perhaps just a reliable screw/bolt website, with GM # with it's size listed, that someone knows.

I'm retired, and yeah I've got time to do it by way of fitting what I think will fit, but just how much time IS left, ya know? Just want to do it right.

Thanks much.
Steve
Cavu2u is offline
Old 09-06-2018, 10:38 PM
  #2
riverracer au
CF Senior Member

riverracer au's Avatar

Member Since: Oct 2010
Location: "ɹǝpunuʍop" Adelaide, Australia
Posts: 1,005
Liked 41 Times in 35 Posts
Default

no sizes as such,
but i have looked at http://www.corvettefasteners.com/ many times to see what a certain screw is supposed to look like.
riverracer au is offline
The following 3 users liked this post by riverracer au:
Cavu2u (09-07-2018), LenWoodruff (09-07-2018), ratflinger (09-10-2018)
Old 09-06-2018, 10:44 PM
  #3
ronarndt
CF Senior Member

ronarndt's Avatar

Member Since: Jul 2015
Location: Catlett VA
Posts: 1,512
Liked 145 Times in 128 Posts
Default

I bought a complete set of fasteners from Ecklers for my 68 convert. It had little plastic ziplock bags of all of the various sizes labeled for what they were used to fasten. I believe they also sell individual bags specific for the parts they are used to fasten.
ronarndt is offline
The following users liked this post: ronarndt
Cavu2u (09-07-2018)
Old 09-06-2018, 10:55 PM
  #4
Cavu2u
CF Senior Member
Thread Starter

Cavu2u's Avatar

Member Since: Oct 2013
Location: San Diego California
Posts: 2,181
Liked 62 Times in 57 Posts
Default

I bought a screw set for just the interior Ron, but they didn't have the size of the screws printed on the packages.

Steve
Cavu2u is offline
Old 09-06-2018, 11:25 PM
  #5
boat196
CF Senior Member
Support Corvetteforum!

Member Since: Aug 2007
Location: Green Valley Ca
Posts: 330
Liked 4 Times in 4 Posts
Default

Look up AMK, they reference GM numbers for the (limited) fasteners that they sell. This has been discussed in the past, you might search if you already hadn’t. Alan71 has posted many photos of various fasteners.
Bob
boat196 is offline
The following users liked this post: boat196
Cavu2u (09-07-2018)
Old 09-07-2018, 06:37 AM
  #6
Easy Mike
CF Senior Member
Support Corvetteforum!

Easy Mike's Avatar

Member Since: Jun 2000
Location: Southbound
Posts: 36,602
Likes: 0
Liked 889 Times in 816 Posts
Cruise-In II Veteran
Default

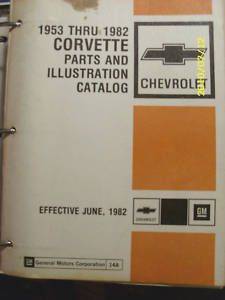

FWIW: The Parts and Illustrations Catalogue lists quite a lot of fastener sizes. You can find these in paper or on CD.

Last edited by Easy Mike; 09-07-2018 at 08:21 AM.
Easy Mike is offline
The following 2 users liked this post by Easy Mike:
Cavu2u (09-07-2018), garyguinn (09-11-2018)
Old 09-07-2018, 08:08 AM
  #7
Cavu2u
CF Senior Member
Thread Starter

Cavu2u's Avatar

Member Since: Oct 2013
Location: San Diego California
Posts: 2,181
Liked 62 Times in 57 Posts
Default

Originally Posted by riverracer au View Post
no sizes as such,
but i have looked at http://www.corvettefasteners.com/ many times to see what a certain screw is supposed to look like.
Photos help!
Thank you sir.

Steve
Cavu2u is offline
Old 09-07-2018, 08:10 AM
  #8
Cavu2u
CF Senior Member
Thread Starter

Cavu2u's Avatar

Member Since: Oct 2013
Location: San Diego California
Posts: 2,181
Liked 62 Times in 57 Posts
Default

Originally Posted by boat196 View Post
Look up AMK, they reference GM numbers for the (limited) fasteners that they sell. This has been discussed in the past, you might search if you already hadnít. Alan71 has posted many photos of various fasteners.
Bob
I was afraid of that Bob. Couldn't find it.
Thanks.

Steve

Cavu2u is offline
Old 09-07-2018, 08:12 AM
  #9
Cavu2u
CF Senior Member
Thread Starter

Cavu2u's Avatar

Member Since: Oct 2013
Location: San Diego California
Posts: 2,181
Liked 62 Times in 57 Posts
Default

Originally Posted by Easy Mike View Post


FWIW: The Parts and Illustrations Catalogue lists quite a lot of fastener sizes. You can fid these in paper or on CD.
That book's worth quite a bit to guys like us Mike.
Thanks.

Steve
Cavu2u is offline
Old 09-07-2018, 10:09 AM
  #10
00Nassau
CF Senior Member

00Nassau's Avatar

Member Since: Jun 2000
Location: Conroe TX
Posts: 3,780
Liked 24 Times in 23 Posts
St. Jude Donor '11
Default

It is generally a real PIA to find bolt sizes. It is time consuming the way I have been doing it. I go to the AIM and get the GM part number. I then go to the NCRS forum and search that part number. Most of the time Joe Lucia has posted the size and finish of the bolt.

Good luck,
Allen
00Nassau is offline
The following users liked this post: 00Nassau
Cavu2u (09-08-2018)
Old 09-07-2018, 03:07 PM
  #11
raven1708
CF Member

Member Since: Jan 2017
Location: Myrtle Beach SC
Posts: 95
Liked 4 Times in 4 Posts
Default

You can also get the digital catalog from paragon for c3. In the back they have alot of info on them.
raven1708 is offline
The following users liked this post: raven1708
Cavu2u (09-08-2018)
Old 09-07-2018, 04:57 PM
  #12
ronarndt
CF Senior Member

ronarndt's Avatar

Member Since: Jul 2015
Location: Catlett VA
Posts: 1,512
Liked 145 Times in 128 Posts
Default

Originally Posted by Cavu2u View Post
I bought a screw set for just the interior Ron, but they didn't have the size of the screws printed on the packages.

Steve
My set did not have sizes either. The bags just said where they were supposed to be used.
ronarndt is offline
The following users liked this post: ronarndt
Cavu2u (09-08-2018)
Old 09-08-2018, 08:24 AM
  #13
Cavu2u
CF Senior Member
Thread Starter

Cavu2u's Avatar

Member Since: Oct 2013
Location: San Diego California
Posts: 2,181
Liked 62 Times in 57 Posts
Default

Originally Posted by raven1708 View Post
You can also get the digital catalog from paragon for c3. In the back they have alot of info on them.
That's GREAT!
Thanks for the info.

Steve
Cavu2u is offline
Old 09-08-2018, 08:26 AM
  #14
Cavu2u
CF Senior Member
Thread Starter

Cavu2u's Avatar

Member Since: Oct 2013
Location: San Diego California
Posts: 2,181
Liked 62 Times in 57 Posts
Default

Originally Posted by ronarndt View Post
My set did not have sizes either. The bags just said where they were supposed to be used.
At least we could match 'em up at the local hardware store.
Thanks Ron.

Steve
Cavu2u is offline
Old 09-08-2018, 11:58 PM
  #15
ronarndt
CF Senior Member

ronarndt's Avatar

Member Since: Jul 2015
Location: Catlett VA
Posts: 1,512
Liked 145 Times in 128 Posts
Default

Originally Posted by Cavu2u View Post
At least we could match 'em up at the local hardware store.
Thanks Ron.

Steve
I have lost track of how many times I have spent standing in the fastener section comparing the one size I need to the variety of sizes available to find the right one. Even with the selection I bought from Eckler's I ran out and had to buy more.
ronarndt is offline
The following users liked this post: ronarndt
Cavu2u (09-09-2018)
Old 09-09-2018, 08:32 AM
  #16
Cavu2u
CF Senior Member
Thread Starter

Cavu2u's Avatar

Member Since: Oct 2013
Location: San Diego California
Posts: 2,181
Liked 62 Times in 57 Posts
Default

Originally Posted by ronarndt View Post
I have lost track of how many times I have spent standing in the fastener section comparing the one size I need to the variety of sizes available to find the right one. Even with the selection I bought from Eckler's I ran out and had to buy more.
Can't always count on getting the right hardware from vendors either.

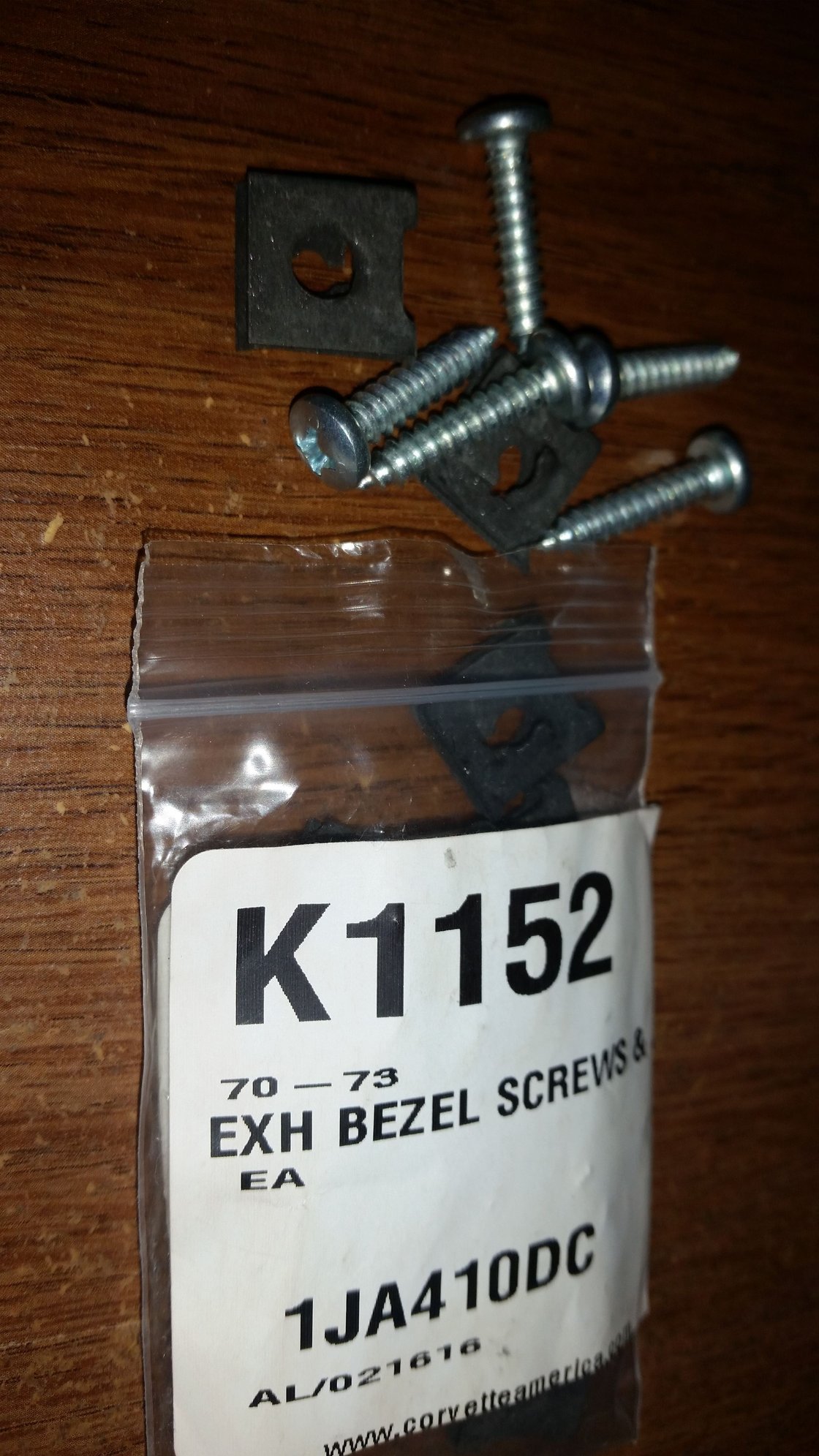

I swore I removed the exhausr bezel's tinnerman nuts from my '73 exhaust panel that looked like this.







Instead, I got these.

Cavu2u is offline
Old 09-11-2018, 11:57 PM
  #17
garyguinn
CF Senior Member

Member Since: Sep 2007
Location: Tulsa Ok
Posts: 440
Liked 7 Times in 7 Posts
Default

Originally Posted by Easy Mike View Post


FWIW: The Parts and Illustrations Catalogue lists quite a lot of fastener sizes. You can find these in paper or on CD.
100% agree. I write them down on the appropriate aim page so I donít have to look it up next time.
garyguinn is offline
Old 09-12-2018, 12:52 AM
  #18
gbvette62
CF Senior Member

gbvette62's Avatar

Member Since: Oct 2000
Location: Shamong, NJ
Posts: 9,097
Liked 673 Times in 533 Posts
Default

Very little hardware is actually listed in the "Corvette Parts and Illustration Catalog". All hardware was found in GM Parts Group 8.900, and Group 8.900 is not included in the Corvette Parts book, but instead is only found in the GM "Standard Parts Catalog".

The Standard Parts Catalog is a great resorce. Every nut, bolt, screw, washer, J-clip, cotter pin, etc used by GM, are listed in the Standard Parst Catalog. Unfortunately, it's almost impossible to find a part in it, if all you have is the part number, or it's usage. Since it was intended for use by a dealer's service department, and the dealer's mechanic would already have the piece of hardware that needed to be replaced, all hardware is listed by the type of hardware it was. If you needed a black phosphate, hex head, captive washer bolt, with a pointed end, you went to the section for that type of bolt, and then went down the list of sizes until you found the size you needed, and the part number would be next to the size. It's virtually impossible to find a part by it's part number in the Standard Parts Catalog, unless you know the exact description of the hardware you're looking for.

I have some Standard Parts Catalogs, and refer to them often, but their not the easiest thing to use, if you're not real familiar with GM hardware already.

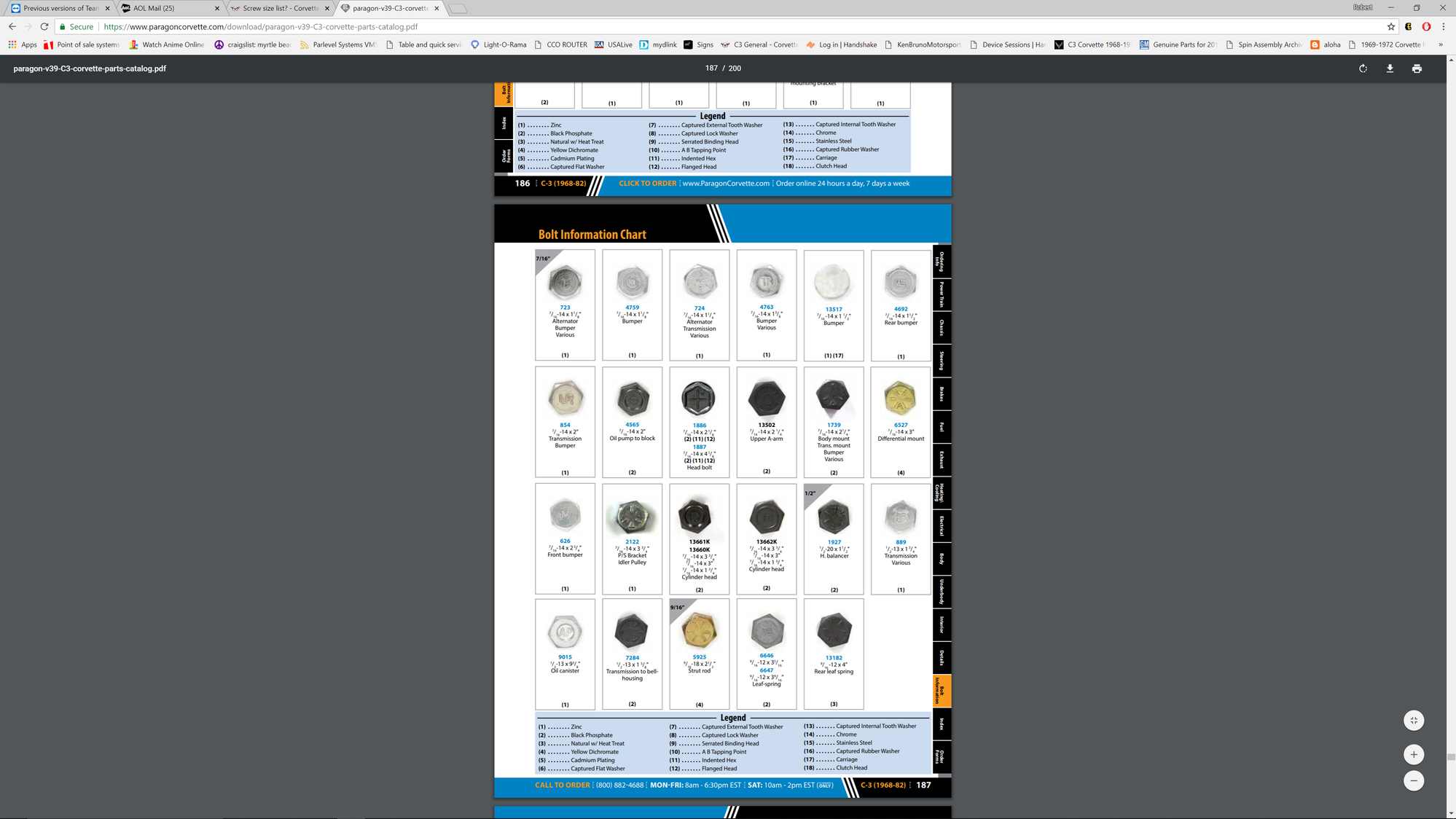

The Paragon hardware chart is about the best simple chart available to the restorer. It is included in the back of all of their catalogs, and they use to have them as a large, poster size wall chart too. They use to give them out at swap meets and in their showroom, but I don't know if they still do. I have one on the wall at the store and another in my home garage, and use them regularly.

You might want to call Paragon and see if they still have the wall charts. And if they're all gone, they might be persuaded to print more of them, if enough people call looking for them.
gbvette62 is offline
The following 3 users liked this post by gbvette62:
Blue73Shark (09-12-2018), CA-Legal-Vette (09-12-2018), Cavu2u (09-12-2018)
Old 09-12-2018, 07:23 AM
  #19
Cavu2u
CF Senior Member
Thread Starter

Cavu2u's Avatar

Member Since: Oct 2013
Location: San Diego California
Posts: 2,181
Liked 62 Times in 57 Posts
Default

Originally Posted by gbvette62 View Post
Very little hardware is actually listed in the "Corvette Parts and Illustration Catalog". All hardware was found in GM Parts Group 8.900, and Group 8.900 is not included in the Corvette Parts book, but instead is only found in the GM "Standard Parts Catalog".

The Standard Parts Catalog is a great resorce. Every nut, bolt, screw, washer, J-clip, cotter pin, etc used by GM, are listed in the Standard Parst Catalog. Unfortunately, it's almost impossible to find a part in it, if all you have is the part number, or it's usage. Since it was intended for use by a dealer's service department, and the dealer's mechanic would already have the piece of hardware that needed to be replaced, all hardware is listed by the type of hardware it was. If you needed a black phosphate, hex head, captive washer bolt, with a pointed end, you went to the section for that type of bolt, and then went down the list of sizes until you found the size you needed, and the part number would be next to the size. It's virtually impossible to find a part by it's part number in the Standard Parts Catalog, unless you know the exact description of the hardware you're looking for.

I have some Standard Parts Catalogs, and refer to them often, but their not the easiest thing to use, if you're not real familiar with GM hardware already.

The Paragon hardware chart is about the best simple chart available to the restorer. It is included in the back of all of their catalogs, and they use to have them as a large, poster size wall chart too. They use to give them out at swap meets and in their showroom, but I don't know if they still do. I have one on the wall at the store and another in my home garage, and use them regularly.

You might want to call Paragon and see if they still have the wall charts. And if they're all gone, they might be persuaded to print more of them, if enough people call looking for them.
Thanks very much for that info. I'm sure others here will benefit from it also.

Steve
Cavu2u is offline
