Anyone have any experience with a 69 small block factory air car throwing ac belt at higher rpm (4500)
I have tried different belts. No help. Seems like the ac compressor is on a slight angle to the engine pulleys. ( very slight ) The bracket that holds the ac in place is super heavy duty , hard to imagine it could have bent ?
anyone have any similar experience with this ?
Thanks
I have tried different belts. No help. Seems like the ac compressor is on a slight angle to the engine pulleys. ( very slight ) The bracket that holds the ac in place is super heavy duty , hard to imagine it could have bent ?
anyone have any similar experience with this ?
Thanks
Team Owner
Joined: Feb 2003
Posts: 54,104
Likes: 9,418
From: Sitting in his Nowhere land Hanover Pa
2024 C2 of the Year Finalist - Unmodified
2015 C2 of Year Finalist
I know for mid years the water pump hub was pressed to a different dimension vs a non AC for the correct alignment
Le Mans Master
Joined: Aug 2005
Posts: 6,539
Likes: 1,970
From: Temple Terrace Florida
Put a straight edge on the pulleys and sight it up and measure it carefully. If they are out of alignment enough to throw a belt, you would feel a vibration at higher RPMs. Jerry
Team Owner
Joined: Jan 2006
Posts: 37,637
Likes: 3,118
From: Crossville TN
Make sure the belt is correct for the pulley/groove configuration that you have on the car. You may have the correct "V" and length, but not have one for the correct depth.
When the belt is installed, the outer surface of the belt should be about level with the O.D. of the pulley groove. If the belt is down in the groove, IT IS THE WRONG BELT; you may need one that is wider width.
You also need to be certain that the belt has proper tension on it. When new, a belt will stretch some in the first few days/weeks of use. Check it occasionally to be sure it remains tight. Adjust if necessary.
The inner [bottom] surface of all fan belts MUST NOT BE TOUCHING THE BOTTOM OF THE PULLEY GROOVE.
When the belt is installed, the outer surface of the belt should be about level with the O.D. of the pulley groove. If the belt is down in the groove, IT IS THE WRONG BELT; you may need one that is wider width.
You also need to be certain that the belt has proper tension on it. When new, a belt will stretch some in the first few days/weeks of use. Check it occasionally to be sure it remains tight. Adjust if necessary.
The inner [bottom] surface of all fan belts MUST NOT BE TOUCHING THE BOTTOM OF THE PULLEY GROOVE.
Last edited by 7T1vette; Dec 2, 2019 at 04:12 PM.
Thread Starter
ZR1TG
Joined: May 2005
Posts: 875
Likes: 235
From: South florida
cars had a different water pump pulley this could be the problem. I have owned the car less than a year and have no history . Power steering belt and pollution pump belt are much thinner. Allthough a thicker belt it seems to fit in the ac compressor perfectly but it seems to ride very high on the water pump and I believe it’s jumping at water pump .
Not sure what to do from here.
Team Owner
Joined: May 2005
Posts: 31,497
Likes: 1,313
From: Huntsville AL
Didn't Corvette's come with deep groove A/C pulleys just for this reason.
And clearly all of the pulleys need to match up with regard to the size belt they are designed for.
What horse power rating is the engine?
And clearly all of the pulleys need to match up with regard to the size belt they are designed for.
What horse power rating is the engine?
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Team Owner
Joined: Feb 2003
Posts: 54,104
Likes: 9,418
From: Sitting in his Nowhere land Hanover Pa
2024 C2 of the Year Finalist - Unmodified
2015 C2 of Year Finalist
I would first get all the pulley part numbers and confrime against the AIM you have the correct ones
Thread Starter
ZR1TG
Joined: May 2005
Posts: 875
Likes: 235
From: South florida

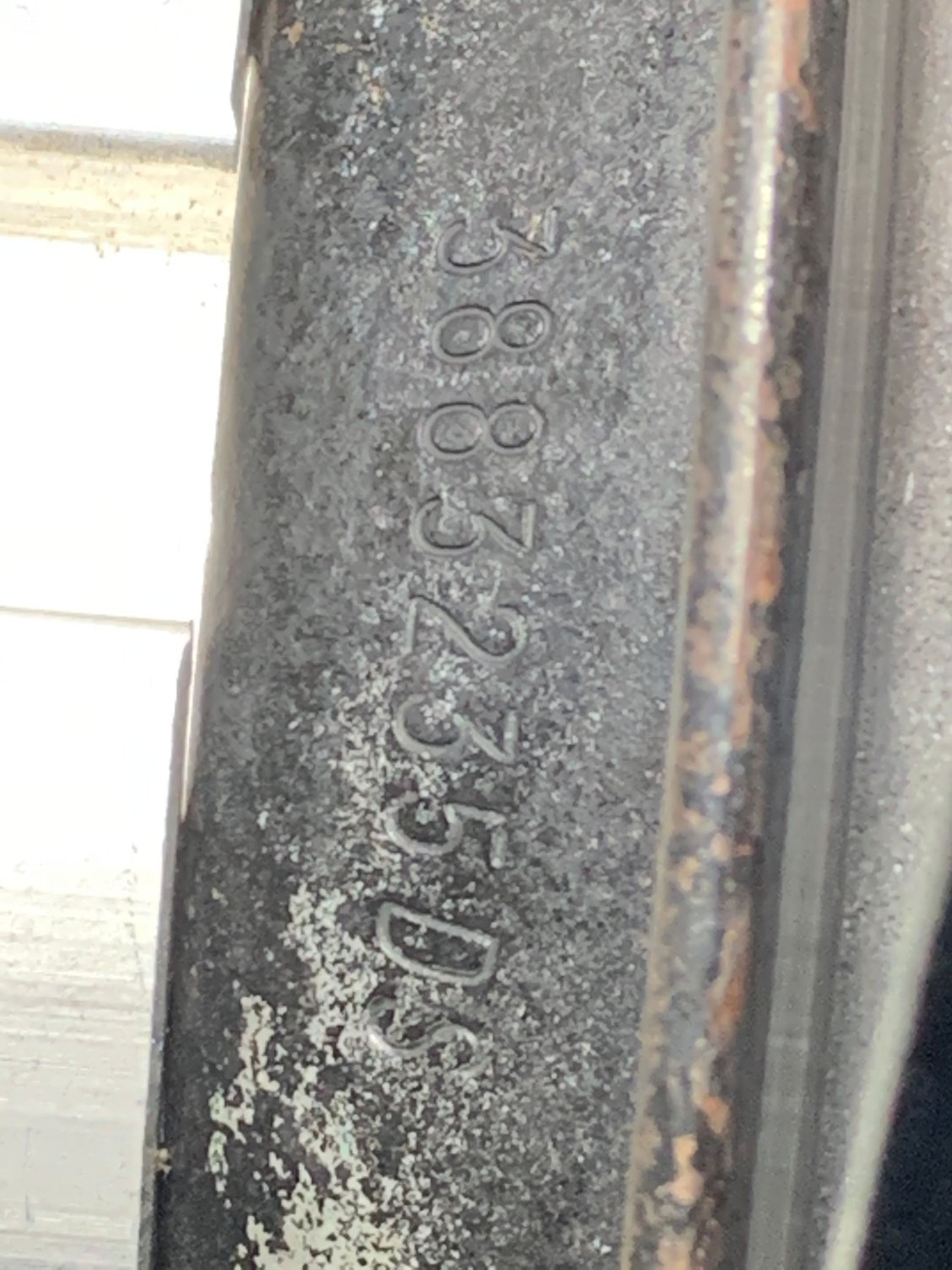

I do not have an aim for this corvette. Perhaps somone can let me know if this number on my pulley is correct for a 1969 small black ac / automatic car ? If it is correct then I have to suspect that the belt may be in correct ?
