Daniel Stern Wiring Kit
Hey guys,
I purchased a custom headlight wiring harness from Daniel Stern in 2016 and am now getting ready to install it. It is beautifully made but I have one question...
How do I or what do I use to connect the lower headlight socket to the harness?
This is the back of the socket:

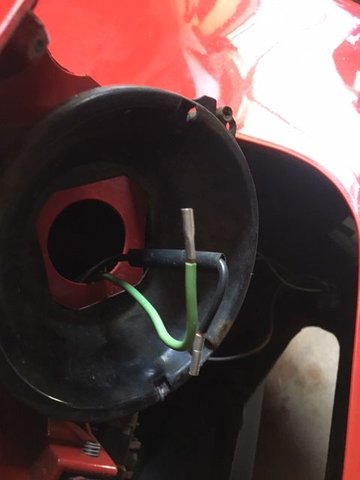

And this is the harness:
There are crimp like connectors and shrink tubing on them. Everything else is pretty straight forward.
I have reached out to Daniel Stern but haven't heard back yet.
Thanks in advance
Russ
I purchased a custom headlight wiring harness from Daniel Stern in 2016 and am now getting ready to install it. It is beautifully made but I have one question...
How do I or what do I use to connect the lower headlight socket to the harness?
This is the back of the socket:
And this is the harness:
There are crimp like connectors and shrink tubing on them. Everything else is pretty straight forward.
I have reached out to Daniel Stern but haven't heard back yet.
Thanks in advance
Russ
Last edited by V4motorsports; May 17, 2021 at 03:49 PM.
Thread Starter
Pro
Joined: Oct 2010
Posts: 606
Likes: 48
From: Mystic Ct.

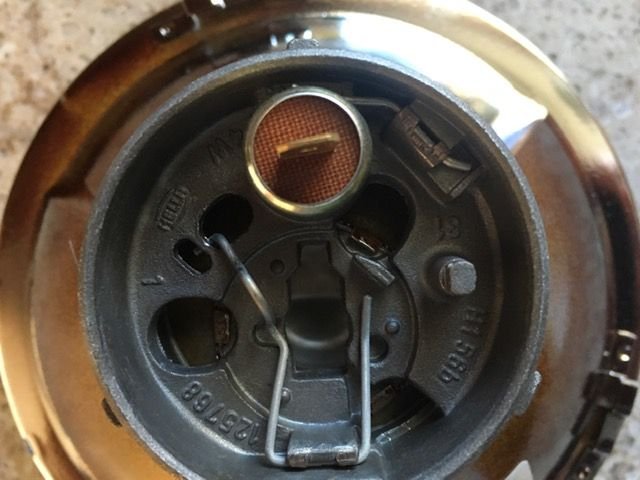

@Richard454 I know you are a wiring guru and have used Daniel Stern products. I took the back off the low beam socket and see this:
So, should I assume that the black wire goes to the upper lug and the green wire goes to the bulb?
Thanks for any/all help
Russ
So, should I assume that the black wire goes to the upper lug and the green wire goes to the bulb?
Thanks for any/all help
Russ
Le Mans Master
Joined: Nov 2016
Posts: 9,258
Likes: 950
From: Lake Tahoe, CA
A complete guess on my part but this is from the Daniel Stern website.
https://www.danielsternlighting.com/...ys/relays.html
https://www.danielsternlighting.com/...ys/relays.html
Le Mans Master
Joined: Nov 2016
Posts: 9,258
Likes: 950
From: Lake Tahoe, CA
Thread Starter
Pro
Joined: Oct 2010
Posts: 606
Likes: 48
From: Mystic Ct.
Thanks guys,
Everything has been assembled by Daniel Stern but there are the two wires(black & green) that go to the low beams. Just wondering if the green wire goes to the bulb and the black wire goes to the housing?
The high beams have a connector already connected to the wires, so that part is just plug & play. What's confusing is the crimp on connectors along with heat shrink tubing. They are there to hook up to something.
Thanks
Everything has been assembled by Daniel Stern but there are the two wires(black & green) that go to the low beams. Just wondering if the green wire goes to the bulb and the black wire goes to the housing?
The high beams have a connector already connected to the wires, so that part is just plug & play. What's confusing is the crimp on connectors along with heat shrink tubing. They are there to hook up to something.
Thanks
Thread Starter
Pro
Joined: Oct 2010
Posts: 606
Likes: 48
From: Mystic Ct.
Just heard back from Daniel Stern,
The Hella BiFocal low beams have three wires: brown, yellow, and grey.
The brown wire is the ground wire. It connects to the black wire from
your harness.
The grey wire is the low beam feed wire. It connects to the green wire
from your harness.
The yellow wire is the parking light feed wire. Tap it into the car's
parking lamp feed.
Now, I understand!
Thanks for all the responses
Russ
The Hella BiFocal low beams have three wires: brown, yellow, and grey.
The brown wire is the ground wire. It connects to the black wire from
your harness.
The grey wire is the low beam feed wire. It connects to the green wire
from your harness.
The yellow wire is the parking light feed wire. Tap it into the car's
parking lamp feed.
Now, I understand!
Thanks for all the responses
Russ
Le Mans Master
Joined: Nov 2016
Posts: 9,258
Likes: 950
From: Lake Tahoe, CA
Just heard back from Daniel Stern,
The Hella BiFocal low beams have three wires: brown, yellow, and grey.
The brown wire is the ground wire. It connects to the black wire from
your harness.
The grey wire is the low beam feed wire. It connects to the green wire
from your harness.
The yellow wire is the parking light feed wire. Tap it into the car's
parking lamp feed.
Now, I understand!
Thanks for all the responses
Russ
The Hella BiFocal low beams have three wires: brown, yellow, and grey.
The brown wire is the ground wire. It connects to the black wire from
your harness.
The grey wire is the low beam feed wire. It connects to the green wire
from your harness.
The yellow wire is the parking light feed wire. Tap it into the car's
parking lamp feed.
Now, I understand!
Thanks for all the responses
Russ
Thread Starter
Pro
Joined: Oct 2010
Posts: 606
Likes: 48
From: Mystic Ct.
@caskiguy Sure, no problem. I purchased a custom made harness from Daniel Stern and I must say, it is a work of art.

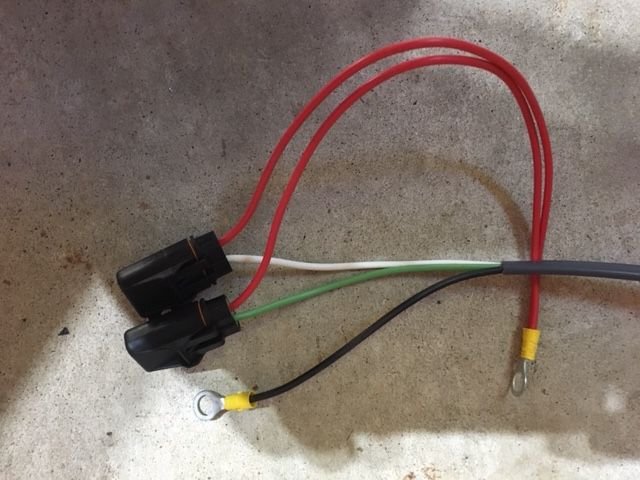

Here is the end that connects to the battery, as you can see, the fuses are added.

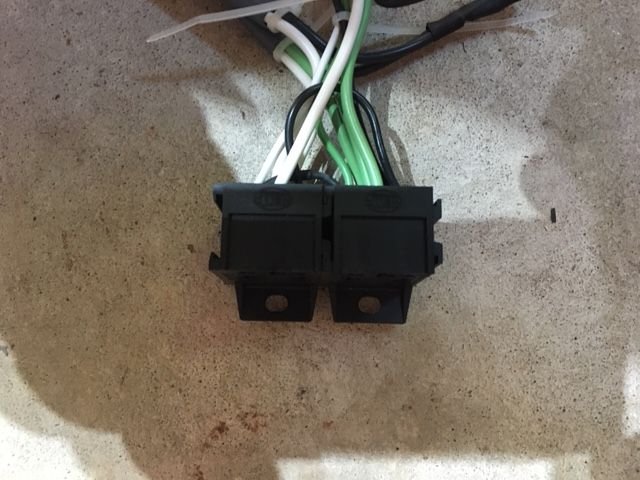

The wires from the battery connect to the relays
There are 3 sets of wires coming off the relays, this plug goes to the existing headlight harness and plugs into the connector that attached to the original headlight bulb:
The other 2 sets of wires go to the High/Low bulbs. The blue connector goes to the high bulb
That's about as far as I got. Will update as I go.
Russ
Here is the end that connects to the battery, as you can see, the fuses are added.
The wires from the battery connect to the relays
There are 3 sets of wires coming off the relays, this plug goes to the existing headlight harness and plugs into the connector that attached to the original headlight bulb:
The other 2 sets of wires go to the High/Low bulbs. The blue connector goes to the high bulb
That's about as far as I got. Will update as I go.
Russ
