1969 TI Module Picture

I'm looking for a picture of the module installed in its original position on the left front inner fender. Any help would be appreciated.

Ned

May 31, 2021 | 07:29 AM

dennis

Drifting

Joined: Sep 1999

Posts: 1,970

Likes: 91

Quote:

Originally Posted by NMT1957

I'm looking for a picture of the module installed in its original position on the left front inner fender. Any help would be appreciated.

Ned

No exact location on the left front fender. My 70 LT-1 is so far outboard toward the left fender its difficult to see. See if I can get a pic
check out this thread

https://www.corvetteforum.com/forums/c3-tech-performance/3576495-ti-amp-location-picture.html

Last edited by dennis; May 31, 2021 at 07:44 AM.

May 31, 2021 | 10:19 AM

7T1vette

Team Owner

Joined: Jan 2006

Posts: 37,637

Likes: 3,117

From: Crossville TN

Use the drawing in the AIM as a guide. Aren't there some dimples in the surface where the holes are to be drilled?

May 31, 2021 | 10:49 AM

Kid Vette

Melting Slicks

Joined: Jun 2003

Posts: 2,802

Likes: 241

From: Niles, MI

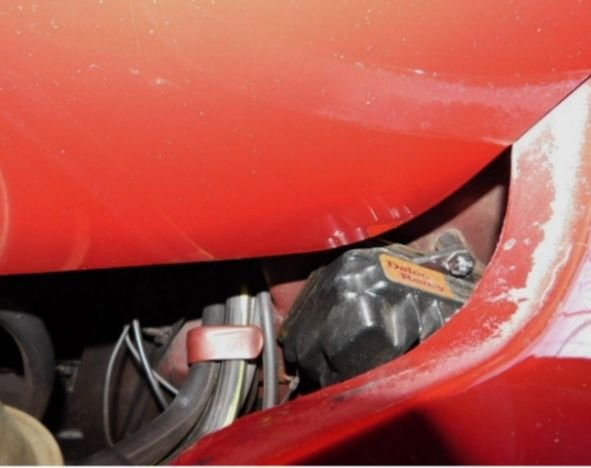

Some pictures I've accumulated. Not a '69.

Jun 1, 2021 | 07:18 AM

7T1vette

Team Owner

Joined: Jan 2006

Posts: 37,637

Likes: 3,117

From: Crossville TN

I think those are the 'dimples' I was referring to.

Jun 1, 2021 | 02:04 PM

NMT1957

Thread Starter

Burning Brakes

Joined: Feb 2008

Posts: 993

Likes: 44

From: Jefferson Hills PA

Mine was mounted to the car when I got it but they didn't use the dimples. They missed by a little and didn't know how critical it was for placement. I will re-install it back in the same holes since it's so close.

Thanks for the pictures.

Jun 1, 2021 | 06:54 PM

dennis

Drifting

Joined: Sep 1999

Posts: 1,970

Likes: 91

Quote:

Originally Posted by NMT1957

So where was yours located? The 2 pics posted show the module in 2 different locations

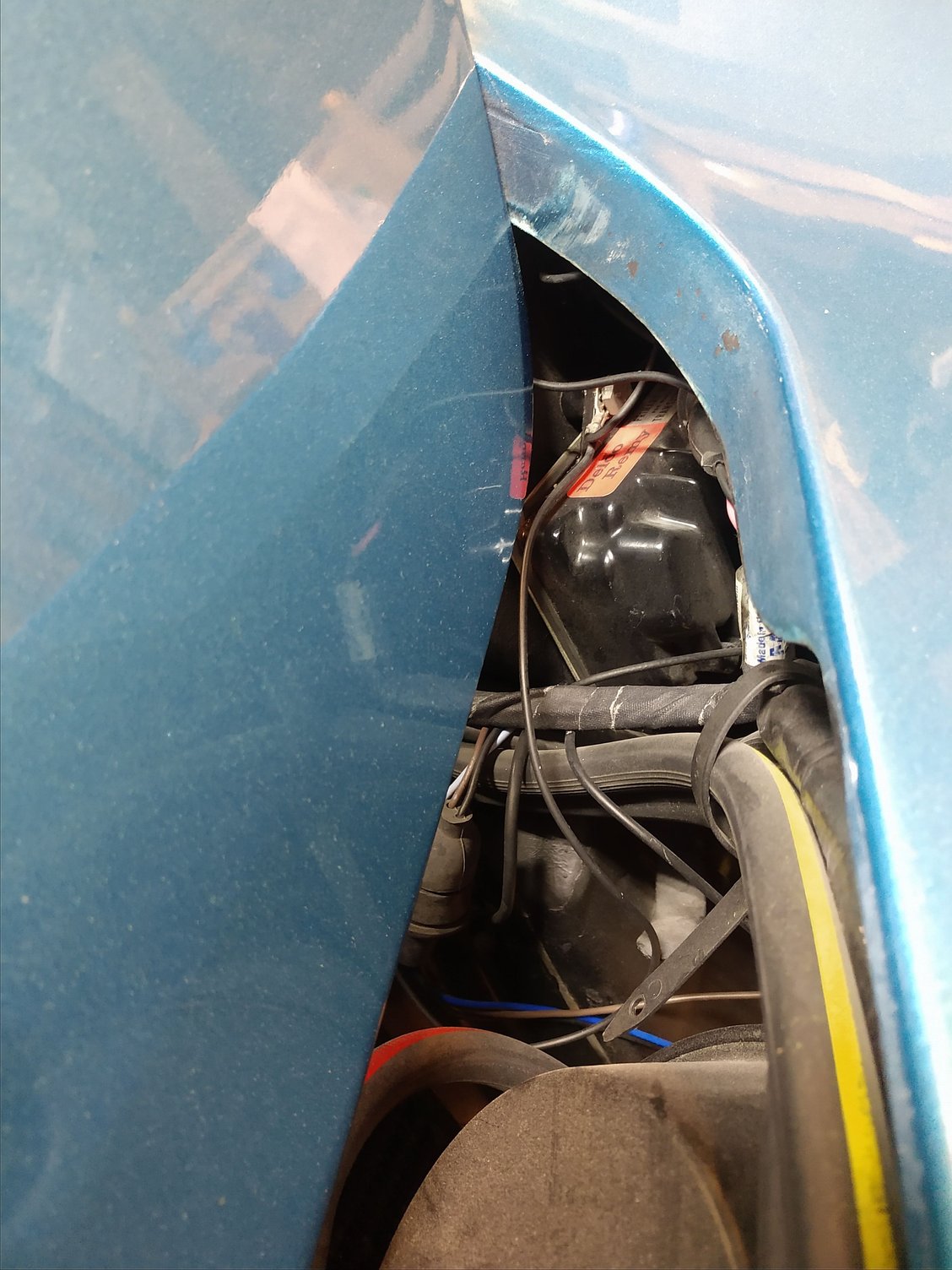

. The blue zr1 has it inboard close to the hood opening. There have been cars with "notches" in the edge of the hood from hitting the module In this location.

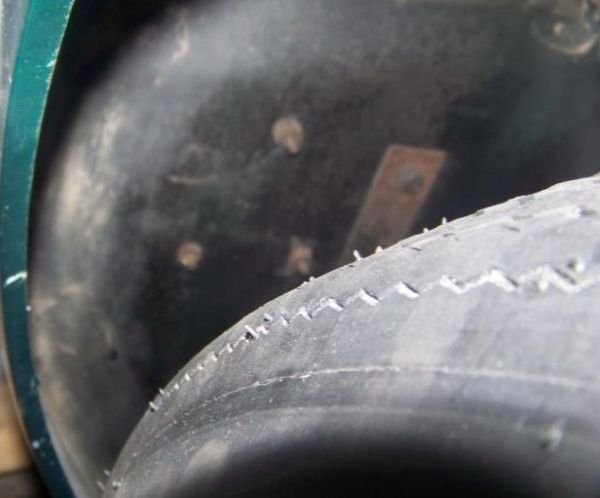

The photo viewing from the wheelwell side has the module mounted much further outboard. Very close to the fender. That's where my LT-1 module is located. Problem with that location is very difficult to access.

Jun 2, 2021 | 09:08 AM

Kid Vette

Melting Slicks

Joined: Jun 2003

Posts: 2,802

Likes: 241

From: Niles, MI

Here's a couple pictures of a friends 1968 L71 with the module removed.

Corvette Stories

The Best of Corvette for Corvette Enthusiasts

8 Most "Only Corvette Owners Understand" Quirks and Problems

Pouria Savadkouei

10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years

Joe Kucinski

How Much Horsepower Every Corvette Engine "LOST" in 1972

Joe Kucinski

Top 10 DOs and DON'Ts for Protecting Your Convertible Top!

Michael S. Palmer

Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!

Joe Kucinski

150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter

Joe Kucinski

8 Coolest Corvette Pace Cars (and Replicas) of All Time

Verdad Gallardo

Top 10 Corvette Engines RANKED by Peak Torque (70+ Years of Muscle!)

Joe Kucinski

Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!

Verdad Gallardo

Top 10 Corvettes Coming to Mecum Indy 2026!

Brett Foote

Jun 2, 2021 | 05:35 PM

68/70Vette

Team Owner

Joined: Jul 2004

Posts: 40,383

Likes: 789

From: Redondo Beach, California

FWIW. A replacement module is available to replaced failed factory originals. Unfortunately, it has a different appearance, it's obviously a replacement.
