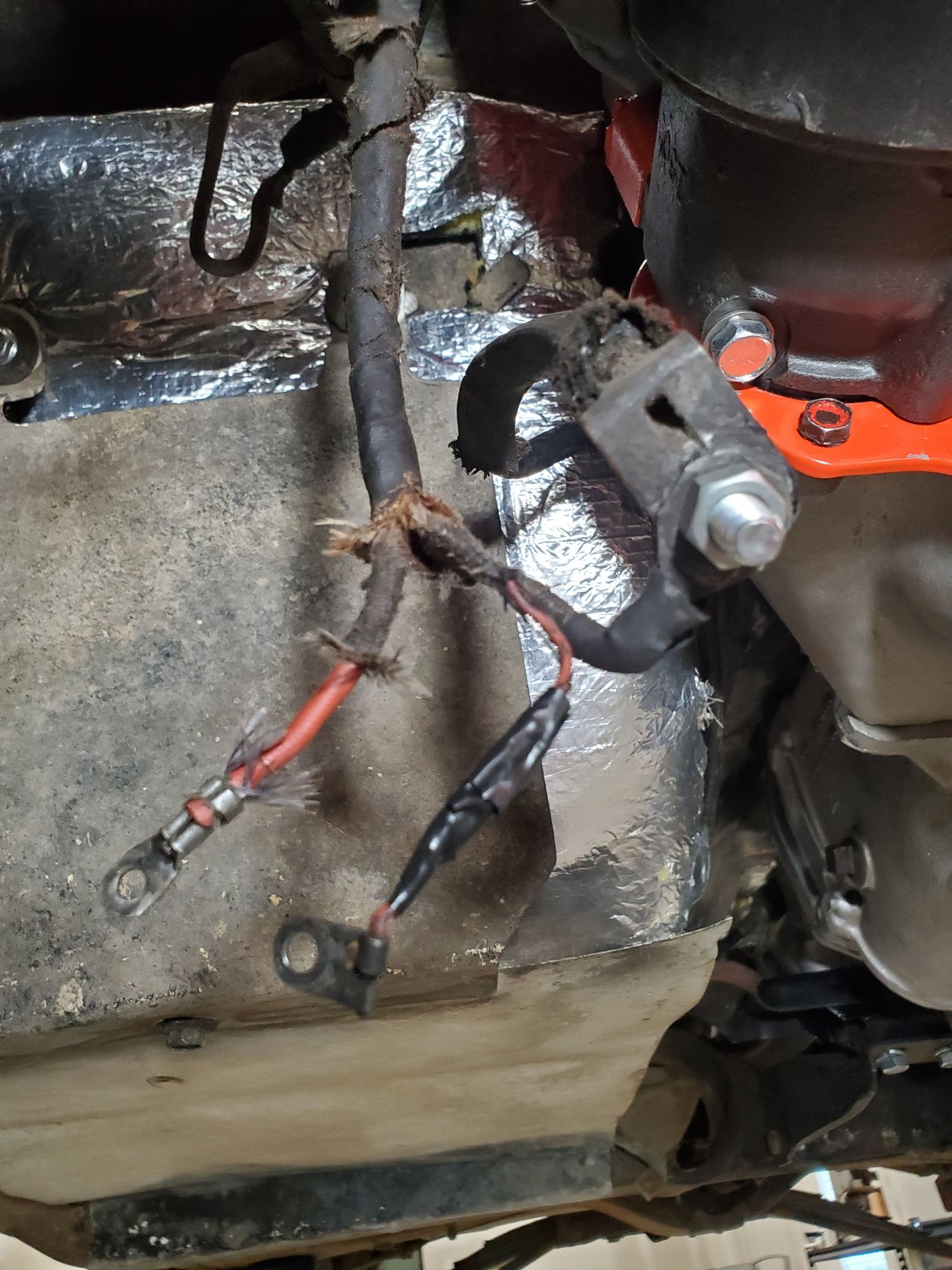

Hey guys. need some help, Ive seen diagrams that show a purple and yellow wire on the solenoid mine has neither, one seems to be a larger diameter than the other but dont know where to put them, this is the factory wiring loom, any help is appreciated.
TIA
Speedy
Last edited by F2 Speedy; Jul 9, 2021 at 10:55 PM.
2025 c3 ('74-'82) of the Year Finalist - Unmodified
2019 C3 of Year Finalist (appearance mods)
Does this help?

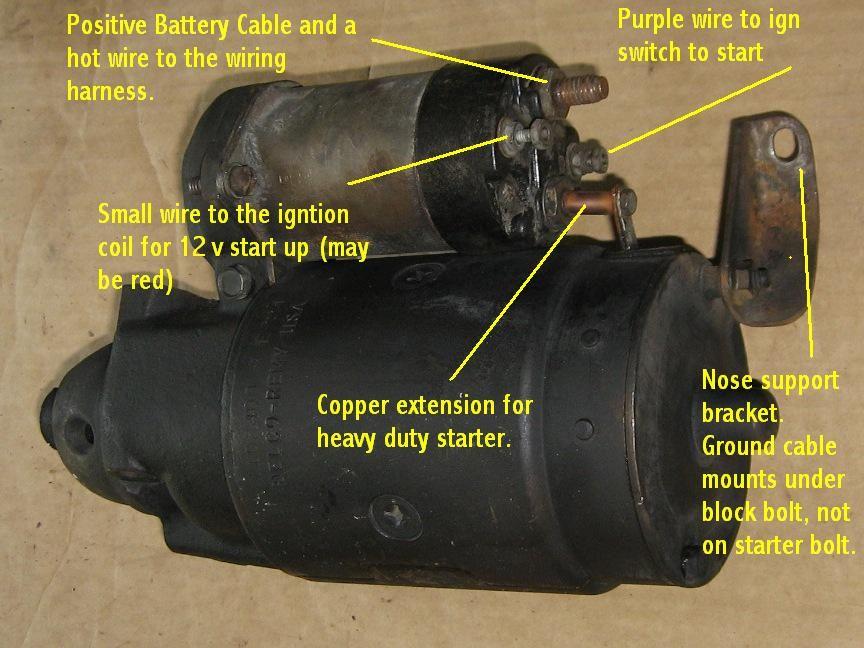

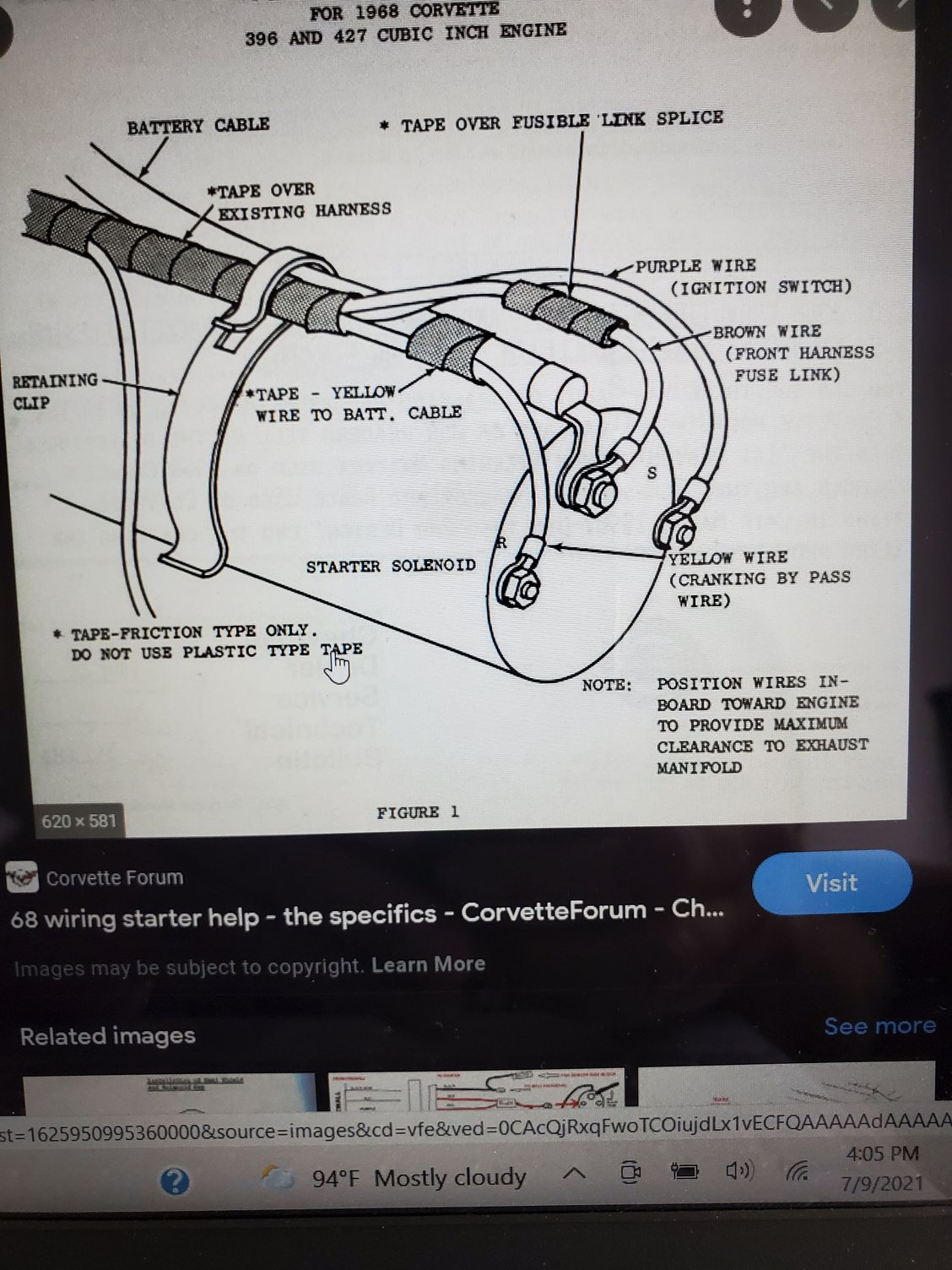

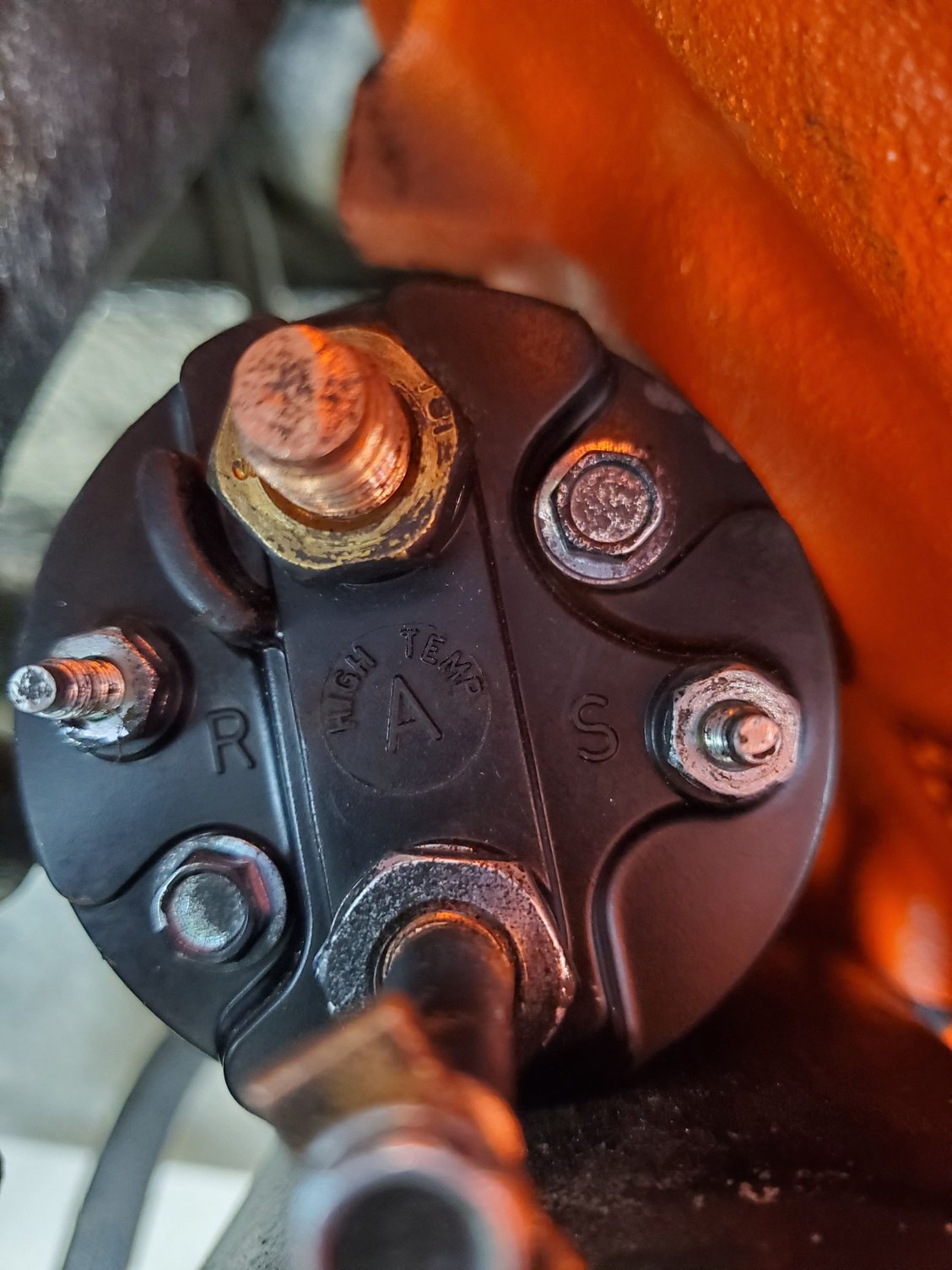

The PURPLE wire connects to the 'S' terminal and the YELLOW connects to the 'R' terminal you got that part.
With the big battery cable connected to the starter have a helper turn the key to START and see which wire gets power.
That will be your PURPLE wire.
Start at the coil + and see if you have a YELLOW wire there and trace it.
69 427 starter wiring
