May 16, 2008 | 08:25 AM

#21

rj8806

Melting Slicks

Joined: May 2005

Posts: 2,826

Likes: 3

From: Tennessee

Quote:

Originally Posted by BlackRat

..... The guage was preloaded. when I turned the crank the guage moved clockwise. I hit the 9o'clock position first then 6 and then as I passed 6 the guage swung the other direction so the 3O'clock position turned out to be -.017 where the other 2 numbers were +.

Wade

Wade.....PM me your number so we can discuss this over the phone instead of by posting.

If it did not go past zero and then to .017 it is still a positive reading. Please clarify. P.S...I am trying to call you right now on the phone number on your sales order but it is just ringing......Need to talk to you by phone

Richard

Last edited by rj8806; May 16, 2008 at 08:28 AM.

May 16, 2008 | 09:56 AM

#22

ImBatman

Thread Starter

Safety Car

Joined: Oct 2000

Posts: 4,282

Likes: 172

From: Lake Wylie, South Carolina

Quote:

Originally Posted by rj8806

Richard,

I just rechecked all my numbers and verified that the base was secure , bore smooth and added some oil to help the travel

#'s were
12 - 0
3 - +.016
6 - +.048
9 - + .030

I came up with a horizontal calculation of .023 and a Vertical of .024.

Next step mark the high spots on the .021 dowls and insert them with the high side pointing to the 7-8 o'clock position.

Thanks for the call and help!

Wade

May 16, 2008 | 12:28 PM

#23

MotorHead

Race Director

Joined: Apr 2000

Posts: 17,654

Likes: 190

From: Who says "Nothing is impossible" ? I've been doing nothing for years.

Quote:

Originally Posted by Fonz69

Got a Mcleod for my 540 and tko-600 setup and still needed .014 offset pins

Block must have been out of tolerance

May 16, 2008 | 05:11 PM

#24

ImBatman

Thread Starter

Safety Car

Joined: Oct 2000

Posts: 4,282

Likes: 172

From: Lake Wylie, South Carolina

WooHoo getting closer!!!!! I am at .008 Horizontal and .008 vertical after calculations!!! Had to stop and take a shower because I have daddy duty.

One more fine adjustment tomorrow should put me right where I need to be. Then motor will go in followed by the tranie!!!!

Thanks Richard your initial range was pretty darn close!

Wade

May 16, 2008 | 08:41 PM

#25

Retro78

Drifting

Joined: Oct 2004

Posts: 1,259

Likes: 7

From: Ontario

How did you identify the high spots on the .021 dowls?

May 16, 2008 | 08:59 PM

#26

TheSkunkWorks

Le Mans Master

Joined: Apr 2007

Posts: 7,353

Likes: 72

From: Graceland in a Not Correctly Restored Stingray

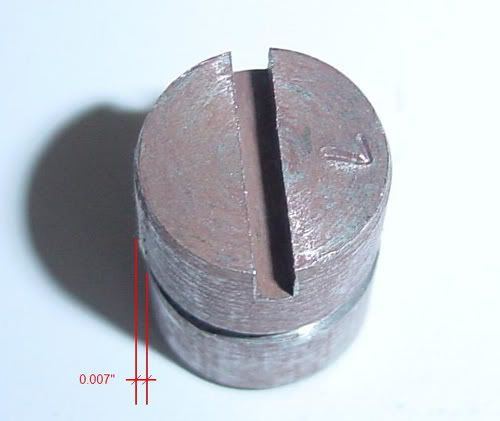

LW dowels have a slot at the "highest" point.

May 16, 2008 | 10:13 PM

#27

ImBatman

Thread Starter

Safety Car

Joined: Oct 2000

Posts: 4,282

Likes: 172

From: Lake Wylie, South Carolina

Quote:

Originally Posted by carguy4sure

How did you identify the high spots on the .021 dowls?

Quote:

Originally Posted by TheSkunkWorks

LW dowels have a slot at the "highest" point.

With the 21's it was pretty easy because the high spot was so pronounced. I also noticed that the 21 stamping on both was on the head of the dowl on the same side and in the middle of the max hight. Hope that made sense.

Richard from Keisler gave me a ball park location based on my numbers of having the high spot pointing in the 7 to 8 o'clock position. My first attempt was right at the 8 o'clock position and that got me to between .010 and .012. I turned the dowls about an 1\8 inch counter clockwise and that got me to .008 total runout. Tomorrow another 1\8 inch counter should put me pretty much dead on.

On a completel off topic comment. Took the kids to see IronMan. Awesome, awesome movie. If you are a super hero fan it is a must see. Stay till after the credits for a cool surprise.....

Wade

May 17, 2008 | 03:10 AM

#28

TheSkunkWorks

Le Mans Master

Joined: Apr 2007

Posts: 7,353

Likes: 72

From: Graceland in a Not Correctly Restored Stingray

Quote:

Originally Posted by BlackRat

With the 21's it was pretty easy because the high spot was so pronounced. I also noticed that the 21 stamping on both was on the head of the dowl on the same side and in the middle of the max hight. Hope that made sense...

...On a completel off topic comment. Took the kids to see IronMan. Awesome, awesome movie. If you are a super hero fan it is a must see. Stay till after the credits for a cool surprise.....

Yours are apparently identified opposite from the LW's, and I should have said the slot on the LW divides the high and low sides. Been a while since I played with any.
