Where's the Ground???
Hello all!! I am Paul a newbie corvette owner from flint MI.
My corvette is a 1976 Stingray L48 which sat for 17 years in my Uncles dirt Floor garage. I know I can hear the sighs. Anyway I was "lUCKY" to get it in a swap. I built a new garage 4 him and i got the Vette. I have limited car knowledge but consider myself fairly capabable of most jobs given they do not require specialty tools. I started out changing the front wheel bearings and replacing the Rotors and Calipers. After getting it on the road to test I found that my U joints and rear bearings were shot........$3000 later I am back on the road Thanks to Bairs Corvette in Penn. (Great work!!!!!!!!!!) My problem now is that I do not have Strong rear lights, NO blinkers and my fuel gage flips to full every time I hit the brakes. I have re attached two grounds on the rear frame but still have the same problems. Can anyone suggest an area to look for hidden grounds or a "Master ground/Harness" that could be causing the problem???? Oh Yeah My tach is stuck at 3100. Ground also????
Thanks in advance for any responses!!!!
pspeck
My corvette is a 1976 Stingray L48 which sat for 17 years in my Uncles dirt Floor garage. I know I can hear the sighs. Anyway I was "lUCKY" to get it in a swap. I built a new garage 4 him and i got the Vette. I have limited car knowledge but consider myself fairly capabable of most jobs given they do not require specialty tools. I started out changing the front wheel bearings and replacing the Rotors and Calipers. After getting it on the road to test I found that my U joints and rear bearings were shot........$3000 later I am back on the road Thanks to Bairs Corvette in Penn. (Great work!!!!!!!!!!) My problem now is that I do not have Strong rear lights, NO blinkers and my fuel gage flips to full every time I hit the brakes. I have re attached two grounds on the rear frame but still have the same problems. Can anyone suggest an area to look for hidden grounds or a "Master ground/Harness" that could be causing the problem???? Oh Yeah My tach is stuck at 3100. Ground also????
Thanks in advance for any responses!!!!
pspeck
Drifting
Joined: Aug 1999
Posts: 1,468
Likes: 1
From: Kirkland WA
I can only be partially helpful.
The TACH is mechanical - meaning there is an actual gear on the distributor that uses a "speedometer" like cable and connects to the back of the tach housing. It's not a really hard job to replace the cable. Just make sure you re-clock your distributor to the 9 o'clock position (if looking from above). This makes the cable easier to install and last longer.
You might want to check ground at the battery cable for the beginning of your ground search. That cable connects to the frame right under the battery tray. More than likely you have a loose ground or a loose connection on the back of your gauge cluster causing the problem. Get yourself a good wiring diagram (many vendors sell them laminated) and invest in the factory service manual or a reproduction! It's great to have!
The TACH is mechanical - meaning there is an actual gear on the distributor that uses a "speedometer" like cable and connects to the back of the tach housing. It's not a really hard job to replace the cable. Just make sure you re-clock your distributor to the 9 o'clock position (if looking from above). This makes the cable easier to install and last longer.
You might want to check ground at the battery cable for the beginning of your ground search. That cable connects to the frame right under the battery tray. More than likely you have a loose ground or a loose connection on the back of your gauge cluster causing the problem. Get yourself a good wiring diagram (many vendors sell them laminated) and invest in the factory service manual or a reproduction! It's great to have!
Safety Car
Joined: Apr 2000
Posts: 3,802
Likes: 61
From: Wichita KS
Hello all!! I am Paul a newbie corvette owner from flint MI.
My corvette is a 1976 Stingray L48 which sat for 17 years in my Uncles dirt Floor garage. I know I can hear the sighs. Anyway I was "lUCKY" to get it in a swap. I built a new garage 4 him and i got the Vette. I have limited car knowledge but consider myself fairly capabable of most jobs given they do not require specialty tools. I started out changing the front wheel bearings and replacing the Rotors and Calipers. After getting it on the road to test I found that my U joints and rear bearings were shot........$3000 later I am back on the road Thanks to Bairs Corvette in Penn. (Great work!!!!!!!!!!) My problem now is that I do not have Strong rear lights, NO blinkers and my fuel gage flips to full every time I hit the brakes. I have re attached two grounds on the rear frame but still have the same problems. Can anyone suggest an area to look for hidden grounds or a "Master ground/Harness" that could be causing the problem???? Oh Yeah My tach is stuck at 3100. Ground also????
Thanks in advance for any responses!!!!
pspeck
My corvette is a 1976 Stingray L48 which sat for 17 years in my Uncles dirt Floor garage. I know I can hear the sighs. Anyway I was "lUCKY" to get it in a swap. I built a new garage 4 him and i got the Vette. I have limited car knowledge but consider myself fairly capabable of most jobs given they do not require specialty tools. I started out changing the front wheel bearings and replacing the Rotors and Calipers. After getting it on the road to test I found that my U joints and rear bearings were shot........$3000 later I am back on the road Thanks to Bairs Corvette in Penn. (Great work!!!!!!!!!!) My problem now is that I do not have Strong rear lights, NO blinkers and my fuel gage flips to full every time I hit the brakes. I have re attached two grounds on the rear frame but still have the same problems. Can anyone suggest an area to look for hidden grounds or a "Master ground/Harness" that could be causing the problem???? Oh Yeah My tach is stuck at 3100. Ground also????
Thanks in advance for any responses!!!!
pspeck
Every taillight has it's own ground connector but they are wired together. Fix the ground problems before attempting the turn signals.
Always remember that Corvette bodies are fiberglass therefore no body ground. Every electrical item needs a ground wire.
For the turn signals start with the flasher which is under the passenger lower dash pad. Also check the fuse panel which is way up under the dash in the upper left corner of the driver side on the firewall.
Your gas gauge is also likely to be a ground problem from the description you gave.
Afraid I can't help with the tach.
cc
Team Owner
Joined: Jan 2006
Posts: 37,637
Likes: 3,116
From: Crossville TN
A 'metal' bodied car is 'grounded' everywhere because the frame and body are all electrically linked. The Corvette is a plastic body (non-conducting) with a metal frame; so 'ground' is transfered differently than most cars. Generally, there are frame-linked ground cables which connect electrical ground to the different areas of the car (to engine, to starter, to interior, etc.). From those points, there are solid black colored wiring that runs ground to all individual point requiring them (lights, instruments, radio, lighter, etc.). You need to purchase an Assembly Instruction Manual (known as the AIM) for your year Corvette. It shows all of the grounding cable locations. You also need an electrical schematic for your car; I like the Chevrolet Chassis Service Manual (year specific). Most Corvette parts places have both.
Burning Brakes
Joined: May 2005
Posts: 1,145
Likes: 5
From: South of London, Engerland
I think I counted four earthing points between body and chassis when I took the body off my '76.
1.
Main battery earth under the battery near the diff. (If this is bad then nothing should work.)
2.
Main starter motor/engine earth between engine block and passenger-side engine support chassis bracket. (Bad earth here means engine wouldn't start, no headlights, no wipers etc.)
3.

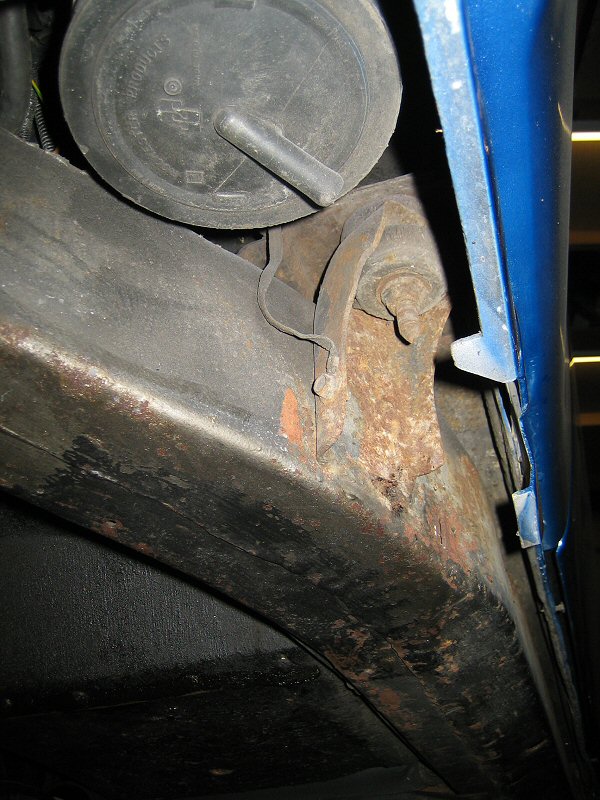

Small earth lead from driver's side #1 body mount to chassis, just behind the front wheel:
4.

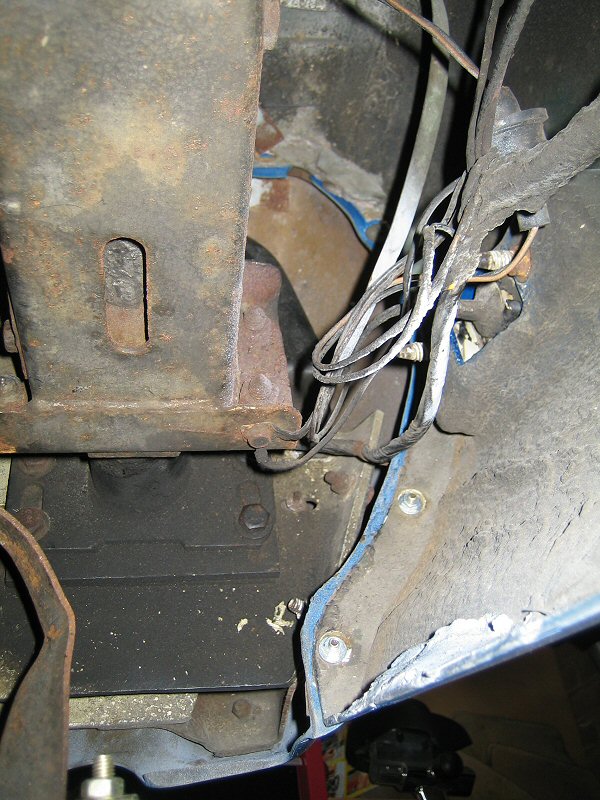

Larger earth for rear lights, aerial, gas tank etc. right at the rear of the chassis on the driver's side:
My guess is that the rear earth is dodgy.
When I bought my car the tach was also stuck. In my case it was simply because the tach wire wasn't plugged in to the distributor. Since then it's worked fine. If your problem isn't that then you might need a new tach circuit board.
1.
Main battery earth under the battery near the diff. (If this is bad then nothing should work.)
2.
Main starter motor/engine earth between engine block and passenger-side engine support chassis bracket. (Bad earth here means engine wouldn't start, no headlights, no wipers etc.)
3.
Small earth lead from driver's side #1 body mount to chassis, just behind the front wheel:
4.
Larger earth for rear lights, aerial, gas tank etc. right at the rear of the chassis on the driver's side:
My guess is that the rear earth is dodgy.
When I bought my car the tach was also stuck. In my case it was simply because the tach wire wasn't plugged in to the distributor. Since then it's worked fine. If your problem isn't that then you might need a new tach circuit board.
Burning Brakes
Joined: May 2005
Posts: 1,145
Likes: 5
From: South of London, Engerland
The pass side engine mount is my number 2 above.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Top 10 Corvette Engines RANKED by Peak Torque (70+ Years of Muscle!)
Joe Kucinski
Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!
Verdad Gallardo
Top 10 Corvettes Coming to Mecum Indy 2026!
Brett Foote
Top 10 C9 Corvette MUST-HAVES to Fix These C8 Generation Flaws!
Michael S. Palmer
10 Revolutionary 'Corvette Firsts' Most People Don't Know
Joe Kucinski
5 Reasons to Upgrade to an LS6-Powered Corvette; 5 Reasons to Stay LT2
Michael S. Palmer
6th Gear
Joined: Jul 2012
Posts: 6
Likes: 0
From: Tiverton RI
I also have a grounding problem on my 76 corvette.. I have checked the rear grounding point and it seems fine...My turn signals do not blink......new flasher..but when I turn on my left signal, my console light comes on.........................Help......... ...is there another ground point on the rear that I am missing?????????????????????
