second try poly A-arm rebuild (help)
Thread Starter
Burning Brakes
Joined: May 2006
Posts: 893
Likes: 7
From: Hazerswoude-Rijndijk Zuid Holland
second try poly A-arm rebuild (help)
How much space should there be between the shaft end and the bushing end of the a-arms. Should bushings be shortened. I have a set of energy suspension poly bushings. I'm not talking about the bushing only. I'm talking about the inner metal "tube" of the bushing and the end of the metal shaft. Is it correct that there is a cavity? I think there is a bout less then half an inch.
Here are some pictures Left = lower right is upper
Here are some pictures Left = lower right is upper
Pro
Joined: Feb 2006
Posts: 649
Likes: 10
From: Shelby Twp MI
When I did mine, I don't remember going into that level of detail. I simply tapped in one bushing into the a-arm, slid the shaft in until the shoulder bottomed out and then tapped in the other bushing. There is a torque requirement for the bolts though.
Thread Starter
Burning Brakes
Joined: May 2006
Posts: 893
Likes: 7
From: Hazerswoude-Rijndijk Zuid Holland
Hahaha, It's in the details Mr Watson, the details
I thought it was that kind of job also, but this stood out. I expected it to be like the upper, but this seems a bit big.
I thought it was that kind of job also, but this stood out. I expected it to be like the upper, but this seems a bit big.
Pro
Joined: Apr 2006
Posts: 733
Likes: 1
From: Coquitlam British Columbia
Cajos it has been some time since i did mine but there was definitely a trick to getting the poly bushings on easier.My problem is it is not fresh in my memory, but I believe I put the inner sleeve on first then grease it up with some poly grease then was able to slide the poly bushing over the inner sleeve and A arm with out much effort. I remember doing it with the sleeve pre positioned in the poly busing first which would seem the logical way and and it was a struggle, no way you could just press it on with your hands. So you might want to give it a try and see if that helps I know it made a world of difference for me.Experiment a bit until they go on easier as I do know there is a trick to it at least there was for me.
ikwhite
ikwhite
Thread Starter
Burning Brakes
Joined: May 2006
Posts: 893
Likes: 7
From: Hazerswoude-Rijndijk Zuid Holland
Guy's (ikwhite & thegazman) That is not the issue, "Getting them on".

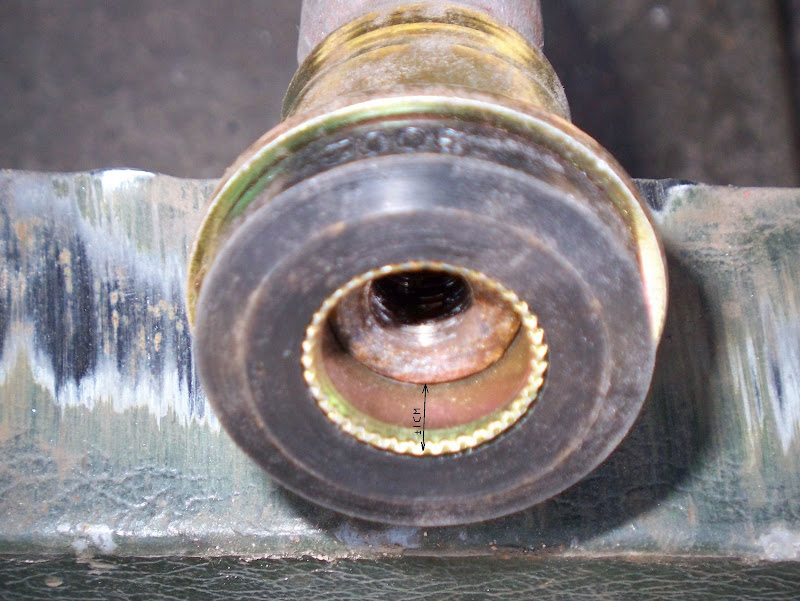

I'm just asking if the distance or gap is right or is the bushing too big? Look at the last pic, that's about halve an inch difference, between shaft and bushing!!
Thanks for your input any way!
I'm just asking if the distance or gap is right or is the bushing too big? Look at the last pic, that's about halve an inch difference, between shaft and bushing!!
Thanks for your input any way!
Tech Contributor
Joined: Aug 1999
Posts: 15,154
Likes: 3,959
From: Connecticut, USA
Are the shoulders on the cross shafts the same length? Sounds like a bushing issue. I've have problems with some ES products not being correct dimension,but I've never used poly A arm bushings. You don't want the end of the shaft out of the bushing or they won't tighten as you probably know.If too shallow you have to check to see how much thread will bite into it.
