Nedd information about valve stem dimensions
Thread Starter
Burning Brakes
Joined: Aug 2005
Posts: 1,164
Likes: 1
From: Europe, France
Nedd information about valve stem dimensions
I would like to replace my old valve stem seals.
Before ordering, I need to know the valve stem diameter and the valve guide diameter. The heads are bone stock, I have a SB 350, year is 1973, manual transmission.
Maybe I will buy aluminum heads next year, so I don't want to spend too many bucks on them... but I know valve stem seals are cheap.
I don't want to remove the heads. No blue smoke on acceleration, very little on startup, more on deceleration. The plugs do not oil foul, compression test is OK, but I noticed some oil on spark plug threads in cylinders #7 and #8 if I let the car sit for a few days.
Oil pump is new and oil pressure higher ( 40-65 PSI hot ),
Oil level is at max on the dipstick,
Oil weight is 20W40 ( synthetic ),
I have two breathers on valve covers ( no more PCV ), if anything has any possible influence ???
Other questions :
Do I need to replace the valve keepers too.
Recommendations about seals : Viton, umbrella, O-ring ( but no machine work ) ?
Before ordering, I need to know the valve stem diameter and the valve guide diameter. The heads are bone stock, I have a SB 350, year is 1973, manual transmission.
Maybe I will buy aluminum heads next year, so I don't want to spend too many bucks on them... but I know valve stem seals are cheap.
I don't want to remove the heads. No blue smoke on acceleration, very little on startup, more on deceleration. The plugs do not oil foul, compression test is OK, but I noticed some oil on spark plug threads in cylinders #7 and #8 if I let the car sit for a few days.
Oil pump is new and oil pressure higher ( 40-65 PSI hot ),
Oil level is at max on the dipstick,
Oil weight is 20W40 ( synthetic ),
I have two breathers on valve covers ( no more PCV ), if anything has any possible influence ???
Other questions :
Do I need to replace the valve keepers too.
Recommendations about seals : Viton, umbrella, O-ring ( but no machine work ) ?
Last edited by 73StreetRace; Jul 7, 2009 at 09:28 AM.
Thread Starter
Burning Brakes
Joined: Aug 2005
Posts: 1,164
Likes: 1
From: Europe, France
I ckecked the valve stem diameter after work. It's 11/32".
I still need to know the valve guide diameter, if somebone knows
I removed a valve cover and took a picture of the seals ( two different angles ) :
I still need to know the valve guide diameter, if somebone knows
I removed a valve cover and took a picture of the seals ( two different angles ) :
Le Mans Master
Joined: Nov 2008
Posts: 5,691
Likes: 12
From: columbus oh
your guides have been machined for the rubber type push on positive seals.....the 11/32 should fit but you may not know till you take off a spring and measure the guide od......are your springs in up side down?? or is this something new from comp cams?? they look like bee hives to me.....
Le Mans Master
Joined: Dec 2003
Posts: 5,727
Likes: 38
From: Fremont CA
Unless your valve guides have been machined for rubber seals, the factory Chevy seal is an O-ring and steel shield under the spring retainer. The 260/289 Ford motor had 11/32 diameter umbrella style seals that usually fit a stock Chevy cylinder head and can be sourced at a local automotive machine shop (the machine shop would probably give you the Chevy O-rings that come in every complete gasket set and are never used in a quality rebuild.)
Thread Starter
Burning Brakes
Joined: Aug 2005
Posts: 1,164
Likes: 1
From: Europe, France
Thanks for your help ! Don't know about the springs, when I bought the car 20 years ago, they were just like this, I never removed them
Do you mean the guides were not machined by GM at the factory ?
Do you mean the guides were not machined by GM at the factory ?
Le Mans Master
Joined: Nov 2008
Posts: 5,691
Likes: 12
From: columbus oh
Thread Starter
Burning Brakes
Joined: Aug 2005
Posts: 1,164
Likes: 1
From: Europe, France
Thanks ! I think I will first take off a spring before buying anything ( except a valve spring compressor ) and see what I have beneath...
Maybe I could try some BARDAHL "NO SMOKE" meanwhile...
) and see what I have beneath...Maybe I could try some BARDAHL "NO SMOKE" meanwhile...
Le Mans Master
Joined: Sep 2003
Posts: 8,812
Likes: 2,029
From: eastern NC

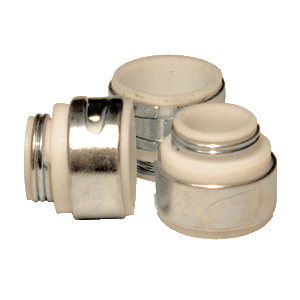

Your seals sure look a lot like the PC teflon seals that have been around for many years. If that is the case, the guides have been machined to accept them. Once you remove a spring you'll get a better picture of them.
If you have PC's you can get them from most good speed shops or go here and order them...
http://www.competitionproducts.com/products.asp?dept=45
Some will tell you these are best used on race motors as they do a better than average job and on a street engine you want a bit of oil to lube the guides. For a street engine these might be a better choice,

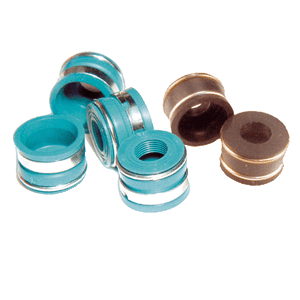

Viton Valve Seals, 11/32", Set of 16 $14.95 They will fit most stock valve guides.
http://www.competitionproducts.com/p...p?number=S5325
Good luck... GUSTO
If you have PC's you can get them from most good speed shops or go here and order them...
http://www.competitionproducts.com/products.asp?dept=45
Some will tell you these are best used on race motors as they do a better than average job and on a street engine you want a bit of oil to lube the guides. For a street engine these might be a better choice,
Viton Valve Seals, 11/32", Set of 16 $14.95 They will fit most stock valve guides.
http://www.competitionproducts.com/p...p?number=S5325
Good luck... GUSTO
