79 gauge circuit board help needed
Thread Starter
Melting Slicks
Joined: Sep 2010
Posts: 2,936
Likes: 2
From: Enraging liberals everywhere. Ocala,FL
79 gauge circuit board help needed
My gauges werent working so I pulled the gauge cluster out and found the wiring harness plug was only half plugged in. I can see some of the tabs on the cb were broken off. Im going to order a new cb. My question is about the open holes on the back. Should there be a light socket in each of the 3 open areas? Does it matter what color socket goes in each hole? I also see just to the right of where the plug goes in, theres a nut missing. Will I need to get a new one when I install the new cb? I just wanted to figure out what all I will need to order besides the cb. TIA......Dave
Last edited by C3Dave; Nov 14, 2010 at 04:23 PM. Reason: pic not working
Former Vendor
Joined: Aug 2006
Posts: 76,656
Likes: 1,851
From: Jeffersonville Indiana 812-288-7103
St. Jude Donor '08-'09-'10-'11-'12-'13-'14-'15
you have all the nuts in the right place. Looks like you just need to replace the printed circuit.
The housing show below has the low fuel warning module in it, and you have a bulb.. (upper left hand corner)... you should remove this bulb socket and place it in the one below where you are missing one. If you leave it where you have it the light will stay on all the time. In the two on the right hand side in the picture.. yes.. these need to be bulbs and not open holes.
Here is a link the printed circuit on the forum special section of the site too!
http://willcoxcorvette.com/advanced_...php?cPath=2059
The housing show below has the low fuel warning module in it, and you have a bulb.. (upper left hand corner)... you should remove this bulb socket and place it in the one below where you are missing one. If you leave it where you have it the light will stay on all the time. In the two on the right hand side in the picture.. yes.. these need to be bulbs and not open holes.
Here is a link the printed circuit on the forum special section of the site too!
http://willcoxcorvette.com/advanced_...php?cPath=2059
Last edited by Willcox Corvette; Nov 14, 2010 at 04:55 PM.
Former Vendor
Joined: Aug 2006
Posts: 76,656
Likes: 1,851
From: Jeffersonville Indiana 812-288-7103
St. Jude Donor '08-'09-'10-'11-'12-'13-'14-'15
We have them.. they are 5.90 each.. if you need them added, call sales at 800-588-3883 and/or send Tommy an email at willcox@willcoxcorvette.com.
post here too.. I'll be checking in off and on.
Willcox
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Top 10 Corvette Engines RANKED by Peak Torque (70+ Years of Muscle!)
Joe Kucinski
Corvette ZR1X Will Be Pacing the Indy 500, And Could Probably Race, Too!
Verdad Gallardo
Top 10 Corvettes Coming to Mecum Indy 2026!
Brett Foote
Race Director
Joined: May 2006
Posts: 16,528
Likes: 53
From: Dayton, Ohio
Former Vendor
Joined: Aug 2006
Posts: 76,656
Likes: 1,851
From: Jeffersonville Indiana 812-288-7103
St. Jude Donor '08-'09-'10-'11-'12-'13-'14-'15

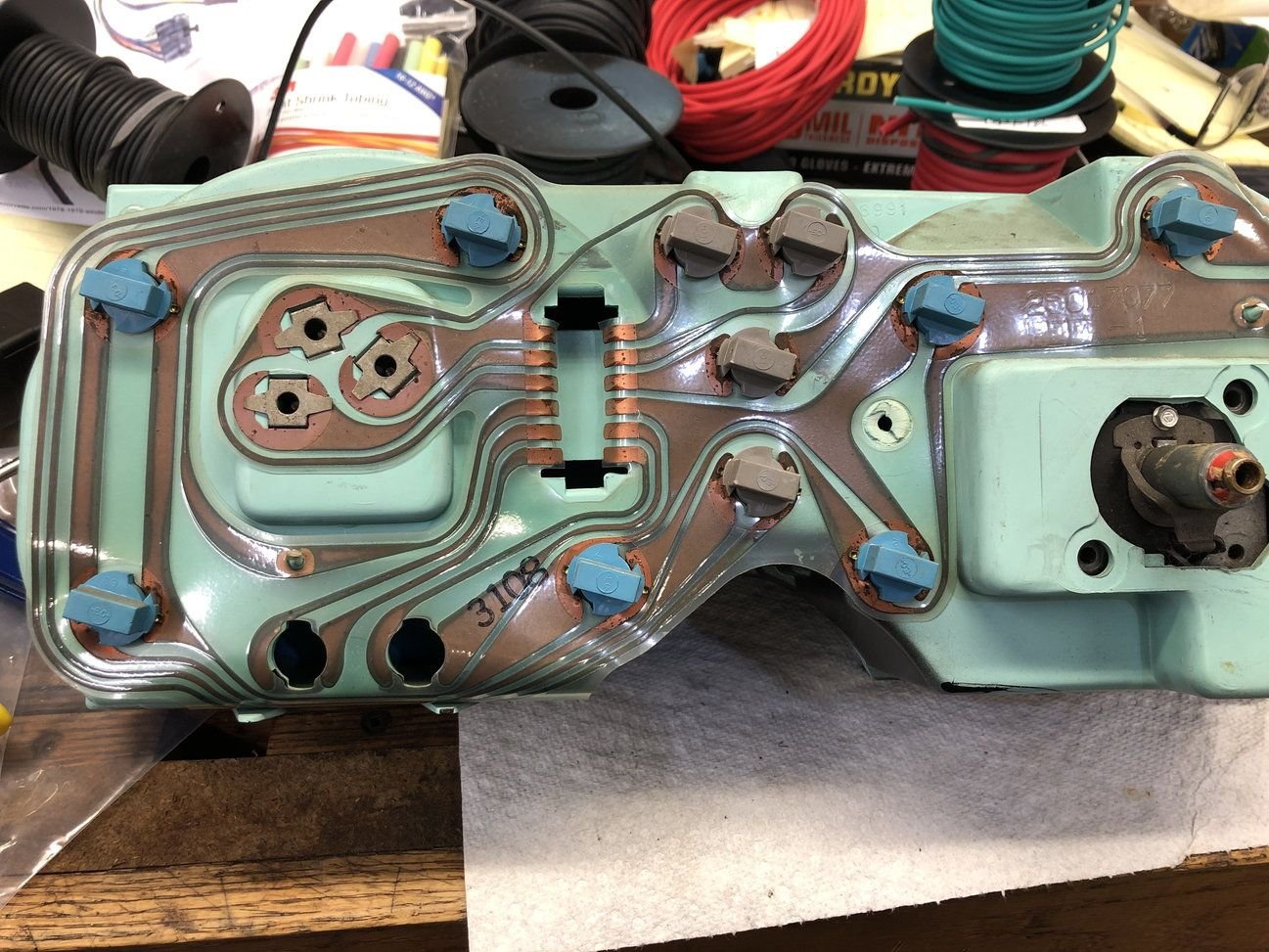

Nothing is traced out on the circuit like the one above, but with these pictures figuring it out should be a snap. If not... Post again. I'll be here
Melting Slicks
Joined: Apr 2002
Posts: 2,337
Likes: 14
From: Norfolk VA
Thanx. I have no dash lights and when I pulled my instrument cluster, I also noticed that some of the thin copper "lines" were broken as well as the one of the ones where the connector fits into was folded over. I'm going to purchase another circuit board. I suspect I have a problem in the wiring but since the circuit board I have is in bad shape. Thanx again.
Former Vendor
Joined: Aug 2006
Posts: 76,656
Likes: 1,851
From: Jeffersonville Indiana 812-288-7103
St. Jude Donor '08-'09-'10-'11-'12-'13-'14-'15
Sarge, here is the link to the circuit in the forum sale section. http://willcoxcorvette.com/product_i...ducts_id=25310
