Clutch stud location
Thread Starter
Melting Slicks
Joined: Dec 2009
Posts: 3,233
Likes: 657
From: Thunder Bay
Clutch stud location
I have the engine out of my '79 and I want to do a few things to prepare it for the conversion to a manual transmission, even though it may be a while before I actually complete the swap. I have the stud that goes on the engine for the clutch cross-shaft and I want to install it on the engine. My block has two threaded holes that will accept the stud. One is just over the oil filter, about two inches in front of the bellhousing mounting surface of the block. The other is about 8 inches in front of that, just under the dipstick hole. Which one does the clutch stud go into?
Safety Car
Joined: Oct 2005
Posts: 3,570
Likes: 1
From: Algonac Michigan
I believe the one 8" in front of the oil filter is the one you want but to be sure do some measuring and which ever one puts the bar parallel to the firewall is the one you want.
Last edited by sly vette; Dec 26, 2012 at 07:23 PM.
Thread Starter
Melting Slicks
Joined: Dec 2009
Posts: 3,233
Likes: 657
From: Thunder Bay
Thanks, but that doesn't really help because the engine isn't in the car and there is no bracket to mount the other end of the bar yet anyway. Anybody know for sure?
Le Mans Master
Joined: Oct 2006
Posts: 7,123
Likes: 433
From: Gladstone MO
C3 of Year Finalist (appearance mods) 2019
I'll vote for over the oil filter. At the worst, it's in the wrong hole, you have to unscrew it and put it in the other hole. The AIM will show it too. Or at least the location on the frame.
Thread Starter
Melting Slicks
Joined: Dec 2009
Posts: 3,233
Likes: 657
From: Thunder Bay
AIM doesn't show that. I looked. And its a bear to to get at with the engine in the car, and the headers installed. I'm trying to avoid those problems. I'm hoping someone will look at their car for me.
Drifting
Joined: Apr 2007
Posts: 1,970
Likes: 45
From: Cameron Park CA
Here you go. On my '69 the stud is almost directly below the dispstick. I would think all C3s are that way.

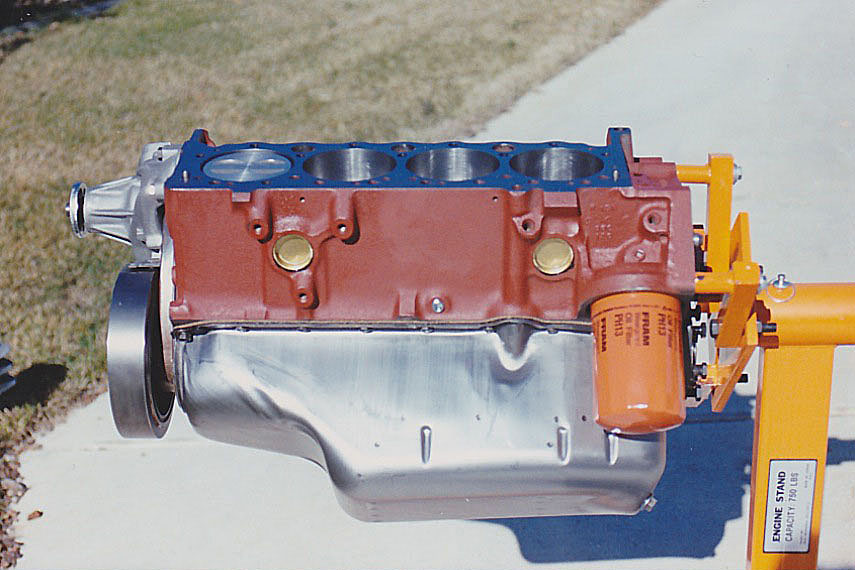

For reference, in this photo of my engine out of the car, it's the hole above and to the left of the rear freeze plug. That rear hole above the oil filter is way too far back to work in a Corvette.
Pete
For reference, in this photo of my engine out of the car, it's the hole above and to the left of the rear freeze plug. That rear hole above the oil filter is way too far back to work in a Corvette.
Pete
Thread Starter
Melting Slicks
Joined: Dec 2009
Posts: 3,233
Likes: 657
From: Thunder Bay
Here you go. On my '69 the stud is almost directly below the dispstick. I would think all C3s are that way.
For reference, in this photo of my engine out of the car, it's the hole above and to the left of the rear freeze plug. That rear hole above the oil filter is way too far back to work in a Corvette.
Pete
For reference, in this photo of my engine out of the car, it's the hole above and to the left of the rear freeze plug. That rear hole above the oil filter is way too far back to work in a Corvette.
Pete
