bircage bracket missing

Reply



Thread Tools Search this Thread
Old 11-28-2014, 11:01 PM   #1
69C3dreaming
CF Senior Member
Thread Starter

Member Since: Feb 2013
Location: MD
Posts: 125
Thanked 4 Times in 4 Posts
Default bircage bracket missing

The borrowed picture shows a bracket, at the top of the lock pillars. AIM shows that to be correct for convertibles, but my car doesn't have that bracket? Anyone know why my 69 convertible doesn't have any brackets?
Attached Images

69C3dreaming is offline   Reply With Quote
Old 11-29-2014, 08:29 AM   #2
Alan 71
CF Senior Member

Alan 71's Avatar

Member Since: Sep 2006
Location: Westminster Maryland
Posts: 28,292
Thanks: 0
Thanked 2,081 Times in 1,845 Posts
Default

Hi 69,
What year car is that pic from?
The 71 AIM shows a bracket bolted to the top of the lock pillar but it's quite different in configuration than that one.
What does the top of your hinge pillar look like?
Is something, or do you have reason to think, something, is missing?
Regards,
Alan

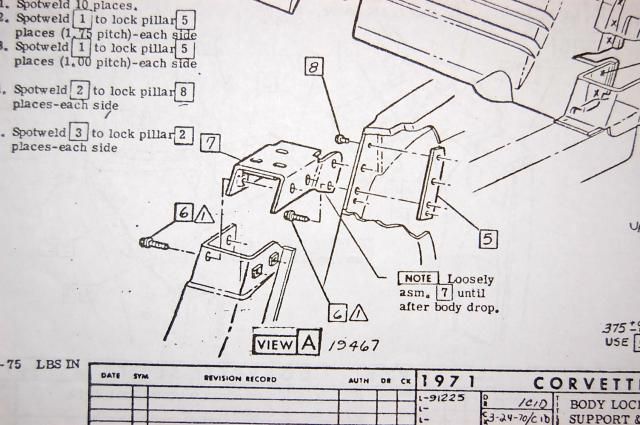

Here's the 71 AIM detail.
Alan 71 is online now   Reply With Quote
Old 11-29-2014, 11:26 AM   #3
69C3dreaming
CF Senior Member
Thread Starter

Member Since: Feb 2013
Location: MD
Posts: 125
Thanked 4 Times in 4 Posts
Default

Quote:
Originally Posted by Alan 71 View Post
Hi 69,
What year car is that pic from?
The 71 AIM shows a bracket bolted to the top of the lock pillar but it's quite different in configuration than that one.
What does the top of your hinge pillar look like?
Is something, or do you have reason to think, something, is missing?
Regards,
Alan

Here's the 71 AIM detail.
Hi Alan,
Thanks for the reply. The picture was posted by another forum member who listed as a 69. I took notice my car didn't have those brackets. My VIN is 708,1xx so I wasn't sure if maybe it's an early/late production thing?
69C3dreaming is offline   Reply With Quote
Old 11-29-2014, 01:21 PM   #4
JC68
CF Senior Member
Support Corvetteforum!

Member Since: Nov 2014
Posts: 326
Thanked 59 Times in 47 Posts
Default

69c3dreaming

It could be a change during the model year, my 68 convert does not have the bracket you show, but my 69 vin 10,3xx does.

John
JC68 is offline   Reply With Quote
Old 11-29-2014, 03:01 PM   #5
Alan 71
CF Senior Member

Alan 71's Avatar

Member Since: Sep 2006
Location: Westminster Maryland
Posts: 28,292
Thanks: 0
Thanked 2,081 Times in 1,845 Posts
Default

Hi,
What John posted certainly makes sense,
It appears that it went from no bracket (68), to the bracket in the photo (later 69), to a more elaborate bracket in the later AIM (70-71?)
Notice the note for item #7, the bolts #6, and the bolt #8 which seems to be the purpose of the bracket.
Regards,
Alan
Alan 71 is online now   Reply With Quote
Old 11-29-2014, 05:42 PM   #6
69C3dreaming
CF Senior Member
Thread Starter

Member Since: Feb 2013
Location: MD
Posts: 125
Thanked 4 Times in 4 Posts
Default

Thnx JC68 and Alan71. I was hoping that was the case. I also found AIM shows a rectangular interior light in the rear but mine only had a single bulb attached at the decklid spring. All indication it was also changed by the factory part way through 69 production. Once again Thnx for the help.
69C3dreaming is offline   Reply With Quote
