Timing marks
On a 72 Coupe 350ci,...
I am trying to determine where the top dead center mark is. I see the sawtooth plate that has about a 1/4 hole in it. I have a timing strobe (in a dusty box)
The plate and harmonic balancer have been painted and I don't see any degree markings that I am used to. i.e. +4, +2, 0, -2, -4, etc.
What should the correct timing be and how do i know what it is by looking at the plate?
Almost everything is original except for the electronic convertor instead of points.
I am trying to determine where the top dead center mark is. I see the sawtooth plate that has about a 1/4 hole in it. I have a timing strobe (in a dusty box)
The plate and harmonic balancer have been painted and I don't see any degree markings that I am used to. i.e. +4, +2, 0, -2, -4, etc.
What should the correct timing be and how do i know what it is by looking at the plate?
Almost everything is original except for the electronic convertor instead of points.
Thread Starter
Instructor
Joined: Nov 2014
Posts: 183
Likes: 0
From: Belmont NC
St. Jude Donor '15
Thread Starter
Instructor
Joined: Nov 2014
Posts: 183
Likes: 0
From: Belmont NC
St. Jude Donor '15
I stand corrected, sticker is there....says 8 degress BTDC at 800 RPM. However, I'll need to rig the power for the timing light.
Last edited by mtnance; May 29, 2015 at 07:37 PM. Reason: sticker there
Le Mans Master
Joined: Oct 2006
Posts: 7,123
Likes: 433
From: Gladstone MO
C3 of Year Finalist (appearance mods) 2019
For power clip the red lead to the output stud on the alternator and ground the other to a bolt head on the engine.
USe the center of the 1/4 hole as zero *- Ususally the biggest "Tooth" on the tab is centered on it.
USe the center of the 1/4 hole as zero *- Ususally the biggest "Tooth" on the tab is centered on it.
Thread Starter
Instructor
Joined: Nov 2014
Posts: 183
Likes: 0
From: Belmont NC
St. Jude Donor '15
That makes sense and I'm not sure why I didn't think of that. Thanks. Been a long week.
Advanced
Joined: Oct 2012
Posts: 76
Likes: 0
From: Pittsburgh PA

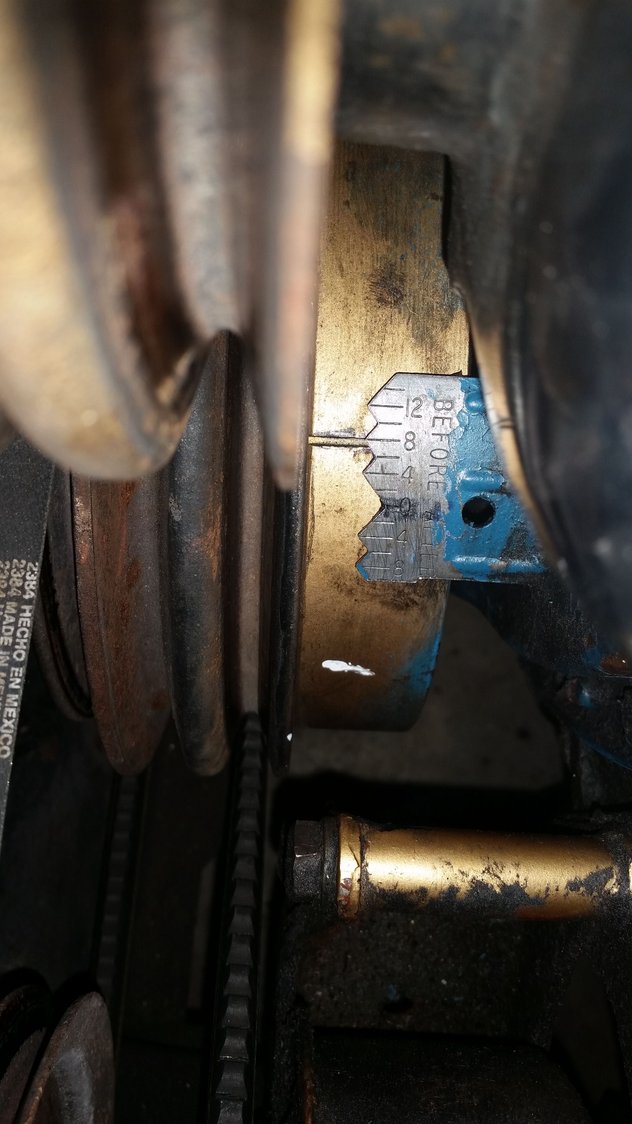

Just timed my 77 the other day. I had to wipe paint off to see the degrees. 8○ btdc initially set by crankshaft with engine off in picture and then set timing to about +26○ at 3000rpm and then connect vacuum. 36○ total timing is what it is supposed to be and a good timing light with degrees helps which I do not have but I am close at 34○. -8 to +26○ =34○ range. The white spot I made is 36 degrees. I should have made it at 28 degrees.
I also used jumper cables to connect the timing light.
Last edited by JEBSi; May 30, 2015 at 12:51 AM.
Corvette Stories
The Best of Corvette for Corvette Enthusiasts
Top 10 Most Expensive Corvettes Ever Sold on Bring A Trailer
Brett Foote
10 Things Every Corvette Owner Needs (2026 Edition)
Michael S. Palmer
8 Most "Only Corvette Owners Understand" Quirks and Problems
Pouria Savadkouei
10 Reasons the C6 Z06 is Still A Performance Benchmark After 20 Years
Joe Kucinski
How Much Horsepower Every Corvette Engine "LOST" in 1972
Joe Kucinski
Top 10 DOs and DON'Ts for Protecting Your Convertible Top!
Michael S. Palmer
Top 10 Most Explosive Corvettes Ever Made: Power-to-Weight Ratio Ranked!
Joe Kucinski
150 hp to 1,250 hp: Every Corvette Generation Compared by the Specs That Matter
Joe Kucinski
8 Coolest Corvette Pace Cars (and Replicas) of All Time
Verdad Gallardo
Drifting
Joined: Oct 2005
Posts: 1,615
Likes: 150
From: Forth Worth TX
Just timed my 77 the other day. I had to wipe paint off to see the degrees. 8○ btdc initially set by crankshaft with engine off in picture and then set timing to about +26○ at 3000rpm and then connect vacuum. 36○ total timing is what it is supposed to be and a good timing light with degrees helps which I do not have but I am close at 34○. -8 to +26○ =34○ range. The white spot I made is 36 degrees. I should have made it at 28 degrees.
You should set the timing for 36*@3000rpm with the vacuum disconnected. Once that is established all you have to do is re-connect your vacuum. It doesn't matter where your timing ends up at idle. It's the 36*@3000rpm (mechanical, no vacuum) that's important.
In my 1970 I have 36*@3000rpm with no vacuum. When I release the throttle and the engine goes back to idle, I have around 12*-14* with no vacuum. Once I re-connect the vacuum the idle timing will then go up to around 24*. You will most likely need to re-adjust your idle screw because the idle will increase with that amount of timing in it.
Last edited by Revi; May 30, 2015 at 08:59 AM.
Thread Starter
Instructor
Joined: Nov 2014
Posts: 183
Likes: 0
From: Belmont NC
St. Jude Donor '15
Not sure if I understand what you are trying to say (26*@3000rpm, no vacuum?), but I think you are doing it wrong.
You should set the timing for 36*@3000rpm with the vacuum disconnected. Once that is established all you have to do is re-connect your vacuum. It doesn't matter where your timing ends up at idle. It's the 36*@3000rpm (mechanical, no vacuum) that's important.
In my 1970 I have 36*@3000rpm with no vacuum. When I release the throttle and the engine goes back to idle, I have around 12*-14* with no vacuum. Once I re-connect the vacuum the idle timing will then go up to around 24*. You will most likely need to re-adjust your idle screw because the idle will increase with that amount of timing in it.
You should set the timing for 36*@3000rpm with the vacuum disconnected. Once that is established all you have to do is re-connect your vacuum. It doesn't matter where your timing ends up at idle. It's the 36*@3000rpm (mechanical, no vacuum) that's important.
In my 1970 I have 36*@3000rpm with no vacuum. When I release the throttle and the engine goes back to idle, I have around 12*-14* with no vacuum. Once I re-connect the vacuum the idle timing will then go up to around 24*. You will most likely need to re-adjust your idle screw because the idle will increase with that amount of timing in it.
What's caused me to be wonder: it idles just a tad rougher than I think it should. Still has the power though at 30 mph. I can drop to 3rd gear and floor it without any hesitation or delay in the engine.
Advanced
Joined: Oct 2012
Posts: 76
Likes: 0
From: Pittsburgh PA
Not sure if I understand what you are trying to say (26*@3000rpm, no vacuum?), but I think you are doing it wrong.
You should set the timing for 36*@3000rpm with the vacuum disconnected. Once that is established all you have to do is re-connect your vacuum. It doesn't matter where your timing ends up at idle. It's the 36*@3000rpm (mechanical, no vacuum) that's important.
In my 1970 I have 36*@3000rpm with no vacuum. When I release the throttle and the engine goes back to idle, I have around 12*-14* with no vacuum. Once I re-connect the vacuum the idle timing will then go up to around 24*. You will most likely need to re-adjust your idle screw because the idle will increase with that amount of timing in it.
You should set the timing for 36*@3000rpm with the vacuum disconnected. Once that is established all you have to do is re-connect your vacuum. It doesn't matter where your timing ends up at idle. It's the 36*@3000rpm (mechanical, no vacuum) that's important.
In my 1970 I have 36*@3000rpm with no vacuum. When I release the throttle and the engine goes back to idle, I have around 12*-14* with no vacuum. Once I re-connect the vacuum the idle timing will then go up to around 24*. You will most likely need to re-adjust your idle screw because the idle will increase with that amount of timing in it.
Melting Slicks
Joined: Oct 2003
Posts: 2,187
Likes: 830
From: Chapel Hill NC
2025 c3 ('68-'73) of the Year Finalist - Unmodified
2025 C4 of the Year Finalist - Unmodified
2025 C8 Stingray of the Year Finalist - Unmodified
Try setting it to 36 at 3000 and let the initial timing be what ever it is at that point.
I recently bought a craftsman digital degree timing light and have been kicking myself ever since for not getting it sooner.
I recently bought a craftsman digital degree timing light and have been kicking myself ever since for not getting it sooner.
Drifting
Joined: Oct 2005
Posts: 1,615
Likes: 150
From: Forth Worth TX
The above should be done with the engine at full operating temperature, choke off, etc..
